Simon SILVER EAGLE SERIES ELECTRIC Service Manual – PDF DOWNLOAD
FILE DETAILS:
Simon SILVER EAGLE SERIES ELECTRIC Service Manual – PDF DOWNLOAD
Language : English
Pages :81
Downloadable : Yes
File Type : PDF

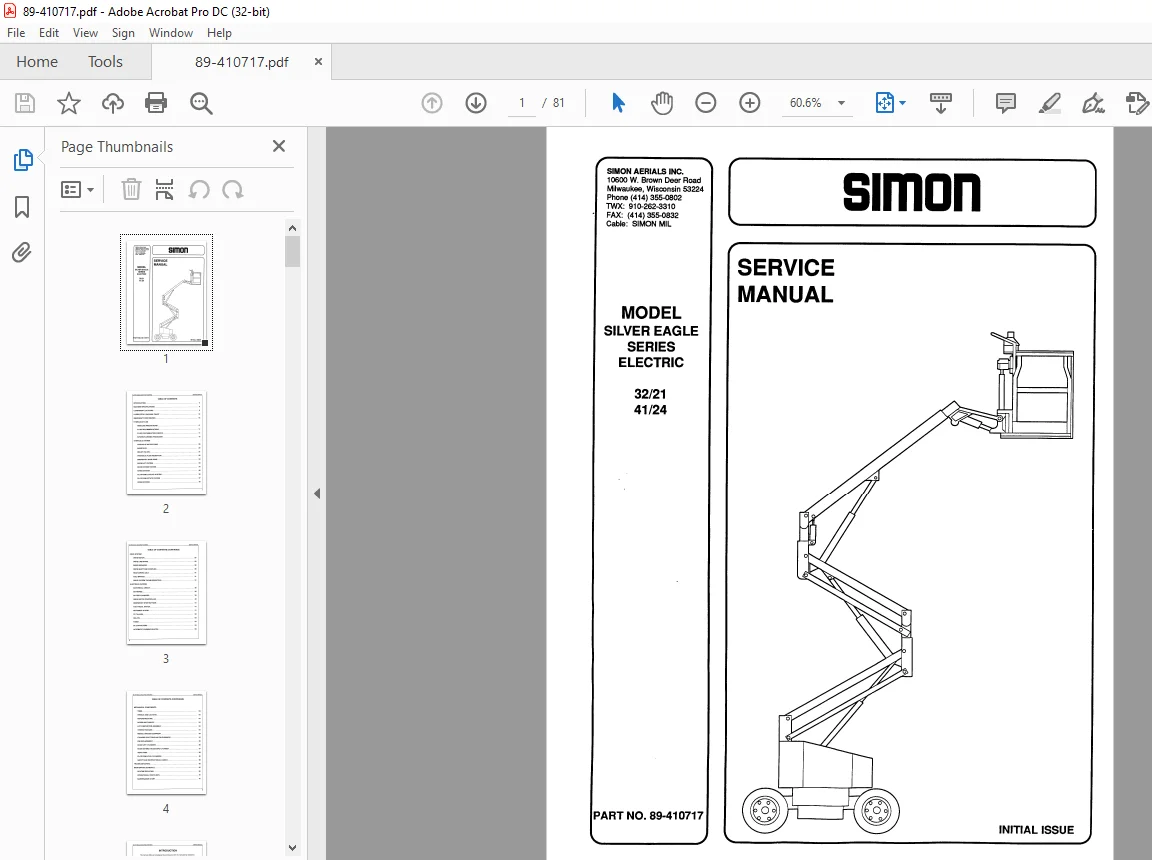

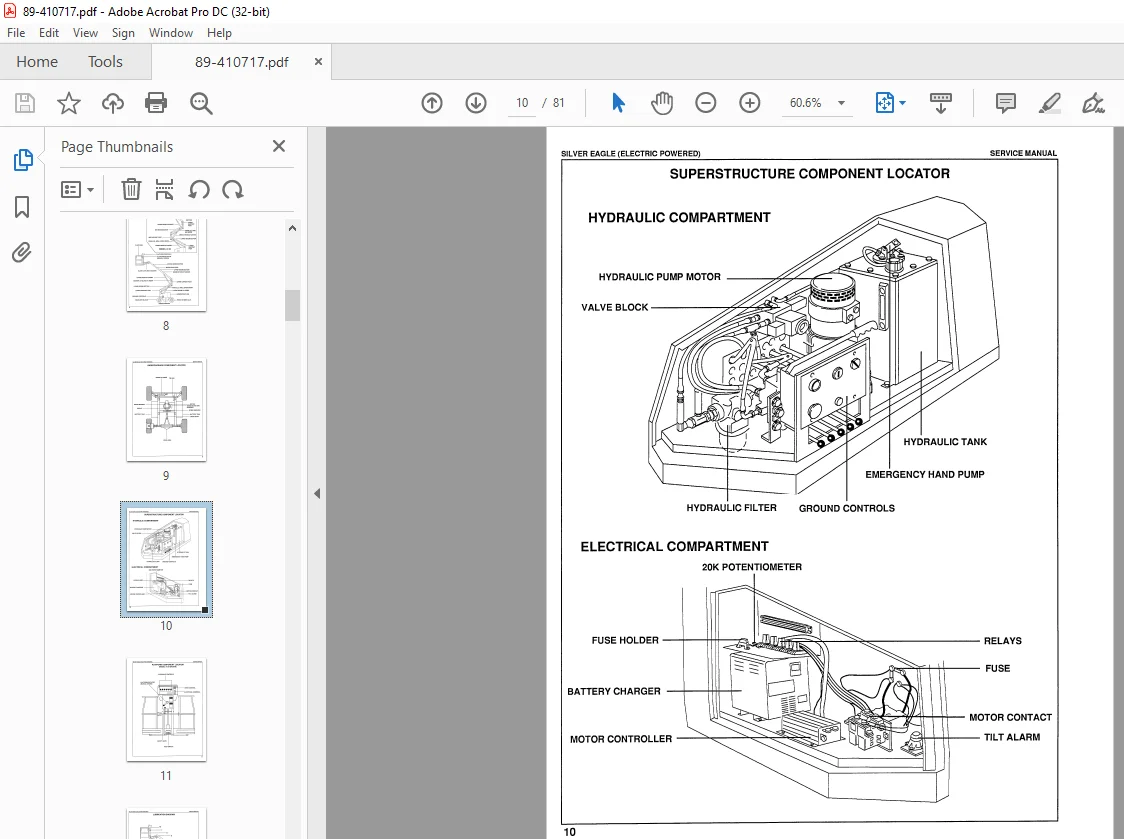

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Simon SILVER EAGLE SERIES ELECTRIC Service Manual – PDF DOWNLOAD
INTRODUCTION MACHINE SPECIFICATIONS
COMPONENT LOCATORS
COMPONENT LOCATORS
LUBRICATION DIAGRAM/ CHART
EMERGENCY PROCEDURES
HYDRAULIC FLUID
HANDLING PRECAUTIONS
FLUID RECOMMENDATIONS FLUID CONTAMINATION CHECKS
SYSTEM FLUSHING PROCEDURE
SYSTEM FLUSHING PROCEDURE
HYDRAULIC SYSTEM
HYDRAULIC MOTOR PUMP
MANIFOLDS
RELIEF VALVES
HYDRAULIC FLUID RESERVOIR EMERGENCY HAND PUMP
BOOM LIFT SYSTEM
BOOM LIFT SYSTEM
BOOM EXTEND SYSTEM
SWING SYSTEM
PLATFORM LEVELING SYSTEM
PLATFORM ROTATE SYSTEM
STEER SYSTEM
DRIVE SYSTEM
DRIVE SYSTEM
DRIVE MOTOR DRIVE LINE BRAKE
SPEED REDUCER
SPEED REDUCER
DRIVE SHAFT AND COUPLING
REAR (DRIVE) AXLE
AXLE BRAKES
DRIVE SYSTEM TROUBLESHOOTING
ELECTRICAL SYSTEM
ELECTRICAL CIRCUIT
BATTERIES
BATTERY CHARGER
DRIVE MOTOR CONTROLLER
EMERGENCY STOP BUTTONS
FOOT PEDAL SWITCH
MOVEMENT ALARM
TI LT ALA RM
RELAVS
FUSES
DC CONTACTORS
AUTOMATIC WARNING BEACON
MECHANICAL COMPONENTS
TlRES
WHEELS AND LUG NUTS
SUPERSTRUCTURE
HOSES AND CABLES
LIFT PUMP MOTOR ASSEMBLY
TOWING PACKAGE
MISCELLANEOUS EQUIPMENT
CYLINDER PIVOT PINS AND PIN BUSHINGS
PIN REPLACEMENT
BOOM LIFT CYLINDERS
BOOM EXTEND (TELESCOPE) CYLINDER
WEAR PADS ,
PLATFORM LEVEL CYLINDERS
SAFETY AND INSTRUCTIONAL LABELS
TROUBLESHOOTING
MAINTENANCE SCHEDULE
ROUTINE SERVICING ,
OPERATIONAL CHECKLISTS
MAINTENANCE CHART
