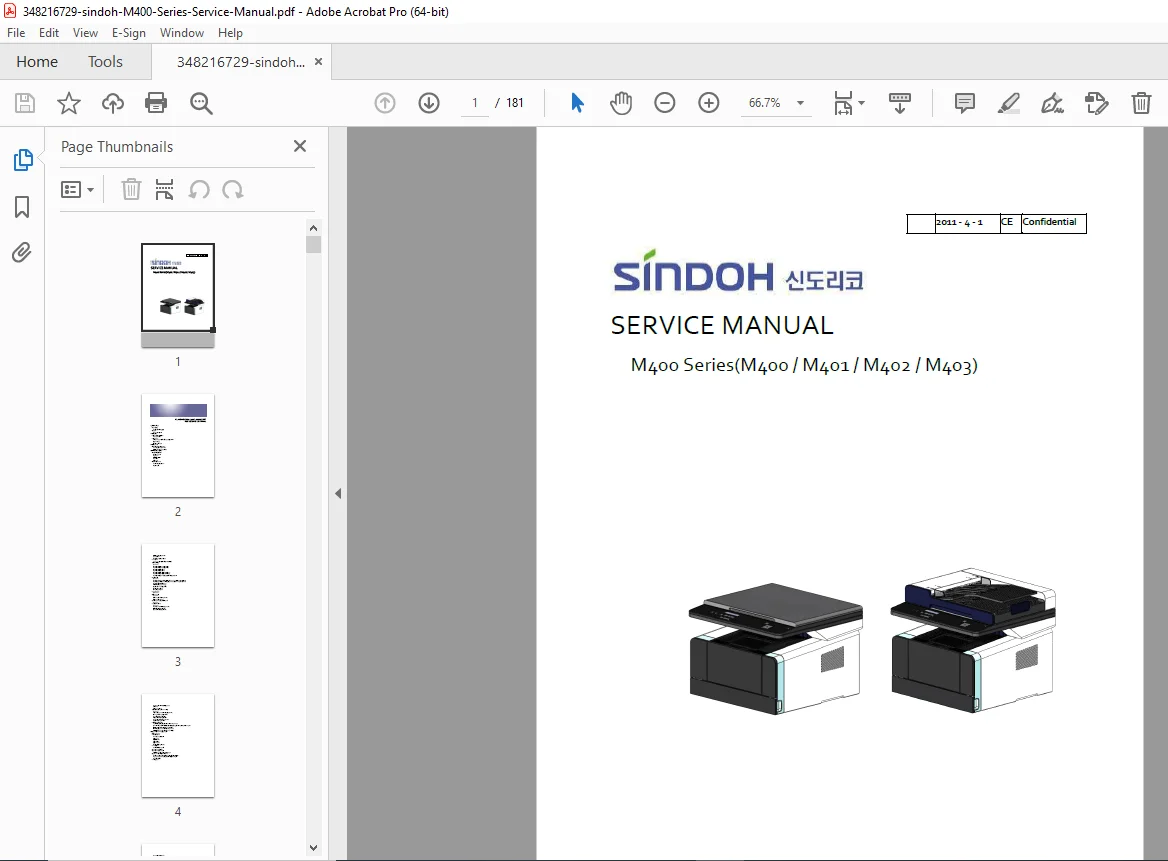

Sindoh M400/M401/M402/M403 Service Manual (M400 Series) PDF

Description

This Sindoh M400 Series (M400 / M401 / M402 / M403) Field Service Manual is the technician’s guide for diagnosing, servicing, and repairing the M400-series MFP platform. It includes complete system explanations, mechanical teardown procedures, board-level component coverage, and structured troubleshooting tools—ideal for workshop repair, maintenance checks, and part replacement.

🔧 What this manual helps you do

• Perform correct installation checks and setup (including environment requirements)

• Follow preventive maintenance and replace user-serviceable items (toner/drum life cycles)

• Understand the full print process: electrification → exposure → development → transfer → cleaning

• Troubleshoot paper feed, duplex, registration, and jam detection

• Service critical units: laser/LSU, drive gears, fusing unit, rollers, sensors, motors, fans

• Repair scan systems: flatbed scanner (CIS), ADF assemblies, drive/timing belt

• Use service menus & diagnosis modes, error codes/messages, and structured troubleshooting

🗂️ Table of Contents (Neatly Categorized)

1) Specifications & Options

• Main body specs (M400/M401/M402/M403)

• Duplex unit + paper feed unit/options

2) Installation

• Installing conditions & environment requirements

• Unpacking + checking components

• Option tray installation

• Image cartridge installation

3) Maintenance

• Preventive maintenance

• User replaceable items (toner/drum) + other maintenance items and life cycles

4) Detailed Description

• Image process: electrification, exposure, development, transfer, cleaning

• Printer overview: components & paper path

• Motors, sensors, solenoids, lamps, thermostat/thermistor

• Drive chain & gear train

• Laser unit structure/optical path

• AIO cartridge: drum/toner structure, drive, applied voltages, replacement

• Paper feed: main tray, MPT, duplex, registration

• Fusing unit + temperature control/overheat prevention

• Delivery unit + duplex reverse/forward operation

• Control panel overview

• Flatbed scanner (CIS) + drive/optical system

• ADF overview + assemblies and A3 scan components

• System electronics: System card, UICC, FAX, LVPS, HVPS

5) Replacement & Adjustment

• Covers/doors removal

• Laser unit removal

• Main driving motor/gear unit

• Drum & development unit separation

• Transfer roller

• Fusing unit removal (lamp/thermostat/fuse)

• Feed rollers/pads/sensors (main tray, MPT, option tray)

• Registration roller/guide

• Duplex unit removal

• Main board / PDU

• ADF service (pads, guides, motor, clutch)

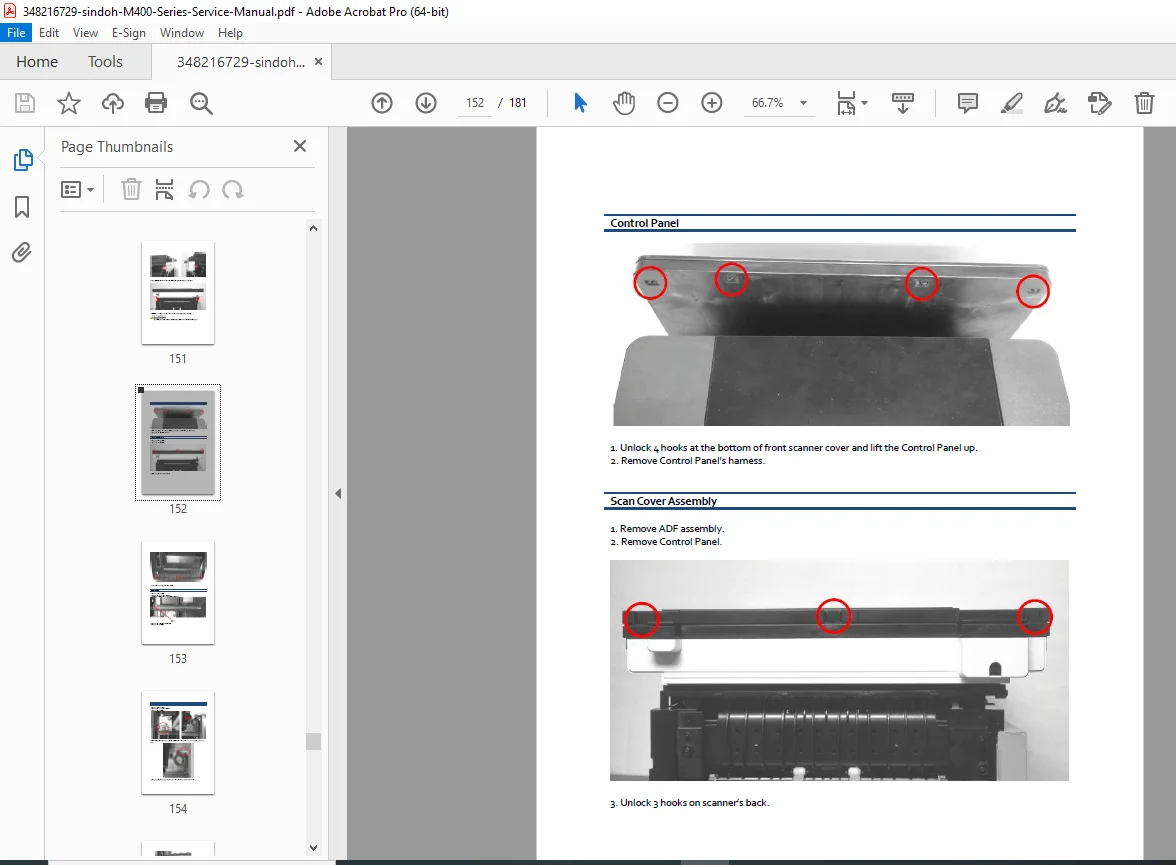

• Scanner flatbed assemblies (control panel, CIS, drive assembly)

6) Troubleshooting & Service Mode

• Error messages & error codes

• Service error code list

• User messages + paper jam messages

• Service menu / diagnosis menu / diagnosis mode

• Optional tray software upgrade (download)

📄 File Details

Download the Sindoh M400 Series Service Manual PDF and troubleshoot faster with clear teardown steps, diagnostics, and repair procedures—instant download so you can start servicing immediately.
