Sisu Truck Axles MP-330 Drive Gear Maintenance Manual – PDF DOWNLOAD

Description

Sisu Truck Axles MP-330 Drive Gear Maintenance Manual – PDF DOWNLOAD

FILE DETAILS:

Sisu Truck Axles MP-330 Drive Gear Maintenance Manual – PDF DOWNLOAD

Language : English
Pages : 23
Downloadable : Yes
File Type : PDF

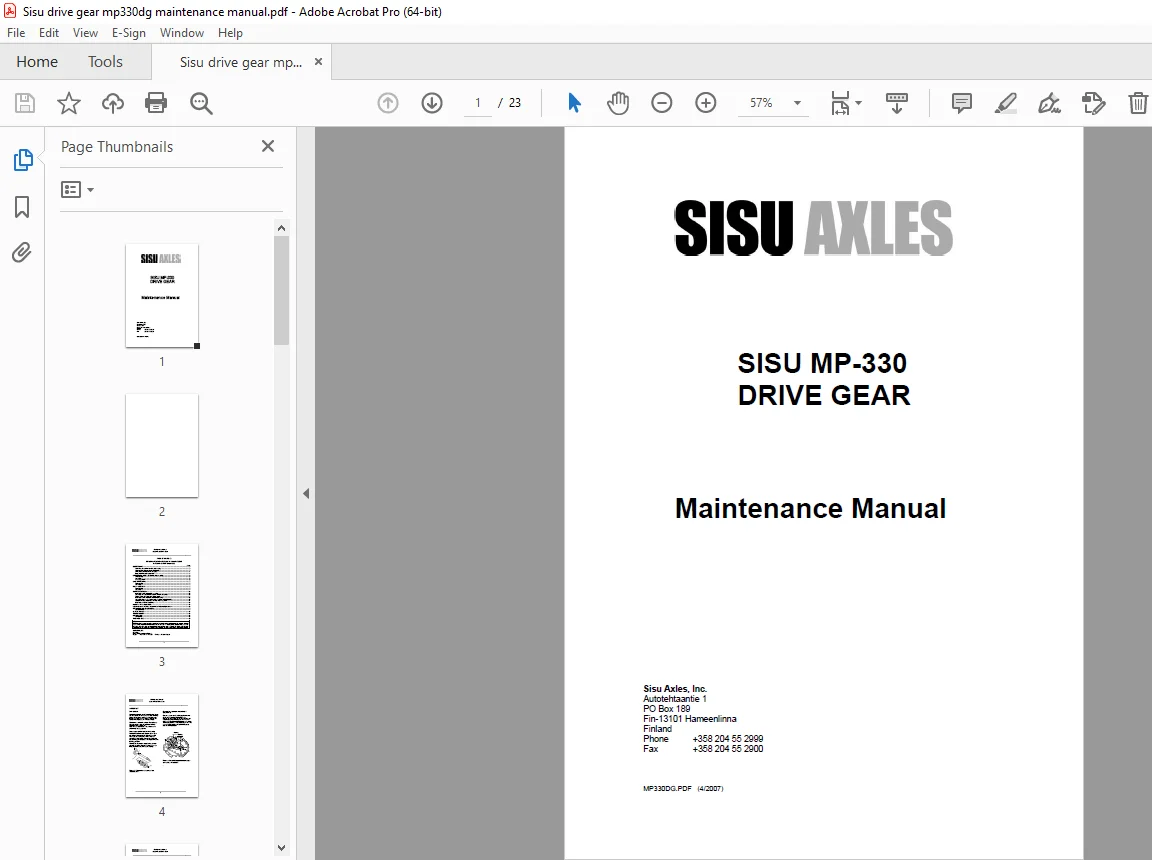

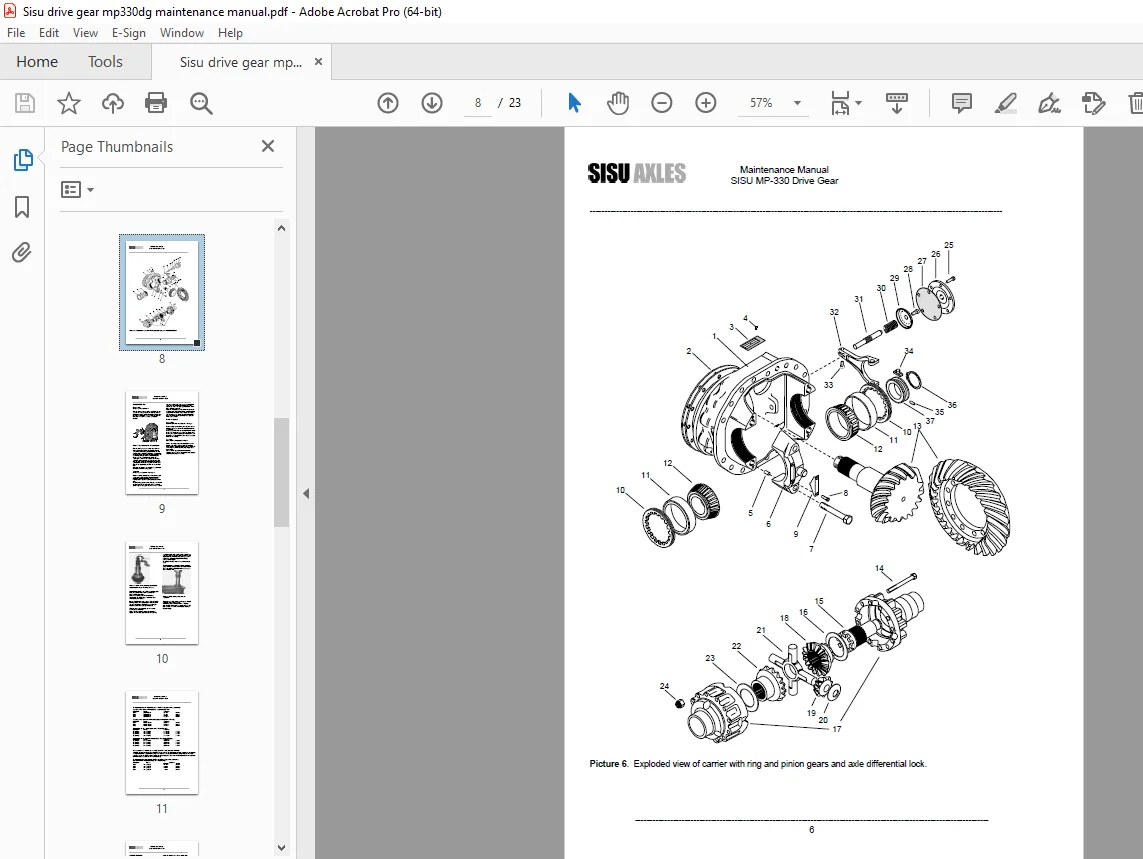

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Sisu Truck Axles MP-330 Drive Gear Maintenance Manual – PDF DOWNLOAD

CARRIER UNIT2
Removing the carrier from the axle housing2
Disassembly of the inter-axle differential 2
Dismantling the input shaft and parts 4
Inter-axle differential assembly 4
DIFFERENTIAL LOCKS (Both inter-axle and axle)5
Disassembly 5
Assembly 5
Lock Adjustment5
AXLE DIFFERENTIAL7
Disassembly 7
Assembly 7
PINION ASSEMBLY 7
Disassembly 7
Assembly 7
CARRIER ASSEMBLY10
Installation of the differential assembly 10
Assembly and adjustment of gear backlash and contact10
Replacement of the ring and pinion gears11
Installation of the inter-axle differential housing13
Assembly of the drop gear including the inter-axle differential 13
Adjustment of gear backlash on inter-axle differential14
Installation of carrier assembly 16
Installation of the output shaft16
Adjustment of the inter-axle differential lock indicator light sender16
OIL CHECKS AND OIL CHANGES17
Differential oils17
SPECIAL TOOLS18
TORQUE VALUES18
LUBRICATION18
Oil volumes 18
TECHNICAL DATA19

DESCRIPTION:

Sisu Truck Axles MP-330 Drive Gear Maintenance Manual – PDF DOWNLOAD

Disassembly:

• Items in text are for picture . Remove bearing adjustment nut lock plates  and unscrew the bearing adjustment nuts  turn. Make punch marks on the side bearing caps  and the adjacent main case to ensure that the caps are reinstalled in the same way they we originally installed

Assembly:

• Items in text are for picture  on Page . Prior to assembly, ensure that all components to be reused are in good condition without exception. If bearings are being replaced, press the outer bearing cones (12) onto the differential case halves (17). Install the ring gear side of the differential case half in the ring gear.
• Put the differential lock engagement sleeve  and side gear with the thrust washer  into the case half. Place the differential spider gears  with their thrust washers  on the spider
• Place the spider gear assembly on the side gear in the case half. Place the other side gear  with its thrust washer on the top of the spider gears. Install the upper case half with the punch marks aligned and install cap screws  and nuts . Use Loctite locking liquid and tighten nuts to 320 Nm [236 lb ft] torque. Always use new nuts.
