Skyjack SJ46AJ SJ51AJ Articulating Booms Parts Manual 168893AE – PDF DOWNLOAD
$28.95
Skyjack SJ46AJ SJ51AJ Articulating Booms Parts Manual 168893AE – PDF DOWNLOAD
SJ46AJ / SJ51AJ: 95000853 through 95001104
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Skyjack SJ46AJ SJ51AJ Articulating Booms Parts Manual 168893AE – PDF DOWNLOAD
FILE DETAILS:
Skyjack SJ46AJ SJ51AJ Articulating Booms Parts Manual 168893AE – PDF DOWNLOAD
Language : English
Pages : 246
Downloadable : Yes
File Type : PDF

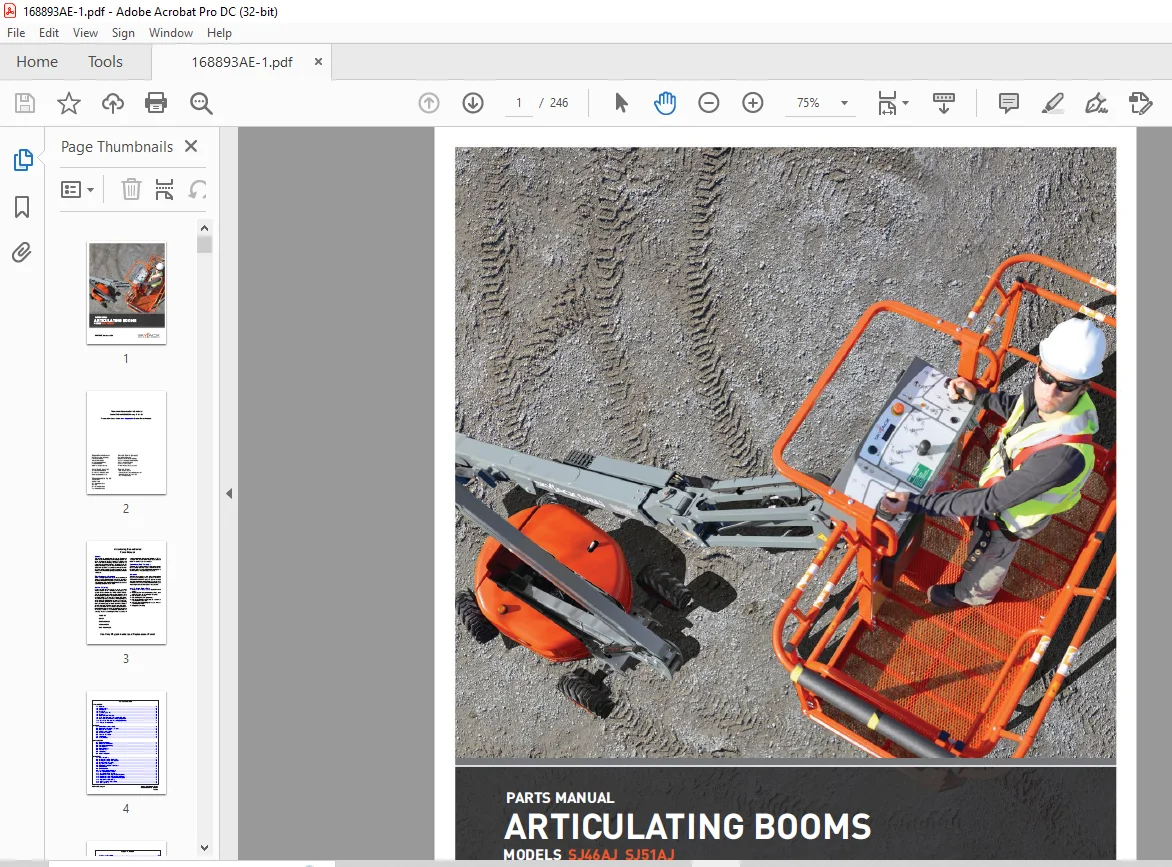

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Skyjack SJ46AJ SJ51AJ Articulating Booms Parts Manual 168893AE – PDF DOWNLOAD
SJ46AJ / SJ51AJ: 95000853 through 95001104
General:
The information contained in this section is designed to aid the user in locating and identifying
replacement parts. Component parts of various assemblies and sub-assemblies comprising the

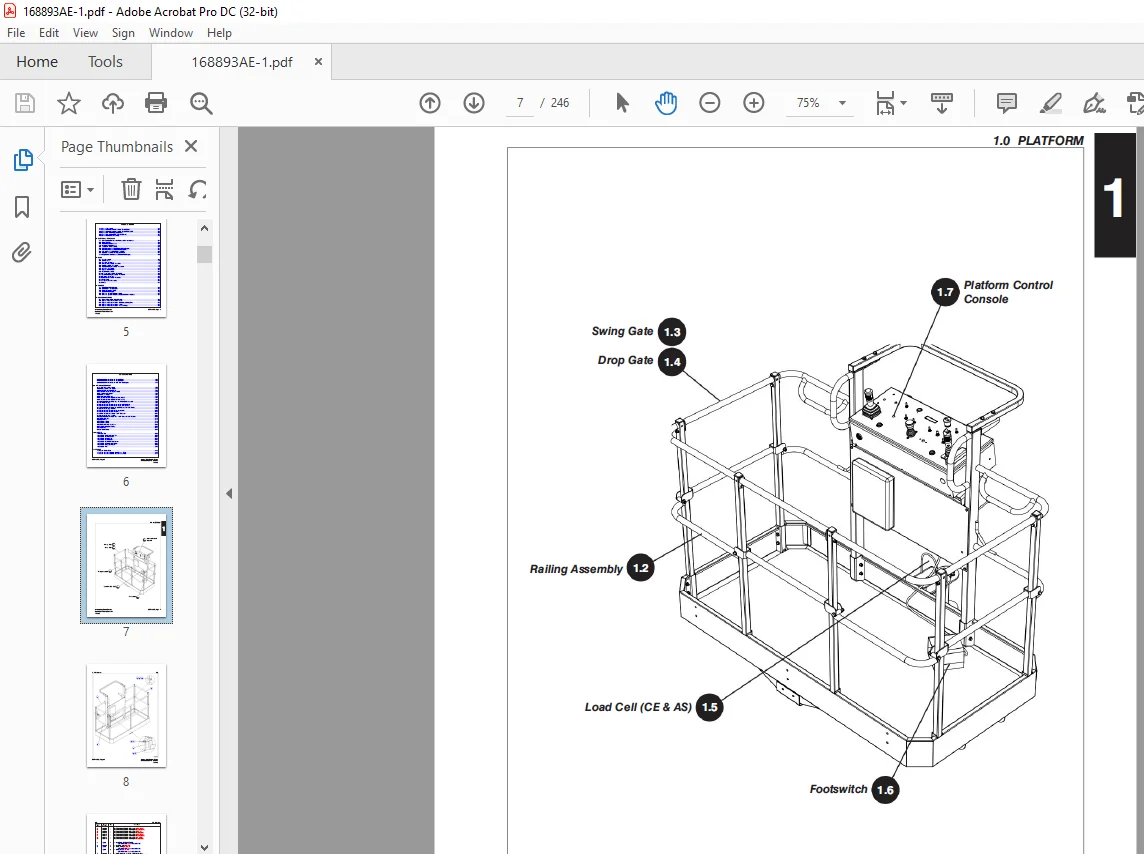

work platform are illustrated and accompanied by a descriptive parts list. Exploded drawings are
used to show relative location of component parts in disassembly order. If a part cannot be found
in this section, order by work platform model number and serial number, giving a complete
description of the part.
The information contained in this section is designed to aid the user in locating and identifying
replacement parts. Component parts of various assemblies and sub-assemblies comprising the
work platform are illustrated and accompanied by a descriptive parts list. Exploded drawings are
used to show relative location of component parts in disassembly order. If a part cannot be found
in this section, order by work platform model number and serial number, giving a complete
description of the part.
Parts Ordering Information:
When ordering replacement parts, the complete part number and description should be used to
ensure proper identification and delivery of the desired item. This complete identification should
also be used when requesting equipment information.
When ordering replacement parts, the complete part number and description should be used to
ensure proper identification and delivery of the desired item. This complete identification should
also be used when requesting equipment information.
Method Of Listing:
Parts are listed in order according to the reference number shown in the illustration,
followed by a full description based upon the “NOUN FIRST” method. That is, the noun name
of the part is listed first, then the modifying description information which serves to
specifically identify the item. For example: PIN, Clevis. Assemblies or groups are shown at the
beginning of a parts list and are identified with the letter references A, B, C, etc. Individual
parts in these lists have corresponding letters after their description to identify which assembly
or group it is used in. Individual parts without identifying letters are used in all the assemblies
or group shown at the beginning of the parts list. Descriptions preceded with an (•) indicates
a serviceable component or attaching hardware for the higher level assembly. If
an index number initially starts with the letter “K”, for
example “K1”, means it’s a kit. Any item(s) included in a kit will not have an index number.
Parts are listed in order according to the reference number shown in the illustration,
followed by a full description based upon the “NOUN FIRST” method. That is, the noun name
of the part is listed first, then the modifying description information which serves to
specifically identify the item. For example: PIN, Clevis. Assemblies or groups are shown at the
beginning of a parts list and are identified with the letter references A, B, C, etc. Individual
parts in these lists have corresponding letters after their description to identify which assembly
or group it is used in. Individual parts without identifying letters are used in all the assemblies
or group shown at the beginning of the parts list. Descriptions preceded with an (•) indicates
a serviceable component or attaching hardware for the higher level assembly. If
an index number initially starts with the letter “K”, for
example “K1”, means it’s a kit. Any item(s) included in a kit will not have an index number.
Quantities (Units Per Assy.) :The quantities of each part that are required to
complete the assembly. If quantity is (AR), it is understood that the quantity may vary when
machine is equipped with certain options. Order quantity as needed.
complete the assembly. If quantity is (AR), it is understood that the quantity may vary when
machine is equipped with certain options. Order quantity as needed.
Hardware:
Standard screws, washers, nuts, etc. are notidentified by a reference number. These parts are known as COMMON HARDWARE items and appear indented under the major items with which they are used. They should be ordered separately as listed, since they are not component parts of the pieces they attach to.
Standard screws, washers, nuts, etc. are notidentified by a reference number. These parts are known as COMMON HARDWARE items and appear indented under the major items with which they are used. They should be ordered separately as listed, since they are not component parts of the pieces they attach to.
How To Order Repair Parts
1. Address all orders to your local SKYJACK dealer.
2. Specify model and serial number of the work platform (found on the serial number
plate).
3. List the quantity needed.
4. List the length needed (if bulk item).
5. List the part number and description as shown in this manual for each item.
6. Show billing and shipping address and name of individual if possible.
7. Suggest best routing.
1. Address all orders to your local SKYJACK dealer.
2. Specify model and serial number of the work platform (found on the serial number
plate).
3. List the quantity needed.
4. List the length needed (if bulk item).
5. List the part number and description as shown in this manual for each item.
6. Show billing and shipping address and name of individual if possible.
7. Suggest best routing.
TABLE OF CONTENTS:
Skyjack SJ46AJ SJ51AJ Articulating Booms Parts Manual 168893AE – PDF DOWNLOAD

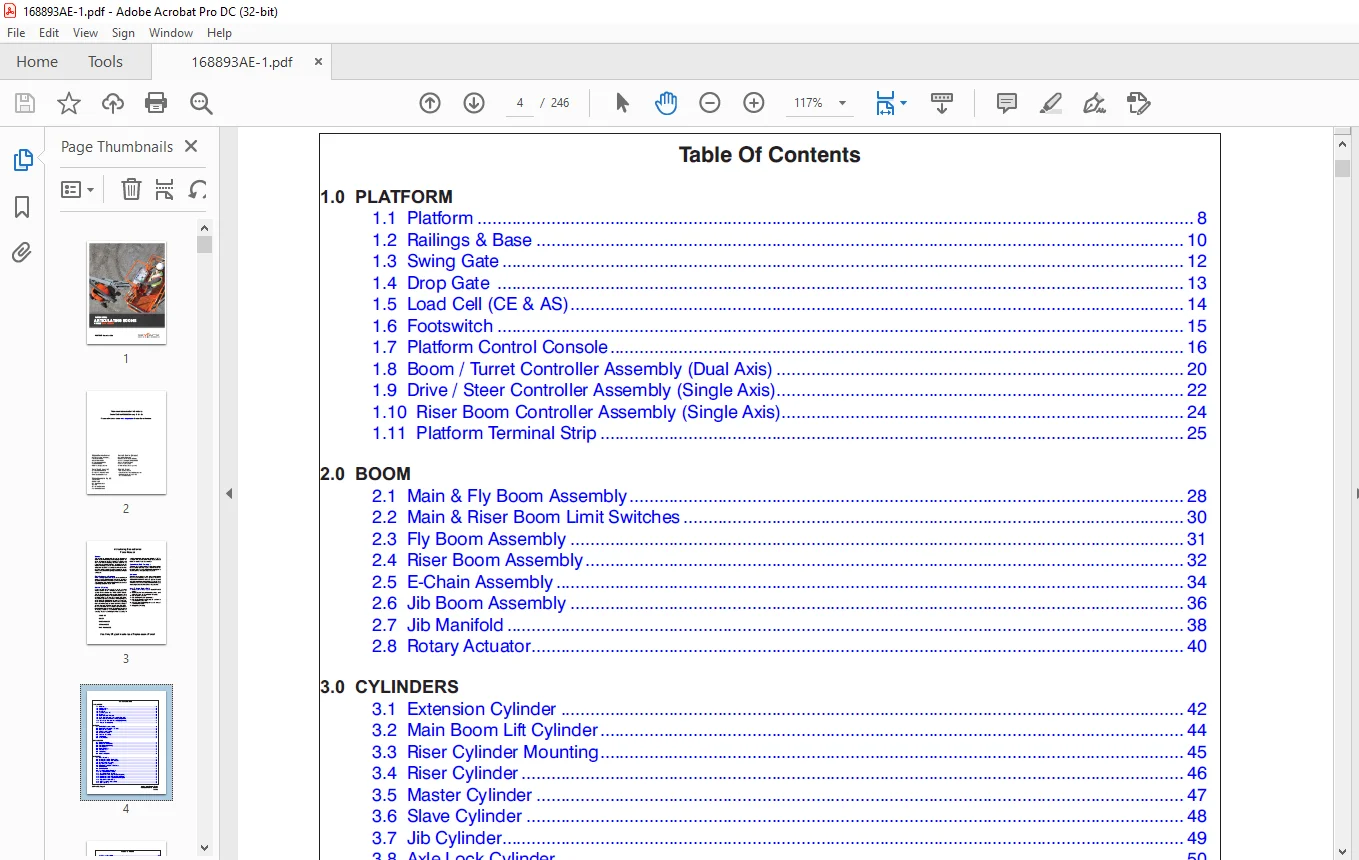

Front Cover............................................................ 1 Table of Contents...................................................... 4 1.0 PLATFORM.......................................................... 7 1.1 Platform...................................................... 8 1.2 Railings & Base............................................... 10 1.3 Swing Gate.................................................... 12 1.4 Drop Gate .................................................... 13 1.5 Load Cell (CE & AS)........................................... 14 1.6 Footswitch.................................................... 15 1.7 Platform Control Console...................................... 16 1.8 Boom / Turret Controller Assembly (Dual Axis)................. 20 1.9 Drive / Steer Controller Assembly (Single Axis)............... 22 1.10 Riser Boom Controller Assembly (Single Axis)................. 24 1.11 Platform Terminal Strip...................................... 25 2.0 BOOM.............................................................. 27 2.1 Main & Fly Boom Assembly...................................... 28 2.2 Main & Riser Boom Limit Switches.............................. 30 2.3 Fly Boom Assembly............................................. 31 2.4 Riser Boom Assembly........................................... 32 2.5 E-Chain Assembly.............................................. 34 2.6 Jib Boom Assembly............................................. 36 2.7 Jib Manifold.................................................. 38 2.8 Rotary Actuator............................................... 40 3.0 CYLINDERS......................................................... 41 3.1 Extension Cylinder............................................ 42 3.2 Main Boom Lift Cylinder....................................... 44 3.3 Riser Cylinder Mounting....................................... 45 3.4 Riser Cylinder................................................ 46 3.5 Master Cylinder............................................... 47 3.6 Slave Cylinder................................................ 48 3.7 Jib Cylinder.................................................. 49 3.8 Axle Lock Cylinder............................................ 50 4.0 TURRET............................................................ 51 4.1 Turret Assembly .............................................. 52 4.2 Cowling Assembly - Engine Side................................ 54 4.3 Cowling Assembly - Controls Side.............................. 56 4.4 Counterweight Assembly........................................ 58 4.5 Engine Tray Assembly.......................................... 60 4.6 Manifold Assembly with Hardware............................... 62 4.7 Main Manifold................................................. 64 4.8 Brake Manifold................................................ 66 4.9 Pressure Reducing Manifold.................................... 68 4.10 Rotary Manifold Assembly..................................... 70 4.11 Turret Swing Drive Assembly.................................. 72 4.12 Fuel Tank Assembly (Deutz D2.9L Engine)...................... 73 4.13 Fuel Tank Assembly (Deutz D2011 Engine)...................... 74 4.14 Fuel Tank Assembly (GM Dual Fuel Engine)..................... 76 4.15 Hydraulic Tank Assembly...................................... 78 4.16 High Pressure Filter Assembly................................ 80 4.17 Auxiliary Pump............................................... 81 4.18 Battery Assembly............................................. 82 4.19 Base Control Console Assembly - Deutz D2.9L.................. 84 4.20 Base Control Console Assembly - Deutz D2011 & GM............. 86 4.21 Base Terminal Strip (Deutz D2.9L)............................ 90 4.22 Base Terminal Strip (GM & Deutz D2011)....................... 91 4.23 Grease Line Hose Assembly.................................... 92 5.0 ELECTRICAL HARNESSES.............................................. 93 5.1 Main Electrical Harness and Fuel Level Switch Harness......... 94 5.2 Battery Cables................................................ 96 5.3 Control Cable Harnesses....................................... 98 5.4 Jib/Rotate Valve Harness...................................... 99 5.5 110/220V Outlet Assembly......................................100 5.6 Glow Plug Harness (Deutz D2.9L Diesel Engine).................101 5.7 Glow Plug Harness (Deutz D2011 Engine) .......................102 5.8 ECU Harnesses (Deutz D2011 Engine) ...........................103 5.9 Engine Interface Harness (Deutz D2.9L)........................104 5.10 Engine Interface Harness (GM Dual Fuel Engine)...............106 6.0 BASE..............................................................107 6.1 Base Assembly.................................................108 6.2 Axle Hardware.................................................110 6.3 Rear Axle Assembly............................................112 6.4 Differential Assembly - Rear Axle.............................114 6.5 Brake Assembly - Rear Axle....................................116 6.6 Central Housing Assembly - Rear Axle..........................118 6.7 Gear Box - Rear Axle..........................................120 6.8 Hydraulic Drive Motor.........................................122 6.9 Front Axle Assembly...........................................124 6.10 Differential Assembly - Front Axle...........................126 6.11 Central Housing Assembly - Front Axle........................128 6.12 Steering Assembly............................................129 6.13 Trunnion Assembly - Front Axle...............................130 6.14 Drive Shaft..................................................131 6.15 Propane Tank Assembly........................................132 6.16 Tires........................................................134 7.0 ENGINES...........................................................137 7.1 Deutz D2.9L Diesel Engine.....................................138 7.2 Deutz D2011 Diesel Engine.....................................144 7.3 Engine Coupling - Deutz.......................................147 7.4 GM Dual Fuel Engine...........................................148 7.5 Drive and System Pump Assembly................................152 7.6 Drive and System Pump Assembly (with Welder Option)...........154 8.0 HOSE CONNECTIONS..................................................157 8.1 Standard Hose Numbering System................................158 8.2 Hydraulic Hose Connection - Boom..............................160 8.3 Hydraulic Hose Connection - Manifolds & Swing Drive...........162 8.4 Hydraulic Hose Connection - Pumps.............................164 8.5 Hydraulic Hose Connection - Base and Axles....................166 8.6 Fuel Line Hose Connection - Deutz D2.9L.......................168 8.7 Fuel Line Hose Connection - Deutz D2011.......................170 8.8 Fuel Line Hose Connection - GM Dual Fuel Engine...............172 9.0 OPTIONAL EQUIPMENT................................................175 9.1 All Motion Alarm Assembly ....................................176 9.2 Air Hose To Platform Option...................................177 9.3 Flashing Amber Light Option...................................178 9.4 External Platform Railing Assembly............................179 9.5 Diesel Scrubber Option........................................180 9.6 Cold Start Option.............................................181 9.7 Arctic Package Option.........................................182 9.8 Oil Cooler Assembly (No Generator) - 46AJ.....................184 9.9 Oil Cooler Assembly (No Generator) - 51AJ.....................186 9.10 Hydraulic Hose Connections - Oil Cooler (No Generator).......188 9.11 Oil Cooler Wiring............................................190 9.12 Generator & Oil Cooler Assembly - 3.5kW (SJ46AJ).............192 9.13 Generator & Oil Cooler Assembly - 3.5 kW (SJ1AJ).............194 9.14 Hydraulic Hose Connection - 3.5 kW Generator & Oil Cooler....196 9.15 Generator Wiring - 3.5 kW....................................198 9.16 Generator & Oil Cooler Assembly - 12 kW......................200 9.17 Generator & Oil Cooler - 12 kW...............................202 9.18 Circuit Breaker Assembly - 12 kW Generator...................204 9.19 Generator Wiring - 12 kW.....................................206 9.20 Hydraulic Hose Connections - 12 kW Generator & Oil Cooler....208 9.21 Welder Option................................................210 9.22 Glazier Tray.................................................214 9.23 SGM Assembly.................................................216 9.24 SGE Assembly.................................................218 9.25 Platform Control Box Cover...................................220 9.26 Positive Air Shutoff Valve...................................222 9.27 Pipe Rack....................................................224 9.28 Oil Quick Drain..............................................225 10.0 LABELS...........................................................227 10.1 Label Kits...................................................229 10.2 Labels - Platform Control Box................................230 10.3 Labels - Front and Back......................................231 10.4 Labels - Engine Side.........................................232 10.5 Labels - Controls Side.......................................234 10.6 Labels - Controls Compartment................................236 10.7 Labels - Engine Compartment..................................237 10.8 Labels - Operator Platform...................................238 10.9 Labels - Fuel................................................240 11.0 TABLES...........................................................241 11.1 Boom Fluids Table............................................242 11.2 Boom Grease Locations - Axle Grease Table....................243 11.3 Boom Grease Locations - Gear Grease Table....................244
