Skyjack SJ61T SJ66T Telescopic Booms Parts Manual 168892AE – PDF DOWNLOAD

Description

Skyjack SJ61T SJ66T Telescopic Booms Parts Manual 168892AE – PDF DOWNLOAD

FILE DETAILS:

Skyjack SJ61T SJ66T Telescopic Booms Parts Manual 168892AE – PDF DOWNLOAD

Language : English
Pages : 238
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Skyjack SJ61T SJ66T Telescopic Booms Parts Manual 168892AE – PDF DOWNLOAD

Serial Number(s):
SJ61T / SJ66T: 97 001 136 through 97 001 395

General

• The information contained in this section is designed to aid the user in locating and identifying replacement parts. Component parts of various assemblies and sub-assemblies comprising the work platform are illustrated and accompanied by a descriptive parts list. Exploded drawings are used to show relative location of component parts in disassembly order. If a part cannot be found in this section, order by work platform model number and serial number, giving a complete description of the part.
• Parts Ordering Information When ordering replacement parts, the complete part number and description should be used to ensure proper identification and delivery of the desired item. This complete identification should also be used when requesting equipment information.

Method Of Listing

• Parts are listed in order according to the reference number shown in the illustration, followed by a full description based upon the “NOUN FIRST” method. That is, the noun name of the part is listed first, then the modifying description information which serves to specifically identify the item. For example: PIN, Clevis. Assemblies or groups are shown at the beginning of a parts list and are identified with the letter references A, B, C, etc. Individual parts in these lists have corresponding letters after their description to identify which assembly or group it is used in. Individual parts without identifying letters are used in all the assemblies or group shown at the beginning of the parts list. Descriptions preceded with an (•) indicates a serviceable component or attaching hardware for the higher level assembly.
• If an index number initially starts with the letter “K”, for example “K1”, means it’s a kit. Any item(s) included in a kit will not have an index number.

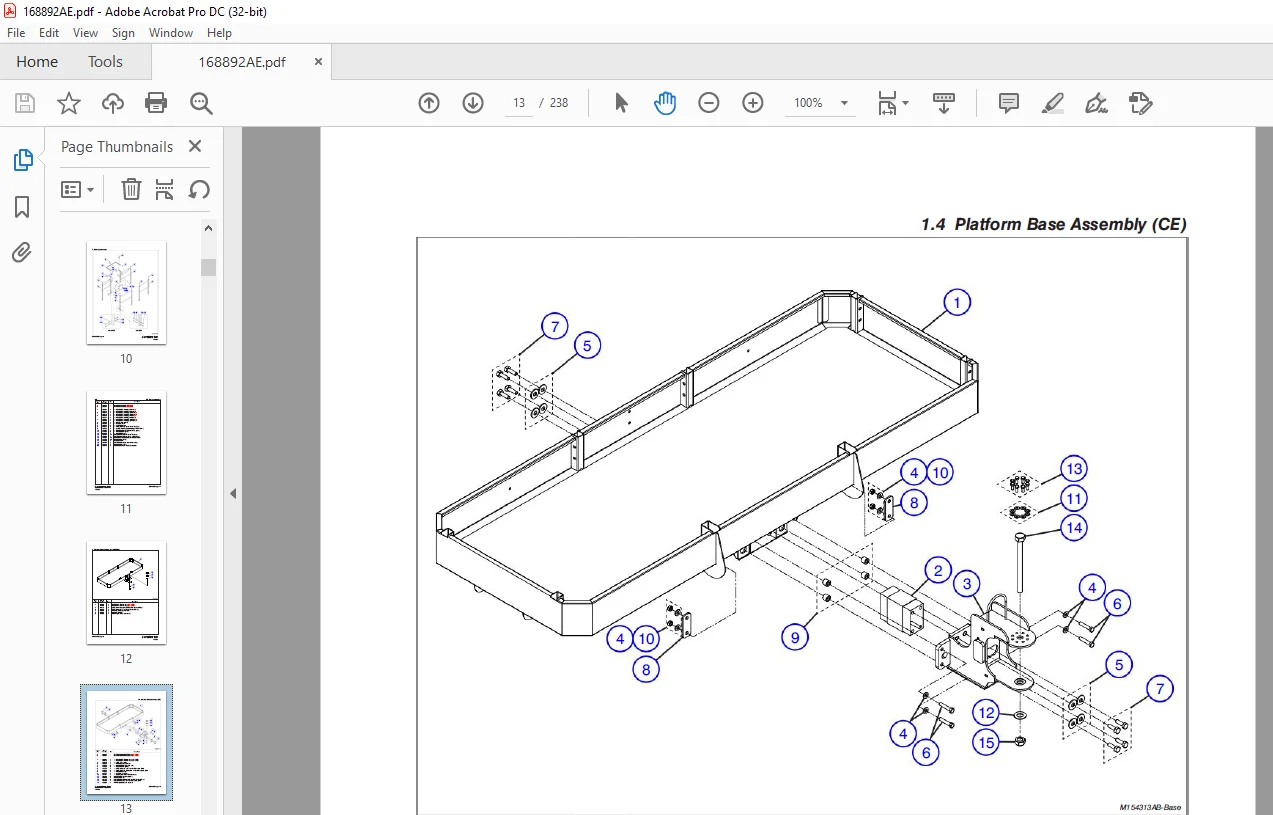

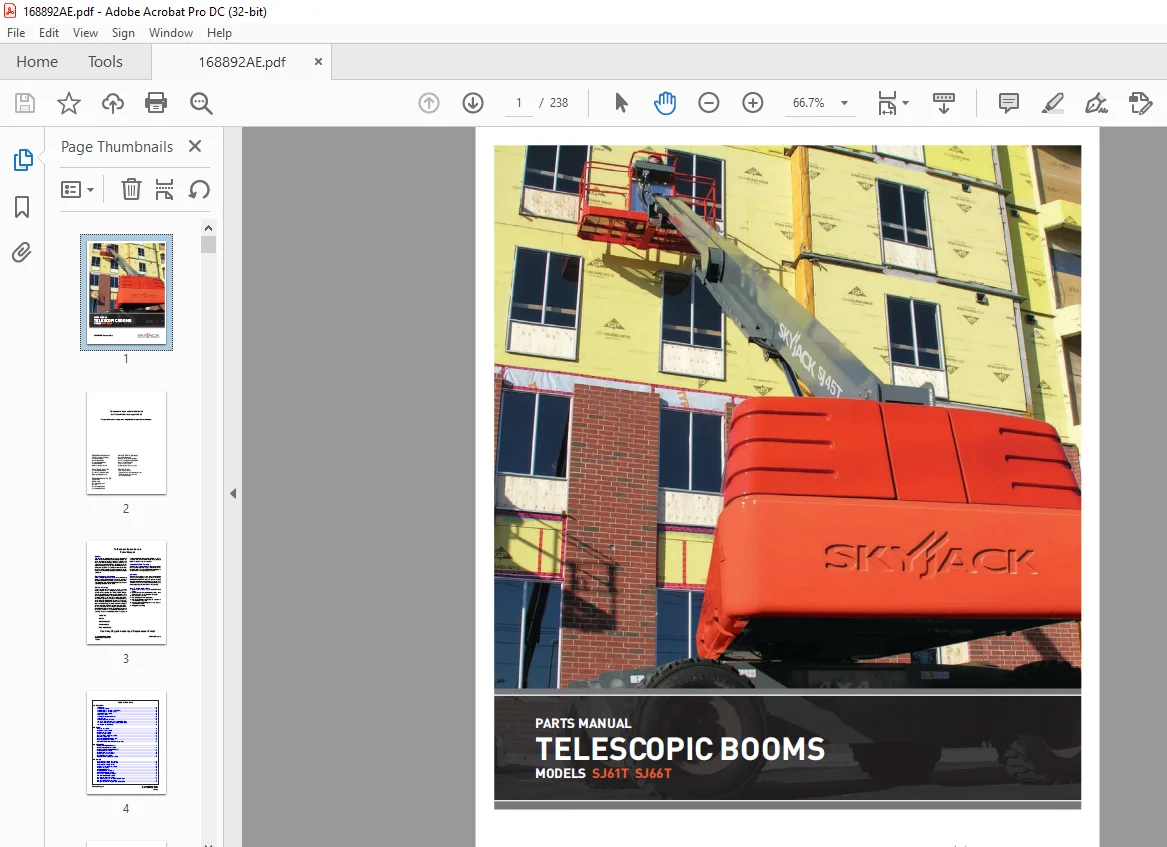

IMAGES PREVIEW OF THE MANUAL:

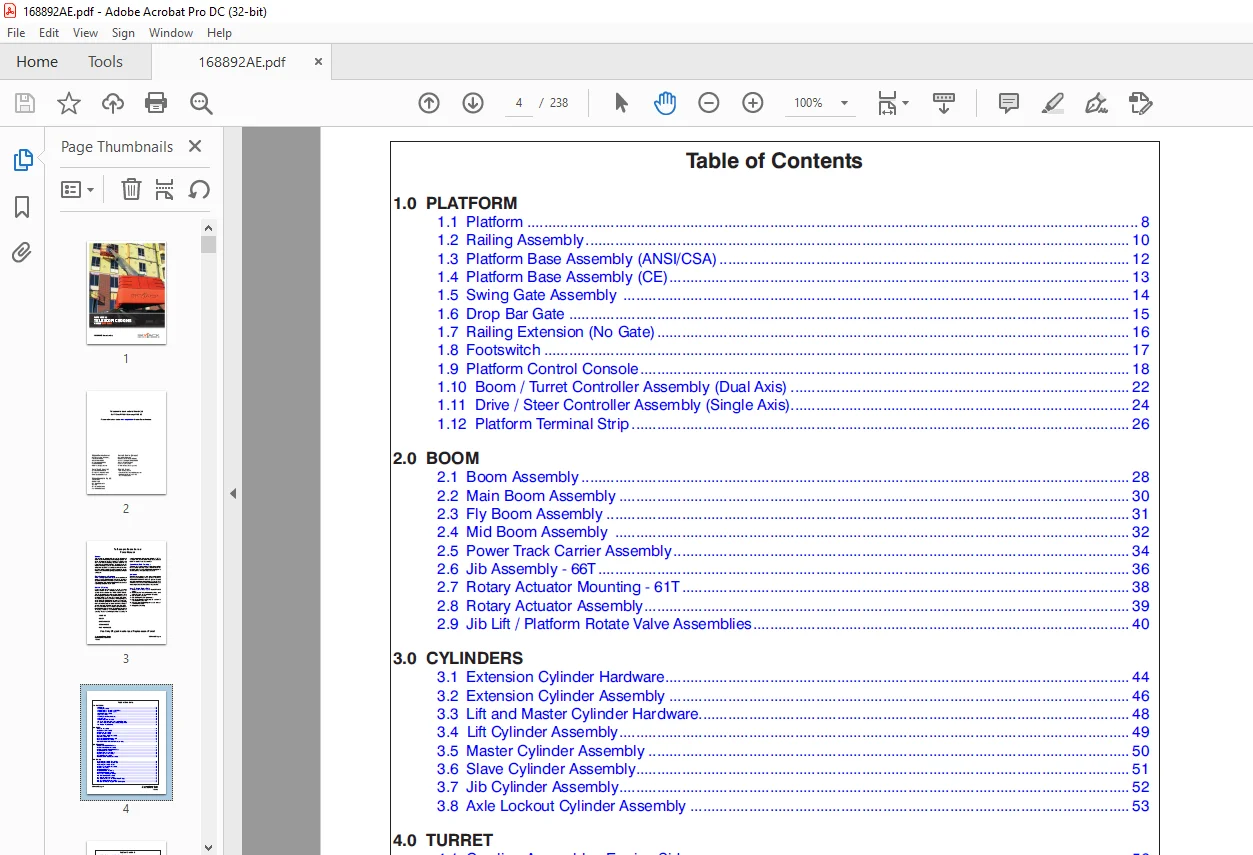

TABLE OF CONTENTS:

Skyjack SJ61T SJ66T Telescopic Booms Parts Manual 168892AE – PDF DOWNLOAD

Front Cover 1
Table of Contents 5
1 0 PLATFORM 7
1 1 Platform 8
1 2 Railing Assembly 10
1 3 Platform Base Assembly (ANSI/CSA) 12
1 4 Platform Base Assembly (CE) 13
1 5 Swing Gate Assembly 14
1 6 Drop Bar Gate 15
1 7 Railing Extension (No Gate) 16
1 8 Footswitch 17
1 9 Platform Control Console 18
1 10 Boom / Turret Controller Assembly (Dual Axis) 22
1 11 Drive / Steer Controller Assembly (Single Axis) 24
1 12 Platform Terminal Strip 26
2 0 BOOM 27
2 1 Boom Assembly 28
2 2 Main Boom Assembly 30
2 3 Fly Boom Assembly 31
2 4 Mid Boom Assembly 32
2 5 Power Track Carrier Assembly 34
2 6 Jib Assembly – 66T 36
2 7 Rotary Actuator Mounting – 61T 38
2 8 Rotary Actuator Assembly 39
2 9 Jib Lift / Platform Rotate Valve Assemblies 40
3 0 CYLINDERS 43
3 1 Extension Cylinder Hardware 44
3 2 Extension Cylinder Assembly 46
3 3 Lift and Master Cylinder Hardware 48
3 4 Lift Cylinder Assembly 49
3 5 Master Cylinder Assembly 50
3 6 Slave Cylinder Assembly 51
3 7 Jib Cylinder Assembly 52
3 8 Axle Lockout Cylinder Assembly 53
4 0 TURRET 55
4 1 Cowling Assembly – Engine Side 56
4 2 Cowling Assembly – Control Side 58
4 3 Cowling Assembly – Center 60
4 4 High Pressure Filter Assembly 61
4 5 Turret Assembly 62
4 6 Manifold Hardware 64
4 7 Main Manifold Assembly 66
4 8 Brake Manifold Assembly 68
4 9 Pressure Reducing Manifold 70
4 10 Rotary Manifold Assembly 72
4 11 Hydraulic Tank Assembly 74
4 12 No Generator and Oil Cooler Hose Fittings 76
4 13 Turret Swing Drive Assembly 77
4 14 Fuel Tank Assembly (GM Dual Fuel Engine) 78
4 15 Fuel Tank Assembly (Deutz Diesel Engine) 80
4 16 Battery Cable Assembly 81
4 17 Battery and Lockout Switch Assembly 82
4 18 Auxiliary Pump 83
4 19 Base Control Console Assembly – Deutz TD2 9L Engine 84
4 20 Base Control Console Assembly – Deutz D2011 & GM Engines 88
4 21 Base Terminal Strip – Deutz TD2 9L Engine 92
4 22 Base Terminal Strip – Deutz D2011 & GM Engines 93
5 0 ELECTRICAL HARNESSES 95
5 1 Main Electrical Harness 96
5 2 Battery Cables 98
5 3 Control Cable Harnesses 100
5 4 Jib & Platform Rotate Harnesses 101
5 5 110/220V Outlet Harness 102
5 6 ECU Harnesses – Deutz D2011 103
5 7 Glow Plug Harness (Deutz TD2 9L Engine) 104
5 7 Glow Plug Harness (Deutz D2011 Engine) 105
5 8 Engine Interface Harness – GM Engine 106
5 9 Engine Interface Harness – Deutz TD2 9L Engine 108
6 0 BASE 111
6 1 Base Assembly 112
6 2 Counterweight Assembly 114
6 3 Axle Hardware 116
6 4 Rear Axle Assembly 118
6 5 Differential Assembly – Rear Axle 120
6 6 Central Housing Assembly – Rear Axle 122
6 7 Gear Box – Rear Axle 124
6 8 Hydraulic Drive Motor 127
6 9 Front Axle Assembly 128
6 10 Differential Assembly – Front Axle 130
6 11 Central Housing Assembly – Front Axle 132
6 12 Steering Assembly 133
6 13 Trunnion Assembly – Front Axle 134
6 14 Axle Drive Shaft 135
6 15 Brake Assembly – Front & Rear Axle 136
6 16 Propane Tank Assembly 140
6 17 Tires 142
7 0 ENGINES 143
7 1 Engine Assembly – Deutz TD2 9L Engine 144
7 2 Radiator Assembly – Deutz TD2 9L 148
7 3 Engine Assembly – Deutz D2011 150
7 4 Engine Assembly – GM Dual Fuel 154
7 5 Engine Tray Assembly 158
7 6 Drive and System Pump Assembly 160
7 7 Engine Coupling Assembly 162
8 0 HOSE CONNECTIONS 163
8 1 Standard Hose Numbering System 164
8 2 Hydraulic Hose Connection – Cylinders 166
8 3 Hydraulic Hose Connection – Control Compartment 168
8 4 Hydraulic Hose Connection – Pumps & Swing Drive 170
8 5 Hydraulic Hose Connection – Base and Axles 172
8 6 Fuel Line Hose Connection – Deutz TD2 9L Engine 174
8 7 Fuel Line Hose Connection – Deutz D2011 Engine 176
8 8 Fuel Line Hose Connection – GM Engine 178
8 9 Turret Grease Hose Connections 180
9 0 OPTIONAL EQUIPMENT 181
9 1 Generator and Oil Cooler – 3 5kW 182
9 2 Generator Assembly – 3 5kW 184
9 3 Oil Cooler with No Generator 186
9 4 Oil Cooler Assembly 187
9 5 Hydraulic Hose Connection – Generator and Oil Cooler – 3 5kW 188
9 6 Generator and Oil Cooler Wiring 190
9 7 Generator and Oil Cooler -12 kW 192
9 8 Generator Assembly – 12kW 194
9 9 Hydraulic Hose Connection – 12kW Generator and Oil Cooler 196
9 10 Welder and Mounting Assembly 198
9 11 Glazier Package Option 202
9 12 Cold Start Engine Option 204
9 13 Arctic Package Option 205
9 14 Block Heater – Deutz TD2 9L 206
9 15 Oil Quick Drain 207
9 16 SGM Assembly 208
9 17 SGE Assembly 210
9 18 External Platform Railing Assembly 212
9 19 Flashing Light 213
9 20 Air Hose To Platform Option 214
9 21 Residucal Current Device (RCD) 215
9 22 Control Box Cover 216
10 0 LABELS 219
10 1 Label Kits 221
10 2 Labels – Platform Control Console 222
10 3 Labels – Front and Bottom 223
10 4 Labels – Engine Side 224
10 5 Labels – Controls Side 226
10 6 Labels – Controls Compartment 228
10 7 Labels – Engine Compartment 229
10 8 Labels – Platform 230
10 9 Labels – Engine Fuel 232
11 0 TABLES 233
11 1 Fluids Table 234
11 2 Grease Locations – Axle 235
11 3 Grease Locations – Gears 236
