Skyjack SJ643 TH, SJ843 TH Telehandler Parts Manual 190125AE – PDF DOWNLOAD

Description

Skyjack SJ643 TH, SJ843 TH Telehandler Parts Manual 190125AE – PDF DOWNLOAD

FILE DETAILS:

Skyjack SJ643 TH SJ843 TH Telehandler Parts Manual 190125AE – PDF DOWNLOAD

Language : English
Pages : 356
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Skyjack SJ643 TH SJ843 TH Telehandler Parts Manual 190125AE – PDF DOWNLOAD

• General
• The information contained in this manual is designed to aid the user in locating and identifying replacement parts. Component parts of various assemblies and subassemblies comprising the work platform are illustrated and accompanied by a descriptive parts list. Exploded drawings are used to show relative location of component parts in disassembly order. If a part cannot be found in this manual, contact your local Skyjack Parts Department for assistance.
• Parts Ordering Information
• When ordering replacement parts, the complete part number and description should be used to ensure proper identification and delivery of the desired item. This complete identification should also be used when requesting equipment information
• Method of Listing
• Parts are listed in order according to the reference number shown in the illustration, followed by a full description based upon the ”NOUN FIRST” method. That is, the noun name of the part is listed first, then the modifying description information which serves to specifically identify the item.
• For example: PIN, Clevis. Assemblies at the beginning of a parts list may be identified with a reference letter: A, B, C, etc. These letters are used to identify different configurations of the assembly. Individual parts in these lists have corresponding letters after their description to identify which assembly it is used in. If a part does not have a reference letter, it is used in all of the assemblies.

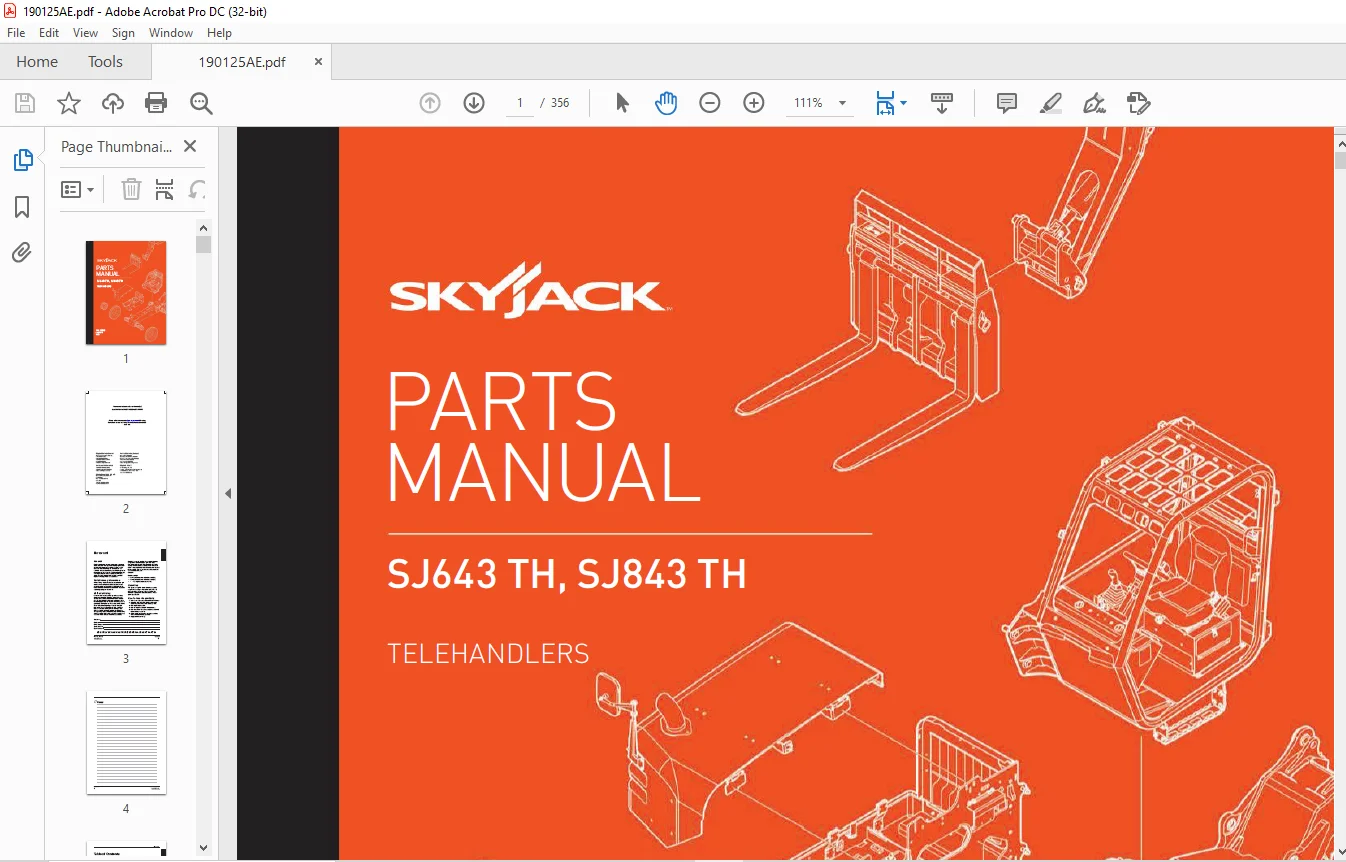

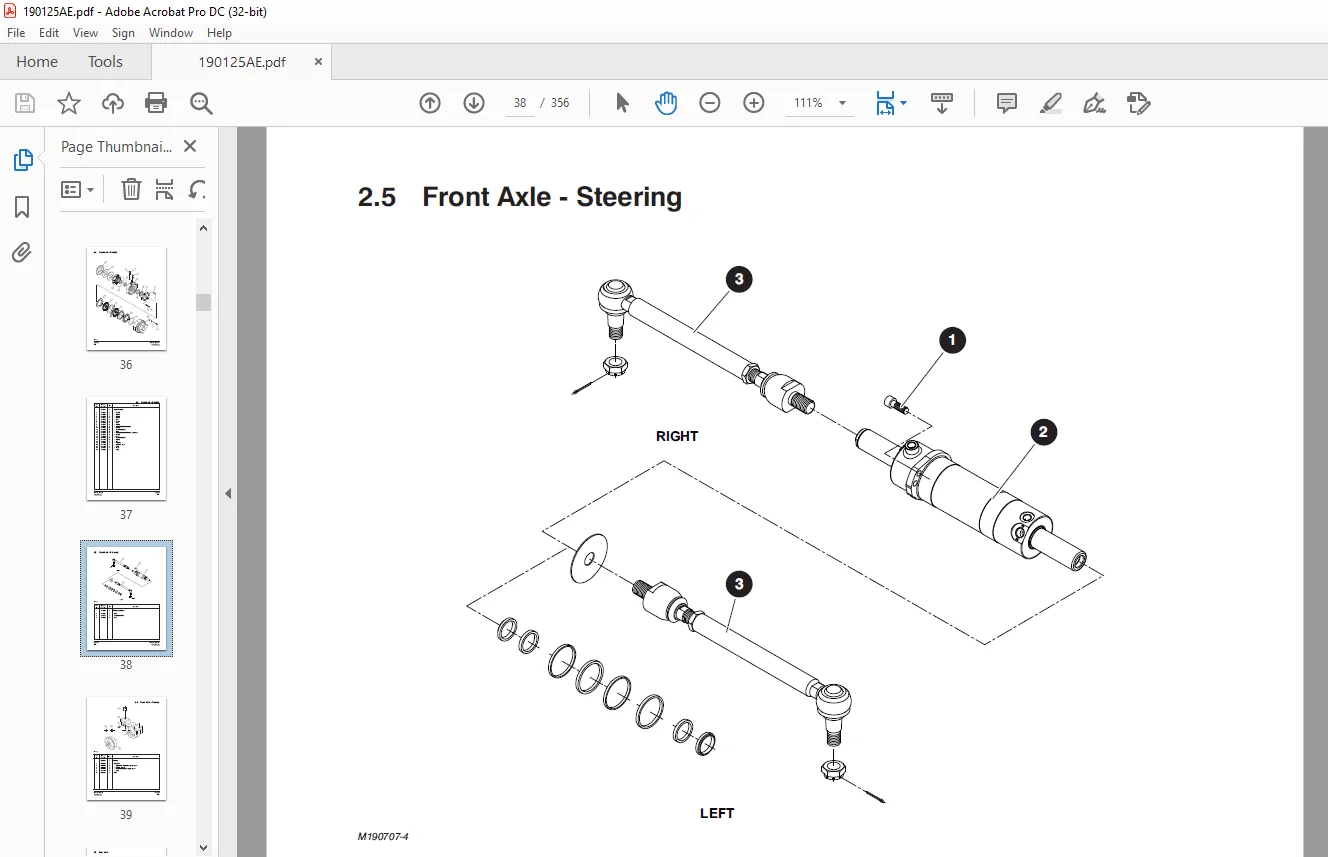

IMAGES PREVIEW OF THE MANUAL:

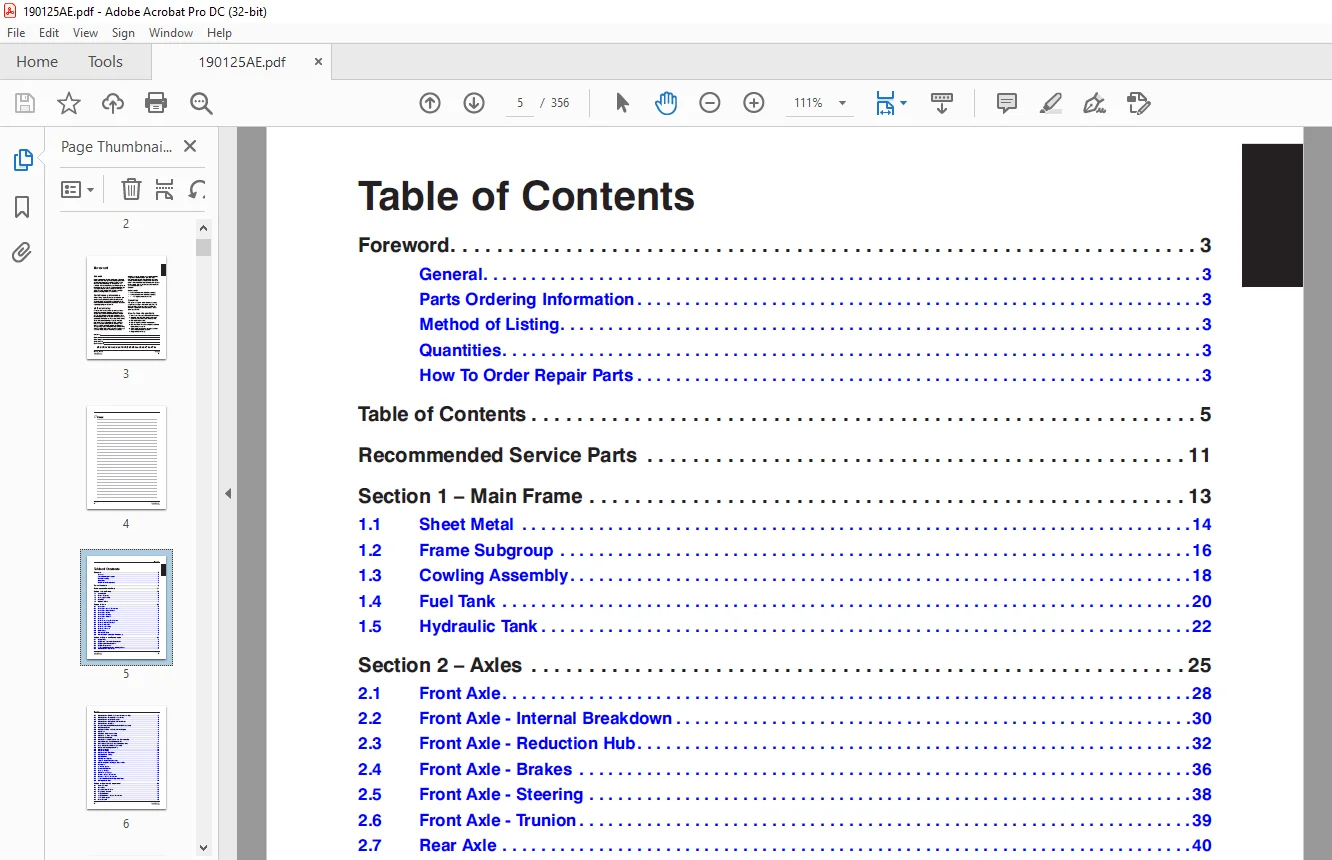

TABLE OF CONTENTS:

Skyjack SJ643 TH SJ843 TH Telehandler Parts Manual 190125AE – PDF DOWNLOAD

Foreword 3
General 3
Parts Ordering Information 3
Method of Listing 3
Quantities 3
How To Order Repair Parts 3
Table of Contents 5
Recommended Service Parts 11
Section 1 – Main Frame 13
1 1 Sheet Metal 14
1 2 Frame Subgroup 16
1 3 Cowling Assembly 18
1 4 Fuel Tank 20
1 5 Hydraulic Tank 22
Section 2 – Axles 25
2 1 Front Axle 28
2 2 Front Axle – Internal Breakdown 30
2 3 Front Axle – Reduction Hub 32
2 4 Front Axle – Brakes 36
2 5 Front Axle – Steering 38
2 6 Front Axle – Trunion 39
2 7 Rear Axle 40
2 8 Rear Axle – Internal Breakdown 42
2 9 Rear Axle – Reduction Hub 44
2 10 Rear Axle – Brakes 46
2 11 Rear Axle – Steering 48
2 12 Rear Axle – Trunion 49
2 13 Drive Shaft 50
2 14 Tires and Wheels 52
2 15 Tire and Wheel Assembly – Non-marking 54
Section 3 – Engine and Transmission 57
3 1 Engine Tray 58
3 2 Engine and Powershift Transmission 60
3 3 Engine & CVT Transmission 62
3 4 Engine Components 64
3 5 Powershift Transmission – Housing & Case 66
3 6 Transmission – Gear Group 70
3 7 Transmission – Drive Plate, Torque Converter & Pump 72
3 8 Transmission – Forward & Reverse Group 74
3 9 Transmission – 1st, 2nd & 3rd Shaft 76
3 10 Transmission – Output Shaft & Control Group 78
3 11 Transmission – Drop Box 80
3 12 Continuously Variable Transmission (CVT) Assembly 82
3 13 CVT Transmission 84
3 14 CVT Output Drum and Shaft & Control System 86
3 15 CVT Clutch 88
3 16 CVT G2 & G3 Gears Assembly 90
3 17 CVT G1 & L1 Gears Assembly 92
3 18 CVT Shaft 5 Assembly 94
3 19 CVT R2 Reverse Idler Shaft & E2A Gear Assembly 96
3 20 CVT EB2 Gear & E3 Shaft Assemblies 98
3 21 CVT P2 and P3 Gears & Input Shaft Assemblies 100
3 22 R1 & H1 Shaft Double Cone Assembly 102
3 23 CVT Middle Cassing Assembly 104
3 24 CVT Front Casing 108
3 25 CVT Rear Casing 110
3 26 CVT Front and Rear Baffle 112
3 27 CVT Hydraulic Tubing 114
3 28 CVT Manifold 116
3 29 CVT Cylinder Synchro 118
3 30 Pump & Limit Switch Assembly 120
3 31 CVT Rear Hydraulic Tubing & Damper Plate 122
3 32 Fuel Lines 124
3 33 Air Intake System 126
3 34 Exhaust Installation 128
3 35 Cooling Package 130
3 36 CVT Cooling Package 132
3 37 Cooler – Internal Breakdown 134
3 38 Radiator – Internal Breakdown 136
3 39 Powershift Transmission Hydraulic Pump 138
3 40 CVT Hydraulic Pump 140
Section 4 – Operator’s Compartment 143
4 1 Cab Installation 144
4 2 Open Cab 146
4 3 Open Cab Side Window 152
4 4 Right Hand Console 154
4 5 Joystick Control 156
4 6 Joystick Control – Internal Breakdown 158
4 7 Premium Joystick 160
4 8 Front Console 162
4 9 LH Dash Panel 164
4 10 Flip Chart 165
4 11 RH Dash Panel 166
4 12 Steering Console 168
4 13 Main Relay 170
4 14 Fuse and Power 172
4 15 Enclosed Cab 174
4 16 Door Assembly 178
4 17 Door Window Assembly 180
4 18 Cab Heater System 182
4 19 Cab A/C System 184
4 20 A/C Compressor 186
4 21 A/C Condenser 188
4 22 A/C Harness 189
4 23 A/C and Heater Harness 190
Section 5 – Electrical 193
5 1 Chassis Harness 194
5 2 Engine Harness 196
5 3 Console Harness 200
5 4 Glow Plug Harness 204
5 5 Enclosed Cab Harness 206
5 6 Battery 207
5 7 CVT Transmission Harness 208
5 8 CVT Vehicle Harness 210
5 9 Battery Disconnect 212
5 10 Battery Cables 213
5 11 Tilt Sensor 214
5 12 Jumper Harness 215
Section 6 – Boom 217
6 1 Boom Installation 220
6 2 First Boom Section 222
6 3 Second Boom Section 226
6 4 Third Boom Section 228
6 5 Auxiliary Hydraulics 230
Section 7 – Cylinders 233
7 1 Extend Cylinder Components 234
7 2 Lift Cylinder Components 236
7 3 Fork Tilt Cylinder Components 238
7 4 Tilt Compensation Cylinder Components 240
7 5 Frame Level Cylinder Components 242
Section 8 – Hydraulics 245
8 1 Main Manifold Installation 246
8 2 Main Manifold Assembly 248
8 3 Manifold Components 250
8 4 Hydraulic Return Filter 256
8 5 CVT Hydraulic Return Filter 258
8 6 Boom & Telescopic Hydraulic Hoses 260
8 7 Carriage Hydraulic Hoses 262
8 8 Frame Level Hydraulic Hoses 264
8 9 Brakes & Steering Hydraulic Hoses 266
8 10 Hydraulic Pump Hoses 268
8 11 CVT Hydraulic Pump Hoses 270
8 12 Cab Hydraulic Hoses 272
8 13 Auxiliary Hydraulic Hoses 274
8 14 Auxiliary Manifold 276
Section 9 – Standard and Optional Attachments 279
9 1 Quick-Attach Carrier / Carriage & Forks 280
9 2 Side-Tilt Carriage Installation 282
9 3 48” & 60” Side Tilt Carriage – Internal Breakdown 284
9 4 72” Side-Tilt Carriage – Internal Breakdown 286
9 5 72” Swing Carriage Installation 288
9 6 72” Swing Carriage Components 290
9 7 Carriage Bar 292
9 8 Forks Positioner Carriage 294
9 9 Personnel Work Platform 296
9 10 Truss Boom 12′ 298
9 11 Loader Bucket 299
9 12 2′ Jib Boom 300
Section 10 – Factory Options 303
10 1 Boom Lights 304
10 2 Boom Lights Harness 306
10 3 Work Lights 308
10 4 Work Lights Harness 310
10 5 Road Lights 312
10 6 Road Lights Harness 314
10 7 Oil Quick Drain 315
10 8 Positive Air Shut Off 316
10 9 Positive Air Shut Off Harness 318
10 10 Remote Axle Grease 320
10 11 Reserve Brake 322
10 12 Cold Weather Package 324
10 13 4 Wheel Fender 326
10 14 Beacon Light Assembly 328
10 15 Pintle Hook 330
10 16 Fire Extinguisher 331
10 17 Backup Camera and Sensor 332
10 18 Backup Sensor 334
10 19 Elevate Telematics 336
10 20 Elevate Telematics Harness 338
Section 11 – Labels 341
11 1 Model Specific 342
11 2 Pictorial Group Labels 344
11 3 Cab Labels 348
11 4 Load Charts 351
Section 12 – Tables 353
12 1 Recommended Fluids 354
