Minimize downtime in your can manufacturing line with this official SLAC Cupping System Operating Manual. Covering SC-C-C-14-01-330 and SC-C-C-13-01-500 systems, this 115-page guide provides critical data for Die Set Installation, pneumatic adjustments, and Minster DAC-150 Press maintenance. Whether you are troubleshooting HMI Alarm Codes or calibrating the Servo Feed System, this SLAC Service Manual PDF delivers the factory-standard procedures required for peak production efficiency.
Description
SLAC Cupping System Service & Operating Manual (SC-C-C-14/13 & DAC-150 Press) PDF DOWNLOAD
DESCRIPTION
The Essential Guide for High-Speed Cupping System Maintenance
This comprehensive SLAC Cupping System Operating Manual is the definitive technical resource for operators and maintenance engineers working with SLAC’s high-speed cupping presses. It covers the complete lifecycle of the machine, from die set installation and shut height adjustment to deep-dive troubleshooting of the electrical and hydraulic systems.
Beyond basic operation, this manual includes a massive Alarm Messages Solving section, decoding over 100 specific error codes (F101 – F3203) with causes and remedies. It also details the Minster DAC-150 Press inspection points, ensuring your core machinery remains within factory tolerances.
Comprehensive Table of Contents & Covered Systems
1. General Safety & Introduction
Safety Tips: Lockout/Tagout procedures for flywheel and electrical cabinets.
Warning Labels: Understanding “Important,” “Caution,” and “Warning” protocols.
2. Major Assemblies & Principles
Die Set: Principle of molding, lower die shoe, and guide way mechanics.
Upper Punch Holder: Cut-edge, draw pad, pressure sleeve, and cylinder maintenance.
Lower Die Holder: Blank & draw die, retainer rings, and spacer adjustments.
Inner Die Holder: Riser die center and die center tooling.
Scrap Cutter: Blade clearance (0.04mm), sharpening, and shear action.
Pneumatics: Pad lower pressure (50 psi), cup blow down, and stock plate lift settings.
3. Setup & Adjustment
Die Installation: Step-by-step loading, shut height adjustment (Outer: 20″, Inner: 26.31″), and bed testing.
Material Feed: Roll feed parallelism (0.03mm), stock guiding, and uncoiler setup.
Guide Pins: Lubrication intervals (Trabon blocks), replacement, and ball cage clearance (.0001″–.0002″).
4. Operating Procedures & HMI Screens
Start-Up: Pre-start checks, main power switching, and safe control logic.
Mode Selection: Inch, Single, and Continuous operating modes.
HMI Navigation: Detailed breakdown of all control screens:
Servo Setup: Feed length configuration (330ML vs 500ML) and cam calculation.
Die Protect: Enabling/disabling sensor stations (1-14).
Lube Monitor: Tracking oil flow for main bearings, slide gibs, and connecting rods.
Production Counts: Monitoring die jams, cup jams, and daily stroke counts.
5. Troubleshooting & Alarm Codes
Fault Diagnosis: Extensive list of error codes with “Cause and Remedy” tables:
F101–F108: E-Stop & Control Power faults.
F165–F167: Feed Servo Drive and instruction errors.

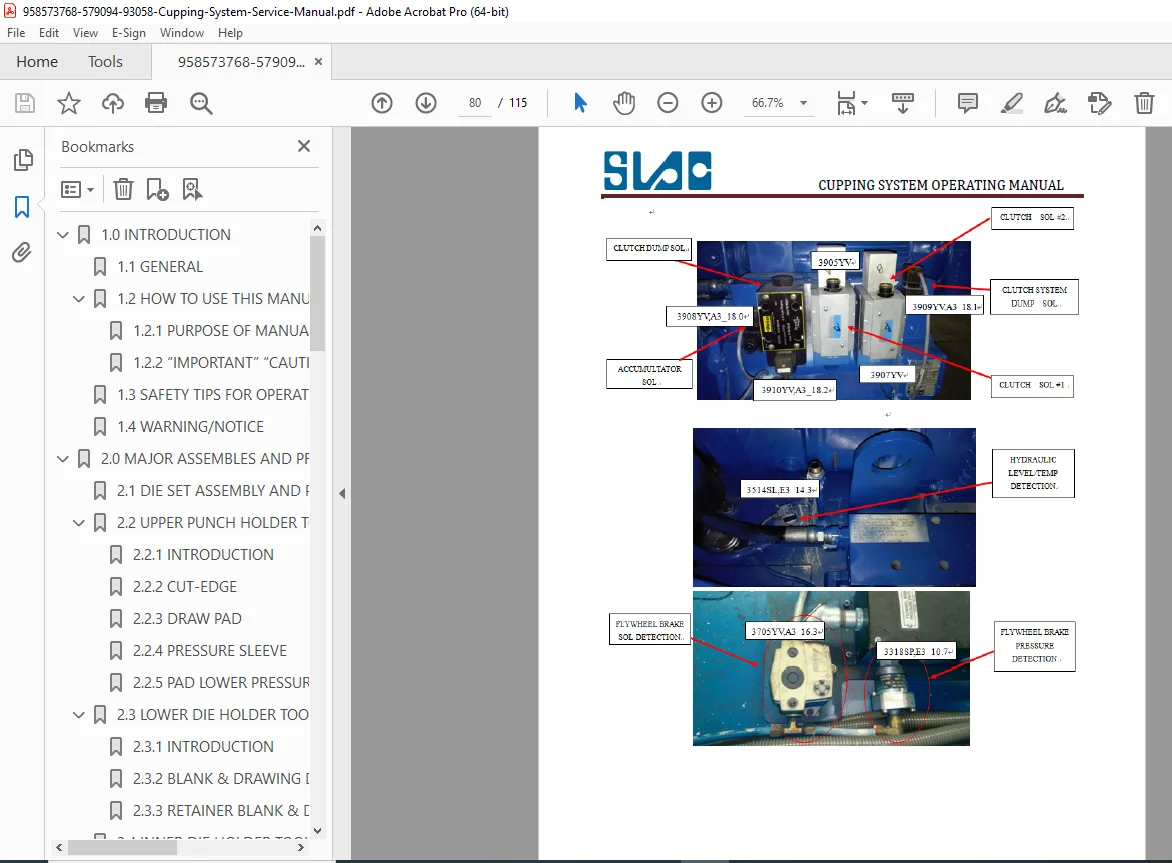

F1000–F1004: Hydraulic level/temp and Counter Balance pressure alarms.
F2305–F2602: Specific Die Jam and Cup Jam station faults.
6. Maintenance Schedules
Daily/Weekly: Cleaning punch shells, checking oil levels, and inspecting safety guards.
Minster DAC Press Checklist: Mechanical frame, hydraulic clutch/brake, and drive belt inspection.
Lubrication: Grease points for curler spindles and flywheel bearings.
FILE DETAILS

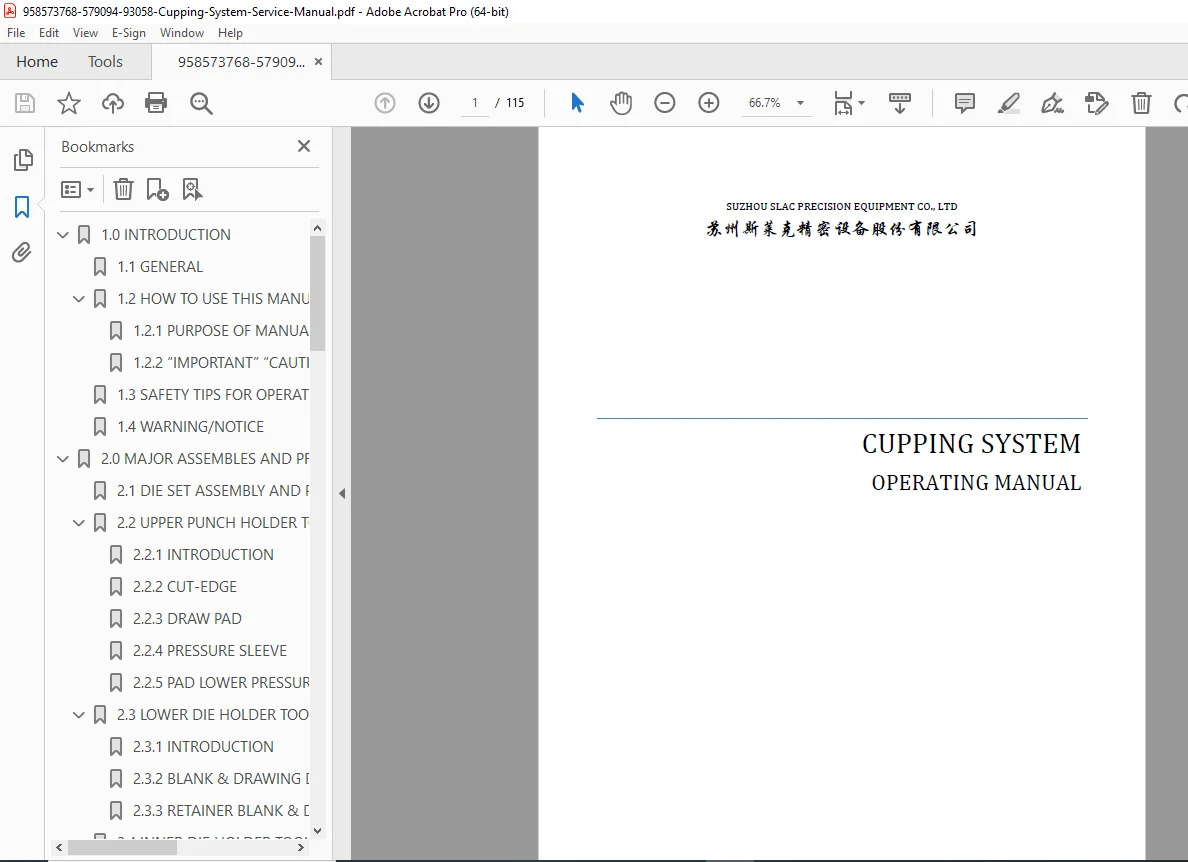

Manual Name: SLAC Cupping System Operating Manual
System Types Covered: SC-C-C-14-01-330, SC-C-C-13-01-500
Press Model: DAC-150-31155
Year: Covers 2012–2018 (Copyright 2012-2017)
File Quality: High-Quality PDF (Searchable, Text-Based, Clear Diagrams)
Total Pages: 115 Pages
Keep your production line moving. Download the official SLAC Cupping System Manual instantly to access vital alarm codes, servo setups, and maintenance schedules. Prevent costly downtime and ensure your press runs at peak performance—click to download now!
