SonoScape SSI-5000 Digital Color Doppler Ultrasound System Service Manual – PDF
Original price was: $70.00.$21.95Current price is: $21.95.
Comprehensive 2010 service manual for the SonoScape SSI-5000 Digital Color Doppler Ultrasound System, covering theory, safety standards (IEC 60601-1/-2-37), system configuration, disassembly, wiring, diagnostics, software installation, and maintenance. Includes schematics, part lists, and probe care for qualified biomedical engineers
Description
SonoScape SSI-5000 Digital Color Doppler Ultrasound System Service Manual – PDF DOWNLOAD
Manual Specs
Chapters Overview
Introduction – Intended users, contact info, update policy.
Safety Considerations – Electrical, mechanical, and human safety; EMC/ESD precautions; ALARA principle.
System Description –
Architecture overview (monitor, probes, rear I/O, connectors).
Applications: vascular, abdomen, OB/GYN, cardiology, MSK, etc.
Imaging modes: B-Mode, M-Mode, PW/CW Doppler, Color/Power Doppler, TDI, THI.
Parameters: gain, depth, frequency, persistence, zoom, etc.
Archive and backup (HDD, USB, DICOM, DVD).
Principle of Operation – Block diagrams, probe signal path, DBTR/DBF/DBHV boards, signal processing and image generation.
Disassembly Instructions – Step-by-step teardown with flowcharts for removing the motherboard, keyboard, monitor, PSU, ultrasound module, and probes.

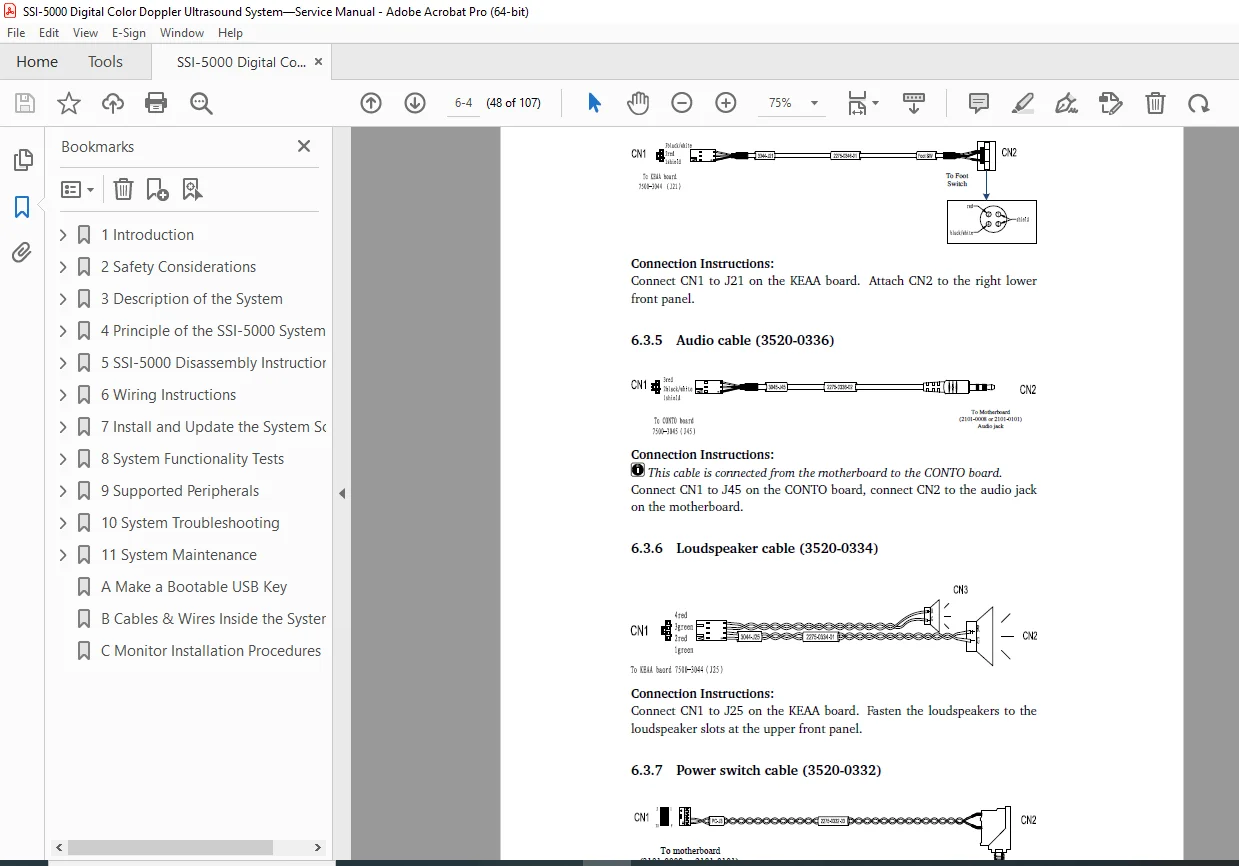

Wiring Instructions – Full list of 18 internal cables with part numbers and connection diagrams for KBD, audio, footswitch, SATA, VGA, printer, ECG, and power wiring.
Software Installation & Updates – USB boot procedure, kernel/non-kernel update, Micro-SCAN activation.
System Functionality Tests – Memory, ADC, probe ID, receive bus, single element, and speaker tests.
Supported Peripherals – Printer installation (thermal/network), network configuration, DICOM.
System Troubleshooting – Functional checks, fault isolation, repair flow, and problem analysis.
System Maintenance – Host, probe cleaning/disinfection, and preventive maintenance.
Appendices: Bootable USB creation, cable/wiring diagrams, and monitor installation.
Technical Highlights
| Function | Specification |
|---|---|
| System Type | Digital Color Doppler Ultrasound (Linux-based) |
| Frequency Range | 1–15 MHz, max depth ≈ 33 cm |
| Display | LCD monitor, multiple duplex modes (B + CFM, B + PW, etc.) |
| Data Storage | 160 GB HDD, USB/DICOM network |
| Probes | Linear, convex, phased, trapezoidal |
| Image Processing | Adaptive Fusion, Tissue Harmonic, Color Flow, Power Doppler |
| Measurement Modes | 2D, Doppler, M-Mode, LV calculations, OB/GYN, Vascular |
| Power Supply | ATX SMPS; 12 V & 5 V DC outputs |
| Software | Upgradeable kernel & application layers via USB |
| Main Boards | MPC, DBTR, DBF, DBHV, KEAA, CONTO, IOVIDEO |
| Safety | IEC 60601-1/-2-37 compliance, Class I BF |
Who Should Use This Manual
Certified biomedical engineers and authorized SonoScape service technicians performing maintenance, calibration, and diagnostics of SSI-5000 units.
File Details

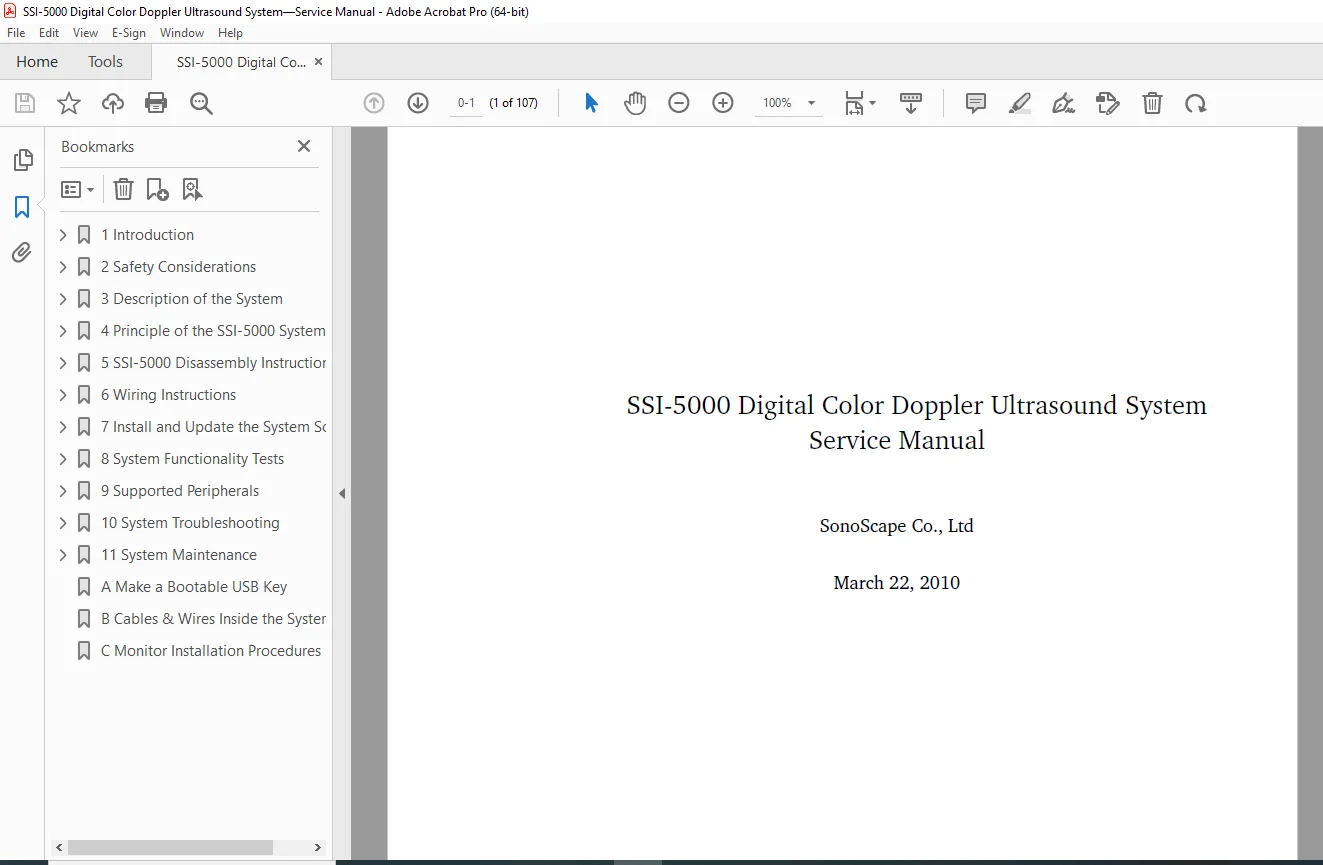

Manual name: SSI-5000 Digital Color Doppler Ultrasound System Service Manual
Manufacturer: SonoScape Co., Ltd (Shenzhen, China)
Publication date: March 22, 2010
Part No.: 4720-0028-01A
Revision: A1
PDF Quality: High-resolution, text-searchable original
No. of pages: ~107
