Stanley BEST 40H Series Mortise Locks Service Manual PDF (T81602B)

Description

Stanley BEST 40H Series Mortise Locks Service Manual PDF (T81602B) DOWNLOAD

Description

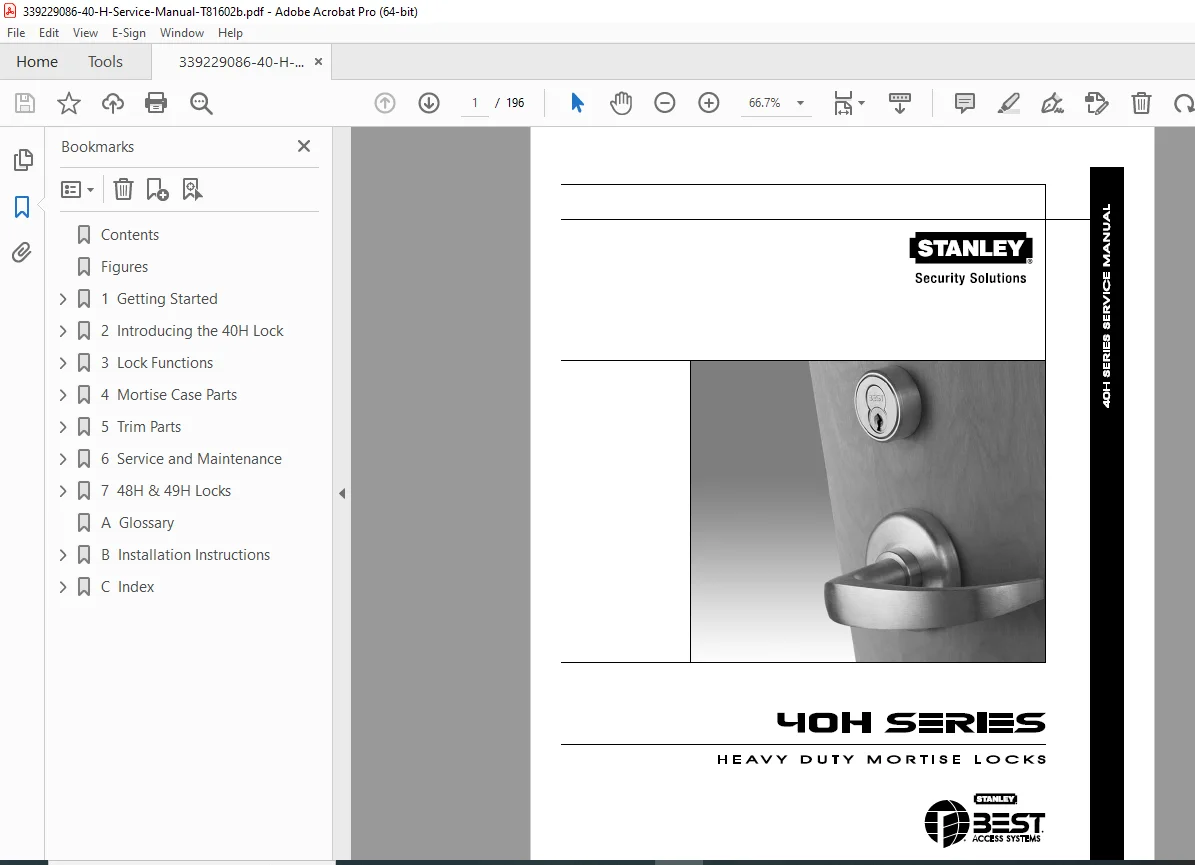

This official Stanley Security Solutions / BEST Access Systems 40H Series Service Manual (T81602 Rev B — March 2007) provides complete technical instructions, servicing procedures, parts identification, function operation descriptions, ordering references, and exploded diagrams for 40H Series Heavy Duty Mortise Locks.

According to the Getting Started section (pp. 1–1 to 1–3), the manual includes UL listings, ANSI compliance, and Miami-Dade structural ratings for deadbolt and non-deadbolt configurations. Dimensional engineering drawings for 45H / 47H / 48H / 49H case & strike assemblies are provided on Figures 1.1–1.3.

The manual explains:

• lock functions by ANSI designation

• universal case reconfiguration

• trim kit compatibility matrix

• electrified fail-safe / fail-secure models

• classroom, dormitory, storeroom & privacy variants

• handing & shuttle screw adjustments

• service & maintenance procedures

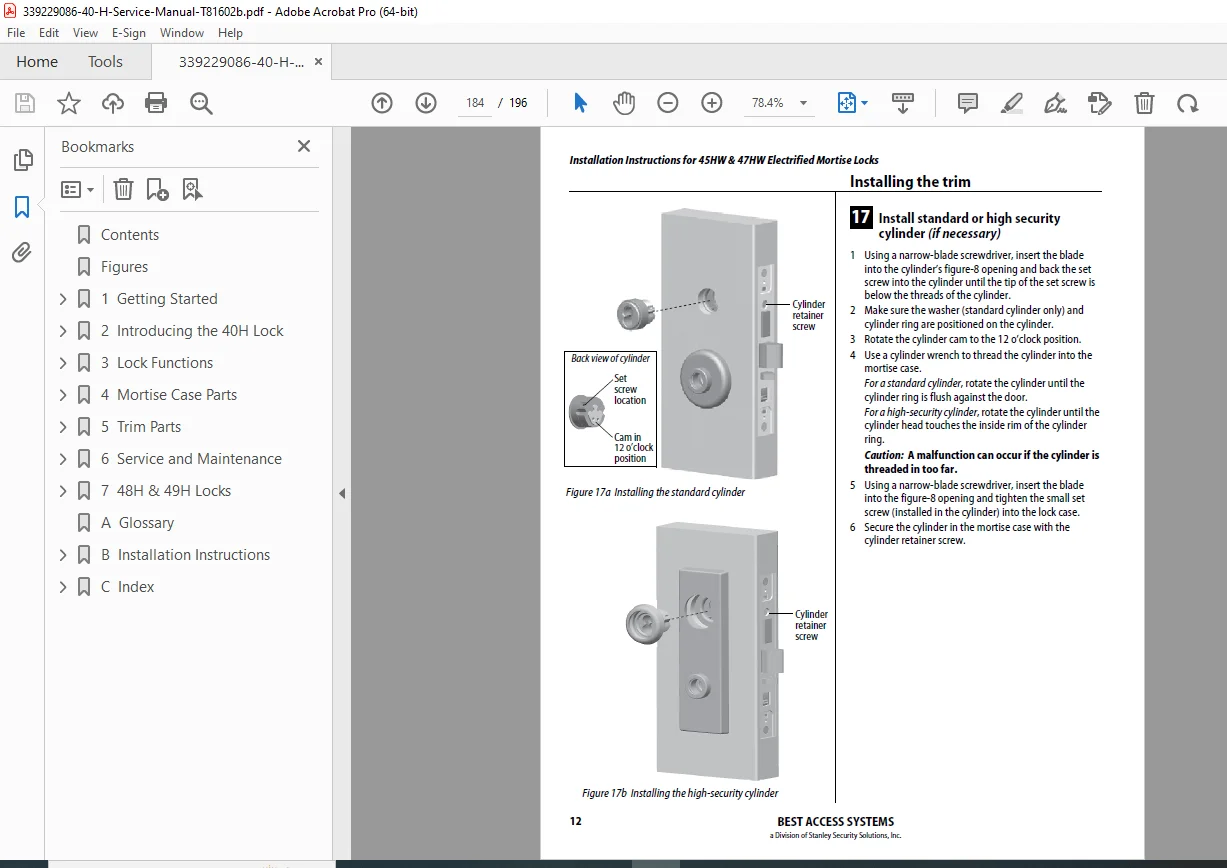

The exploded assembly diagrams and part lists in Section 4 are especially valuable for technicians and locksmiths performing part replacement, diagnostics, and rebuild work.

📑 Structured Contents (based on bookmarks & section headings)

1️⃣ Getting Started

• Certifications & standards (UL, ANSI, CSFM)

• 45H / 47H / 48H / 49H overview & dimensions

• Documentation & template references

• Technical support details

2️⃣ Introducing the 40H Lock

• Ordering methods (function-specific / universal / 3-part)

• Universal lock conversion capability table (p. 2-3)

• Trim kit compatibility matrix (p. 2-4)

• Trim-one-side lock variants (XR / ZD applications)

3️⃣ Lock Functions (ANSI mapped)

Includes detailed operation descriptions for:

• Office, Entrance, Dormitory, Classroom

• Storeroom, Passage, Privacy

• Hotel, Intruder, Communicating

• Deadbolt & Exit

• Special & Dummy functions

• Electrified Fail-Safe / Fail-Secure models

Illustrated function icons explain latch, deadbolt, thumb-turn, key & lever behavior.

4️⃣ Mortise Case Parts

Exploded diagrams & part lists for:

• 45H / 47H mechanical locks

• Electrified DEL / DEU / NXEL / LEL / TDEL etc.

• Deadlock & classroom variations

• Case-only locks & ordering format

5️⃣ Trim Parts

• Outside & inside trim kits

• Lever styles & escutcheons

• Strike packages

• Cylinders, cams & rings

• Hook & standard spindle kits

• Service tools & electrified accessories

6️⃣ Service & Maintenance

• Changing hand (door bevel illustration p. 6-2)

• Rotating latchbolt

• Hub toggle positioning

• Shuttle screw adjustments

• Universal case function conversion

• Troubleshooting guide

7️⃣ 48H & 49H Locks

• High-security deadbolt models

• Function references

• Parts diagrams & trim sets

• Troubleshooting

Appendices

• Glossary

• Installation instructions

• Index
