STEYR Kompakt 4075 4085 4095 4105 4115 Tractor Service Manual 47803877 PDF
$37.95
The Service Manual for STEYR Kompakt 4075, Kompakt 4085, Kompakt 4095, Kompakt 4105, Kompakt 4115 Ecotech-Tractors (47803877) in PDF format offers comprehensive instructions for repairs and maintenance. Conveniently downloadable for efficient tractor service.
Description
STEYR Kompakt 4075 Kompakt 4085 Kompakt 4095 Kompakt 4105 Kompakt 4115 Ecotech-Tractor Service Manual 47803877 – PDF DOWNLOAD
The Service Manual for STEYR Kompakt 4075, Kompakt 4085, Kompakt 4095, Kompakt 4105, Kompakt 4115 Ecotech-Tractors (47803877) in PDF format offers comprehensive instructions for repairs and maintenance. Conveniently downloadable for efficient tractor service.
FILE DETAILS:
STEYR Kompakt 4075 Kompakt 4085 Kompakt 4095 Kompakt 4105 Kompakt 4115 Ecotech-Tractor Service Manual 47803877 – PDF DOWNLOAD
Language : English
Pages : 3133
Downloadable : Yes
File Type : PDF

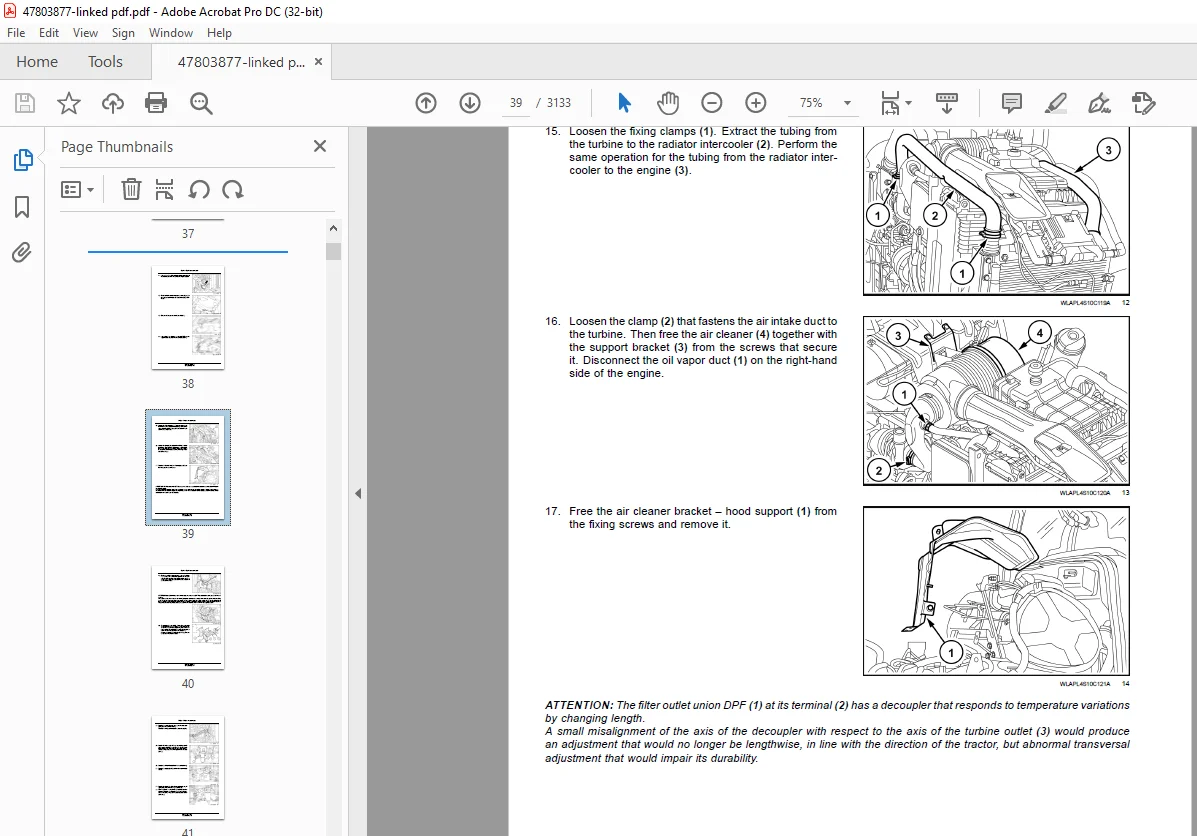

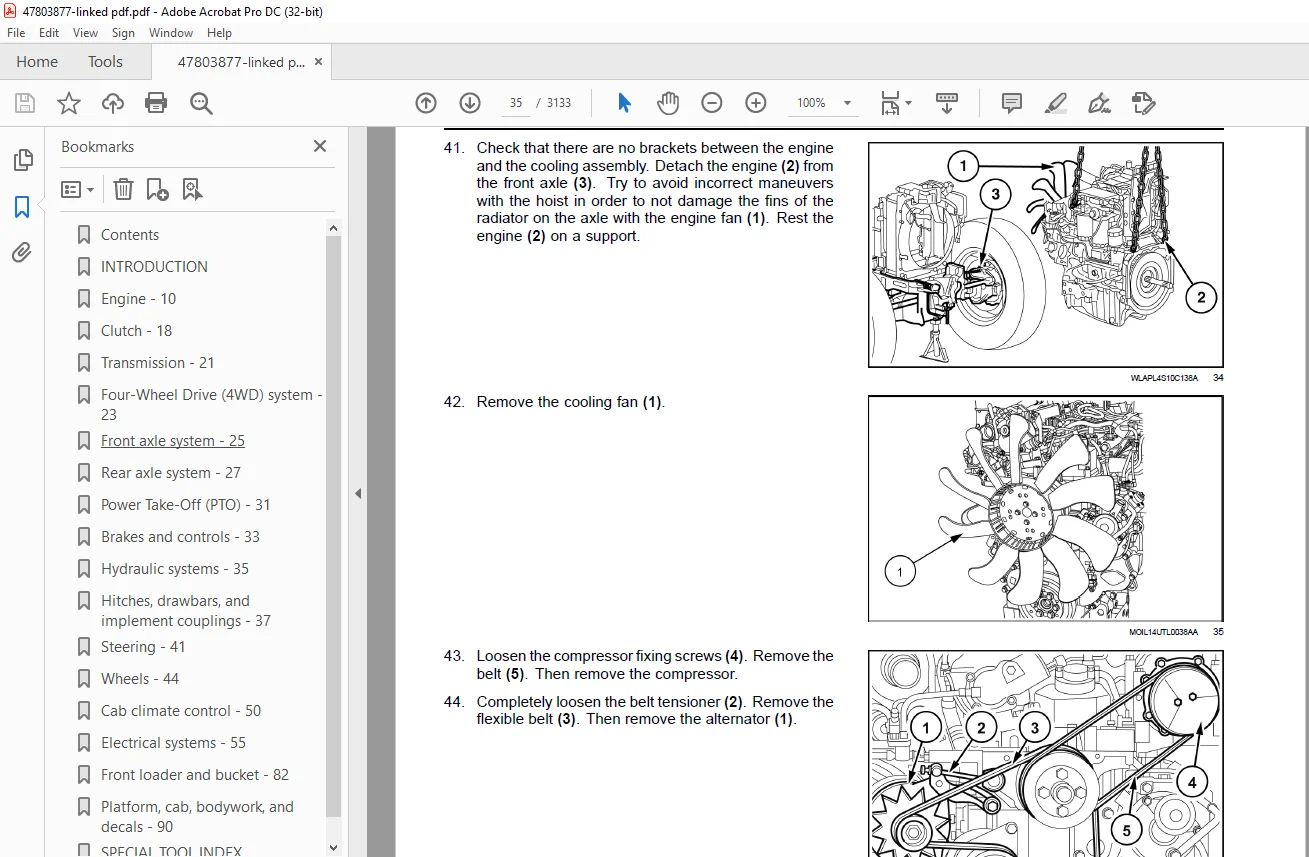

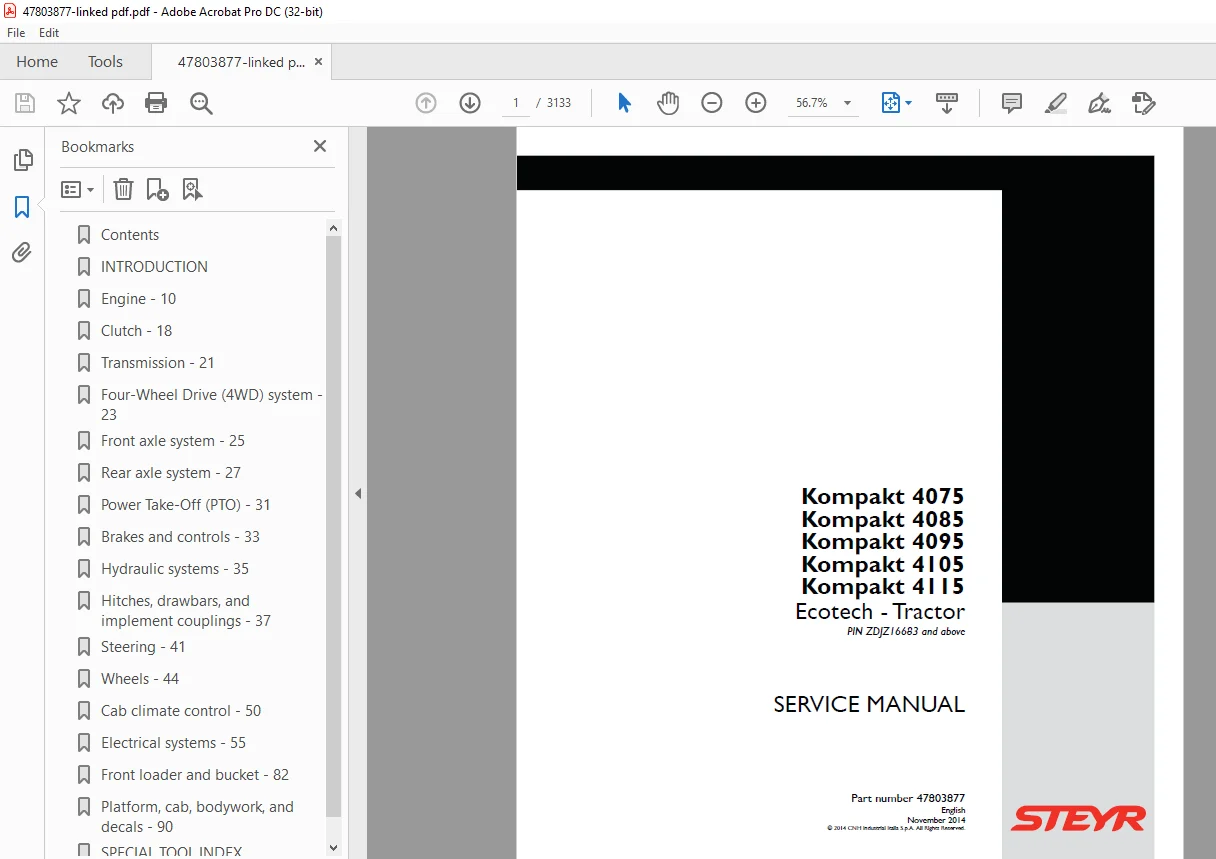

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
STEYR Kompakt 4075 Kompakt 4085 Kompakt 4095 Kompakt 4105 Kompakt 4115 Ecotech-Tractor Service Manual 47803877 – PDF DOWNLOAD
PIN ZDJZ16683 and above
Kompakt 4075 with mechanical or power shuttle transmission [ZxJZ0xxxx],
Kompakt 4075 with hi-lo transmission [ZxJZ0xxxx], Kompakt 4085 with
mechanical or power shuttle transmission [ZxJZ0xxxx], Kompakt 4085 with
hi-lo transmission [ZxJZ0xxxx], Kompakt 4095 with mechanical or power
shuttle transmission [ZxJZ0xxxx], Kompakt 4095 with hi-lo transmission
[ZxJZ0xxxx], Kompakt 4105 with mechanical or power shuttle transmission
[ZxJZ0xxxx], Kompakt 4105 with hi-lo transmission [ZxJZ0xxxx], Kompakt
4115 with mechanical or power shuttle transmission [ZxJZ0xxxx], Kompakt
4115 with hi-lo transmission [ZxJZ0xxxx
INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
[10 216] Fuel tanks 10 2
[10 501] Exhaust Gas Recirculation (EGR) – Diesel Particulate Filter (DPF) exhaust
treatment 10 3
[10 414] Fan and drive 10 4
Clutch 18
[18 100] Clutch mechanical release control 18 1
[18 104] Clutch hydraulic release control 18 2
[18 110] Clutch and components 18 3
Transmission 21
[21 130] Mechanical transmission external controls 21 1
[21 112] Power shuttle transmission 21 2
[21 110] Master clutch housing 21 3
[21 134] Power shuttle transmission external controls 21 4
[21 154] Power shuttle transmission internal components 21 5
[21 160] Creeper 21 6
[21 162] Reverser 21 7
[21 168] Hi-Lo unit 21 8
[21 109] Transmission cooler and lines 21 9
[21 118] Transmission/Rear drive 21 10
[21 148] Transmission/Rear drive internal components 21 11
[21 AAA] Transmission generic sub-group 21 12
Four-Wheel Drive (4WD) system 23
[23 202] Electro-hydraulic control 23 1
[23 314] Drive shaft 23 2
47803877 15/12/2014
Front axle system 25
[25 100] Powered front axle 25 1
[25 102] Front bevel gear set and differential 25 2
[25 108] Final drive hub, steering knuckles, and shafts 25 3
[25 400] Non-powered front axle 25 4
Rear axle system 27
[27 106] Rear bevel gear set and differential 27 1
[27 120] Planetary and final drives 27 2
[27 100] Powered rear axle 27 3
Power Take-Off (PTO) 31
[31 101] Rear mechanical control 31 1
[31 104] Rear electro-hydraulic control 31 2
[31 110] One-speed rear Power Take-Off (PTO) 31 3
[31 114] Two-speed rear Power Take-Off (PTO) 31 4
[31 146] Front Power Take-Off (PTO) 31 5
Brakes and controls 33
[33 202] Hydraulic service brakes 33 1
[33 110] Parking brake or parking lock 33 2
[33 220] Trailer brake hydraulic control 33 3
[33 224] Trailer brake pneumatic control 33 4
Hydraulic systems 35
[35 000] Hydraulic systems 35 1
[35 104] Fixed displacement pump 35 2
[35 160] Front hitch controls and lines 35 3
[35 204] Remote control valves 35 4
[35 114] Three-point hitch control valve 35 5
[35 116] Three-point hitch cylinder 35 6
[35 701] Front loader arm hydraulic system 35 7
47803877 15/12/2014
[35 723] Front loader bucket hydraulic system 35 8
Hitches, drawbars, and implement couplings 37
[37 100] Drawbars and towing hitches 37 1
[37 110] Rear three-point hitch 37 2
[37 162] Front hitch 37 3
[37 166] Front hitch linkage 37 4
Steering 41
[41 101] Steering control 41 1
[41 106] Tie rods 41 2
[41 200] Hydraulic control components 41 3
[41 206] Pump 41 4
[41 216] Cylinders 41 5
Wheels 44
[44 511] Front wheels 44 1
[44 520] Rear wheels 44 2
Cab climate control 50
[50 100] Heating 50 1
[50 104] Ventilation 50 2
[50 200] Air conditioning 50 3
Electrical systems 55
[55 032] Trailer brake electrical system 55 1
[55 100] Harnesses and connectors 55 2
[55 201] Engine starting system 55 3
[55 301] Alternator 55 4
[55 302] Battery 55 5
[55 640] Electronic modules 55 6
[55 048] Rear Power Take-Off (PTO) control system 55 7
[55 160] Front hitch electronic control system 55 8
47803877 15/12/2014
[55 408] Warning indicators, alarms, and instruments 55 9
[55 DTC] FAULT CODES 55 10
Front loader and bucket 82
[82 100] Arm 82 1
[82 300] Bucket 82 2
[82 AAA] Front loader and bucket generic sub-group 82 3
Platform, cab, bodywork, and decals 90
[90 150] Cab 90 1
[90 151] Cab interior 90 2
[90 160] Cab interior trim and panels 90 3
[90 154] Cab doors and hatches 90 4
[90 100] Engine hood and panels 90 5
