Still OM Pimespo Series 4022 E 20a E 20 ac Series 4023 E 25ac E 30ac SHOP MANUAL – PDF DOWNLOAD
$28.95
Still OM Pimespo Series 4022 E 20a E 20 ac Series 4023 E 25ac E 30ac SHOP MANUAL – PDF DOWNLOAD
Description
Still OM Pimespo Series 4022 E 20a E 20 ac Series 4023 E 25ac E 30ac SHOP MANUAL – PDF DOWNLOAD
FILE DETAILS:
Still OM Pimespo Series 4022 E 20a E 20 ac Series 4023 E 25ac E 30ac SHOP MANUAL – PDF DOWNLOAD
Language : English
Pages : 358
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Still OM Pimespo Series 4022 E 20a E 20 ac Series 4023 E 25ac E 30ac SHOP MANUAL – PDF DOWNLOAD
The majority of mishaps or accidents occur in the shop as a result of someone failing to observe the basic, simple safety precautions and standards in place. Most accidents and their consequences can be avoided by exercising the necessary caution and good sense to prevent them from happening in the first place. No matter how well a machine has been engineered or built, it is impossible to eliminate all the causes of accidents, but a careful and prudent mechanic can offer the best guarantee against mishaps. Simply observing a single, basic safety precaution with scrupulous attention is often enough to avoid many serious accidents.
General description
Follow all maintenance and repair procedures carefully
• Do not service the machine if someone is in the operator’s seat unless it is a qualified technician helping with
the maintenance operations.
• Do not operate the machine or its equipment from anywhere except the operator’s seat.
• Stop the engine and make sure that the pressure has been released from all hydraulic systems before
removing caps or covers.
• Refer to the appropriate instructions in this manual.
• Take all the necessary precautions when performing any service operation.
• Make sure that ladders and service platforms used in the shop or at the site comply with current safety
standards.

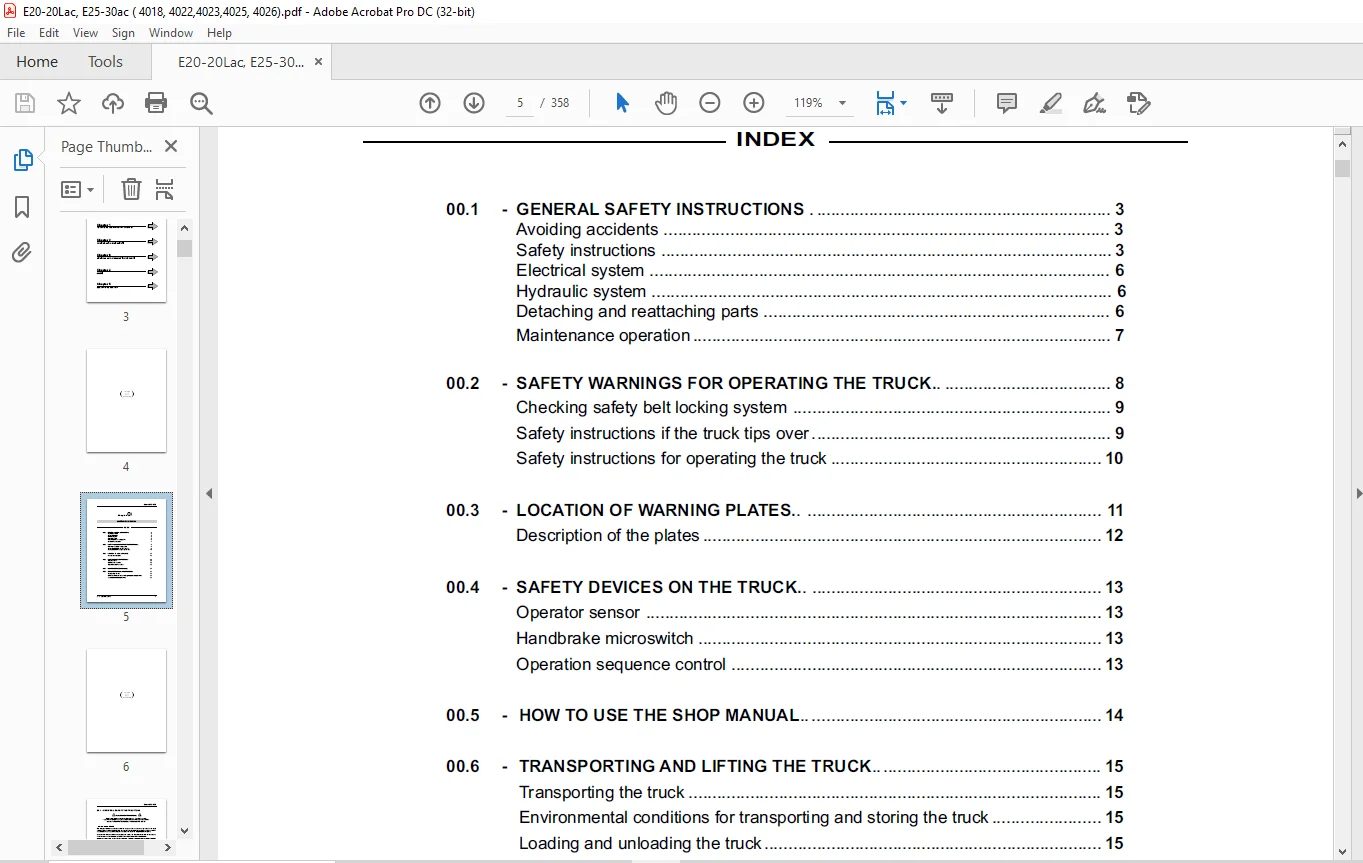

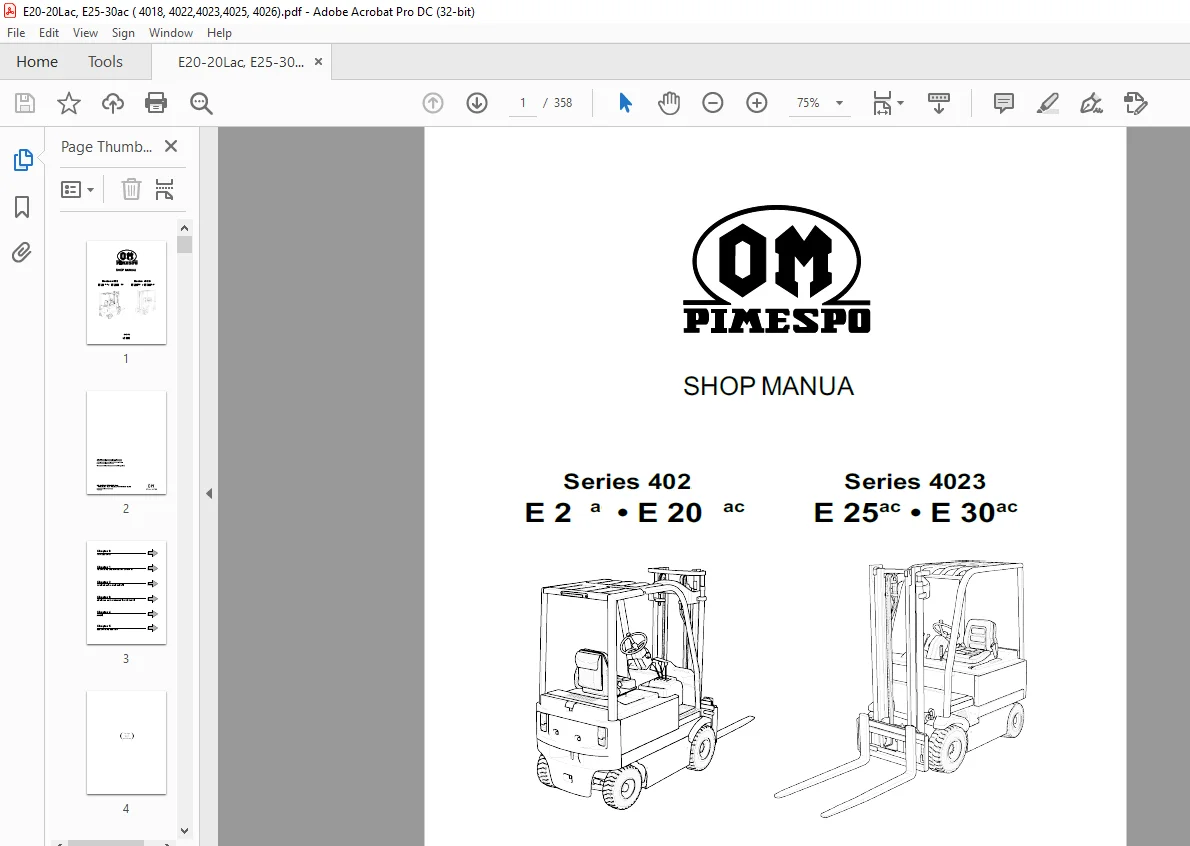

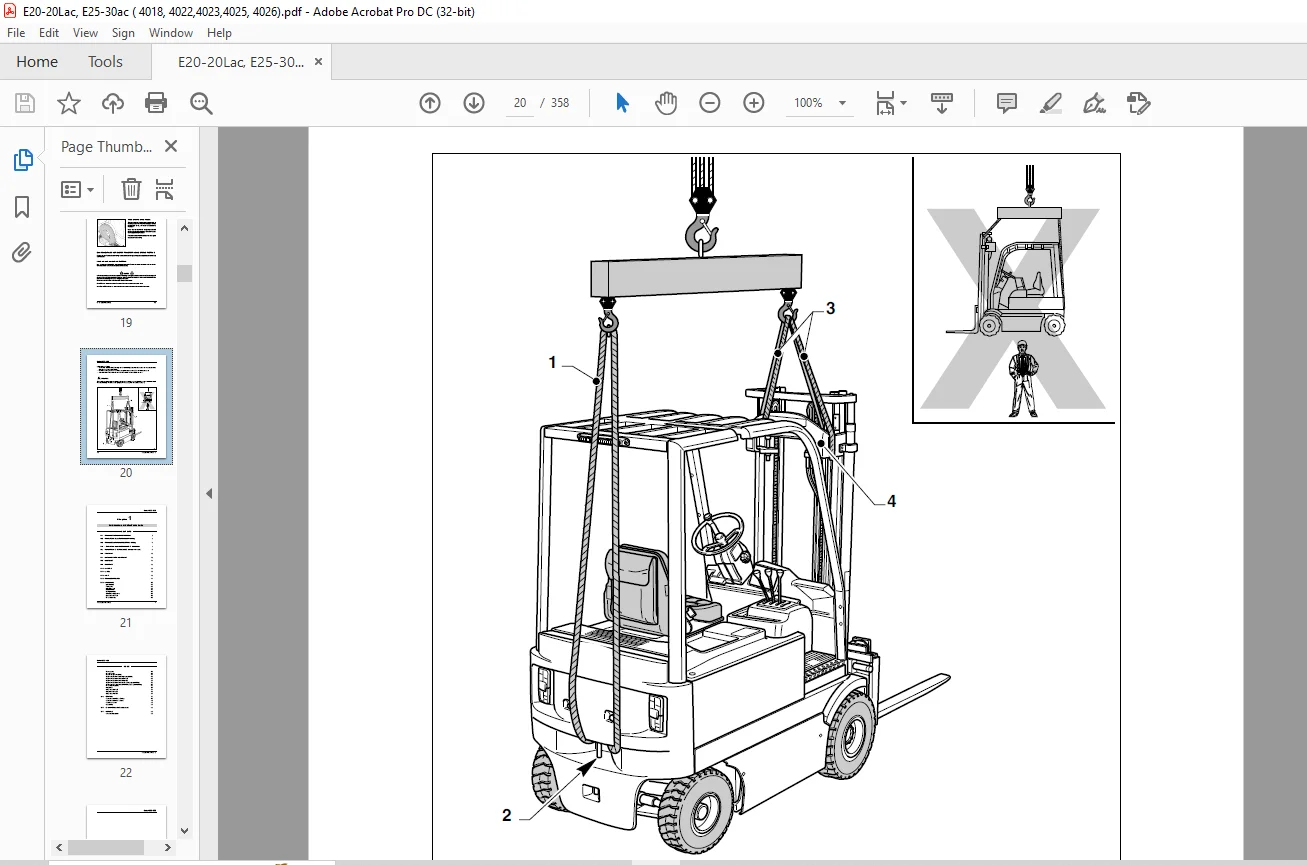

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Still OM Pimespo Series 4022 E 20a E 20 ac Series 4023 E 25ac E 30ac SHOP MANUAL – PDF DOWNLOAD
Chapter 00
INTRODUCTION
Chapter 10
TECHNICAL OPERATING INFORMATION
Chapter 20
CHECKS AND ADJUSTMENTS
Chapter 30
REMOVAL AND INSTALLATION OF PARTS
Chapter 40
MASTS
Chapter 50
ELECTRICAL SECTION
00 1 – GENERAL SAFETY INSTRUCTIONS 3
Avoiding accidents 3
Safety instructions 3
Electrical system 6
Hydraulic system 6
Detaching and reattaching parts 6
Maintenance operation 7
00 2 – SAFETY WARNINGS FOR OPERATING THE TRUCK 8
Checking safety belt locking system 9
Safety instructions if the truck tips over 9
Safety instructions for operating the truck 10
00 3 – LOCATION OF WARNING PLATES 11
Description of the plates 12
00 4 – SAFETY DEVICES ON THE TRUCK 13
Operator sensor 13
Handbrake microswitch 13
Operation sequence control 13
00 5 – HOW TO USE THE SHOP MANUAL 14
00 6 – TRANSPORTING AND LIFTING THE TRUCK 15
Transporting the truck 15
Environmental conditions for transporting and storing the truck 15
Loading and unloading the truck 15
