Still Pallet Track ECH12 Still Electronic Documentation System Spare Parts List Manual – PDF DOWNLOAD

Description

Still Pallet Track ECH12 Still Electronic Documentation System Spare Parts List Manual – PDF DOWNLOAD

FILE DETAILS:

Still Pallet Track ECH12 Still Electronic Documentation System Spare Parts List Manual – PDF DOWNLOAD

Language : English
Pages : 66
Downloadable : Yes
File Type : PDF

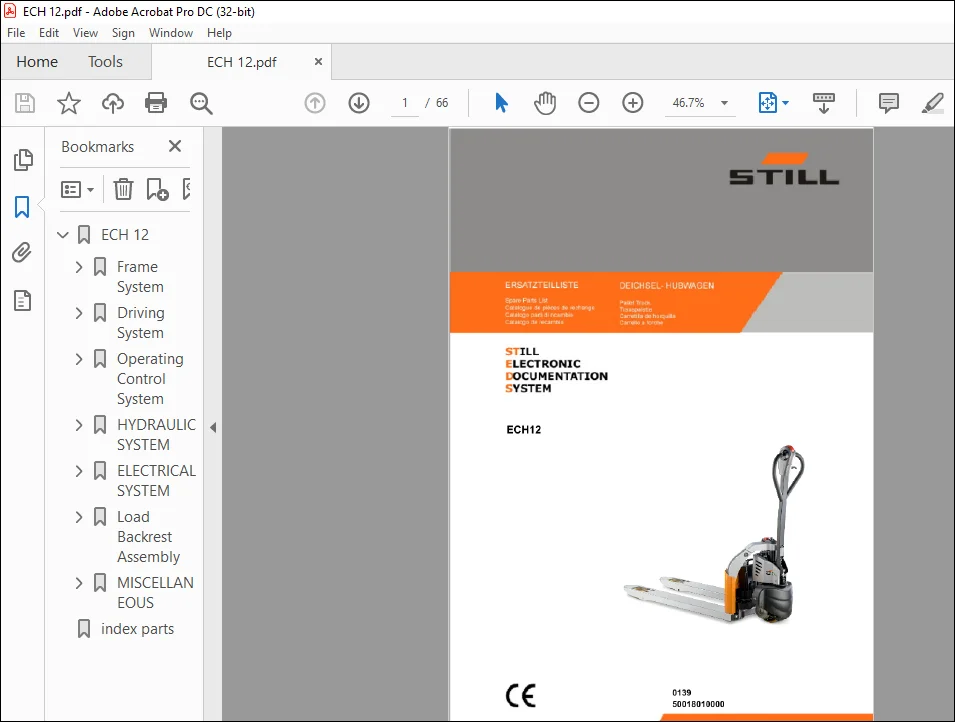

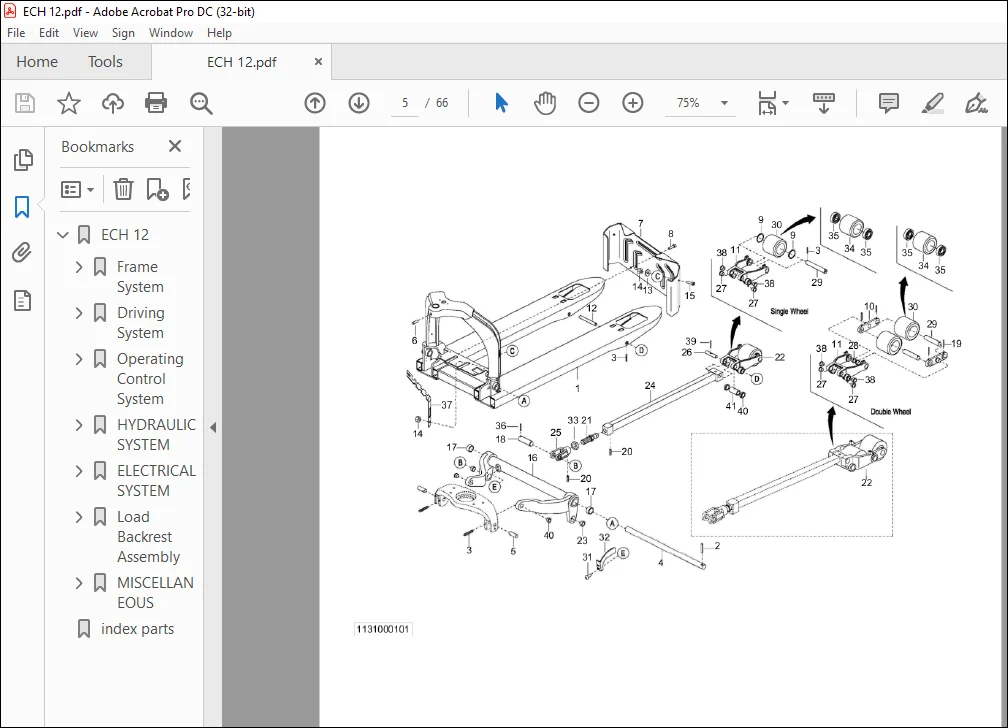

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Still Pallet Track ECH12 Still Electronic Documentation System Spare Parts List Manual – PDF DOWNLOAD

ECH 12 ............................................. 2
	Frame System ................................... 4
		frame assembly ............................. 6
		COVER ......................................10
	Driving System .................................12
		Driving System .............................14
		Driving System (Big driving wheel)..........18
	Operating Control System .......................22
		operating grip (Manual lowering)............24
		Handle head assembly (Manual lowering)......26
		operating grip (Electric lowering)..........28
		Handle head assembly (Electric lowering)....30
	HYDRAULIC SYSTEM ...............................32
		HYDRAULIC SYSTEM (Manual lowering)..........34
		HYDRAULIC SYSTEM (Electric lowering)........38
	ELECTRICAL SYSTEM ..............................42
		Electrical Assembly ........................44
		wiring harness .............................48
		Cable Assembly .............................50
		Charger Assembly ...........................52
	Load Backrest Assembly .........................54
		Load Backrest Assembly .....................56
	MISCELLANEOUS ..................................58
		label ......................................60
index parts.........................................61
