STILL STED FORKLIFT D15-D18-D20-D 23 Gl5-Gl8-G20-G23 Supplement Repair Manual – PDF DOWNLOAD

Description

STILL STED FORKLIFT D15-D18-D20-D 23 Gl5-Gl8-G20-G23 Supplement Repair Manual – PDF DOWNLOAD

FILE DETAILS:

STILL STED FORKLIFT D15-D18-D20-D 23 Gl5-Gl8-G20-G23 Supplement Repair Manual – PDF DOWNLOAD

Language : English
Pages : 530
Downloadable : Yes
File Type : PDF

DESCRIPTION:

STILL STED FORKLIFT D15-D18-D20-D 23 Gl5-Gl8-G20-G23 Supplement Repair Manual – PDF DOWNLOAD

AVOIDING ACCIDENTS

Most accidents and injuries that occur in workshops are caused by the failure to observe some simple basic care and safety rules. For these reasons, in most cases they can be avoided: it is sufficient to foresee the possible causes and then take the necessary actions using caution and care. No matter how well desiqned and built, no machine can be guaranteed to be completely accident-free. An alert and cautious mechanic is the best guarantee against accidents. The strict observance of Just one basic safety rule would be enough to avoid many serious accidents

SAFETY RULES
General
Follow the maintenance and repair procedures carefully.

• Never wear rings, wrist watches, Jewelry, loose or dangling items of clothing such as ties, torn clothing, scarves, unbuttoned Jackets or overalls with open zippers that could get caught in moving parts. Approved safety clothing is recommended such as: helmets, anti-slip shoes, gloves and safety goggles.
• Never carry out any service operations on the machine with anyone sitting in the seat, unless the operator is fully-trained and involved in the operation to be carried out. Never start the machine or use its attachments from any position other than the operator’s seat. Switch off the motor and check that there is no pressure left in the hydraulic circuits before removing plugs and covers.
• See the instructions provided for this purpose in this manual. All service operations should be carried out with the maximum care and attention. The service steps and platforms used in the workshop or on site should comply with current accident-prevention regulations. Label all controls to indicate that a service operation is being carried out. Block the machine and any attachments to be raised.
• Never check or refill the fuel tank, hydraulic system oil tank and batteries while smoking since the fluips are inflammable. The brakes are deactivated when they are released manually for service or,erations. In these cases, spetial blocks or similar devices should be used to control the machine. Use only the prescribed attachment points when towing. Attach the connections carefully. Check that the pins and/or bolts provided are firmly secured prior to pulling. Never stand close to drawbars, ropes or chains that are working under load.
• To move a broken-down machine, use a trailer or a low-platform truck, if available. To load or unload the machine from the transportation vehicle, choose a level area providing a solid support for the trailer or truck wheels. Anchor the machine firmly to the truck or trailer loading platform and block the wheels. For electric heaters, battery chargers and similar equipment use only auxiliary power supply sources having an efficient earth connection to avoid possible electric shocks.
• If you need to raise or handle heavy parts, use appropriate hoists and similar equipment, and make sure that no one is in the immediate vicinity. Never pour petrol or diesel fuel into wide, open and deep containers due to the risk from inflammable vapours and spillage. Never use petrol, diesel fuel or other inflammable fluids as cleaning agents. Instead, use non-inflammable, non-toxic commercial solvents.
• When using compressed air to clean parts, always wear goggles with side shields. Limit pressure to a maximum of 2.1 bar in accordance with existing local or national regulations. Do not smoke or use naked flames or cause sparks in the vicinity when handling inflammable materials. Do not use flames as a means of illumination when carrying out service operations or looking for leaks on the machine.

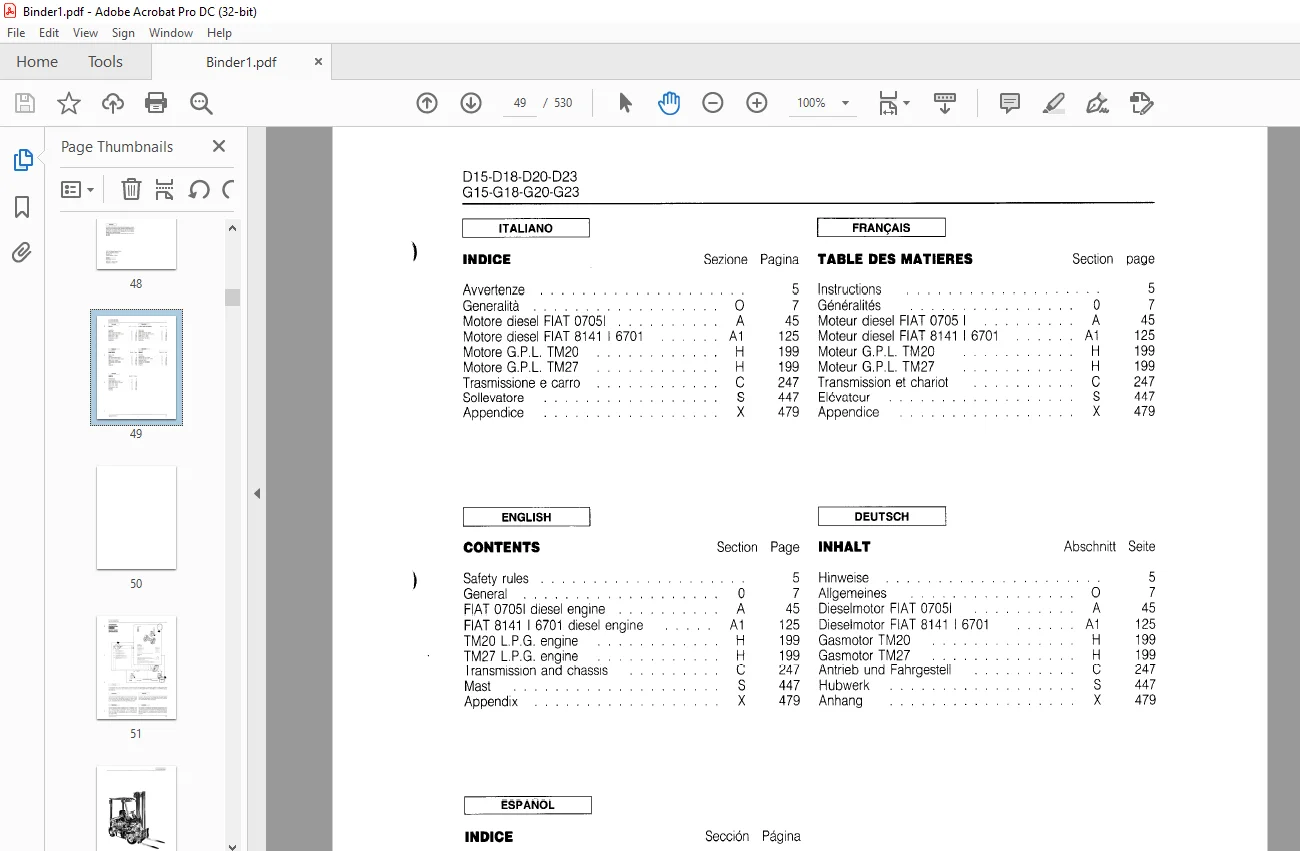

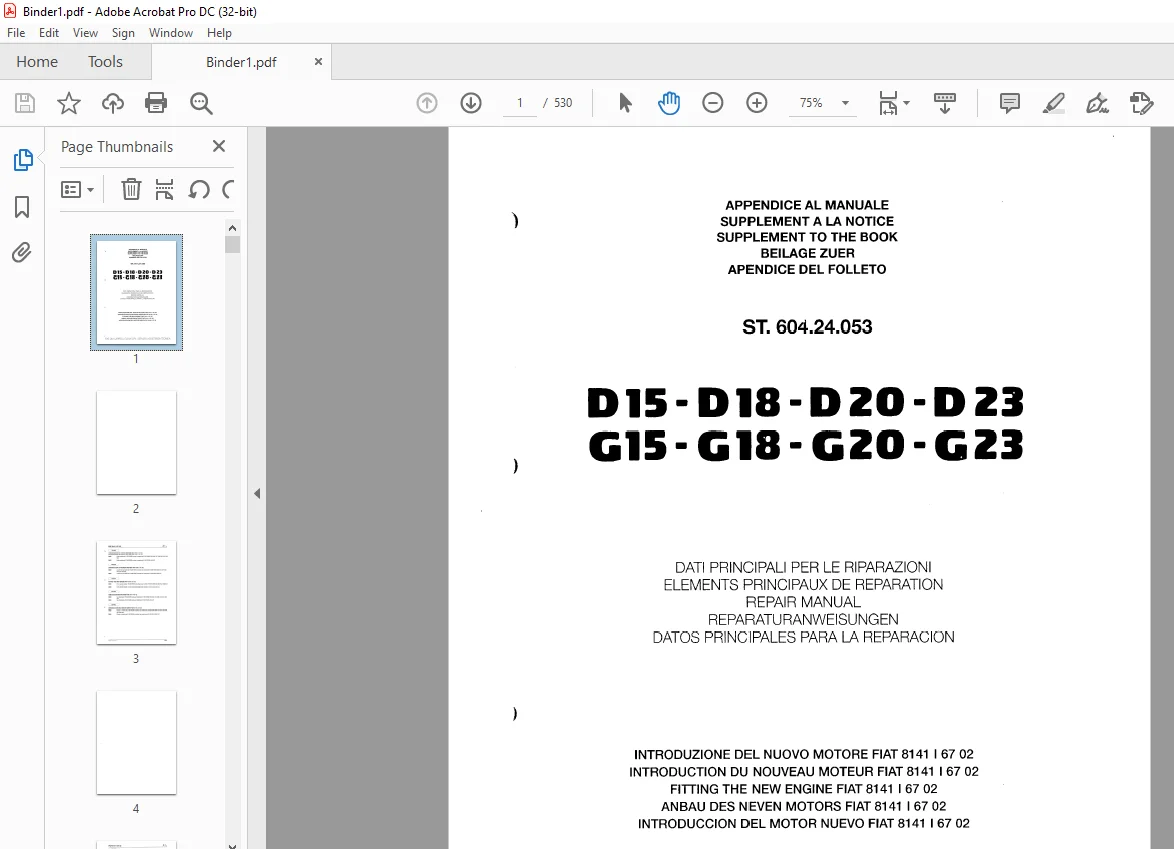

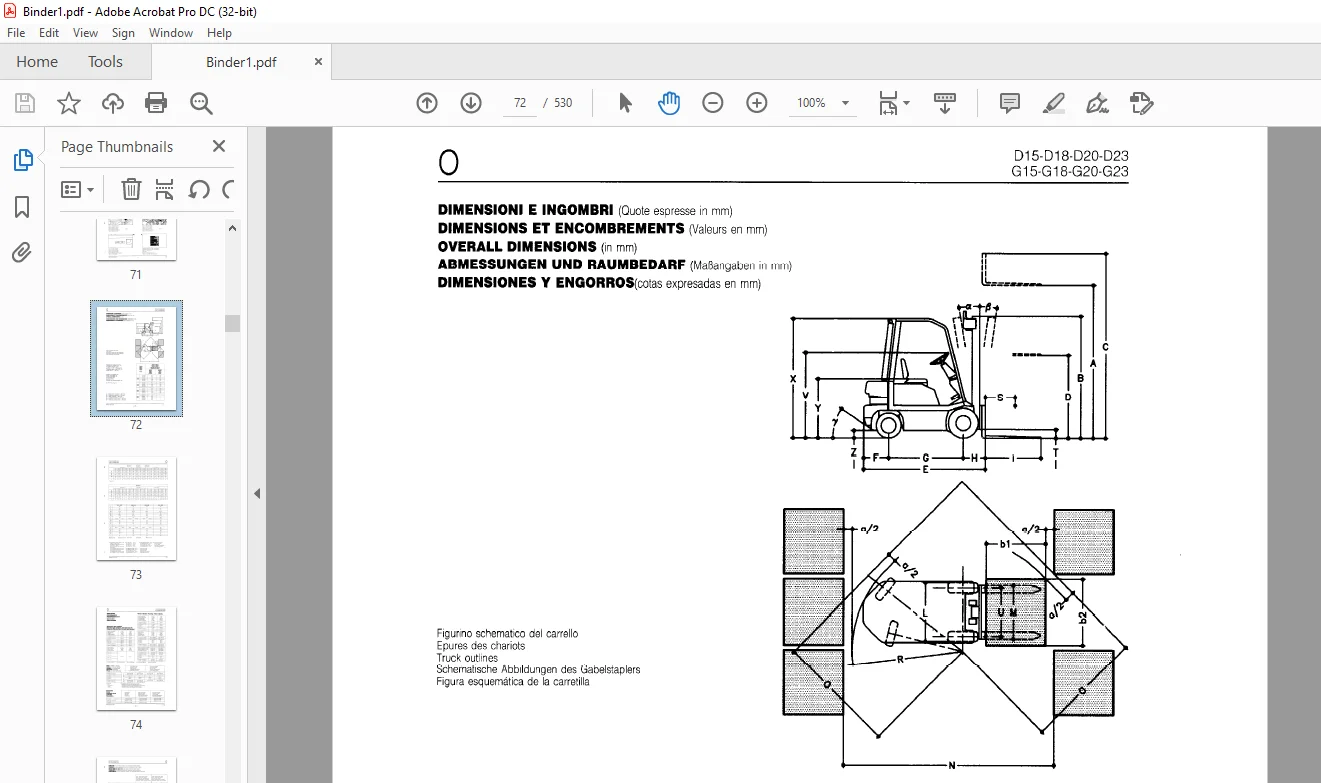

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

STILL STED FORKLIFT D15-D18-D20-D 23 Gl5-Gl8-G20-G23 Supplement Repair Manual – PDF DOWNLOAD

Safety rules
General
FIAT 07051 diesel engine
FIAT 8141 I 6701 diesel engine
TM20 L P G engine
TM27 L P G engine
Transmission and chassis
Mast
Appendix

Need help? Contact: [email protected]

https://vimeo.com/858917376?share=copy

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
