STILL STED FORKLIFT E35N-E40N-E50N E60N-E70N-E80N Repair Manual – PFD DOWNLOAD

Description

STILL STED FORKLIFT E35N-E40N-E50N E60N-E70N-E80N Repair Manual – PFD DOWNLOAD

FILE DETAILS:

STILL STED FORKLIFT E35N-E40N-E50N E60N-E70N-E80N Repair Manual – PFD DOWNLOAD

Language : English
Pages :556
Downloadable : Yes
File Type : PDF

DESCRIPTION:

STILL STED FORKLIFT E35N-E40N-E50N E60N-E70N-E80N Repair Manual – PFD DOWNLOAD

AVOIDING ACCIDENTS

Most accidents and injuries that occur in workshops are caused by the failure to observe some simple basic rules of care and safety. For this reasons in the majority of cases they can be avoided: it is sufficient to foresee the possible causes and then act with the necessary caution and care. It is impossible with any type of machine, no matter how well designed and built, to definitely exclude every possibility of accident. An alert, cautious mechanic is the best guarantee against accident. The strict observance of just one basic safety rule would be enough to avoid many serious accidents.

SAFETY RULES
General
Follow the maintenance and repair procedures carefully.

• Never wear rings, wrist watches, jewellery, loose or dangling items of clothing such as ties, torn clothing, scarves, unbuttoned jackets or overalls with open zip fasteners that could get caught up in the moving parts. Approved safety clothing is recommended such as, helmets, anti-slip shoes, gloves, safety goggles. Never carry out any service operation on the machine with anyone sitting in the seat, unless the operator is fully trained and involved in the operation to be carried out.
• Never start the machine or use its attachments from any position other than the operator’s seat. Check that there is no pressure left in the hydraulic circuits before removing covers. See the instructions provided for this purpose in this manual. All service operations should be carried out with the maximum care and attention. The design of the service steps and platforms used in the workshop or on site should comply with current accident prevention regulations. Disconnect the batteries and label all the controls to indicate that a service operation is being carried out. Block the machine and any attachments to be raised. Never check batteries and accumulators whilst smoking or next to naked flames, since the fluids are inflammable.
• The brakes are deactivated when they are released manually for service operations. In these cases, special blocks or similar devices should be used to control the machine. Use only the prescribed attachment points when towing. Attach the connections carefully. Check that the pins and/or bolts provided are firmly secured prior to pulling . Never stand close to drawbars, ropes or chains that are working under load. To move a broken-down machine use a trailer or a low-platform truck, if available.
• To load or unload the machine from the means of transport, choose a level area providing a solid support to the trailer or truck wheels. Anchor the machine firmly to the truck or trailer loading platform and block the wheels. For the electric heaters, battery chargers and similar equipment use only auxiliary power supply sources having an efficient earth connection to avoid possible electric shocks.
• If you need to raise or handle heavy parts, use the appropriate capacity hoists and similar apparatus, and make sure that noone is in the immediate vicinity. Never pour petrol or diesel fuel into wide open deep containers due to the risk of inflammable vapours and spillage. Never use petrol, diesel fuel or other inflammable fluids as cleaning agents. Instead, use non-inflammable, non-toxic commercial so lvents. Stampato

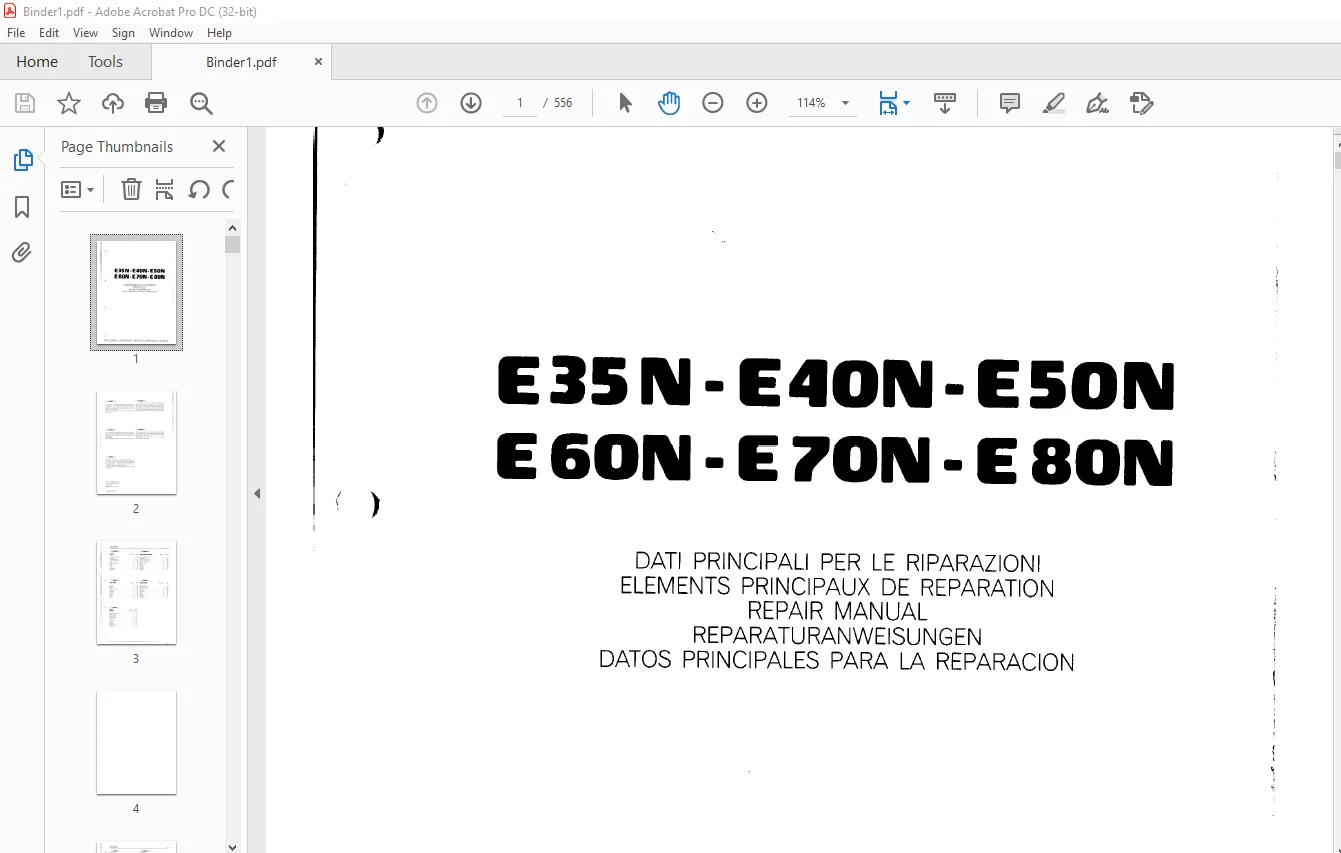

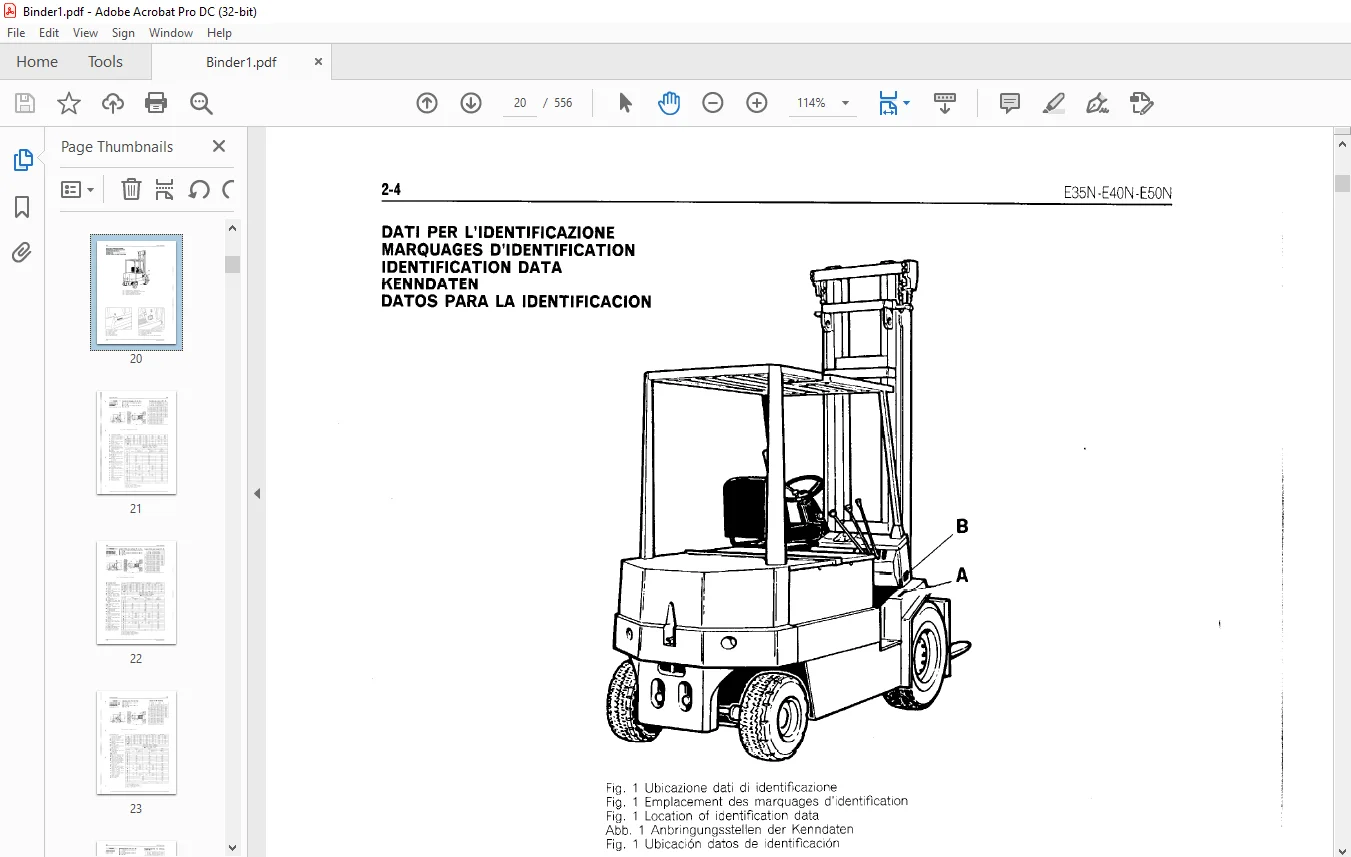

IMAGES PREVIEW OF THE MANUAL:

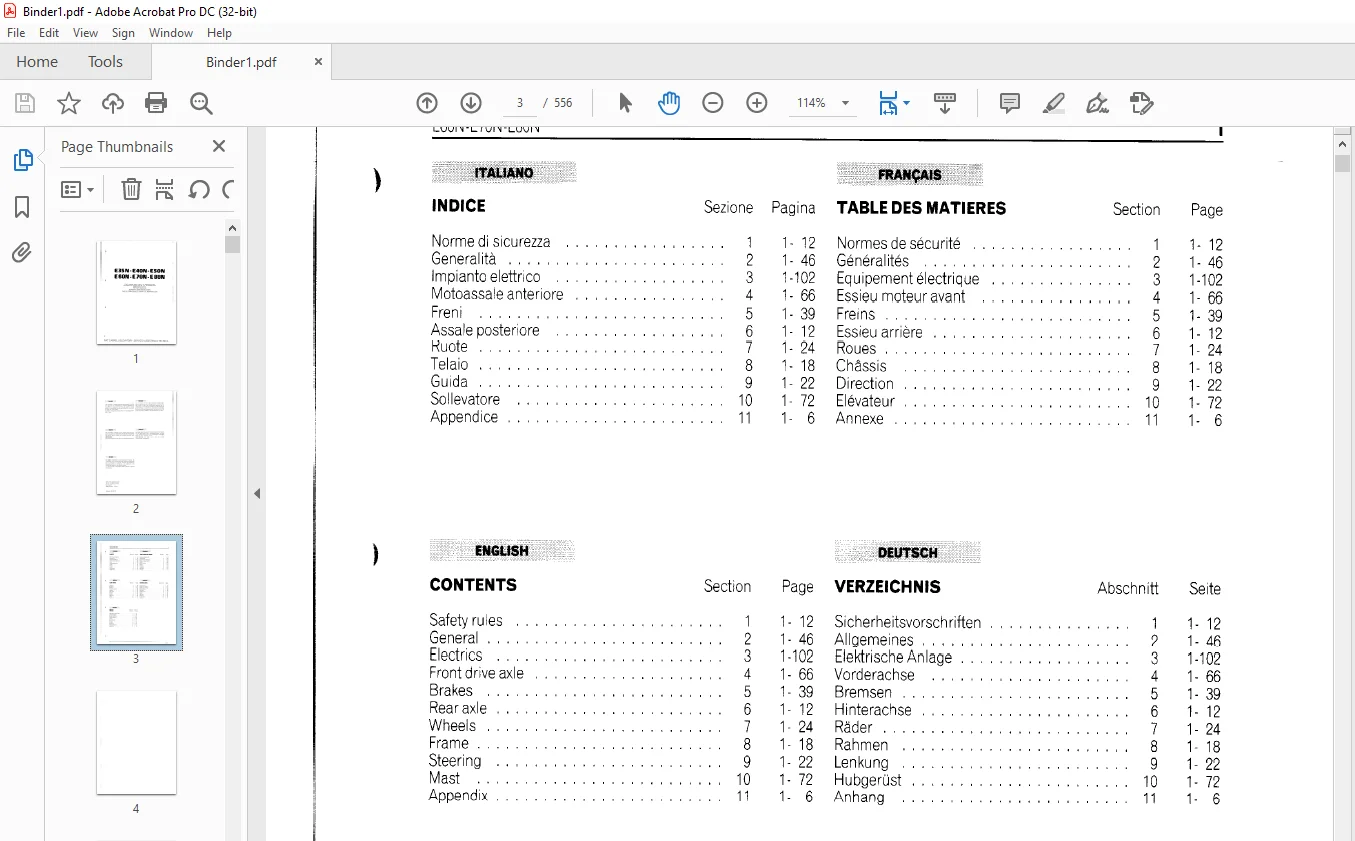

TABLE OF CONTENTS:

STILL STED FORKLIFT E35N-E40N-E50N E60N-E70N-E80N Repair Manual – PFD DOWNLOAD

Safety rules 1
General 2
Electrics 3
Front drive axle 4
Brakes 5
Rear axle 6
Wheels 7
Frame 8
Steering 9
Mast 10
Appendix 11

Need help? Contact: [email protected]

https://vimeo.com/858922369?share=copy

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
