STILL STED Forklift EK-X high-level order picker EK-X 2131 24 V EK-X 2133 48 V Workshop Manual – PDF DOWNLOAD
FILE DETAILS:
STILL STED Forklift EK-X high-level order picker EK-X 2131 24 V EK-X 2133 48 V Workshop Manual – PDF DOWNLOAD
Language : English
Pages : 484
Downloadable : Yes
File Type : PDF

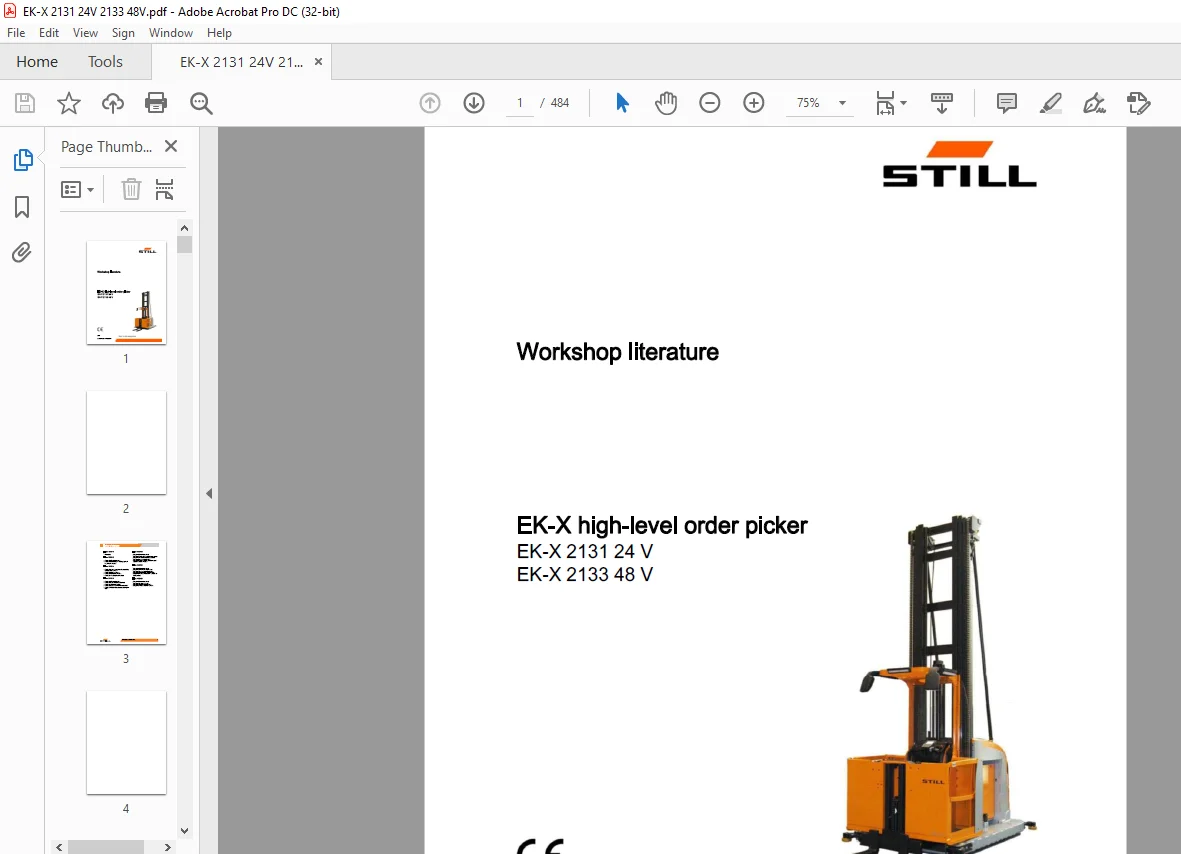

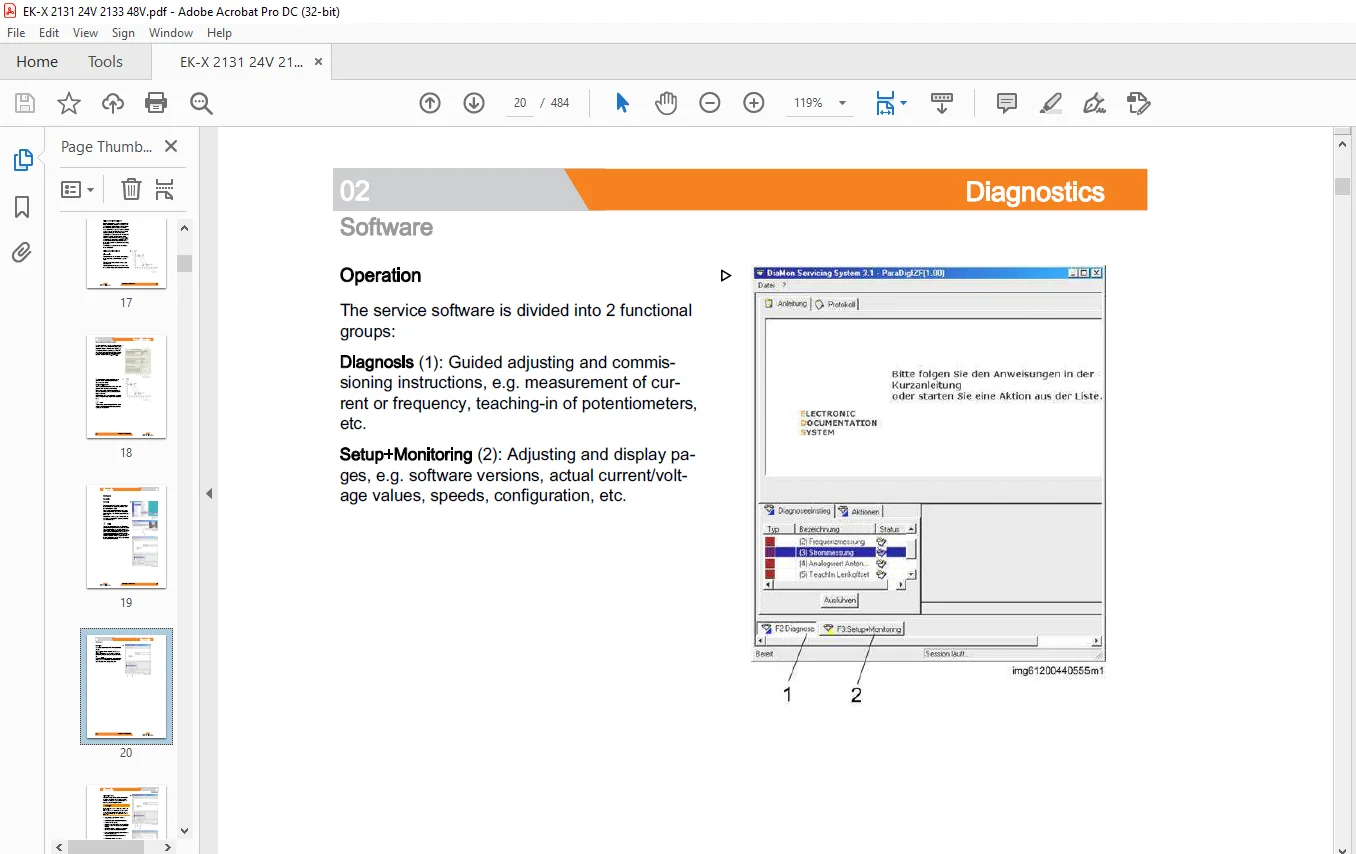

IMAGES PREVIEW OF THE MANUAL:

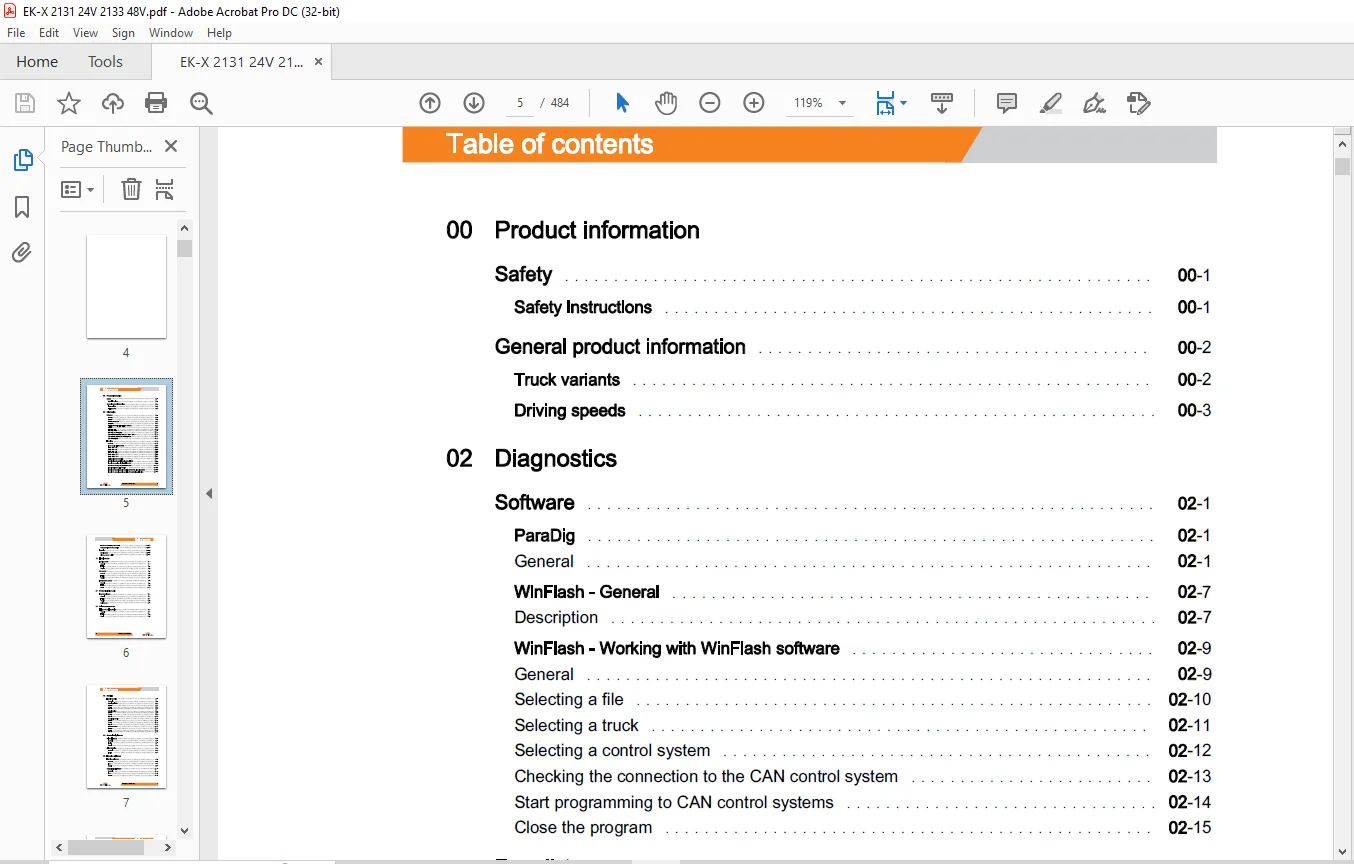

TABLE OF CONTENTS:
STILL STED Forklift EK-X high-level order picker EK-X 2131 24 V EK-X 2133 48 V Workshop Manual – PDF DOWNLOAD
0 Product information
Safety
Safety instructions
General product information
Truck variants
Driving speeds
Safety
Safety instructions
General product information
Truck variants
Driving speeds
General
Description
General
Selecting a file
Selecting a truck
Selecting a control system
Checking the connection to the CAN control system
Start programming to CAN control systems
Close the program
Errors 100 – 399
Errors 400 – 699
Errors 700 – 999
Error 1000 – 1399
Errors 1400 – 1699
Errors 1700 – 1999
Traction controller (FS) 1 U6 error list 02
Pump controller (PS) 2U3 error list 02
Teach-in 02
Service mode 02
Distance sensor main lift 02
11 Electric motor
Traction motor 11
General 11
Testing 11
Repairs 11
Rev sensor 11
General 11
Testing 11
Repairs 11
Temperature sensor 11
General 11
Testing 11
Repair 11
22 Mechanical drive axle
Front bevel gears 22
General 22
Testing 22
Repairs 22
Maintenance 22
34 Driver’s compartment
Tilting order picking barrier 34
General 34
Testing 34
Repair
Description
General
Selecting a file
Selecting a truck
Selecting a control system
Checking the connection to the CAN control system
Start programming to CAN control systems
Close the program
Errors 100 – 399
Errors 400 – 699
Errors 700 – 999
Error 1000 – 1399
Errors 1400 – 1699
Errors 1700 – 1999
Traction controller (FS) 1 U6 error list 02
Pump controller (PS) 2U3 error list 02
Teach-in 02
Service mode 02
Distance sensor main lift 02
11 Electric motor
Traction motor 11
General 11
Testing 11
Repairs 11
Rev sensor 11
General 11
Testing 11
Repairs 11
Temperature sensor 11
General 11
Testing 11
Repair 11
22 Mechanical drive axle
Front bevel gears 22
General 22
Testing 22
Repairs 22
Maintenance 22
34 Driver’s compartment
Tilting order picking barrier 34
General 34
Testing 34
Repair
General
Testing
Repairs
General
Testing
Repairs
Maintenance
High-pressure filter
General
Testing
Maintenance
GeneralTesting
Repairs
General
Testing
Repairs
Maintenance
High-pressure filter
General
Testing
Maintenance
Testing
Repair
General
Testing
Repair
General
Line break safety valve, type 1
Line break safety valve, type 2
Repair
Repair
Repairs
Line break safety valve, type 1
Line break safety valve, type 2
Repair
Repair
Repairs
General
General
Activating the “ZAG inductive” option
Inductive proximity switches
Fitting the steel plates
Activating the “ZAG inductive” option
Inductive proximity switches
Fitting the steel plates
Zone partitioning
Suppression of interfering metal parts
Testing
General
Activating the “ZAG magnetic” option
Switching magnets
Fitting switching magnets
Bistable magnet-operated switches
Zone partitioning
Testing
General
Activating the “ZAG reflexli” option
Reflective light barriers
Fitting the reflectors
Testing
General
Activating the “ZAG RFID” option
ZAG function variants
Displacement transducer
RFID read/write device (LSG)
Transponders
Diagnostics
Commissioning
Suppression of interfering metal parts
Testing
General
Activating the “ZAG magnetic” option
Switching magnets
Fitting switching magnets
Bistable magnet-operated switches
Zone partitioning
Testing
General
Activating the “ZAG reflexli” option
Reflective light barriers
Fitting the reflectors
Testing
General
Activating the “ZAG RFID” option
ZAG function variants
Displacement transducer
RFID read/write device (LSG)
Transponders
Diagnostics
Commissioning
