STILL STED forklift FM-X-10 FM-X-12 FM-X-14 FM-X-17 FM-X-20 FM-X-25 Reach trucks Workshop Manual – PDF DOWNLOAD
$28.95
STILL STED forklift FM-X-10 FM-X-12 FM-X-14 FM-X-17 FM-X-20 FM-X-25 Reach trucks Workshop Manual – PDF DOWNLOAD
Description
STILL STED forklift FM-X-10 FM-X-12 FM-X-14 FM-X-17 FM-X-20 FM-X-25 Reach trucks Workshop Manual – PDF DOWNLOAD
FILE DETAILS:
STILL STED forklift FM-X-10 FM-X-12 FM-X-14 FM-X-17 FM-X-20 FM-X-25 Reach trucks Workshop Manual – PDF DOWNLOAD
Language : English
Pages : 186
Downloadable : Yes
File Type : PDF
DESCRIPTION:
STILL STED forklift FM-X-10 FM-X-12 FM-X-14 FM-X-17 FM-X-20 FM-X-25 Reach trucks Workshop Manual – PDF DOWNLOAD
Explosion protection information
General considerations
Working on the truck
RISK OF EXPLOSION
- Working on a truck within potentially explosive areas can lead to explosions in the surrounding atmosphere.
- No work may be performed on the truck in potentially explosive areas.
- The person carrying out the repair must be “quali?ed to work with explosion protection-related components”.
repair work.
? Ask the safety of?cer to allocate a safe
working area away from the potentially
explosive area.
? Do not drive the truck out of the
potentially explosive area yourself
? arrange for the truck to be driven
away.
? Do not perform any work on the truck
within potentially explosive areas.
Work that is effectively prohibited on the truck:
Examples of work to be completed outside of
potentially explosive areas:
? Charging and replacing the battery
? Safety checks
? Repair work
? Con?guring settings
? Transportation and loading

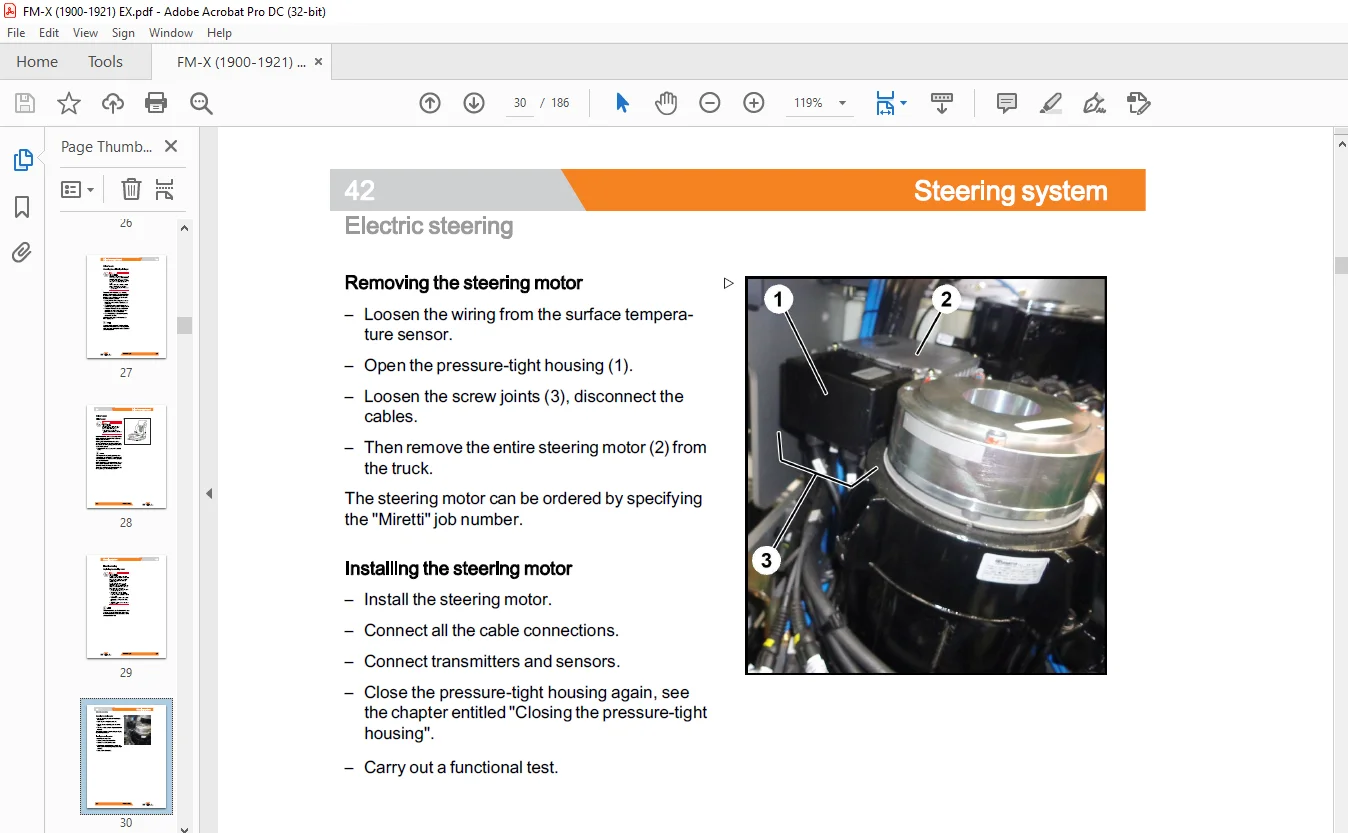

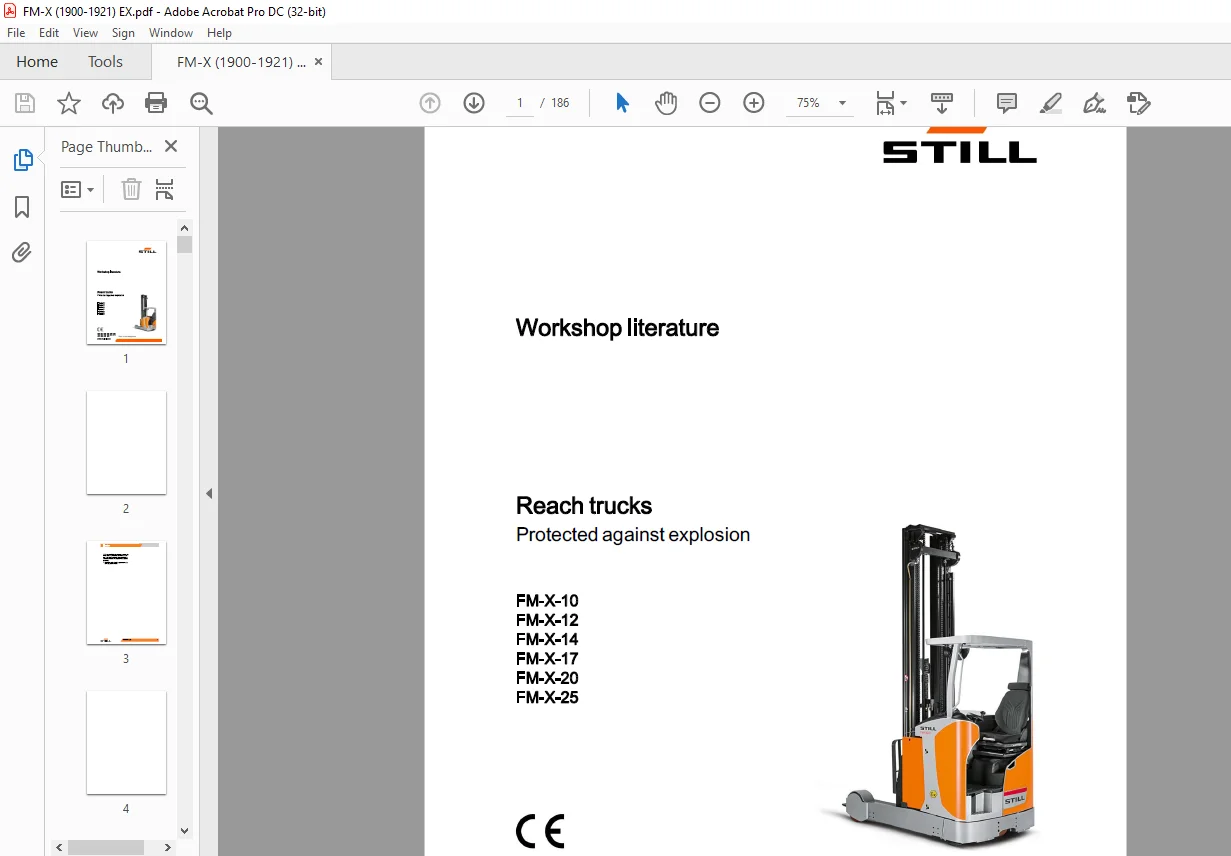

IMAGES PREVIEW OF THE MANUAL:

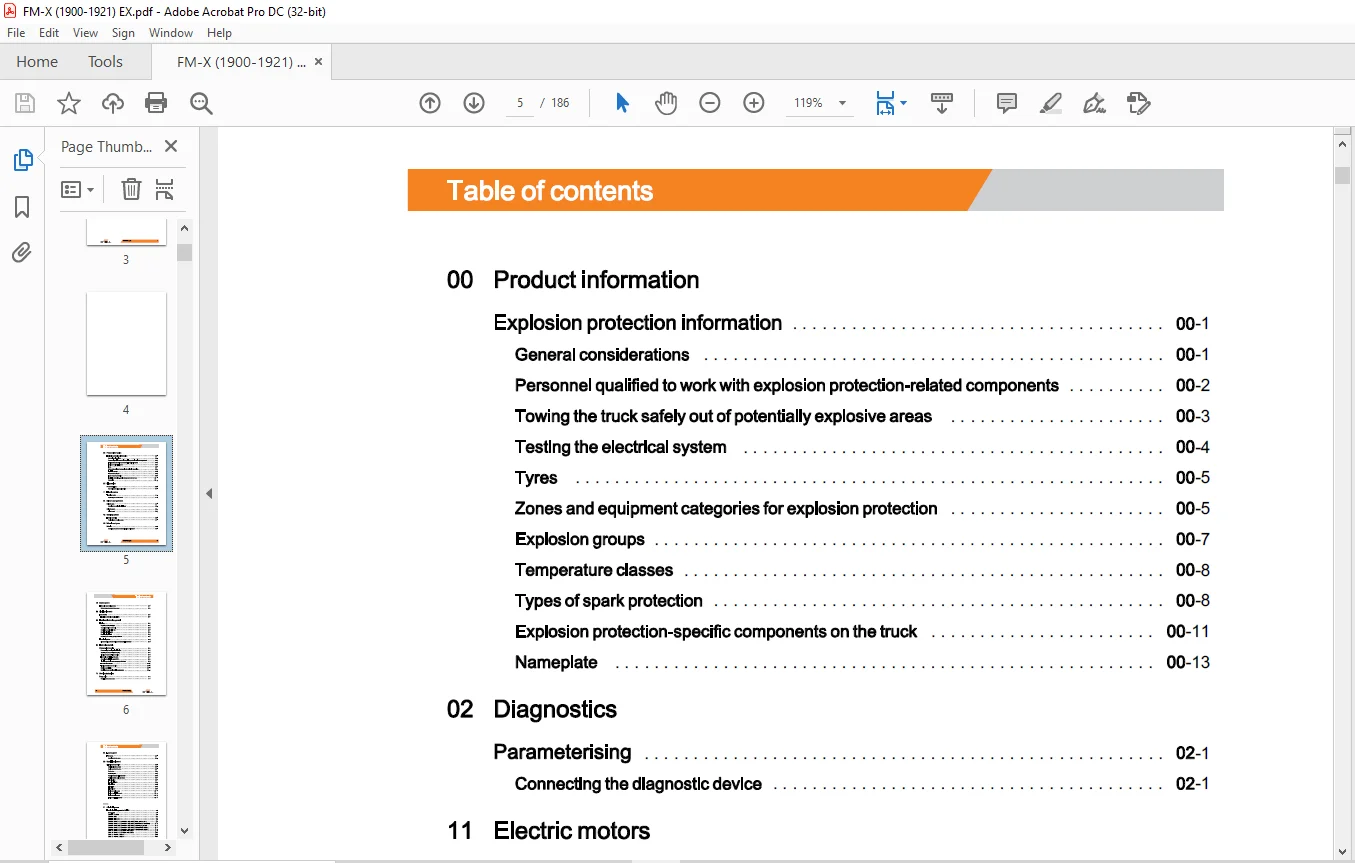

TABLE OF CONTENTS:
STILL STED forklift FM-X-10 FM-X-12 FM-X-14 FM-X-17 FM-X-20 FM-X-25 Reach trucks Workshop Manual – PDF DOWNLOAD
00 Product information
Explosion protection information 00
General considerations 00
Personnel qualified to work with explosion protection-related components 00
Towing the truck safely out of potentially explosive areas 00
Testing the electrical system 00
Tyres 00
Zones and equipment categories for explosion protection 00
Explosion groups 00
Temperature classes 00
Types of spark protection 00
Explosion protection-specific components on the truck 00
Nameplate 00
02 Diagnostics
Parameterising 02
Connecting the diagnostic device 02
11 Electric motors
Traction motor 11
Replacing the traction motor 11
34 Driver’s compartment
Driver’s cab 34
Checking the antistatic paint layer 34
Driver’s seat 34
Driver’s seat 34
42 Steering system
Electric steering 42
Replacing the steering motor 42
46 Wheels and tyres
Wheels 46
Checking the tyres and measuring leak resistance
49 Brake system
Hydraulic operating brake 49
Brake temperature and brake wear 49
56 Display elements
Instruments 56
Explosion protection warning lights 56
60 Electrics/electronics, general
Lighting 60
Repairing the flashing light 60
Changing the interrupter unit 60
Repairing headlight EL 150 60
Repairing light EL 160 60
Repairing light FL 32 60
Repairing the working spotlights FL 150 60
Electrical system 60
Disconnecting and connecting the battery male connector 60
64 Electronic controls
Pressure-tight housing 64
Pressure-tight housing – Identification 64
Opening the pressure-tight housing 64
Closing the pressure-tight housing 64
Electronic control unit – Structure 64
Checking the intrinsic safety PCB 64
Insulation protection and emergency shutdown 64
Functional description 64
Testing the MBZ zener barriers 64
Making a cable inlet 64
Replacing fuses and electrical components 64
71 Working hydraulics
Pump units 71
Replacing the pump motor 71
84 Load support
Fork arms
Checking the fork arms
90 Special equipment
Miretti spare parts list
Additional part numbers
Coating on the fork arms
Brake shoe
Antistatic paint
Negative battery male connector
Positive battery male connector
Flashing light
Headlight EL 150
Light EL 160
LightFL32
Electronic fan
Tables of cables used
Table of cable inlets used
Tables of cables used
Table of cable inlets used
Annex
X Circuit diagrams
Electric circuit diagrams for CAT 2G
Sheet 01 – Revisions -1
Sheet 02 – Index -2
Sheet 03 – Drive units -4
Sheet 04 – Drive units -6
Sheet 05 – Intrinsic safety – Intrinsic safety card SSI 1 (key switch version) -8
Sheet 06 – Intrinsic safety – Intrinsic safety card SSI 1 (activation button version) -10
Sheet 07 – Intrinsic safety – Intrinsic safety card SSI 3 (auxiliary hydraulics) -12
Sheet 08 – Intrinsic safety – Intrinsic safety card SSI 2 (sensors and switches) -14
Sheet 09 – Intrinsic safety – Intrinsic safety card SSI 4 (sensors and switches) -16
Sheet 10 – Intrinsic safety – Zener barriers SMZ 1 -18
Sheet 11 – Intrinsic safety – Zener barriers SMZ 2 -20
Sheet 12 – Auxiliary equipment -22
Sheet 13 – Auxiliary equipment -24
Sheet 14 – Auxiliary equipment -26
Sheet 15 – Electro-hydraulics -28
Sheet 16 – Auxiliary hydraulics -30
Sheet 17 – Auxiliary equipment -32
Sheet 18 – Auxiliary equipment -34
Sheet 19 – CAN connection and diagnostic interface -36
Sheet 20 – CAN connection and display -38
Sheet 21 – CAN connection and variants -40
Sheet 23-35 – Parts list -42
Sheet 36 – Cable routing -50
Sheet 37 – Cable routing -52
Sheet 38 – Cable routing -54
Sheet 42-55 – Cable -56
Sheet 56-78 – Connector -64
Sheet 01 – Revisions -80
Sheet 02 – Index -81
Sheet 03 – Drive units -82
Sheet 04 – ATEX alarm -84
Sheet 05 – Auxiliary equipment -86
Sheet 07-10 – Parts list -88
Sheet 11 – Cable routing -90
Sheet 14-15 – Cable W11, W12, W13, WD1 -92
Need help? Contact: [email protected]
https://vimeo.com/854995904?share=copy
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
S.M
