Still STED Forklift FXV 14 N – FXV 16 N Spare Parts List Manual – PDF DOWNLOAD

Description

Still STED Forklift FXV 14 N – FXV 16 N Spare Parts List Manual – PDF DOWNLOAD

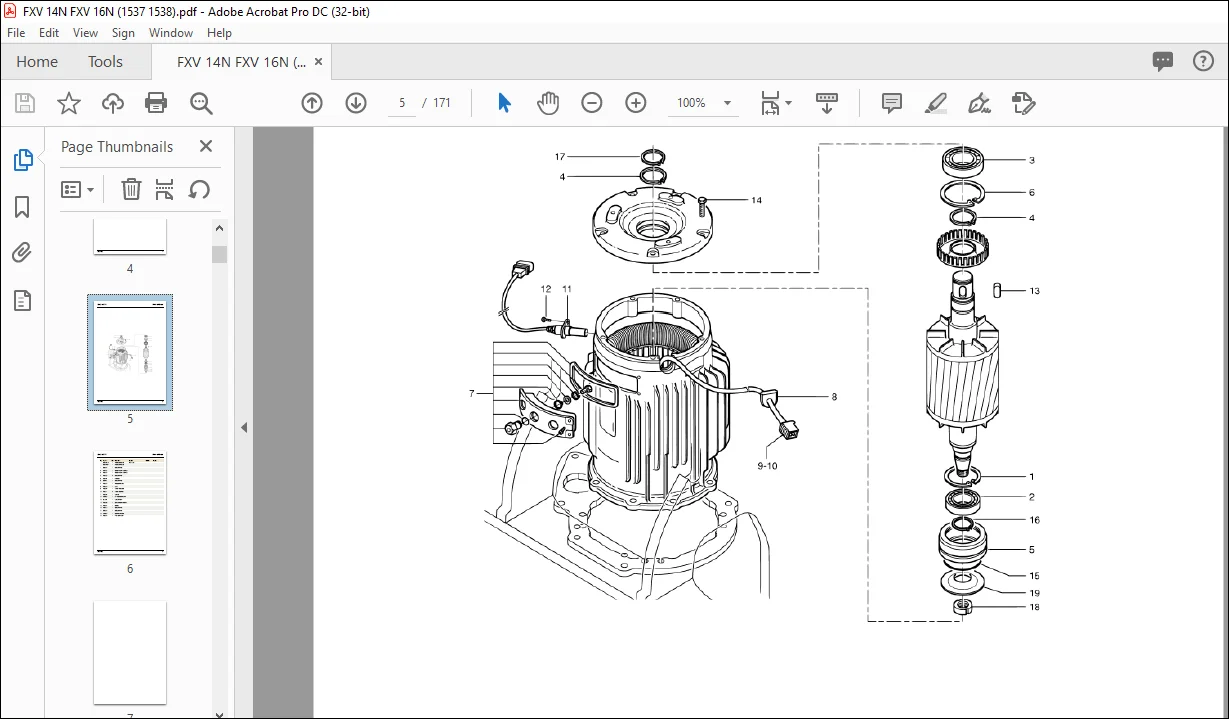

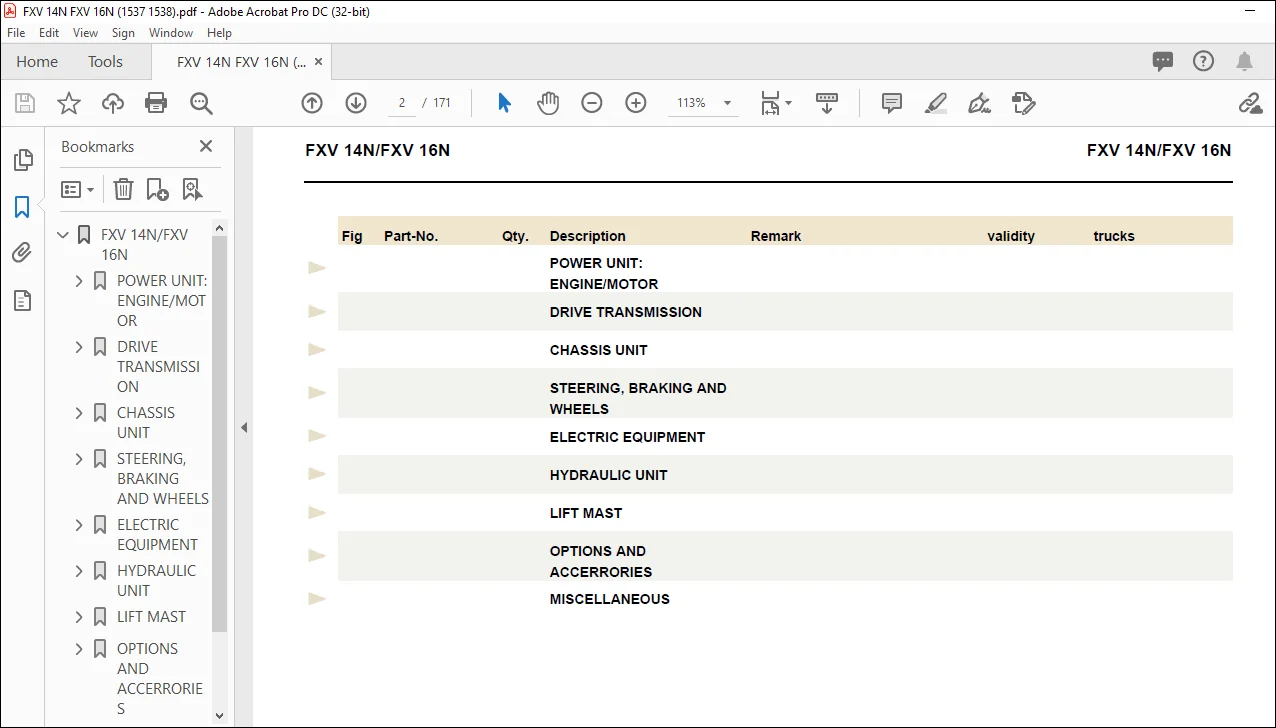

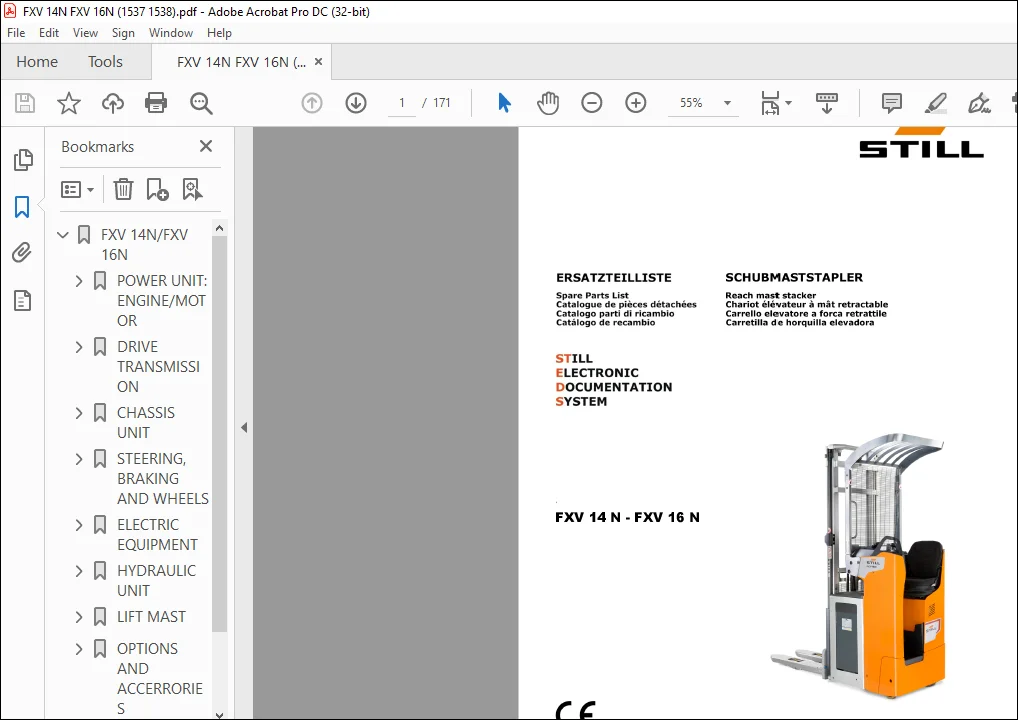

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Still STED Forklift FXV 14 N – FXV 16 N Spare Parts List Manual – PDF DOWNLOAD

Language : English
Pages :171
Downloadable : Yes
File Type : PDF
Size:4.43 MB

TABLE OF CONTENTS:

Still STED Forklift FXV 14 N – FXV 16 N Spare Parts List Manual – PDF DOWNLOAD

FXV 14N/FXV 16N 2
POWER UNIT: ENGINE/MOTOR 4
DRIVE MOTOR 6
DRIVE TRANSMISSION 8
REDUCER 10
GEAR DRIVE 14
CHASSIS UNIT 16
HOODING (FXV14N / FXV16N) 18
PLATFORM 22
SEAT 24
BATTERY LOCK 26
overhead guard assy 28
SEAT 30
STEERING, BRAKING AND WHEELS 32
STEERING WHEEL 34
steering knob 36
JOYSTICK 38
STEERING KNOB + JOYSTICK 40
BRAKE 42
STABILIZER 44
STEERING MOTOR 46
DRIVING WHEEL 48
WHEEL LOAD SINGLE ROLLER LI 50
LOAD CASTOR ASSY 52
BOGGIE WITH LUB FITTING 54
ELECTRIC EQUIPMENT 56
ELECTRIC EQUIPMENT 58
MAIN HARNESS 62
MAIN HARNESS (Li-Ion) 66
SOCKET TRUCK 70
TDU 72
BATTERY LOCK (Li-Ion) 74
BATTERY SUPPORT (Li-Ion) 76
78
82
HYDRAULIC UNIT 86
parts interchangeable 88
MOTOR PUMP UNIT 90
MOTOR PUMP UNIT 92
MOTOR PUMP UNIT (LI) 94
MOTOR PUMP UNIT 96
LIFT MAST 100
HOIST ASSEMBLY 102
(STANDARD) 108
(DUPLEX) 114
(TRIPLEX) 122
fork carriage (S/D) 128
SIDE CYLINDER TYPE S 130
SIDE CYLINDER TYPE D 132
MIDDLE CYLINDER TYPE D 134
OPTIONS AND ACCERRORIES 136
MOBILE BATTERY TROLLEY 138
BATTERY HOLDER 140
HEIGHT SENSOR 142
load backrest assy 144
OPTIONS AND ACCESSORIES 146
MISCELLANEOUS 150
MANUFACTURER’S PLATE 152
index parts 153
