Storti Dobermann SW LS-AS-HS 16-20-24-28m3 Wagen Parts Manual PDF

Description

Storti Dobermann SW LS-AS-HS 16-20-24-28m3 Wagen Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Storti Dobermann SW LS-AS-HS 16-20-24-28m3 Wagen Parts Manual – PDF DOWNLOAD

Language : English_German_Spanish_Italian
Pages : 169
Downloadable : Yes
File Type : PDF

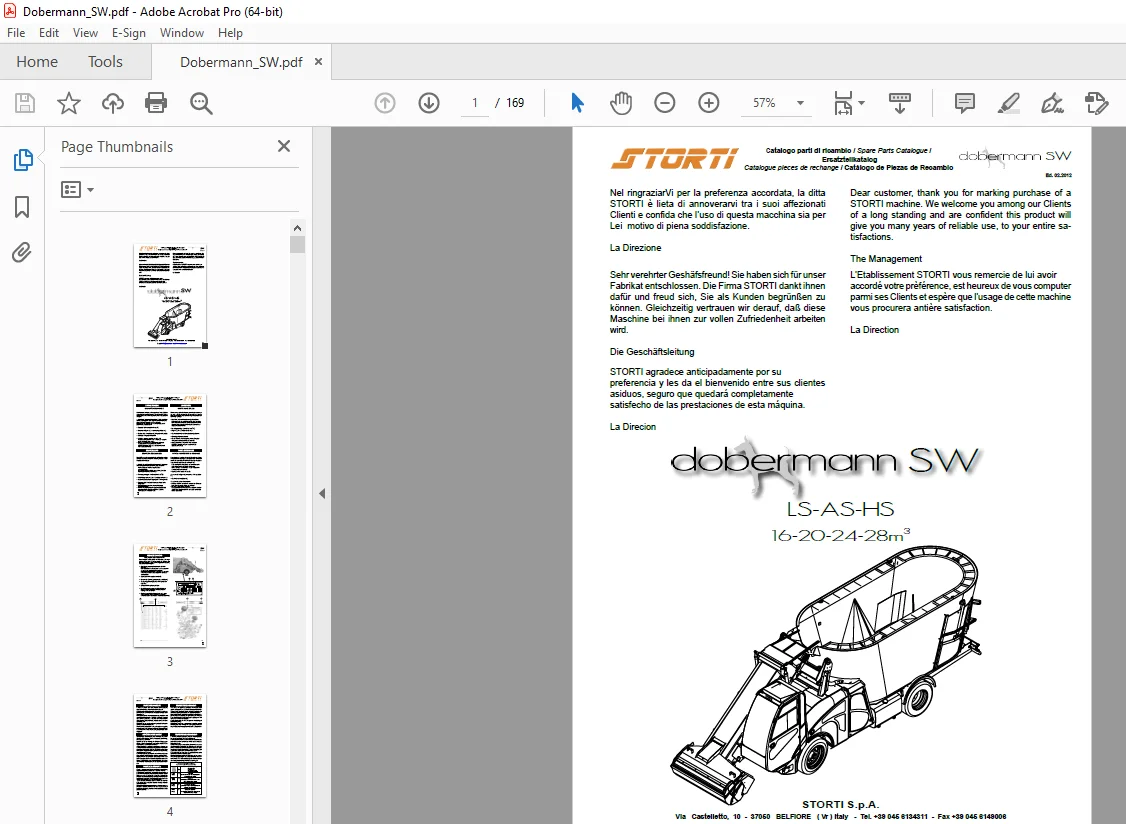

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Storti Dobermann SW LS-AS-HS 16-20-24-28m3 Wagen Parts Manual – PDF DOWNLOAD

AS FRAME UNIT FIG 1
HS FRAME UNIT UNIT SERIES WITH AXLE DANA FIG 2
HS FRAME UNIT SECOND SERIES WITH AXLE DANA FIG 2A
EXTENSION FRAME FIG 3
CASE 16/20/24m3 FIG 4
CASE 28m3 SENSOR Ø73 FIG 5
UNLOADED rear CASE 16/20/24m3 FIG 6
UNLOADED rear CASE 28m3 SENSOR Ø73 FIG 7
TRANSMISSION 16/20/24 m3 FIG 8
TRANSMISSION 28 m3 FIG 9
MIXING FIG 10
SI 372 R=3,31:1 REDUCTOR UNIT FIG 11
SI-380 – 28m3 REDUCTOR UNIT FIG 12
r= 18 2 /1 REDUCTOR 16/20/24m3 FIG 13
r= 25 89 /1 REDUCTOR 28m3 FIG 14
gear BOX FIG 15
GROUP EXTERNAL PANEL LEFT SIDE FIG 16
GROUP EXTERNAL PANEL RIGHT SIDE FIG 17
GUARD SIDE REAR FIG 18
MUDGUARDS AND BUMPERS FIG 19
CAB FIG 20
ARM MILLING CUTTER GROUP(PART 1) FIG 21
ARM MILLING CUTTER GROUP(PART 2) FIG 21A
HYDRAULIC UNIT-MILLING CUTTER PROTECTIVE COWLING FIG 22
MILLING MACHINE ARM LOCK FIG 23
MILLING CUTTER GROUP FIG 24
SF-106 REDUCTOR UNIT FIG 25
DOUBLE CLUTCH FIG 26
REDUCTOR 15/25 km/h FIG 27
HS DANA AXLE FIG 28
MOTOR-CLUTCH GROUP 16-20-24m3 FIG 29
MOTOR-CLUTCH GROUP 28m3 FIG 30
COOLING SYSTEM 16-20-24m3 FIG 31
COOLING SYSTEM 28m3 FIG 32
INTAKE AND OUTLET HYDRAULIC SYSTEM 16-20-24m3 FIG 33
INTAKE AND OUTLET HYDRAULIC SYSTEM 28m3 FIG 34
PEDAL MARCH GROUP-TIE RODS FIG 35
HYDRAULIC SYSTEM 15/25-35 km/h FIG 36
G22 PVC BILATERAL UNLOADING BELT FIG 37
Lateral displacement of PVC discharge conveyor FIG 38
ADDITIONAL HOPPER G6,5R FIG 39
ADDITIONAL HOPPER G9 FIG 40
ASSEMBLY ADDITIONAL HOPPER FIG 41
BRAKES 15/25 Km/h FIG 42
BRAKES 35Km/h FIG 43
NEGATIVE BRAKE SYSTEM 15/25 km/h FIG 44
WEIGHTING SYSTEM / ACCESSORIES FIG 45
LIGHTING SYSTEM FIG 46
CONDITIONED AIR FIG 47

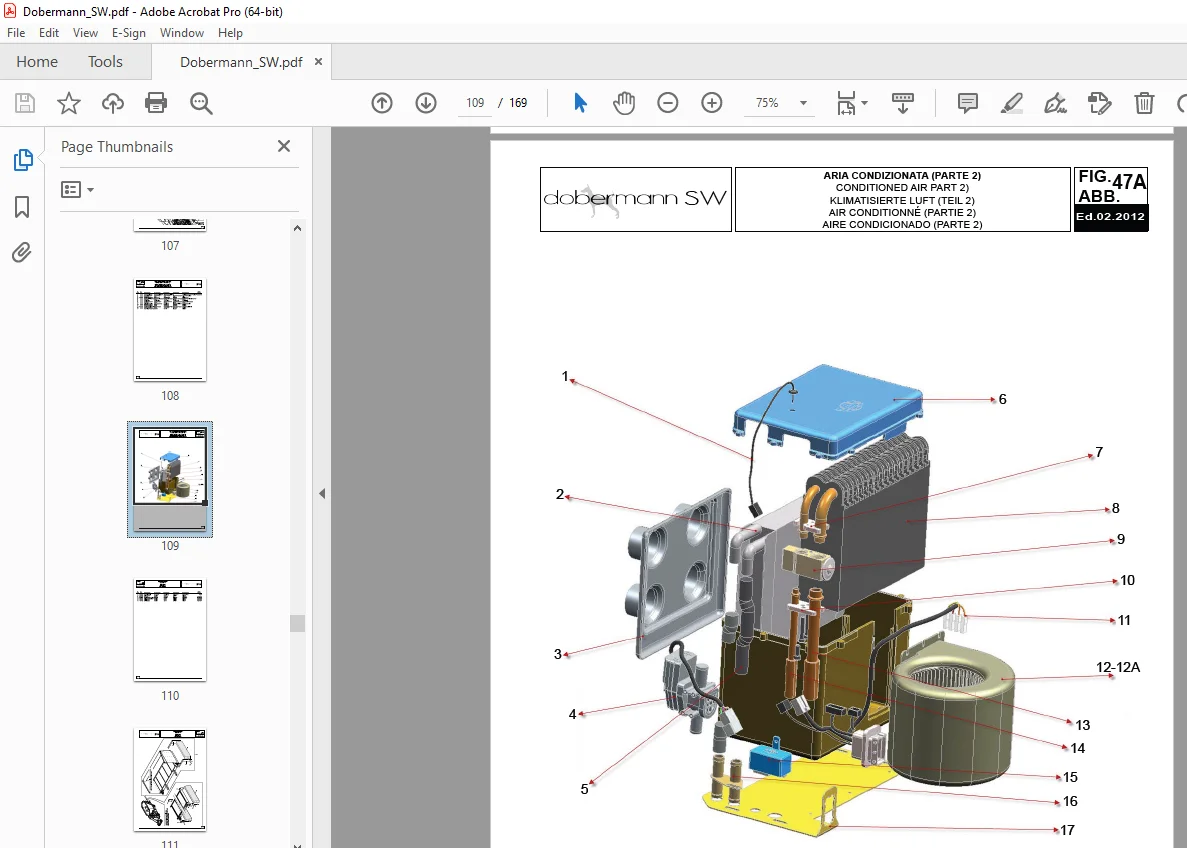

CONDITIONED AIR (PART 2) FIG 47A
CALAMITY FIG 48
HYDRAULIC SYSTEM STANDARD AND FAN REVERSIBLE FIG 49
HYDRAULIC SYSTEM PUMP SERVICES,IDROGUIDE AND STEERING FIG 50
SUSPENSION SYSTEM HS FIG 51
FRONT BRAKES SYSTEM LS-AS FIG 52
SUSPENSION SYSTEM HS FIG 53
HYDRAULIC SYSTEM ADDITIONAL HOPPER G20 FIG 54
HYDRAULIC SYSTEM COUNTERACTING KNIFE FIG 55
HYDRAULIC SYSTEM TAPE AND LOAD CYLINDER DEFLECTOR FIG 56
HYDRAULIC SYSTEM Stop Arm FIG 57
HYDRAULIC SYSTEM Lifting AND Stop Arm FIG 58
HYDRAULIC SYSTEM ENGINE HOPPER FIG 59
HYDRAULIC SYSTEM ADDITIONAL HOPPER FIG 60
HYDRAULIC SYSTEM UNLOADED DOOR RIGHT DIRECT FIG 61
HYDRAULIC SYSTEM UNLOADED DOOR LEFT DIRECT FIG 62
HYDRAULIC SYSTEM REAR DOOR FIG 63
HYDRAULIC SYSTEM ADDITIONAL HOPPER FIG 64
HYDRAULIC SYSTEM Lateral displacement discharge conveyor FIG 65
HYDRAULIC SYSTEM MOTOR MOLASSES FIG 66
HYDRAULIC SYSTEM DISTRIBUTORS FIG 67
HYDRAULIC SYSTEM PUMPS MOTOR MILLING FIG 68
HYDRAULIC SYSTEM CLUTCH FIG 69
HYDRAULIC SYSTEM MILLING CUTTER BONNET FIG 70
HYDRAULIC SYSTEM GEAR BOX FIG 71
HYDRAULIC SYSTEM movement HS (35Km/h) FIG 72
HYDRAULIC SYSTEM movement AS (25Km/h) FIG 73
HYDRAULIC SYSTEM movement LS (15Km/h) FIG 74
HYDRAULIC SYSTEM CAKAMITY ROTARY FIG 75
HYDRAULIC SYSTEM DIAGRAM WUTH DPX100 FIG 76
