Strato-Lift TRX-13 Parts Manual – PDF DOWNLOAD
$89.95 Original price was: $89.95.$21.95Current price is: $21.95.
Strato-Lift TRX-13 Parts Manual – PDF DOWNLOAD
Description
Strato-Lift TRX-13 Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Strato-Lift TRX-13 Parts Manual – PDF DOWNLOAD
Language : English
Pages : 64
Downloadable : Yes
File Type : PDF
Size: 5.72 MB
TABLE OF CONTENTS:
Strato-Lift TRX-13 Parts Manual – PDF DOWNLOAD
Section 1: Diagrams
Figure 1-A Hydraulic Diagram
Section 2: Drive Chassis Components
Steering Axle
Steering Linkage
Drive Axle

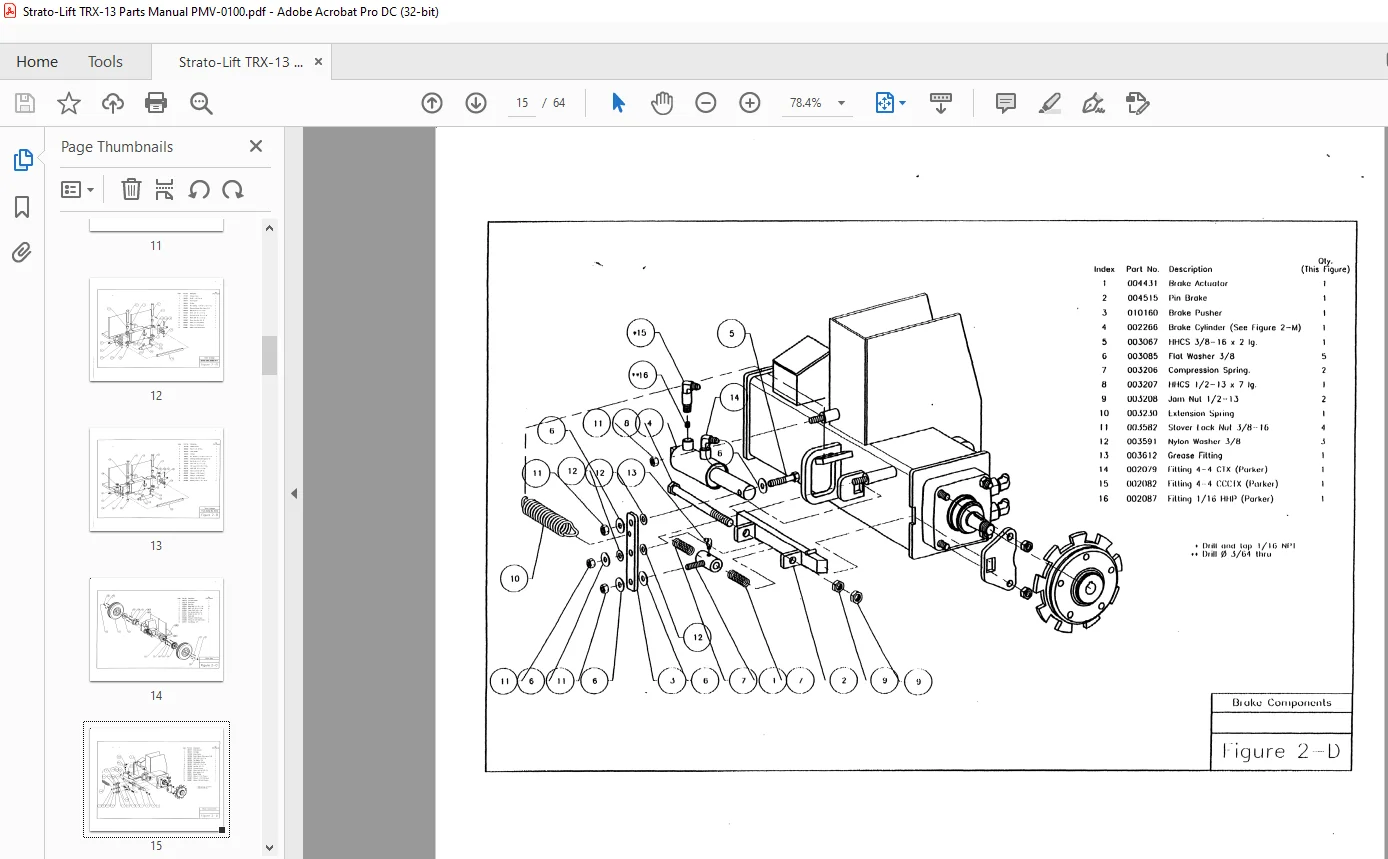

Brake Components
Battery Box
Components Box
Ground Control Panel
Power Unit

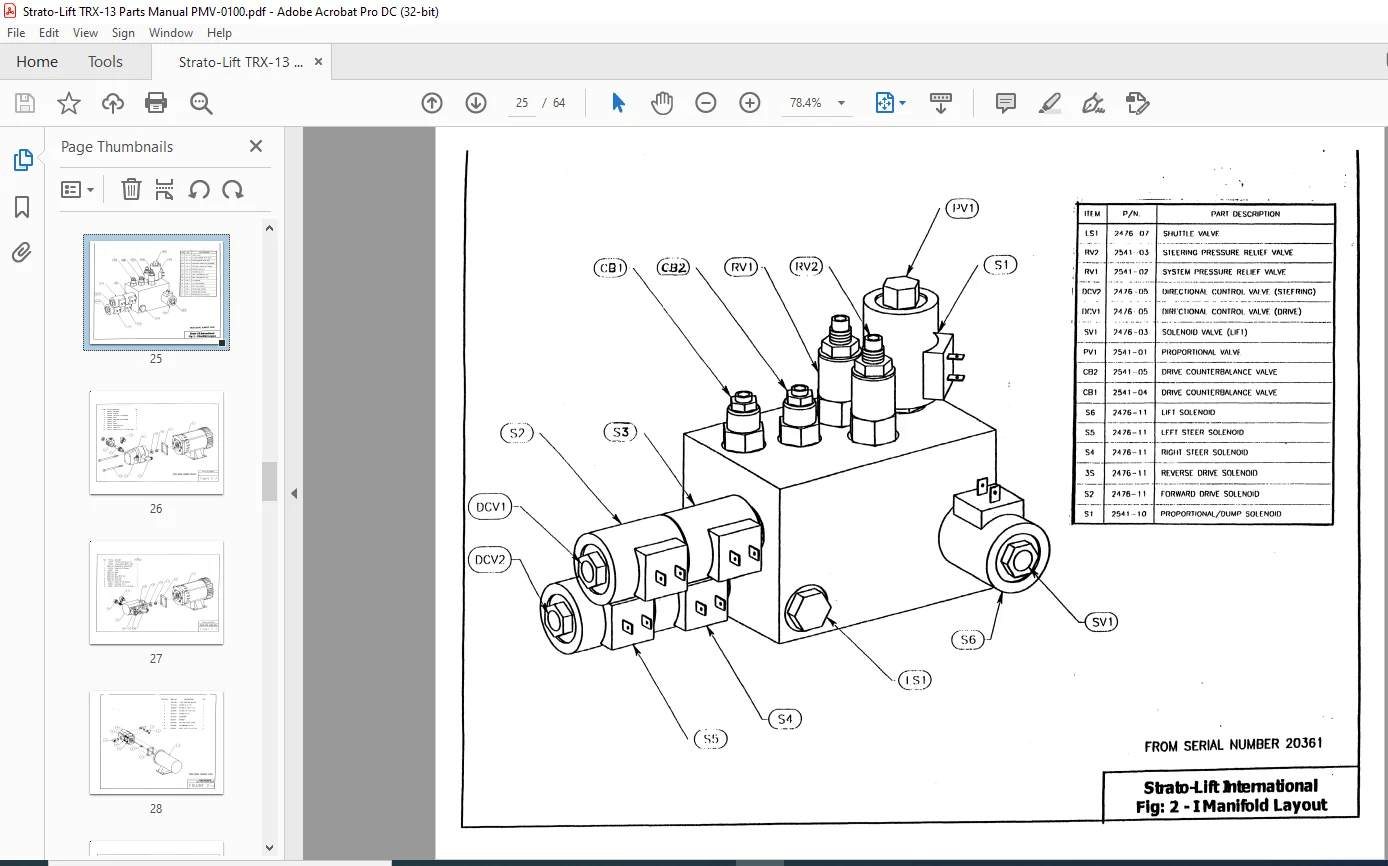

Function Manifold
Pump and Motor
Motor
Steering Cylinder
Brake Cylinder
Cushion Cylinder
Section 3: Boom Components
Section 4: Platform
Boom Section
Lift Cylinder
Lower Boom Arm
Lower Control Arm
Compression Arm
Upper Boom Arm
Upper Control Arm
Platform
Rear Platform
Deck Extension
Platform Control Box
Section 5: Decals and Placards Location
Figure 5-A
Decals Location

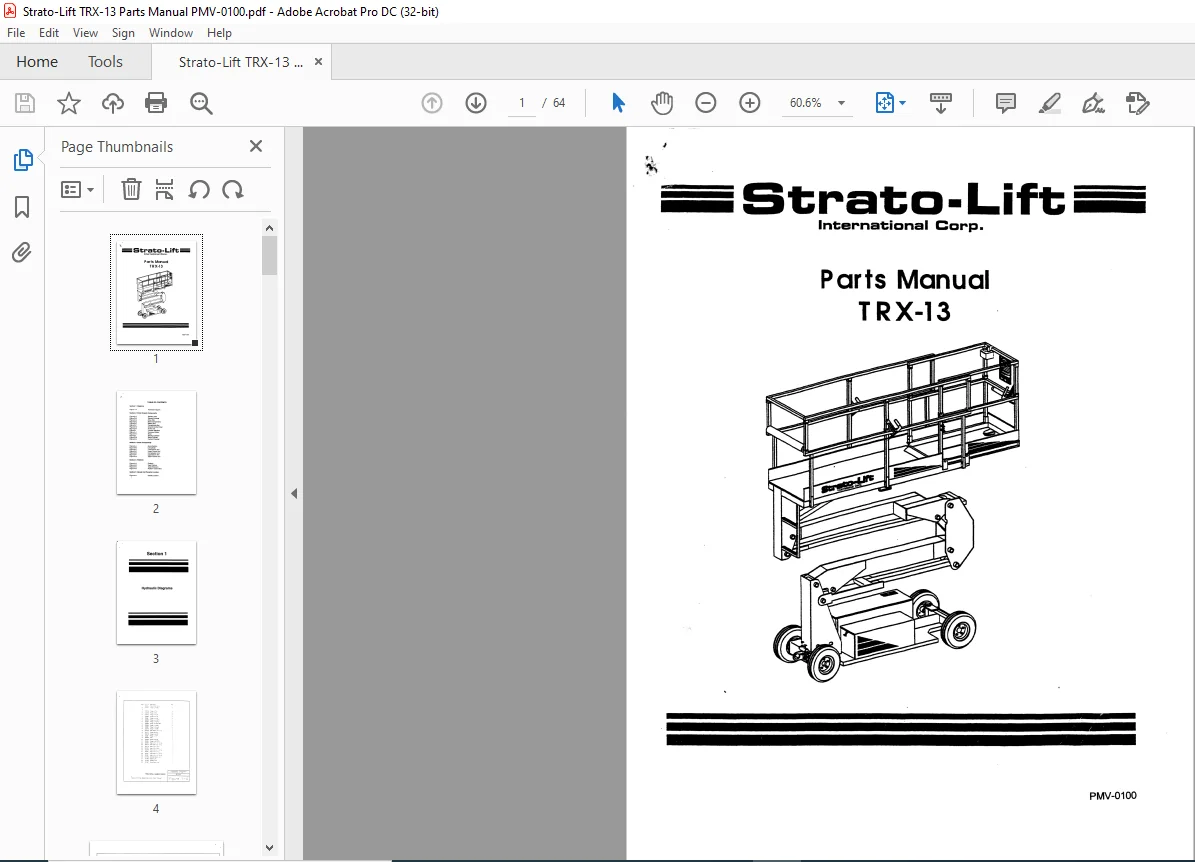

STRATO-LIFT TRX-13 PARTS MANUAL – PDF DOWNLOAD:
