SummaCut D60 & D120 Vinyl Cutter Service Manual PDF
Original price was: $90.00.$15.95Current price is: $15.95.
Official SummaCut D60 and D120 Service Manual for vinyl cutter maintenance. This complete guide covers cutter calibration, parts replacement, and troubleshooting for SummaCut error codes like “Error in X-Axis” and “Sensor Faults”. Includes detailed instructions for replacing the drag head, main PCB, and drive drum, plus full wiring diagrams and exploded parts views
Description
SummaCut D60 & D120 Vinyl Cutter Service Manual PDF DOWNLOAD
DESCRIPTION
Keep your vinyl cutting business running smoothly with the official SummaCut D60 & D120 Service Manual. This technical resource provides the factory-authorized procedures needed to maintain, calibrate, and repair your SummaCut series cutters.
Whether you are fixing a Y-axis position error, recalibrating the knife pressure, or replacing a worn drive belt, this PDF manual offers step-by-step instructions. It is an essential toolkit for sign shops and equipment technicians working with these precision plotting machines.
Manual Features & Content Breakdown
1. Keyboard Control & Configuration
Menu Navigation: Using the Control Panel, Menu Key, and Jogging Keys.
System Setup: Configuring Velocity, Knife Pressure (0-400g), Pouncing Gap, and Baud Rate.
Diagnostics: Running the Confidence Test, DIN Cut, and RS-232 communication tests.
Advanced Settings: Adjusting Knife Offset, Flex-Cut modes, and Overcut values.
2. Calibration Procedures
Media Calibration: Adjusting X/Y dimensional accuracy for different media thicknesses.
Head & Knife: Calibrating the knife offset, coil pressure, and drag knife landing.
Sensors: Testing and calibrating the media sensors (front/rear) and OPOS alignment.
3. Replacement Guidelines (Step-by-Step)
Covers & Housing: Removing left/right hand covers and bottom plates.
Motors & Belts: Detailed guides for replacing the X-Motor, Y-Motor, Y-Belt, and Drive Drum.
Electronics: Safely replacing the Main PCB, Keypad/LCD, and Power Supply.
Cutting Head: Removing and reinstalling the Drag Head and replacing the flat ribbon cable.
Maintenance Parts: Changing the Cutting Strip, Cam Rollers, and Fan Motor.
4. Troubleshooting & Error Codes
Axis Errors: Diagnosing fatal “Error in X-Axis” and “Error in Y-Axis” caused by media crashes or motor faults.
Communication: Solving RS-232 Errors, Syntax Errors, and Baud Rate mismatches.
System Faults: Interpreting NVRAM failures, RAM errors, and internal firmware flashes.
5. Parts & Diagrams

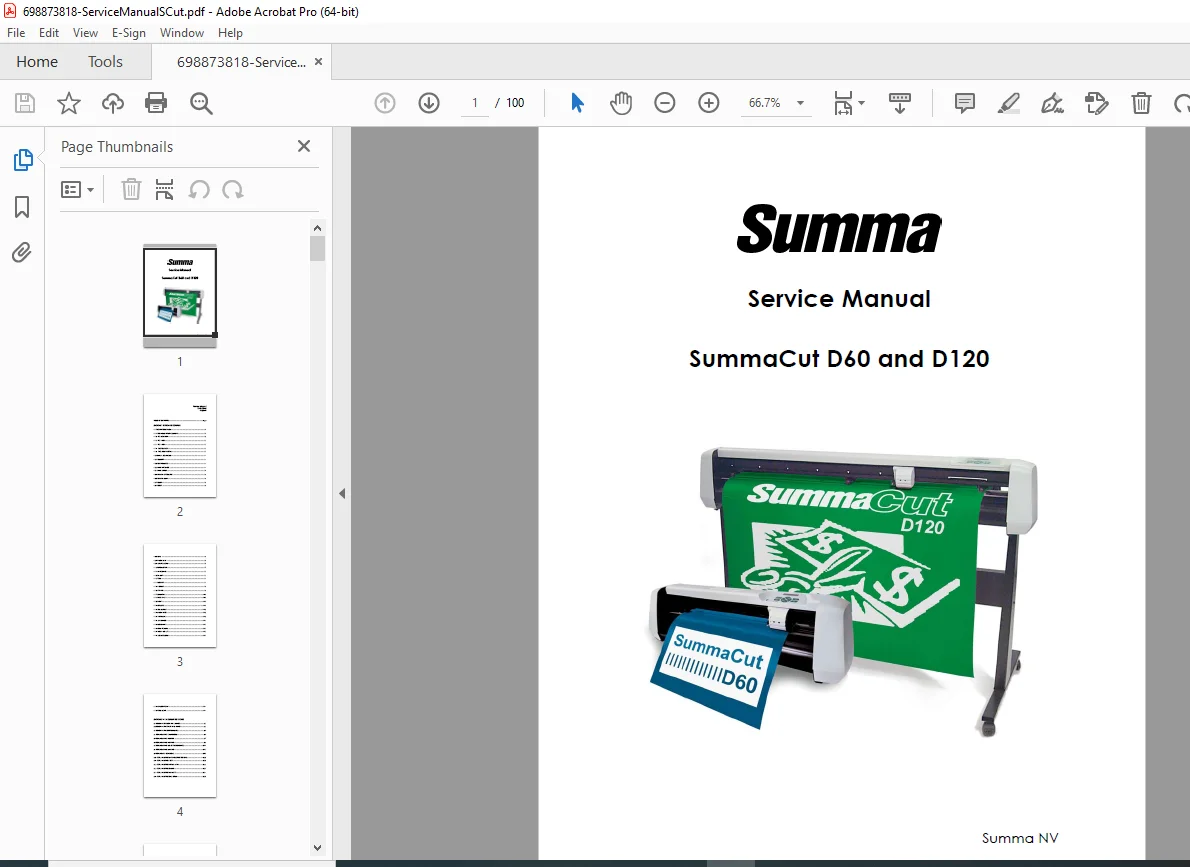

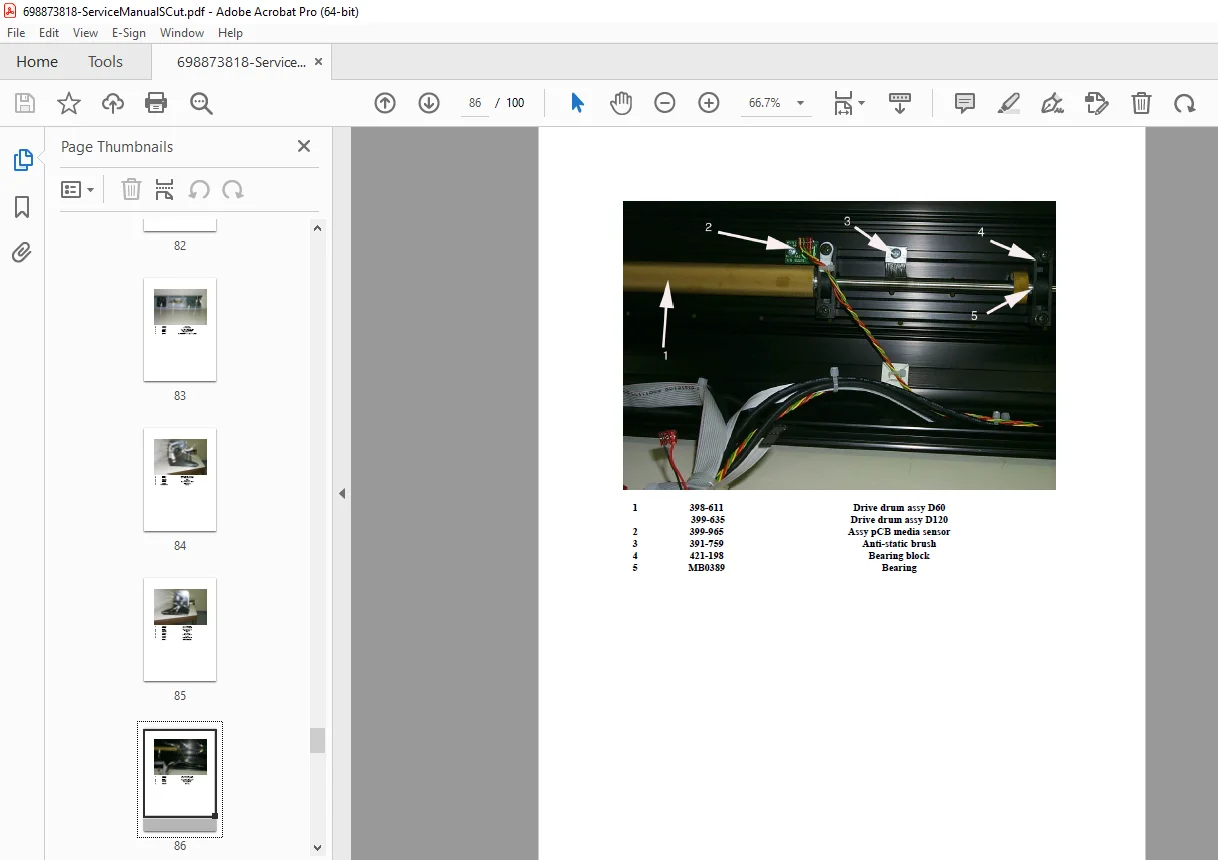

Exploded Views: Detailed figures of the Carriage, Media Select system, and Motor connections.
Spare Parts List: Complete catalog with part numbers for the D60 and D120 (e.g., Pinch Rollers, Belts, Main Boards).
File Details
| Feature | Detail |
| Manual Name | SummaCut D60 and D120 Service Manual |
| Models Covered | SummaCut D60, SummaCut D120 |
| Manufacturer | Summa NV |
| File Type | Searchable PDF |
| Total Pages | 99 Pages |
Precision is everything in vinyl cutting. Download the SummaCut Service Manual today to ensure your cuts are always accurate and your machine stays profitable. Don’t wait for a breakdown—get the calibration tools and repair codes you need right now!
