Super Pac 540C 540PC Service Parts Manual- PDF DOWNLOAD

Description

Super Pac 540C 540PC Service Parts Manual- PDF DOWNLOAD

DESCRIPTION:

Super Pac 540C 540PC Service Parts Manual- PDF DOWNLOAD

PREPARATION

OPERATOR INFORMATION

• Read & understand this manual & the CIMA safety manual before operating
• obtain Instructions from the site supervisor
• become acquainted with all vehicle controls
• This safety alert symbol indicates important safety messages in this manual. When you see this symbol carefully read the messge that follows and be alert to the possibility of death or injury to yourself and others.

DAILY WALK-AROUND INSPECTION

• Check hydraulic oil reservoir, maintain level 3″ from top
• Check tire pressure, 10 psi minimum, 25 psi maximum
• Check tires tor severe cuts
• Check for loose fittings, fasteners, covers and guards
• Check for oil and fuel leaks
• Check the indicator on the hydraulic system filter tor possible Arrange tor change out of hydraulic filters every 250 hours or when restricted.
• check engine oil level

START UP

• Use caution when adding fuel to hot engine
• Ensure adequate ventilation to protect yourself and others from exhaust

emissions.

• Check lever on operator’s left This lever must be in neutral, or center position, before starting engine.
• Look for vehicle creep after starting As hydraulic system increases to operating pressure the parking brakes automatically release. Service braking remains only when the left hand control lever is in neutral or center positon. While moving, to apply the service brakes, move left hand control lever to neutral or center position.
• Operate steering and slowly engage and disengage left hand control lever to test acceleration and braking
• Familiarize yourself with the response to all controls
• Set desired engine speed using lever on operator’s

RECOMMENDED OPERATING PRACTICE

• • When drum vibration is engaged, 2 mph travel speed is
  • Travel speed and direction are controlled by left hand engage this lever slowly.
  • If the machine must be towed, disengage the rear torque

This freewheeling is activated by reversing the plates located on the outside center of each hub. The small protrusions on these plates. when facing inwards and bolted to the hub, engage the freewheeling.

The front torque hub cannot be similarity disengaged tor freewheeling. Disconnect the propulsion motor, or raise drum off ground.

• Do not engage vibration when machine is Severe bearing damage will result.
• Use the tie down points provided in the rear

Do not tie down over the center joint. Center pin damage can result and front and rear frames can slew unless tied down.

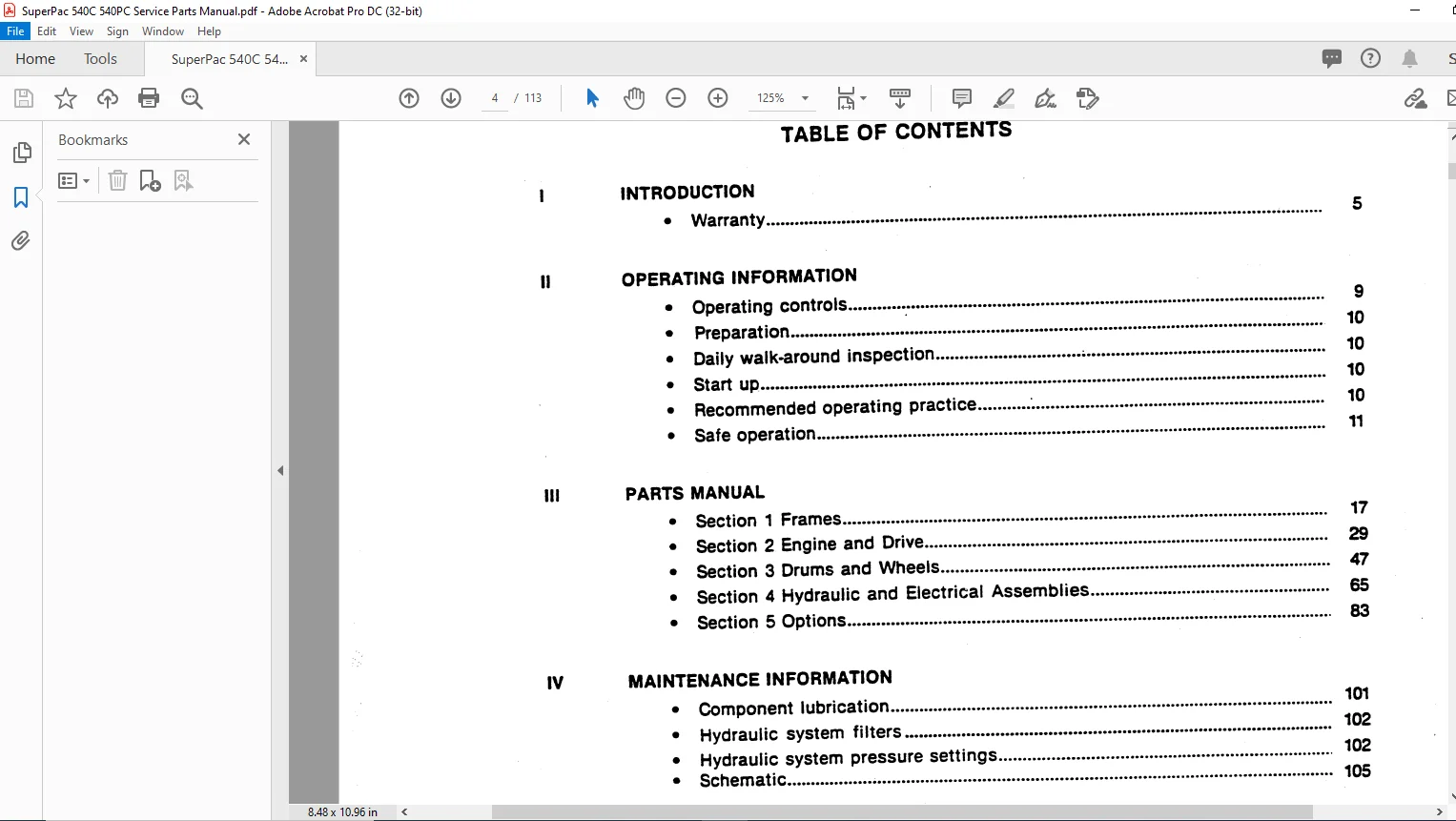

TABLE OF CONTENTS:

Super Pac 540C 540PC Service Parts Manual- PDF DOWNLOAD

• INTRODUCTION
  • Warranty.
• II OPERATING INFORMATION
  • Operating controls
  • Preparation
  • Daily walk-around inspection
  • Start up
  • Recommended operating practice.
  • Safe operation
• Ill PARTS MANUAL
  • Section, Frames
  • Section 2 Engine and Drive
  • Section 3 Drums and Wheels
  • Section 4 Hydraulic and Electrical Assemblies
  • Section 5 Options
• IV MAINTENANCE INFORMATION
  • Component lubrication
  • Hydraulic system filters
  • Hydraulic system pressure settings.
  • Schematic

SUPER PAC 540C 540PC SERVICE PARTS MANUAL- PDF DOWNLOAD:

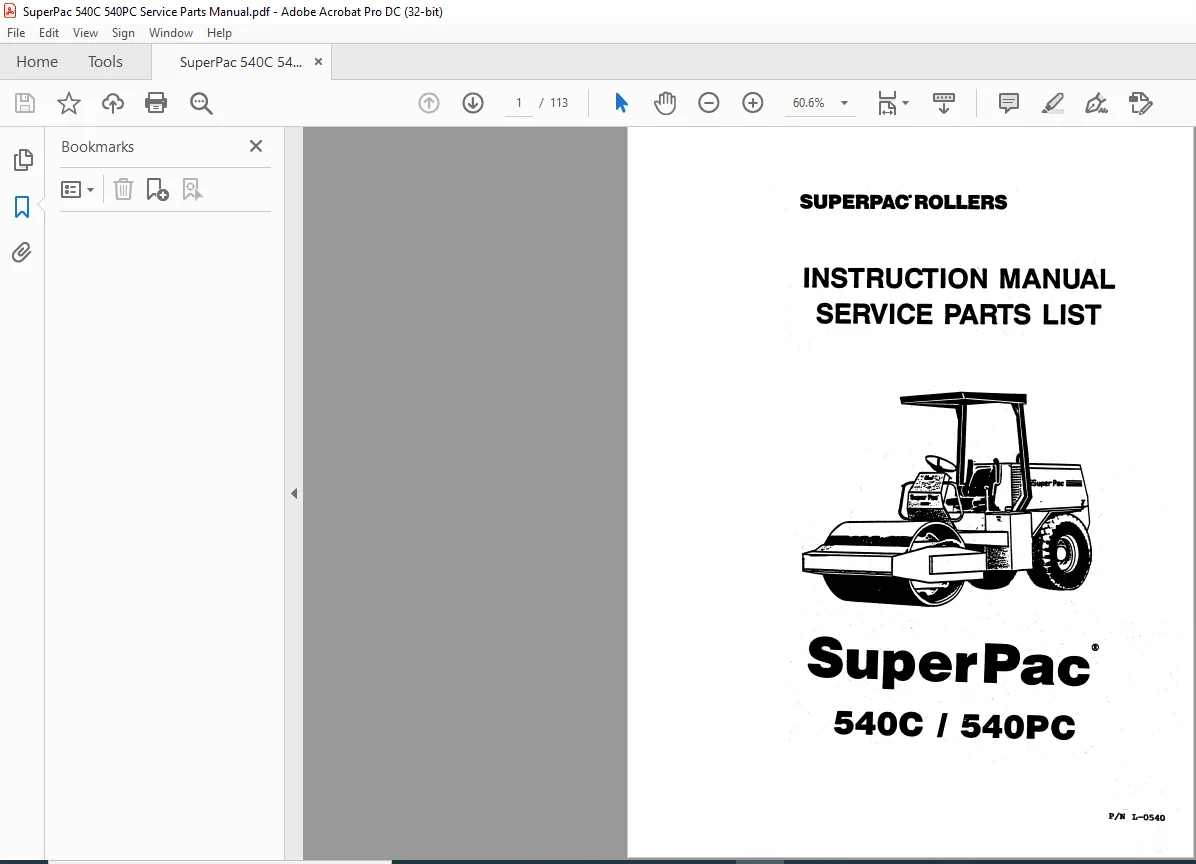

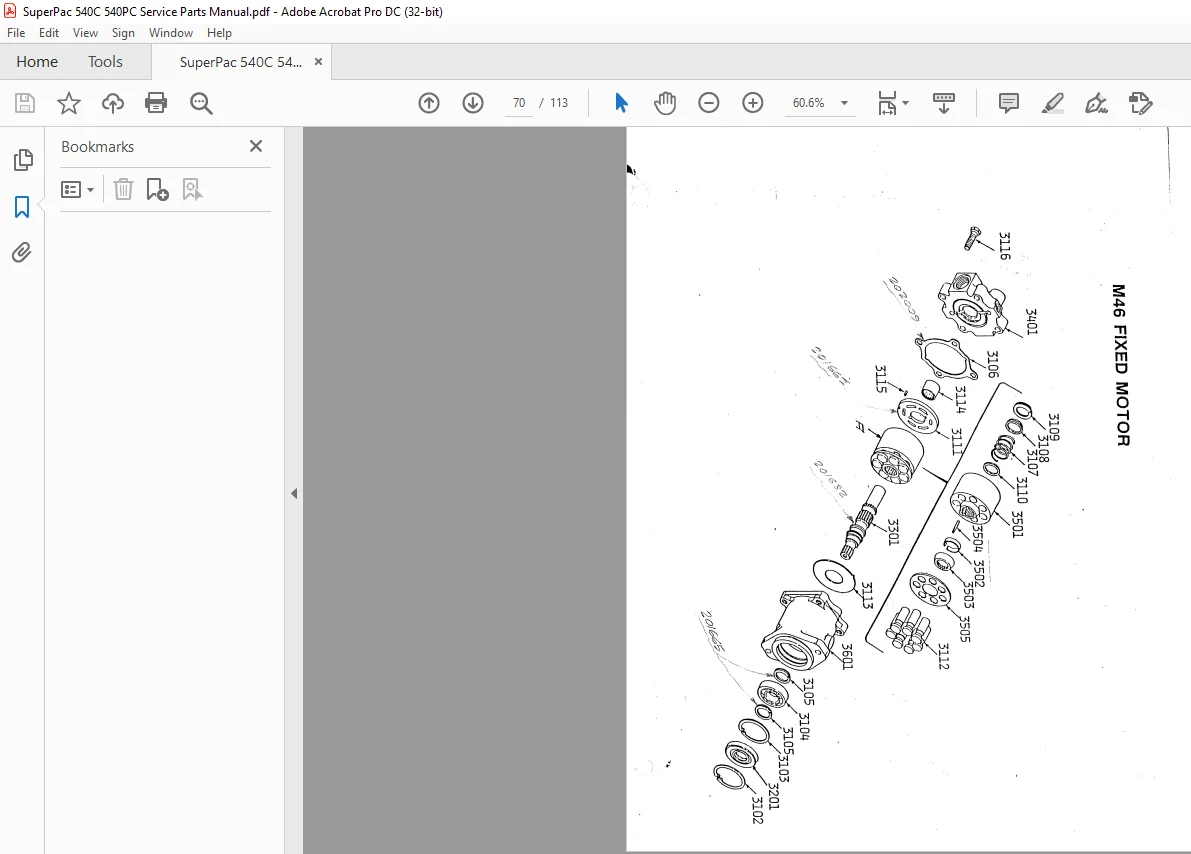

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
