SuperPac 600 600P Rollers Service Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Super Pac 600 600P Rollers Service Parts Manual – PDF DOWNLOAD
OPERATOR INFORMATION
- PREPARATION
- Read all manuals carefully
- Obtain instructions from the site supervisor
- Become acquainted with all vehicle controls
- DAILY WALK-AROUND INSPECTION
- Check hydraulic oil reservoir, maintain level 3″ from top
- Check tire pressure, 10 psi minimum, 25 psi maximum
- Check tires for severe cuts
- Check for loose fittings, fasteners, covers and guards
- Check for oil and fuel leaks
- Check the indicator on the hydraulic system filter for possible Arrange for change out of hydraulic filters every 250 hours or when restricted.
- Check engine oil level
- ST RT UP
- Use caution when adding fuel to hot engine
- Ensure adequate ventilation to protect yourself and others from exhaust ·
- Check lever on operator’s left This lever must be in neutral, or center position, before starting engine. ·
- Look for vehicle creep after starting As hydraulic system increases to operating pressure the parking brakes automatically release. Service braking remains only when the left hand control lever is in neutral or center position. While moving, to apply the service brakes, move left hand control lever to neutral or center position.
- Operate steering and slowly engage and disengage left hand control lever to test acceleration and braking action .
- Familiarize yourself with the response to all controls
- Set desired engine speed using lever on operator’s
- RECOMMENDED OPERATING PRACTICE
- When drum vibration is engaged, 2 mph travel speed is
- Travel speed and direction are controlled by left hand lever. Engage this lever slowly.
- If the machine must be towed, disengage the rear torque
This freewheeling is activated by reversing the plates located on the outside center of each hub. The small protrustions on these plates, when facing · inwards and bolted to the hub, engage the freewheeling.
The front torque hub cannot be similarily disengaged for freewheeling. Disconnect the propulsion motor-, or raise drum off ground.
- Do not engage vibration when machine is Severe bearing damage will result.
- Use the tie down points provided in the front and rear
Do not tie down over the center joint. Center pin damage can result and front and rear frames can slew unless tied down.

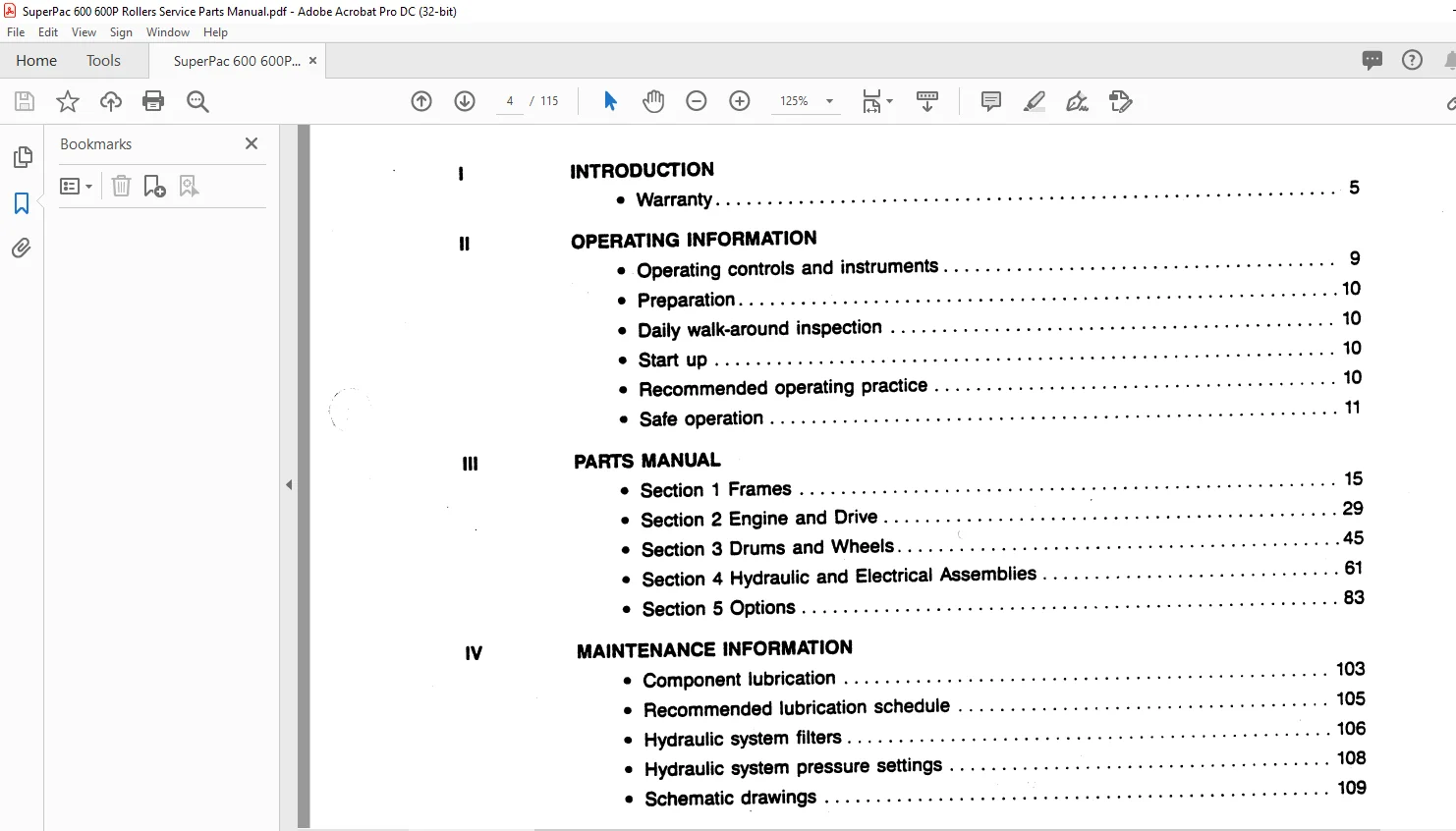

TABLE OF CONTENTS:
Super Pac 600 600P Rollers Service Parts Manual – PDF DOWNLOAD
TABLE OF CONTENTS
INTRODUCTION
- Warranty .
OPERATING INFORMATION
- Operating controls and instruments .
- Preparation
- Daily walk-around inspection
- Start up
- Recommended operating practice
- Safe operation
PARTS MANUAL
- Section 1 Frames
- Section 2 Engine and Drive
- Section 3 Drums and Wheels
- Section 4 Hydraulic and Electrical Assemblies
- Section 5 Options
MAINTENANCE INFORMATION
- Component lubrication
- Recommended lubrication schedule
- Hydraulic system filters
- Hydraulic system pressure settings
- Schematic drawings
