Suzuki LT160E & LT-F160 QuadRunner Complete Workshop Manual 1990–2005 | PDF Instant Download

Description

About This Manual

This is the complete service and workshop manual for the Suzuki LT160E and LT-F160 QuadRunner four-wheel ATV series — part number 99500-41114-01E, produced by Suzuki Motor Corporation. At 248 pages, it is the most comprehensive single-volume reference available for these machines, structured specifically to support inspection, adjustment, repair, overhaul, and routine maintenance across the entire 1990–2005 production run.

The foreword in this manual states it was produced primarily for experienced mechanics, but explicitly notes that apprentice mechanics and do-it-yourself mechanics will also find it an extremely useful guide. Whether you are diagnosing a fault, rebuilding an engine, or verifying torque specifications before reassembly, this manual contains the precise data and step-by-step procedures you need.

Model & Year Coverage

This manual covers nine distinct production variants through a core technical section (Sections 1–7) plus eight dedicated model-year supplement chapters (Sections 8–15). Each supplement documents the differences specific to that production run — specifications, service data, hose routing — so you get accurate information regardless of which year your machine was built.

Manual Structure — What Is Inside

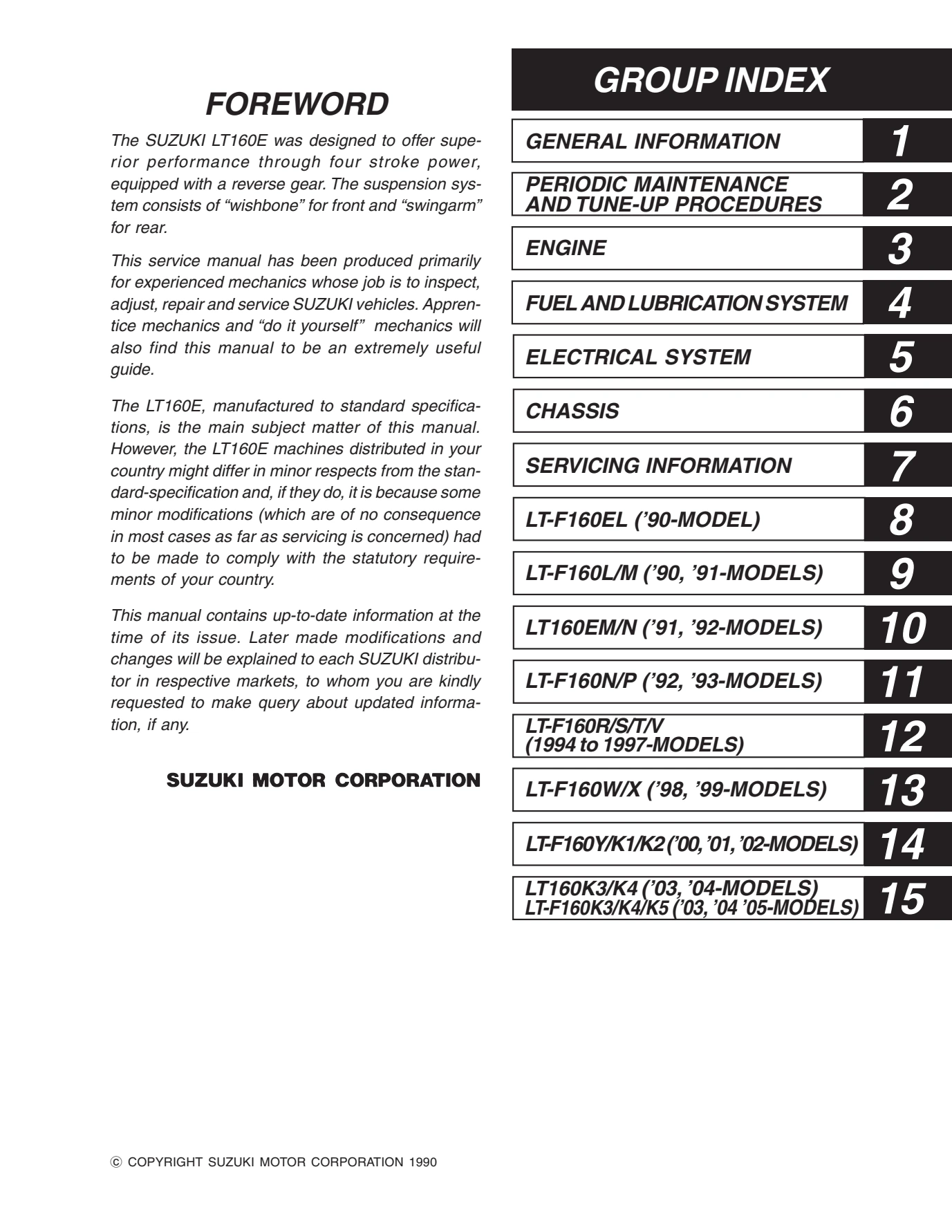

The 15 sections are organised for fast navigation from general reference through to model-specific supplement data:

• Section 1 — General Information: VIN and serial number locations, fuel and oil recommendations, break-in procedure, special materials table with part numbers, precautions and general instructions, and full specifications (dimensions, engine, chassis, transmission, electrical)
• Section 2 — Periodic Maintenance and Tune-Up Procedures: Full periodic maintenance chart with service intervals (initial 1 month, every 3 months, every 6 months, annually) covering battery, valve clearance, cam chain tensioner, spark plug, idle speed, throttle cable, fuel line, spark arrester, engine oil and filter, air cleaner, clutch, drive chain, sprockets, tyres, brakes, steering, suspension, chassis nuts, and lubrication

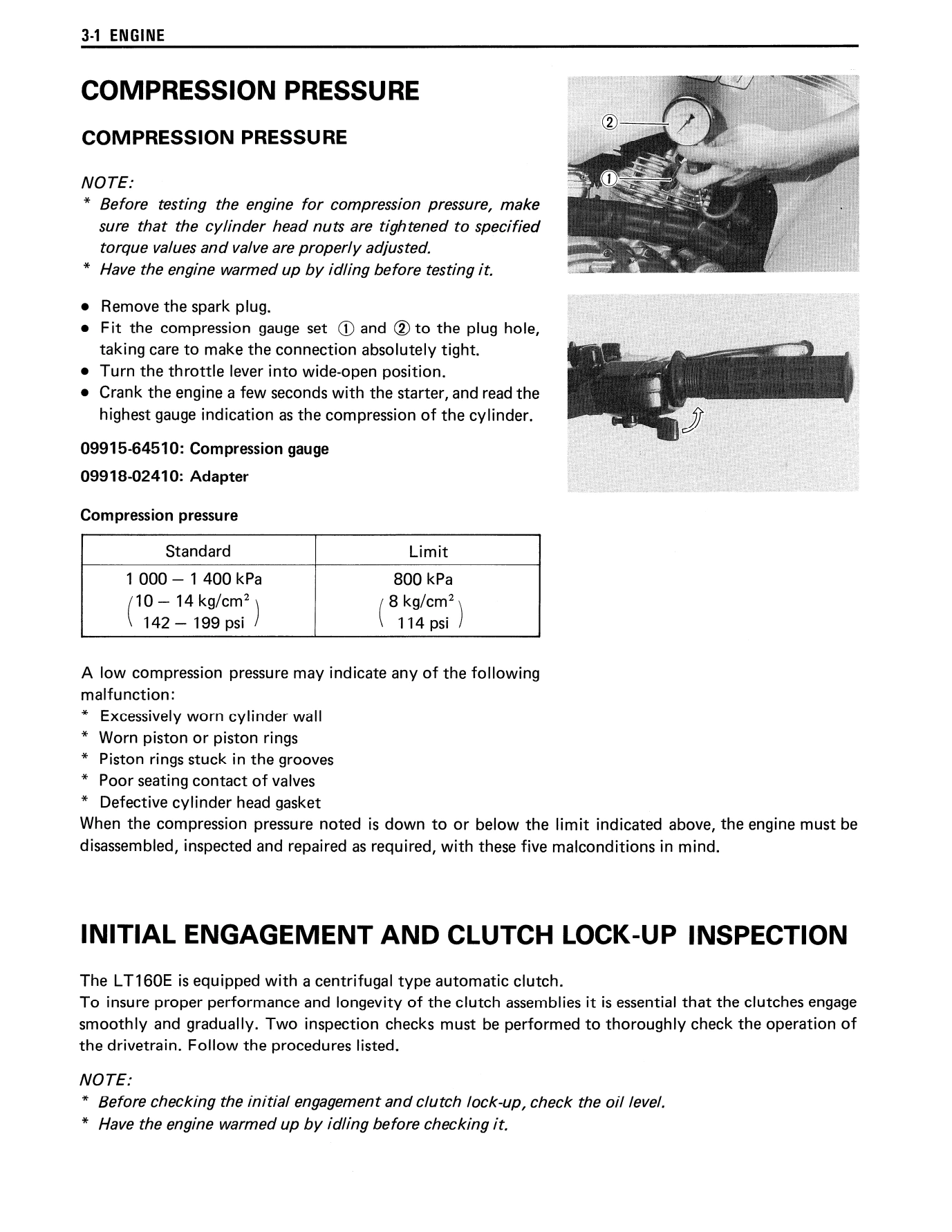

• Section 3 — Engine: Complete engine disassembly and reassembly procedures including cylinder head, valve seats (15° and 45° angles), valve springs, camshaft, pistons, crankshaft, clutch, transmission gears, starter motor, and cam chain system
• Section 4 — Fuel and Lubrication System: Carburetor (Mikuni VM20SS) service, air cleaner service, fuel line inspection, oil pump, and lubrication circuit
• Section 5 — Electrical System: CDI ignition circuit description and test procedures, magneto coil resistance values, ignition coil test (electro tester and pocket tester methods), CDI unit resistance table, charging system inspection, starter motor, wiring colour codes and circuit diagrams
• Section 6 — Chassis: Front suspension, steering, front and rear brakes (internal expanding type), front and rear wheel removal and installation, rear axle housing, rear swingarm and shock absorber, drive chain and sprocket inspection, tyre and wheel service
• Section 7 — Servicing Information: Complete symptom-and-cause troubleshooting tables for engine, fuel system, electrical, and chassis complaints; full tightening torque tables for engine and chassis fasteners; special tool list; wiring diagram
• Sections 8–15 — Model-Year Supplements: Year-specific specifications, service data differences, and hose routing for each variant from the 1990 LT-F160EL through the 2005 LT-F160K5

Engine Specifications

Transmission & Drivetrain

Chassis & Dimensions

Key Tightening Torques

The Servicing Information section (Section 7) contains a comprehensive tightening torque table. A selection of critical engine fastener values:

Electrical System Coverage

Section 5 provides a complete reference for the CDI ignition circuit. Key test data visible in the manual:

• Magneto pulser coil resistance: 200–400 Ω (Bl–G leads)
• Magneto primary coil resistance: 350–550 Ω (Br–B/W leads)
• Ignition coil primary resistance: 0.1–1.0 Ω (terminal to ground)
• Ignition coil secondary resistance: 10–25 kΩ (plug cap to ground)
• Ignition coil spark performance standard: 8 mm minimum with electro tester
• CDI unit continuity and resistance values: full table by wire colour combination
• Wire colour codes documented: Bl (Blue), B/Y (Black/Yellow), W/Bl (White/Blue), B/W (Black/White), Br (Brown), G (Green), Y (Yellow)

The section also covers charging system inspection, regulator/rectifier testing, starter motor disassembly, and battery maintenance (standard specific gravity 1.28 at 20°C).

Troubleshooting Coverage

Section 7 contains structured symptom-and-remedy tables for the following complaint categories:

• Engine: Hard starting, poor performance, overheating, abnormal noise, excessive oil consumption
• Fuel system: Carburetor flooding, lean/rich mixture, idle instability
• Electrical: No spark or weak spark, spark plug fouling, bulb failure, magneto not charging or overcharging, unstable charging, starter button ineffective
• Chassis: Brake, steering, and suspension faults

Each complaint entry lists specific possible causes and the corresponding remedy action — useful for systematic diagnosis without guesswork.

Periodic Maintenance Schedule

Section 2 contains the full periodic maintenance chart with service intervals for every serviceable component. Items listed in the schedule include:

• Battery electrolyte specific gravity — inspect at 1 month and every 3 months
• Engine nuts and bolts — tighten at 1 month and every 3 months
• Valve clearance — inspect every 6 months
• Cam chain tensioner — inspect every 6 months
• Spark plug — inspect every 6 months; replace every 18 months
• Engine idle speed and throttle cable — inspect every 6 months
• Fuel line — replace every 4 years
• Engine oil and filter — replace on schedule
• Air cleaner — clean on schedule
• Drive chain — inspect every month
• Tyres and brakes — inspect every month
• General lubrication — on schedule

Special Materials & Consumables

The Special Materials table in Section 1 lists every Suzuki-branded lubricant, sealant, and threadlocker required for servicing, with part numbers for both USA and other-market variants:

• Suzuki Super Grease A (99000-25030 USA / 99000-25010 others) — front wheel hub bearings, king pins, brake camshafts, steering shaft components, rear axle housing bearings, rocker arm shafts
• Suzuki Moly Paste (99000-25140) — valve stems, piston pins, camshaft journals, cam chain tensioner pushrod, starter motor armature end
• Suzuki Bond No. 1207B (99104-31140) — cylinder head cover, magneto grommet, right crankcase
• Suzuki Bond No. 1215 (99000-31110) — front brake plate sealing
• Threadlock Super 1303 (99000-32030 USA) — starter clutch bolt, cam sprocket bolt, clutch shoe nut, magneto rotor nut, rear axle nut
• Threadlock Super 1333B (99000-32020) — 2nd drive gear, knuckle arm grease nipple
• Threadlock 1342 (99000-32050) — oil pump mounting screws, starter motor housing screws, handlebar balancer screw

Why This Manual Belongs in Your Workshop

• Exact OEM torque figures: Every critical fastener has Nm, kg-m, and lb-ft values — no estimating
• 15 years of variant data in one file: Nine suffix variants across 1990–2005 all covered, with year-specific supplement chapters so you are never working from generic data
• Test values, not just procedures: Resistance ranges, compression limits, spring tension specs, and CDI continuity tables mean you can make a definitive pass/fail call on every component
• Wiring documented with colour codes: The ignition circuit diagram with wire colour key is included — essential for electrical fault tracing
• Special tool numbers listed throughout: Every procedure that requires a dedicated tool gives the Suzuki tool number so you can source the correct equipment
• Covers the reverse gear system: The LT160E was specifically designed with a reverse gear — this manual covers the drivetrain accordingly

File & Delivery Details

• Format: PDF — opens on any device, phone, tablet, laptop, or workshop PC
• Pages: 248
• Language: English
• Delivery: Instant download — link emailed immediately after payment, available in your account
• No DRM restrictions — download, save, and print as needed for your own use
• No physical item shipped — this is a digital file only
