Suzuki SN413 Jimny Service Manual – PDF DOWNLOAD

Description

Suzuki SN413 Jimny Service Manual – PDF DOWNLOAD

FILE DETAILS:

Suzuki SN413 Jimny Service Manual – PDF DOWNLOAD

Language : English
Pages : 1145
Downloadable : Yes
File Type : PDF

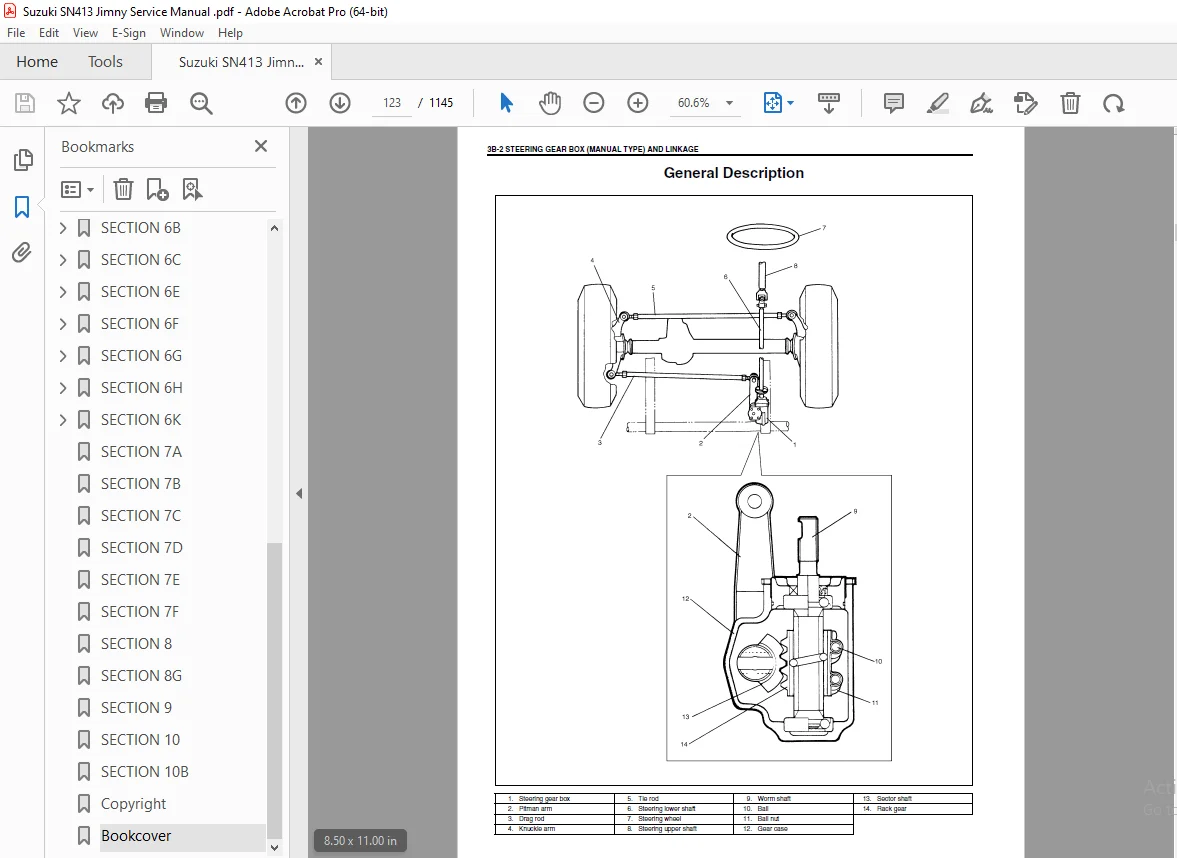

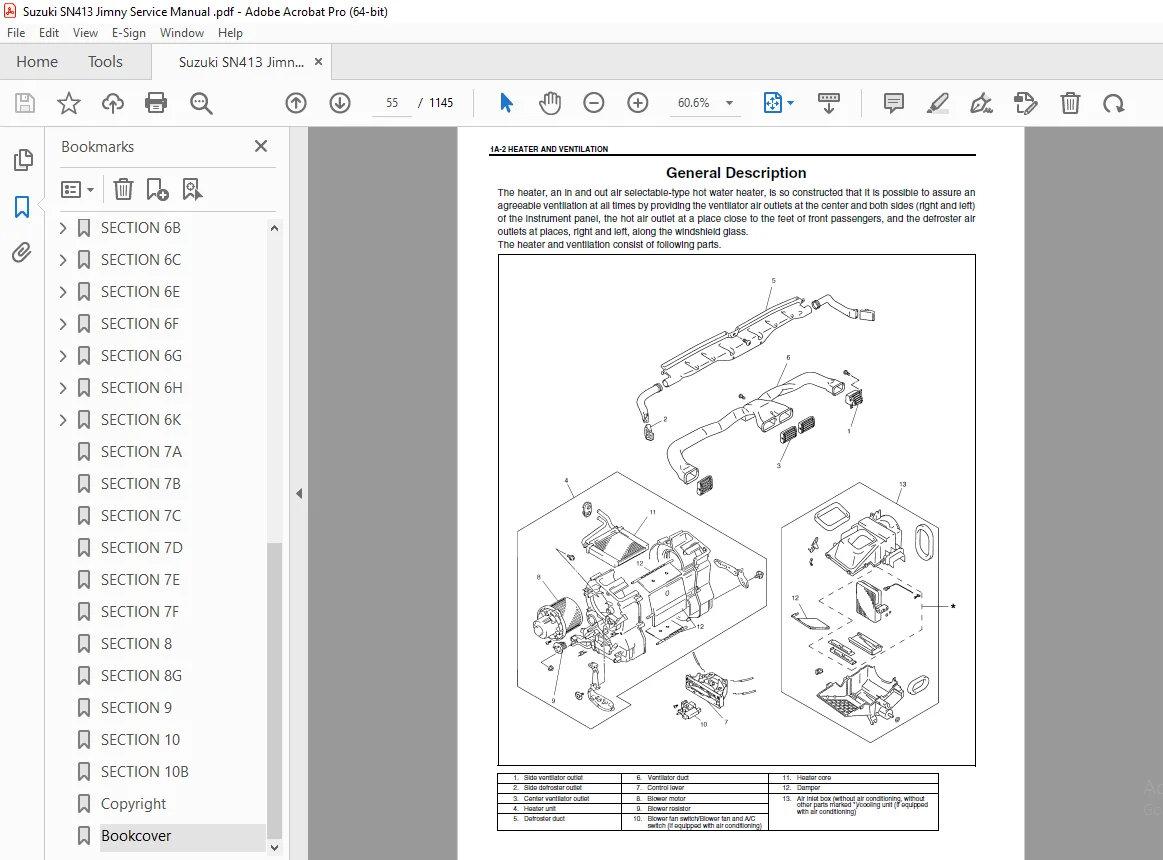

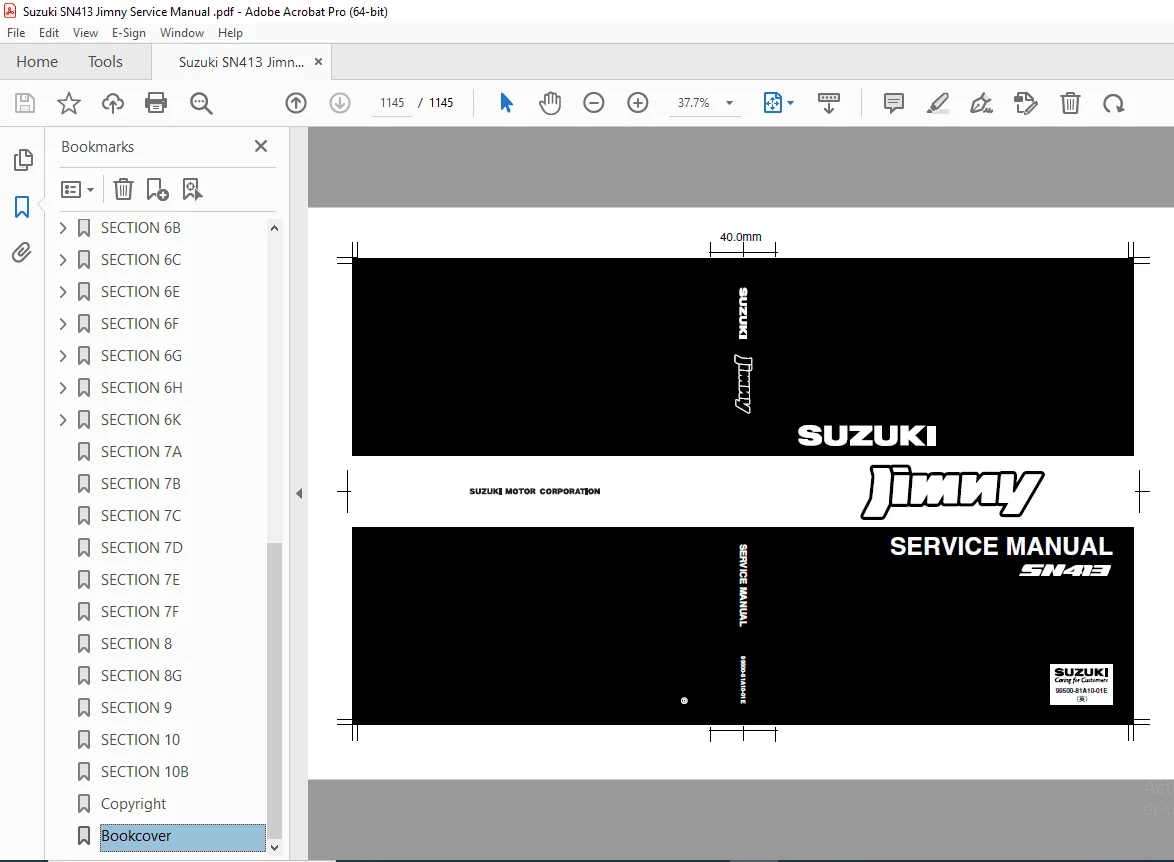

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Suzuki SN413 Jimny Service Manual – PDF DOWNLOAD

• This manual contains procedures for diagnosis, maintenance, adjustments, minor service operations, replacement
  of components (Service) and for disassembly and assembly of major components (Unit Repair-Overhaul).
  Applicable model: JIMNY (SN413) of and after the vehicle identification numbers below.
• The contents are classified into sections each of which is given a section number as indicated in the Table of Contents on following page. And on the first page of each individual section is an index of that section.
• This manual should be kept in a handy place for ready reference of the service work.
• Strict observance of the so specified items will enable one to obtain the full performance of the vehicle.
• When replacing parts or servicing by disassembling, it is recommended to use SUZUKI genuine parts, tools and service materials (lubricant, sealants, etc.) as specified in each description.
• All information, illustrations and specifications contained in this literature are based on the latest product information available at the time of publication approval. And used as the main subject of description is the vehicle of standard specifications among others.
  Therefore, note that illustrations may differ from the vehicle being actually serviced.
  The right is reserved to make changes at any time without notice.

TABLE OF CONTENTS:

Suzuki SN413 Jimny Service Manual – PDF DOWNLOAD

GENERAL INFORMATION
General Information 0A 0A
Maintenance and Lubrication 0B 0B
HEATING AND AIR CONDITIONING
Heater and Ventilation 1A 1A
Air Conditioning (Optional) 1B 1B
STEERING, SUSPENSION, WHEELS AND TIRES
Steering, Suspension, Wheels and Tires 3 3
Front Wheel Alignment 3A 3A
Steering Gear Box (Manual Type) and Linkage 3B 3B
Power Steering (P/S) System (if equipped) 3B1 3B1
Steering Wheel and Column 3C 3C
Front Suspension 3D 3D
Rear Suspension 3E 3E
Wheels and Tires 3F 3F
DRIVE SHAFT AND PROPELLER SHAFT Propeller Shafts 4B 4B
BRAKE SYSTEM
Brakes 5 5
Antilock Brake System (ABS) 5E 5E
ENGINE
Engine General Information and Diagnosis 6 6
Engine Mechanical (M13 Engine) 6A1 6A1
Engine Cooling 6B 6B
Engine Fuel 6C 6C
Engine and Emission Control System 6E 6E
Ignition System (Electronic Ignition System) 6F 6F
Cranking System 6G 6G
Charging System 6H 6H
Exhaust System 6K 6K
TRANSMISSION, CLUTCH AND DIFFERENTIAL
Manual Transmission 7A 7A
Automatic Transmission (4 A/T) 7B 7B
Clutch 7C 7C
Transfer 7D 7D
Front Differential 7E 7E
Rear Differential 7F 7F
ELECTRICAL SYSTEM
Body Electrical System 8 8
Immobilizer Control System (if equipped) 8G 8G
BODY SERVICE 9 9
RESTRAINT SYSTEM
Restraint System 10 10
Air Bag System 10B 10B
