SYM HD200 / HD125 Service Manual – Complete Factory Workshop PDF

Description

SYM HD200 / HD125 Service Manual – Complete Factory Workshop PDF

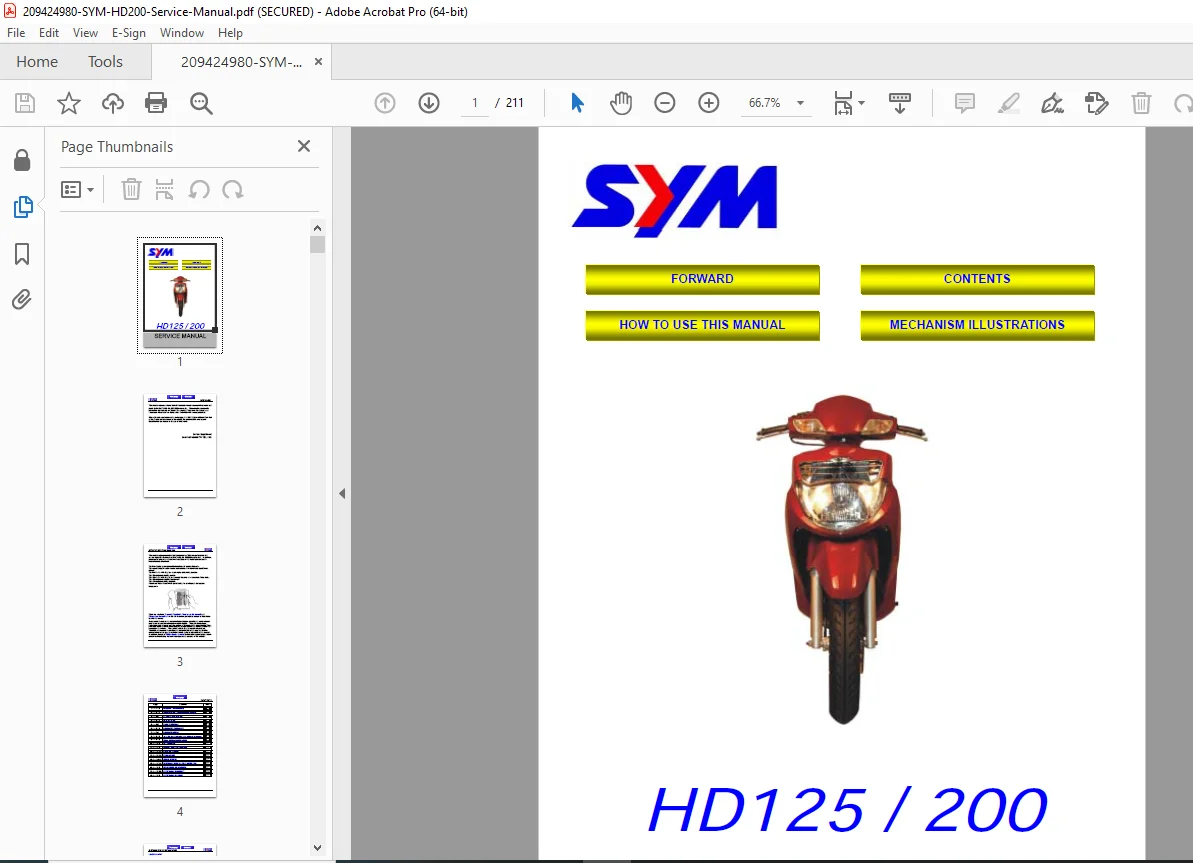

IMAGES:

Description

The SYM HD200 / HD125 Service Manual is the official workshop reference produced by Sanyang Industry Co., Ltd., containing comprehensive servicing and troubleshooting instructions for the HD-series scooters.
It’s indispensable for mechanics and technicians performing maintenance, overhaul, or diagnostics on SYM’s 4-stroke, water-cooled, single-cylinder engines equipped with CVT transmission.

This PDF manual delivers precise step-by-step procedures, torque specifications, wiring schematics, and component illustrations to ensure safe, efficient, and factory-accurate repairs.

 Table of Contents

1. General Information

• Symbols & Safety Marks • General Safety Precautions • Service Precautions

• Lubricants and Sealants • Torque Values • Specifications (LH12W-6 / LH18W-6)

• Troubleshooting Charts (engine hard start, misfire, clutch slip etc.)

• Grease Points and Periodic Maintenance Items

  209424980-SYM-HD200-Service-Man…

2. Maintenance Information

• Maintenance Schedule (300 km – 12,000 km)

• Fuel Lines / Cables Inspection

• Air Cleaner, Spark Plug, Valve Clearance, Carburetor Idle Speed

• Ignition System Check & Timing (13° BTDC @ 1,000 rpm)

• Brake Inspection and Bleeding Procedure

• Tire Pressure & Cushion Check Charts

• Special Tools List with SYM Part Numbers

  209424980-SYM-HD200-Service-Man…

3. Lubrication System

• Oil Pump Disassembly & Clearance Specs

• Gear Oil and Engine Oil Replacement Procedure

• Oil Strainer Cleaning and Torque Table

• Lubrication Routes and Flow Diagram

  209424980-SYM-HD200-Service-Man…

4. Fuel System

• Carburetor Removal and Component Breakdown

• Auto By-Starter Inspection (Resistance < 10 Ω)

• Float Chamber Service / Jet Cleaning

• Air Cut-Off Valve Testing (420–500 mm Hg)

• Fuel Tank and Fuel Unit Replacement Steps

  209424980-SYM-HD200-Service-Man…

5. Engine Removal & Service

• Engine Mount Removal Sequence

• Cylinder Head / Valve Service (0.12 ± 0.02 mm Clearance)

• Piston, Rings & Cylinder Measurement Standards

• Crankcase Splitting and Crankshaft Reassembly

6. Drive and Transmission

• V-Belt Drive and Kick-Starter Mechanism

• CVT Inspection (Width Limit 18.5 mm and Roller Weights)

• Clutch Disassembly and Spring Tension Testing

• Gear Reduction and Final Drive Service

7. Cooling System

• Radiator and Water Pump Service

• Coolant Bleeding and Capacity Specs (780 cc engine + radiator)

• Thermostat Inspection and Replacement Procedures

8. Chassis and Frame

• Front Fork and Rear Suspension Disassembly

• Brake System (Front Disc Ø 220 mm / Rear Drum Ø 130 mm)

• Steering Bearing Torque and Adjustment

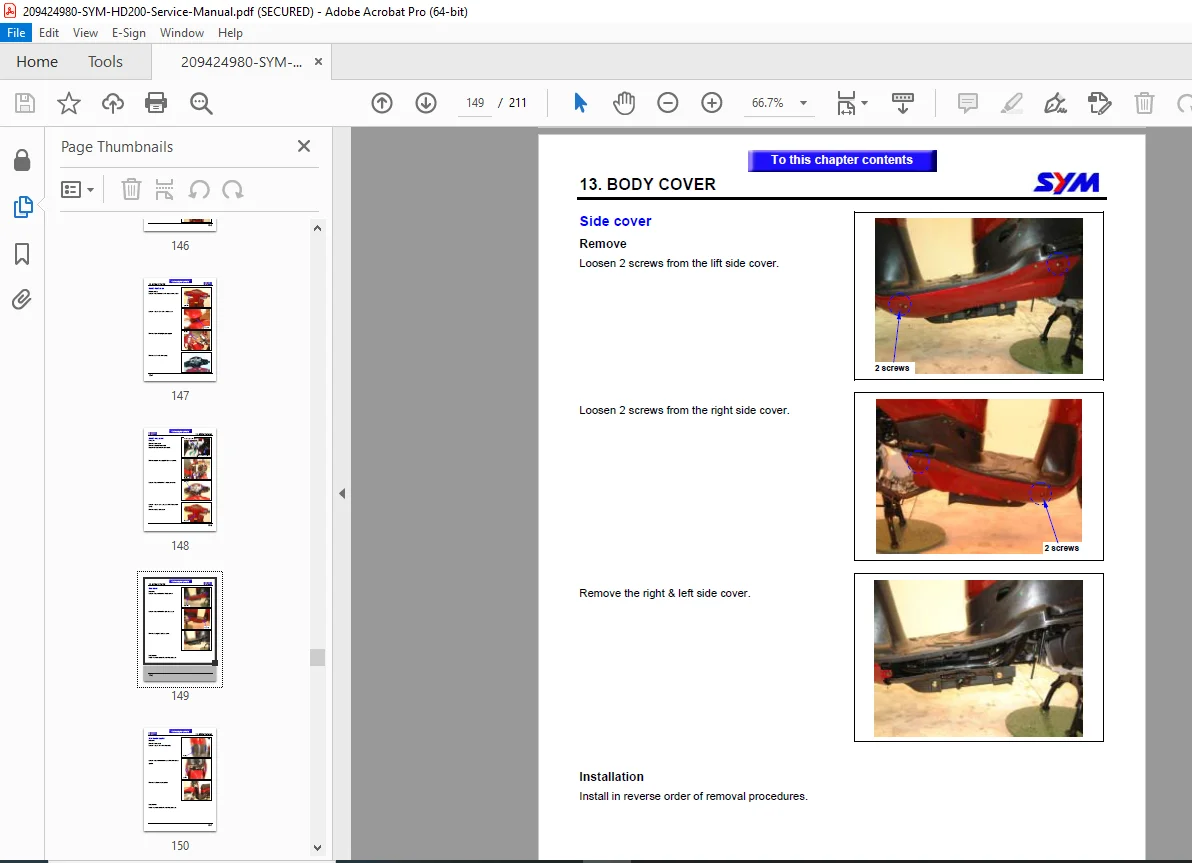

• Body Covers, Stand, and Cushion Replacement Guides

9. Electrical Equipment

• Battery Maintenance and Charging (12 V 8 Ah YTX9-BS)

• CDI System Description & Ignition Curve

• Regulator Rectifier, Relay, Fuse Box Locations

• Starter Relay and Switch Circuit Checks

• Lighting, Horn, Signal System Testing

  209424980-SYM-HD200-Service-Man…

10. Wiring Diagram

• Complete Color-Coded Electrical Schematic for HD125 & HD200

• Pin Identifications for CDI, Ignition Coil, Charging and Lighting Circuits

  209424980-SYM-HD200-Service-Man…

⚙️ Highlights

• Full factory torque chart for engine & frame assemblies

• Detailed exploded diagrams of engine and transmission

• CDI ignition and wiring schematics for both models

• Troubleshooting matrices for electrical and fuel systems

• Maintenance intervals & lubrication points per EPA standards

• Includes SYM special tool numbers and part references
