SYM Orbit 125 Scooter Service Manual – PDF Download
Original price was: $65.00.$17.95Current price is: $17.95.
Official SYM Orbit 125 service manual used by dealership technicians. Includes detailed maintenance procedures, torque specifications, troubleshooting charts, carburetor settings, CVT (V-belt) servicing, electrical diagnostics, and wiring diagram. Ideal for both mechanics and DIY owners.
Description
SYM Orbit 125 Scooter Service Manual – PDF Download
Description
This is the complete factory Service & Repair Manual for the SYM Orbit 125 scooter. It provides step-by-step service instructions, detailed illustrations, technical specifications, adjustment values, and system diagnostics to ensure accurate and reliable repair work.
Main Sections Covered
General Information & Safety Symbols
Maintenance Schedule & Service Intervals
Engine Specifications and Tuning
Lubrication System (Oil capacities, replacement steps)
Fuel & Carburetor System (Idle, jetting, mixture adjustment)
Engine Disassembly & Reassembly Procedures
CVT Transmission (V-belt, variator, clutch service)
Final Drive and Gear Oil Service
A.C. Generator & Starting Clutch
Frame, Steering & Suspension

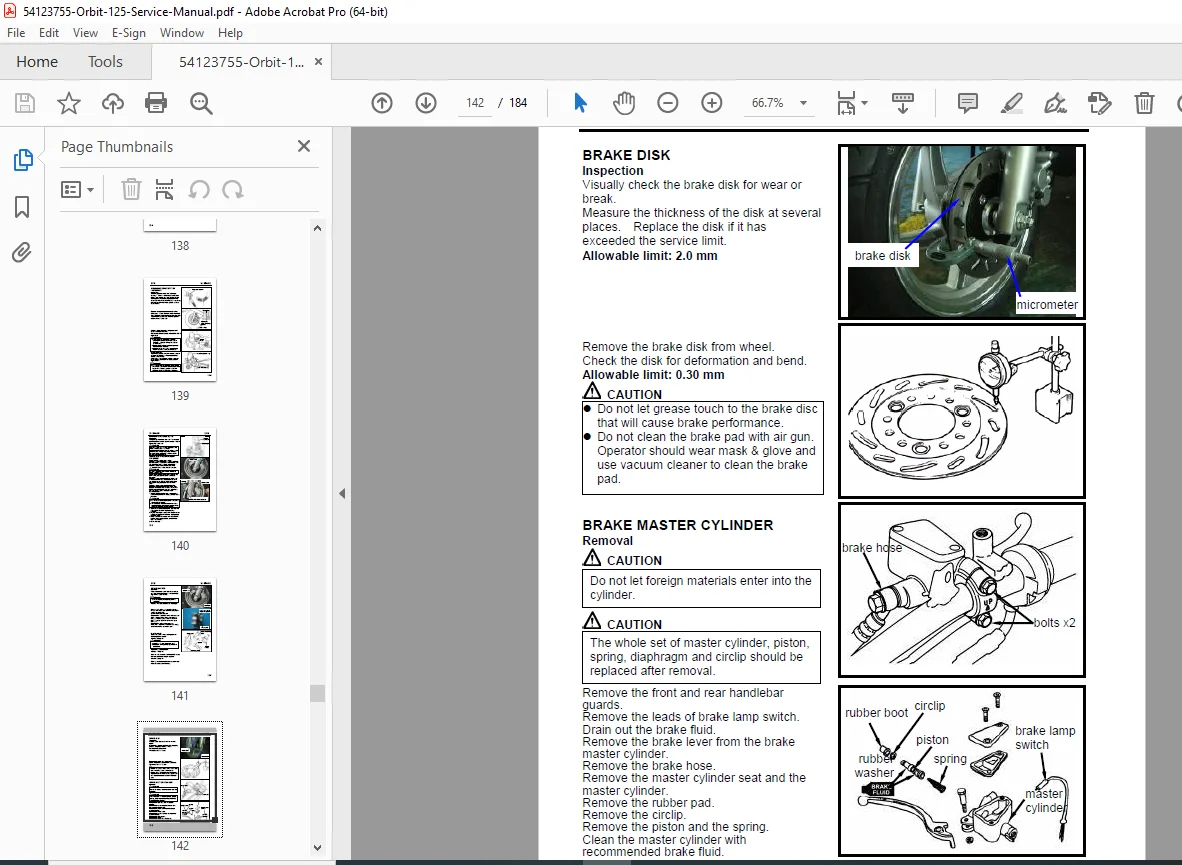

Hydraulic Disc & Drum Brake Systems
Electrical System Diagnostics
Full Wiring Diagram
List of Special Service Tools
Key Technical Specifications (Highlights)
| Component | Specification |
|---|---|
| Engine Type | 124.6cc, 4-stroke, forced air-cooled |
| Max Power | 6.25 kW @ 8000 rpm |
| Max Torque | 8.3 Nm @ 6500 rpm |
| Compression Ratio | 9.6:1 |
| Spark Plug | TORCH A7RC (Gap: 0.6–0.7 mm) |
| Idle Speed | 1700 ± 100 rpm |
| Valve Clearance (Cold) | IN 0.12 mm / EX 0.12 mm |
| Engine Oil | SAE 10W-30 (750 cc change / 850 cc full drain) |
| Gear Oil | SAE 85W-140 (100 cc) |
| Front Tire | 120/70-12 |
| Rear Tire | 130/70-12 |
| Front Brake | Hydraulic Disc |
| Rear Brake | Drum |
Torque Values (Essential Fasteners)
| Part | Torque |
|---|---|
| Cylinder Head Nuts | 1.8–2.2 kgf·m |
| Flywheel Nut | 5.0–6.0 kgf·m |
| Clutch Center Nut | 5.0–6.0 kgf·m |
| Rear Wheel Nut | 11–13 kgf·m |
| Engine Oil Drain Bolt | 3.5–4.5 kgf·m |
File Details
Manual Name: SYM Orbit 125 Service Manual
Models Covered: SYM Orbit 125 Scooter (All Variants)
Format: PDF (Printable & Searchable)
Language: English
Quality: Original OEM Scan with Clear Diagrams
Pages: 184
