Tadano Cargo Crane TM-ZE300 41044502044A BOOM/4 SECT.,SAFETY EYES Parts Manual
$18.95
Tadano Cargo Crane TM-ZE300 41044502044A BOOM/4 SECT.,SAFETY EYES Parts Manual – PDF DOWNLOAD
Description
Tadano Cargo Crane TM-ZE300 41044502044A BOOM/4 SECT.,SAFETY EYES Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Tadano Cargo Crane TM-ZE300 41044502044A BOOM/4 SECT.,SAFETY EYES Parts Manual – PDF DOWNLOAD
Language : English
Pages :49
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Tadano Cargo Crane TM-ZE300 41044502044A BOOM/4 SECT. SAFETY EYES Parts Manual – PDF DOWNLOAD
TM-ZE300 41044502044A BOOM/4 SECT.,SAFETY EYES
000000
PB0000062-01 SYSTEM (ZE300,DOMESTIC)
PB0000066-01 SYSTEM (ZE360,DOMESTIC)
ASSEMBLY
TM-ZE300 41044502044A BOOM/4 SECT.,SAFETY EYES
000003
PC6470015-04 CYLINDER ASSY,TELESCOPING
PD5070016-00 DETECTOR ASSY,LENGTH
PF1050316-03 HOOK (SHEAVE 2 PC’S)
PF1090022-01 SOCKET,ROPE
PG1010989-02 BOOM
PG1010994-00 BOOM (LINK ASSY)
PG1200149-02 PIPING,TELESCOPING (JOINT)
PG2020002-00 BOOM UNIT
PH1060326-00 DETECTOR,OVER WIND (CHAIN,FOR WEIGHT)
PH1060485-03 DETECTOR,OVERWIND
PI1250125-04 VALVE,COUNTERBALANCE
PN1014569-02 ELEC.ASSY (BOOM/DETECTOR ASSY)
PN5010277-00 PLATE ASSY,NAME (CAUTION.LOGO)
PN5010639-02 NAME PLATE ASSY (ZEST ECO)
PO1015026-02 PLATE ASSY,NAME (STAMP)
PO1015140-01 PLATE ASSY,NAME (ZEST)+(ECO)
PS5420041-00 SUPPORT ASSY
PT5130012-02 TELESCOPE ASSY
PZ1000591-01 BOOM SYSTEM (SAFETY EYES)

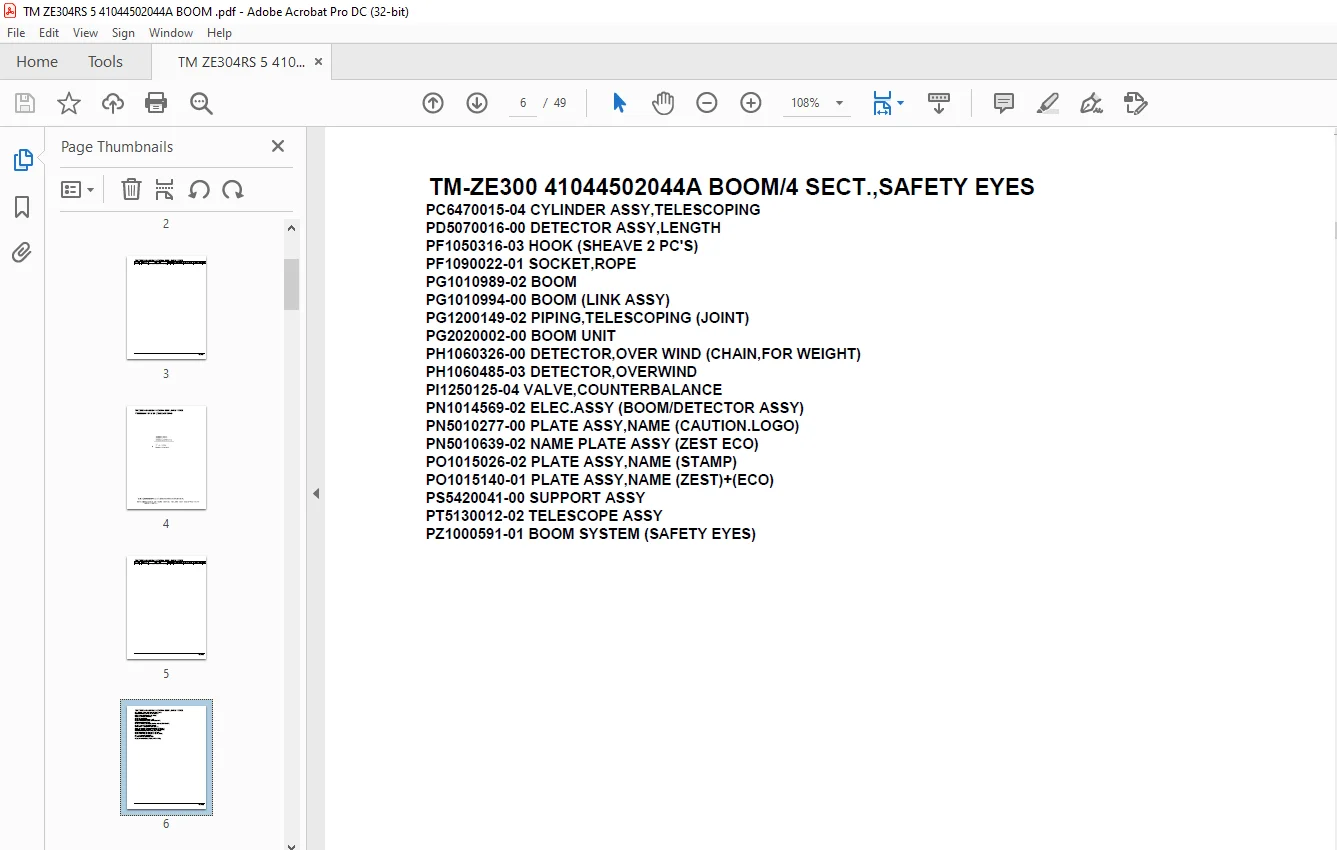

IMAGES PREVIEW OF THE MANUAL:
