Tadano Cargo Crane TM-ZF300 31013020010 BOOM/2 SECT. Parts Manual – PDF DOWNLOAD

Description

Tadano Cargo Crane TM-ZF300 31013020010 BOOM/2 SECT. Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Cargo Crane TM-ZF300 31013020010 BOOM/2 SECT. Parts Manual – PDF DOWNLOAD

Language : English
Pages :36
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Cargo Crane TM-ZF300 31013020010 BOOM/2 SECT. Parts Manual – PDF DOWNLOAD

TM-ZF300 31013020010 BOOM/2 SECT.
000000
PZ1000283-03 SYSTEM (BOOM)
ASSEMBLY

TM-ZF300 31013020010 BOOM/2 SECT.
000002
PF1050206-01 HOOK (SHEAVE 2PC’S)
PF1070033-00 ROPE,WIRE (KISWIRE)
PF1090022-01 SOCKET,ROPE
PG1010349-06 BOOM
PG1050209-00 CYLINDER,TELESCOPING
PG1200099-00 PIPING,TELESCOPING
PH1060213-01 DETECTOR,OVER WINDING (ROPE)
PH1060228-02 DETECTOR,OVER WINDING
PI1250074-00 VALVE,COUNTERBALANCE (TELESCOPING)
PN1350003-00 REEL,CORD
PN1350039-00 REEL,CORD
PO1011491-00 PLATE,INDICATION ((ZF300/BOUEICHOU)
PO1011512-01 PLATE ASSY,NAME (ZF300/JAPANESE)
PO1011616-01 PLATE ASSY,NAME (ZF300/ENGLISH)
PO1012174-00 PLATE ASSY,NAME (ZF300/ENG.& RUSSIAN)
PO1012611-00 PLATE ASSY,NAME (ZF300/CHINESE)

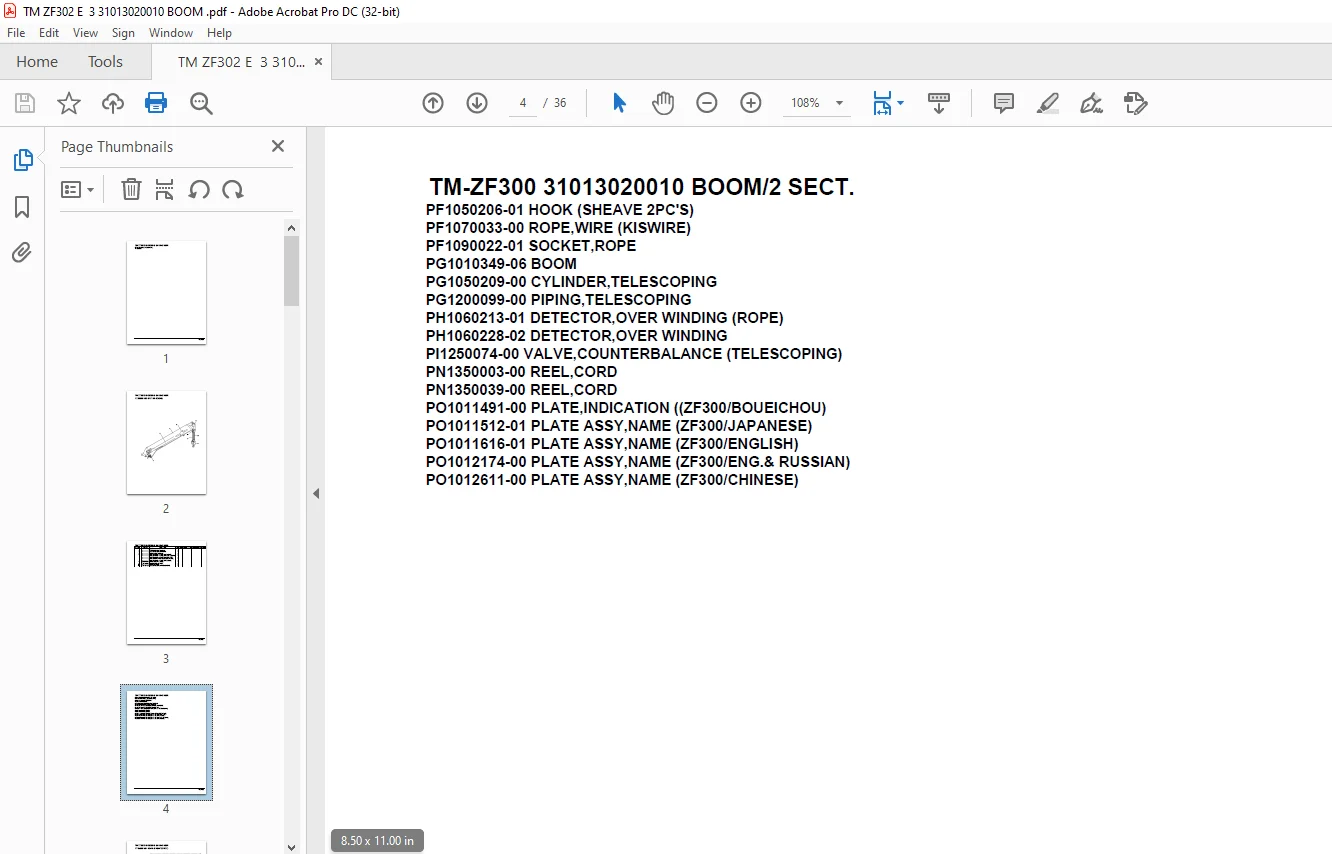

IMAGES PREVIEW OF THE MANUAL:
