Tadano Cargo Crane TM-ZF300 31013020130 BOOM4 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

Description

Tadano Cargo Crane TM-ZF300 31013020130 BOOM4 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Cargo Crane TM-ZF300 31013020130 BOOM4 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

Language : English
Pages :46
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Cargo Crane TM-ZF300 31013020130 BOOM4 SECT. HOOK-IN Parts Manual – PDF DOWNLOAD

TM-ZF300 31013020130 BOOM/4 SECT.,HOOK-IN
000000
PZ1000329-02 SYSTEM (BOOM,HOOK-IN)
ASSEMBLY

TM-ZF300 31013020130 BOOM/4 SECT.,HOOK-IN
000002
PC6470076-00 CYLINDER ASSY,TELESCOPING (NO.1)
PF1050204-01 HOOK (SHEAVE 2PC’S)
PF1050257-05 HOOK (SHEAVE 2 PC’S)
PF1070033-00 ROPE,WIRE (KISWIRE)
PF1090022-01 SOCKET,ROPE
PG1010348-09 BOOM
PG1050212-07 CYLINDER,TELESCOPING
PG1050570-03 CYLINDER,TELESCOPING (NO.1)
PG1050571-00 CYLINDER,TELESCOPING (NO.2)
PG1200099-00 PIPING,TELESCOPING
PH1060213-01 DETECTOR,OVER WINDING (ROPE)
PH1060231-01 DETECTOR,OVER WINDING
PI1140202-00 VALVE,CHECK
PI1250074-00 VALVE,COUNTERBALANCE (TELESCOPING)
PN1350004-01 REEL,CORD
PO1011514-02 PLATE ASSY,NAME (ZF300/JAPANESE)
PO1011573-00 PLATE ASSY,NAME (ZF360/JAPANESE)
PO1012175-00 PLATE ASSY,NAME (ZF300/ENGLISH)
PR5050007-00 REEL ASSY,CORD

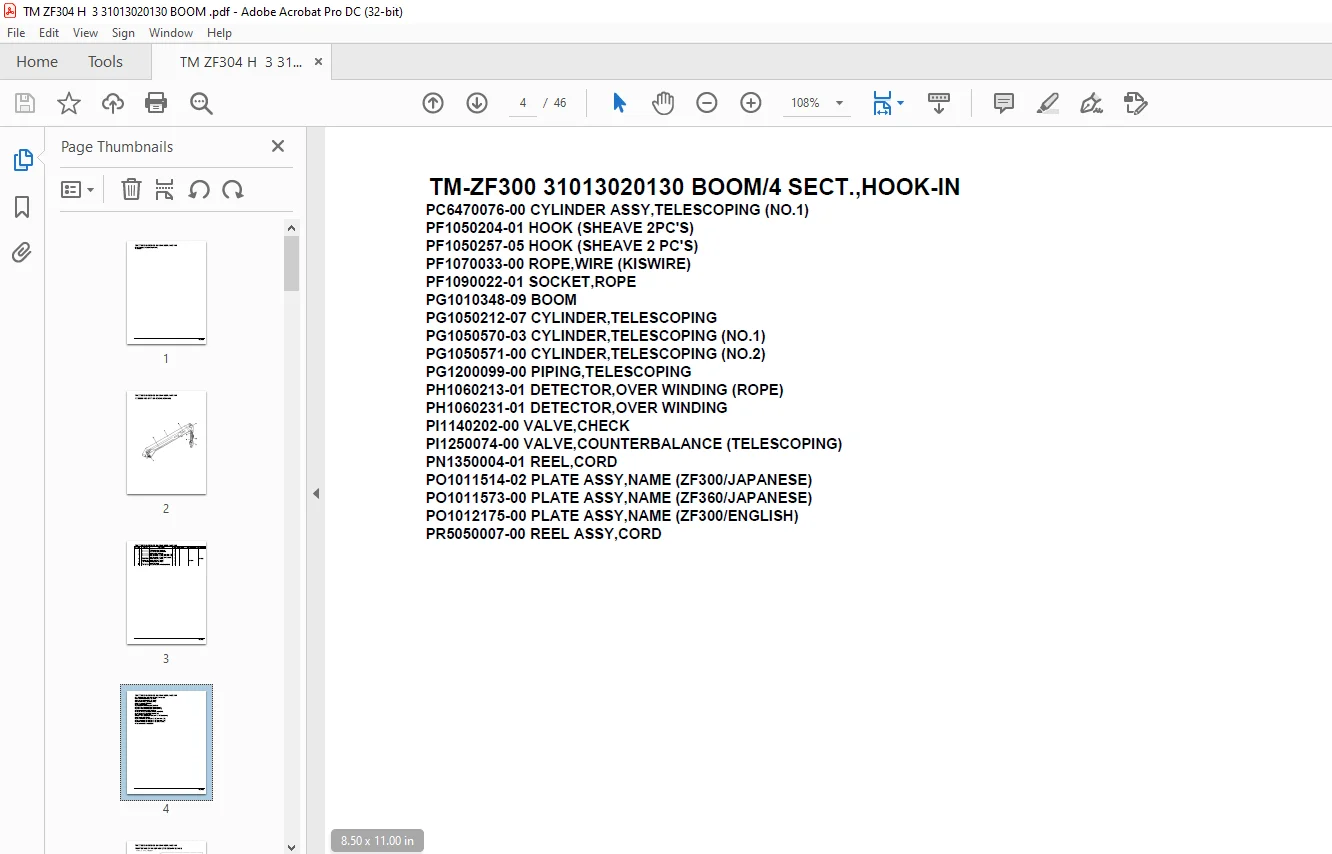

IMAGES PREVIEW OF THE MANUAL:
