Tadano Cargo Crane TM-ZF500 31093020020 BOOM3 SECT.Parts Manual – PDF DOWNLOAD

Description

Tadano Cargo Crane TM-ZF500 31093020020 BOOM3 SECT.Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Cargo Crane TM-ZF500 31093020020 BOOM3 SECT.Parts Manual – PDF DOWNLOAD

Language : English
Pages :49
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Cargo Crane TM-ZF500 31093020020 BOOM3 SECT.Parts Manual – PDF DOWNLOAD

TM-ZF500 31093020020 BOOM/3 SECT.
000000
PZ1000297-02 BOOM SYSTEM
ASSEMBLY

TM-ZF500 31093020020 BOOM/3 SECT.
000002
PF1050206-01 HOOK (SHEAVE 2PC’S)
PF1090022-01 SOCKET,ROPE
PG1010445-04 BOOM
PG1050238-00 CYLINDER,TELESCOPING (MOUNT)
PG1050243-03 CYLINDER,TELESCOPING
PG1200105-00 PIPING,TELESCOPING
PG1200132-00 PIPING,TELESCOPING
PH1060213-01 DETECTOR,OVER WINDING (ROPE)
PH1060229-01 DETECTOR,OVER WINDING
PI1250080-00 VALVE,COUNTERBALANCE
PI1250109-00 VALVE,COUNTERBALANCE
PN1350003-00 REEL,CORD
PN1350039-00 REEL,CORD
PO1011735-00 PLATE,INDICATION (JAPANESE/ZF500)
PO1011775-01 PLATE,INDICATION (ENGLISH/ZF500)
PO1012267-00 PLATE ASSY,NAME (FRENCH/ZF500)
PO1012620-01 PLATE ASSY,NAME (BOOM,ENGLISH)
PR5170002-00 ROPE,WIRE (KISWIRE)
PT5130021-00 TELESCOPE ASSY

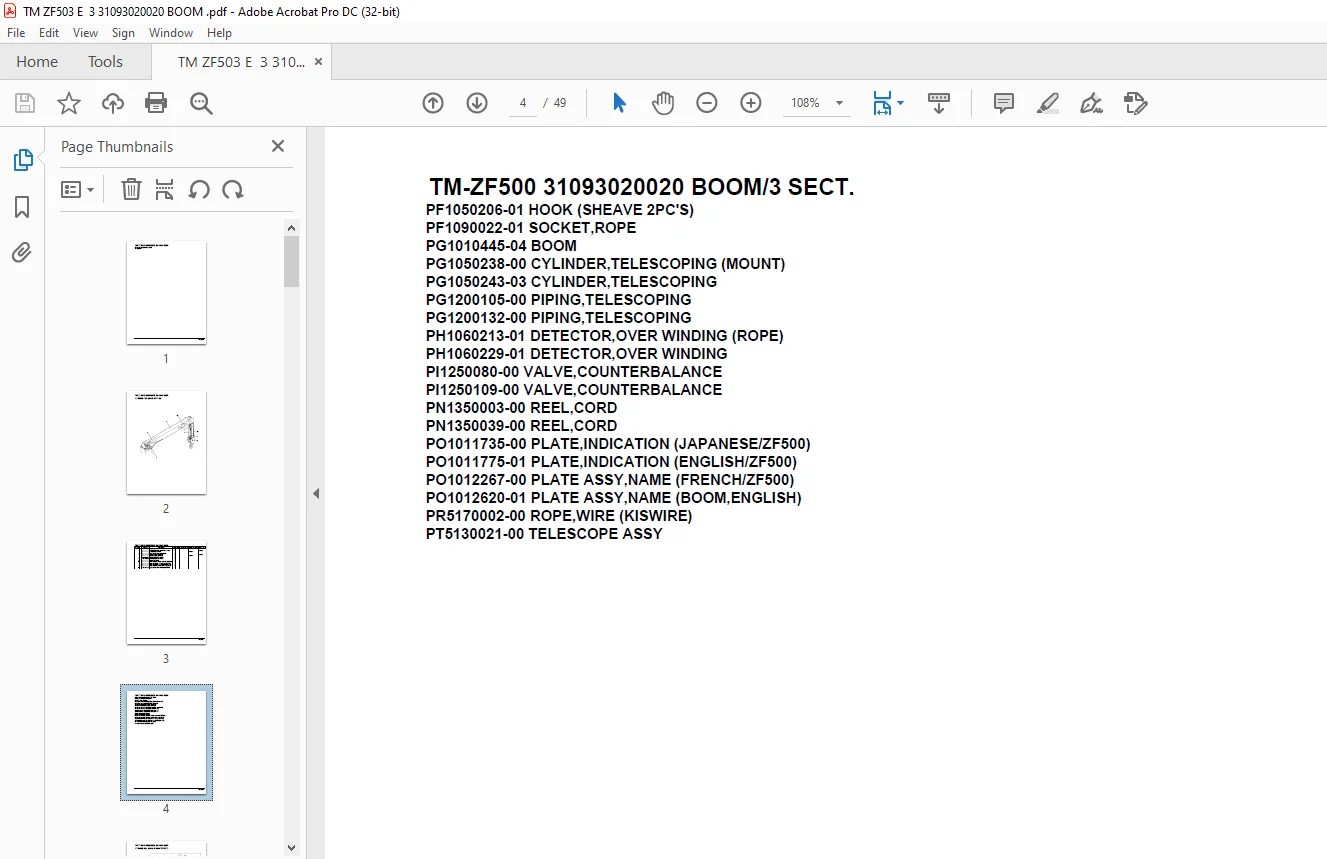

IMAGES PREVIEW OF THE MANUAL:
