Tadano Cargo Crane TM-ZR500 31094010190A FRAME/STD,MANUAL,HOOK-IN Parts Manual – PDF

Description

Tadano Cargo Crane TM-ZR500 31094010190A FRAME/STD,MANUAL,HOOK-IN Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Cargo Crane TM-ZR500 31094010190A FRAME/STD,MANUAL,HOOK-IN Parts Manual – PDF DOWNLOAD

Language : English
Pages :267
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Cargo Crane TM-ZR500 31094010190A FRAME/STD,MANUAL,HOOK-IN Parts Manual – PDF DOWNLOAD

TM-ZR500 31094010190A FRAME/STD,MANUAL,HOOK-IN
000000
PB0000049-02 SYSTEM (ZR500,NORTH AMERICA)
ASSEMBLY

TM-ZR500 31094010190A FRAME/STD,MANUAL,HOOK-IN
000002
PB1130162-01 TANK,OIL
PB1130217-01 TANK,OIL (MOUNT)
PB1290013-01 STOPPER,ROTARY JOINT
PB1300402-01 JOINT,ROTARY
PB1300528-00 JOINT,ROTARY
PB1320556-00 VALVE,MANUAL CONTROL (R/O,2-BLOCK)
PB1320592-00 VALVE,MANUAL CONTROL
PB1400318-04 PIPING,UPPER
PB1411402-00 PIPING,LOWER
PB1411429-01 PIPING,LOWER
PC1010803-00 OUTRIGGER (MOUNT,L=590)
PC1010805-00 OUTRIGGER (MOUNT,L=900/FOR EXPORT)
PC1010807-00 OUTRIGGER
PC1010808-00 OUTRIGGER (FOR EXPORT)
PC1010962-01 OUTRIGGER (MOUNT,L=700)
PC1010963-00 OUTRIGGER
PC1011301-01 OUTRIGGER (FRAME)
PC1020092-00 OUTRIGGER,REAR
PC1030314-02 CYLINDER,JACK (STROKE 550)
PC1030348-02 CYLINDER,JACK (STORKE 550)
PC1030371-01 CYLINDER,JACK
PC1100159-07 OPE.ASSY,OUTRIGGER
PC1100281-00 OPE.ASSY,OUTRIGGER
PC1190037-00 INDICATOR,OUTRIGGER (BML)
PC1200579-00 PIPING,OUTRIGGER
PC5410004-00 CONTROL UNIT
PC6390037-01 CYLINDER ASSY,JACK
PC6390038-01 CYLINDER ASSY,JACK
PC6390039-01 CYLINDER ASSY,JACK
PC6390040-01 CYLINDER ASSY,JACK
PD1010145-01 REDUCER,SWING SPEED
PD1020020-01 SWING UNIT
PD1020042-00 SWING UNIT
PD5120001-00 DETECTOR ASSY,MOMENT
PD5120002-00 DETECTOR ASSY,MOMENT
PE1010377-04 CYLINDER,ELEVATING
PE5020400-00 ELEC.ASSY (ZR505,A,REAR MOUNTING,360DEG.FULL)
PE5020401-00 ELEC.ASSY (ZR506,A,REAR MOUNTING,360DEG.FULL)
PF1010229-01 WINCH (Y.G.TEC)
PF1020030-00 DRUM,WINCH (Y.G.TEC)
PF1050360-01 HOOK (SHEAVE 2PC’S)
PF1050433-01 HOOK (5 SECT.,FOR 10000LBS)
PF1050482-00 HOOK (6 SECT.,FOR 10000LBS)
PF1180071-01 DETECTOR,DISORDERLY WIND
PF1400369-00 MOUNT,WINCH
PG1120155-00 DETECTOR,BOOM LENGTH (BML)
PG1130134-00 DETECTOR,BOOM LENGTH
PH1010008-00 DETECTOR,LOAD
PH1010012-01 DETECTOR,LOAD (BML,ELEVATING CYL.)
PH1080017-00 DETECTOR,AREA
PH1080022-00 DETECTOR,AREA
PH1080024-00 DETECTOR,AREA (SWING DETECTOR S/W)
PH1250046-00 MOMENT LIMITER (BML)
PH1250046-00 MOMENT LIMITER (BML)
PH1250098-00 MOMENT LIMITER (BML)
PH5032071-00 HARNESS
PH5033400-00 HARNESS
PH5080088-00 HOOK ASSY
PI1010077-01 MOTOR,HYDRAULIC (SWING)
PI1010088-01 MOTOR,HYDRAULIC (SWING)
PI1010152-00 MOTOR,HYDRAULIC (WINCH)
PI1010223-01 MOTOR,HYDRAULIC
PI1240052-00 VALVE (BODY ASSY)
PI1240053-00 VALVE (UNLOAD)
TM-ZR500 31094010190A FRAME/STD,MANUAL,HOOK-IN
000002
PI1250126-04 VALVE,COUNTERBALANCE
PI1280051-00 VALVE,PILOT CHECK
PI1300026-01 FILTER,OIL (WAKO)
PI1300028-01 FILTER,OIL (CARTRIDGE)
PJ3010304-00 BASKET
PK1010788-00 FRAME
PK1100361-01 SWING FRAME
PK1130007-00 COVER,BEARING
PK2000260-01 FRAME UNIT
PL1010986-00 OPE.ASSY,CONT.VALVE (CRANE)
PL1010993-00 OPE.ASSY,CONT.VALVE(MOUNT,RADICON PARTS)
PL1250054-00 VALVE,CONTROL
PL1250055-00 VALVE,CONTROL
PL1250056-00 VALVE,CONTROL
PL1250057-00 VALVE,CONTROL
PL1250058-00 VALVE,CONTROL
PL1250059-00 VALVE,CONTROL
PL1250060-00 VALVE,CONTROL
PN1013348-02 ELEC.ASSY (BML)
PN1013349-01 ELEC.ASSY (INDICATOR)
PN1013351-01 ELEC.ASSY
PN1014089-00 ELEC.ASSY (ZR503 REAR MOUNTING PARTS)
PN1014090-00 ELEC.ASSY
PN1014328-03 ELEC.ASSY (ONE PERSON BASKET)
PN1014330-01 ELEC.ASSY (FOR MOUNTING REAR)
PN1015032-00 ELEC.ASSY (BML)
PN1140221-00 SWITCH ASSY (GREEN:PANASONIC)
PN1140223-01 SWITCH ASSY (GREEN:PANASONIC)
PO1000142-00 INDICATION PLATES (EXPORT)
PO1013607-00 PLATE ASSY,NAME (BML)
PO1014508-00 PLATE ASSY,NAME
PO1014711-00 PLATE ASSY,NAME
PO1014874-00 PLATE ASSY,NAME
PO1015268-00 PLATE ASSY,NAME
PO1015568-00 PLATE ASSY,NAME(ONE PERSON)
PO1015574-00 PLATE ASSY,NAME (BML)
PO1070425-00 PERFORMANCE DATA (ZR503/A)
PO1070426-00 PERFORMANCE DATA (ZR504/A)
PO1070450-00 PERFORMANCE DATA (ZR505/D/FRONT SIDE60%)
PO1070451-00 PERFORMANCE DATA (ZR505/D/10000LBS)
PO1070452-00 PERFORMANCE DATA (ZR506/D/FRONT SIDE60%)
PO1070557-00 PERFORMANCE DATA(ZR506/D,10000LBS F-60%)
PO1080028-00 PLATE,NAME(ZR503 RATED LIFTING CAPAC./D)
PO1080030-00 PLATE,NAME(ZR504 RATED LIFTING CAPAC./D)
PO1080031-00 PLATE,NAME(ZR505 RATED LIFTING CAPAC./D)
PO1080032-00 PLATE,NAME(ZR506 RATED LIFTING CAPAC./D)
PO1080036-00 PLATE,NAME(ZR505 RATED LIFTING CAPAC./D)
PO1080045-00 PLATE,NAME (ZR506 RATED LIFTING/10000LBS)
PP5170001-00 PARTS ASSY,REMOTE CONTROL (KIT/FOR RCS-FC1)
PP5170002-00 PARTS ASSY,REMOTE CONTROL (KIT/FOR RCS-FC1)
PP5240007-00 PLATE,NAME (REAR MOUNTING,360,BML)
PP5240008-00 PLATE,NAME (ZR505,A,REAR MOUNTING,360DEG.FULL)
PP5240009-00 PLATE,NAME (ZR506,A,REAR MOUNTING,360DEG.FULL)
PP5240010-00 PLATE,NAME (ZR505,D,REAR MOUNTING,360DEG.FULL)
PP5240011-00 PLATE,NAME (ZR506,D,REAR MOUNTING,360DEG.FULL)
PR5130002-00 RING ASSY,SLIP
PR5130007-00 RING ASSY,SLIP
PW5060005-01 WINCH ASSY (Y.G.TEC)
PX1810237-00 MOUNT,SUPPORT (FRAME)
PX1810254-00 MOUNT,SUPPORT (BOOM HEAD)
PY1001169-02 OPTIONS

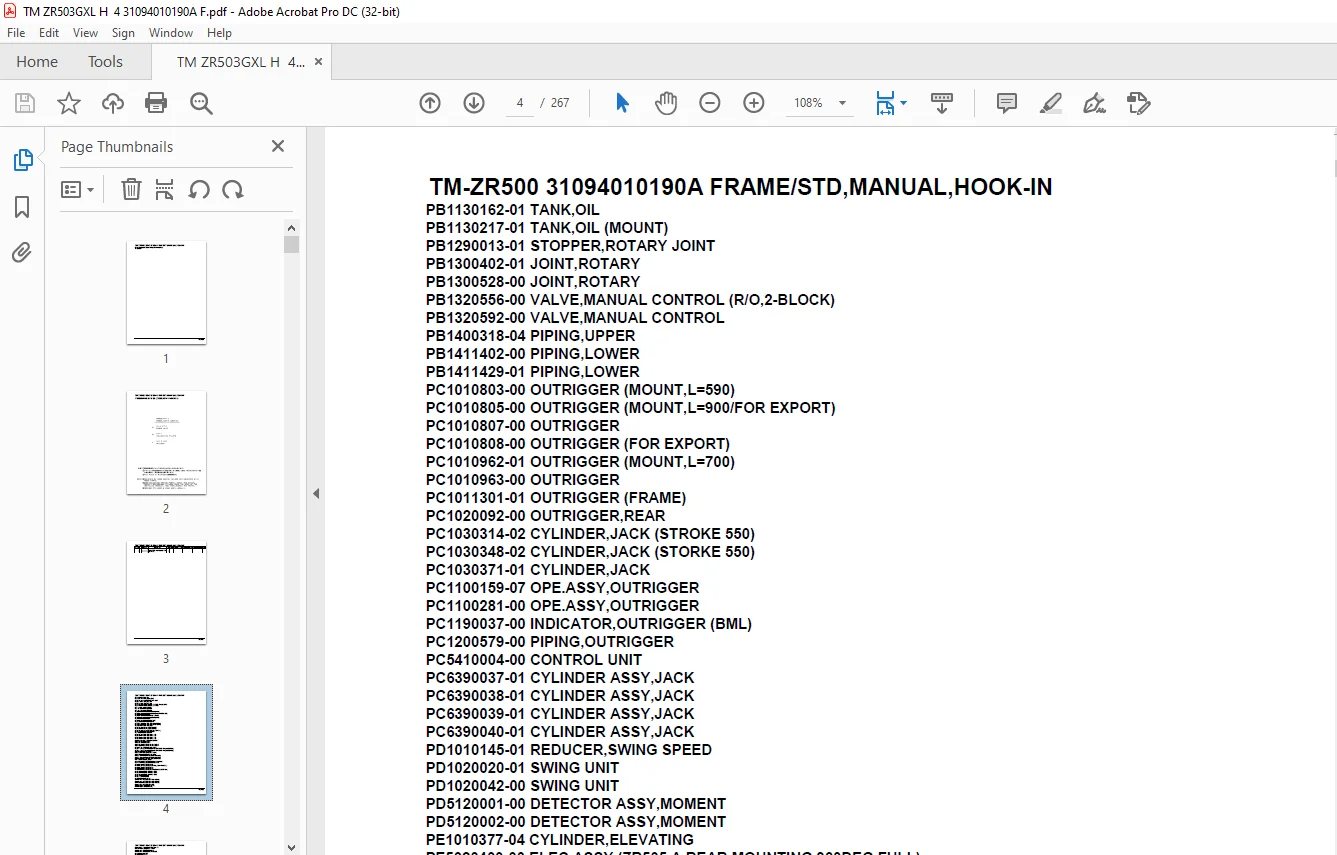

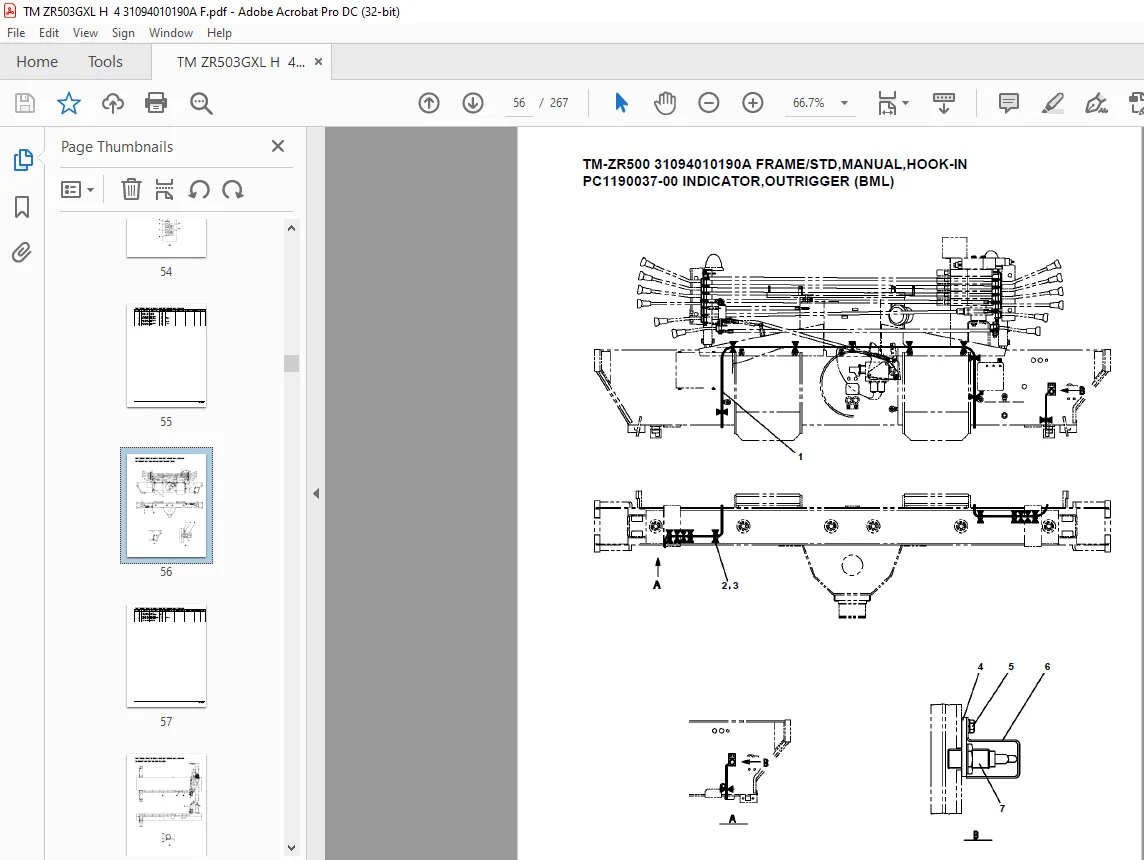

IMAGES PREVIEW OF THE MANUAL:
