Tadano Cargo Crane TM-ZR500 31094010500A FRAMEROUND TYPE Parts Manual – PDF DOWNLOAD

Description

Tadano Cargo Crane TM-ZR500 31094010500A FRAMEROUND TYPE Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Cargo Crane TM-ZR500 31094010500A FRAMEROUND TYPE Parts Manual – PDF DOWNLOAD

Language : English
Pages :270
Downloadable : Yes
File Type : PDF

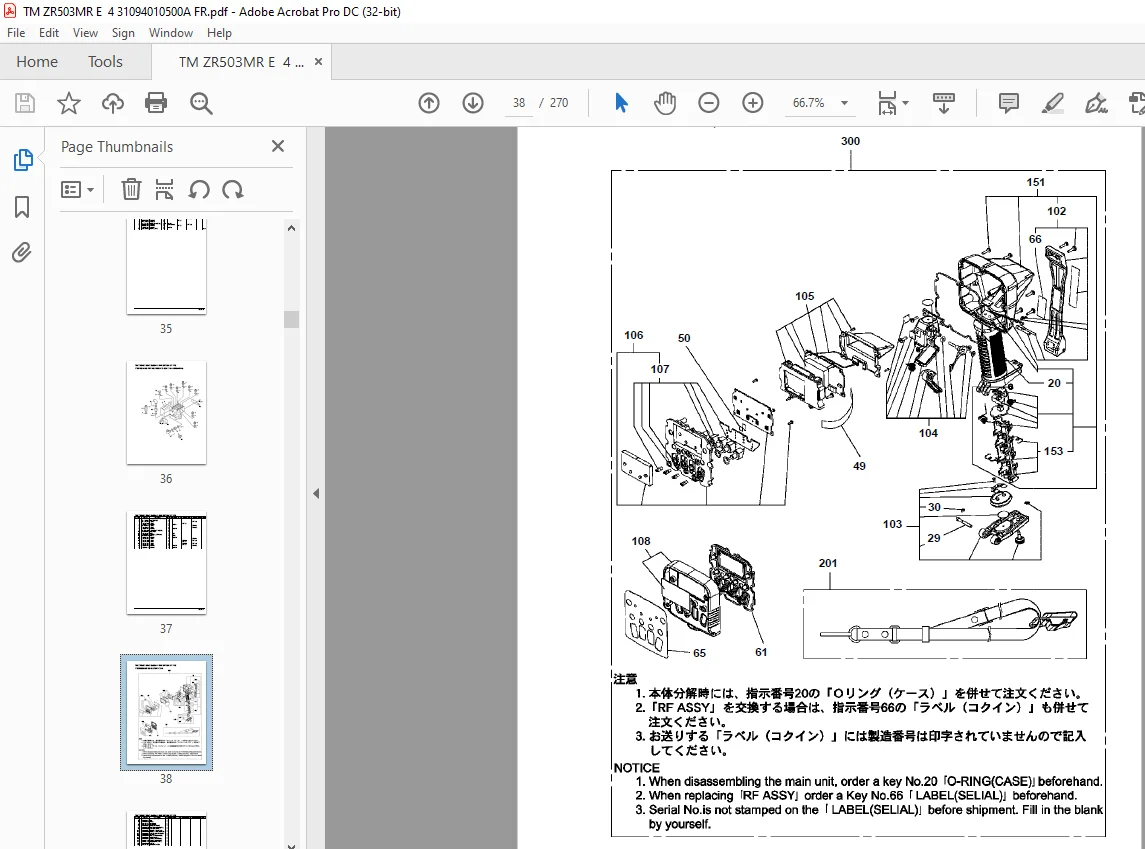

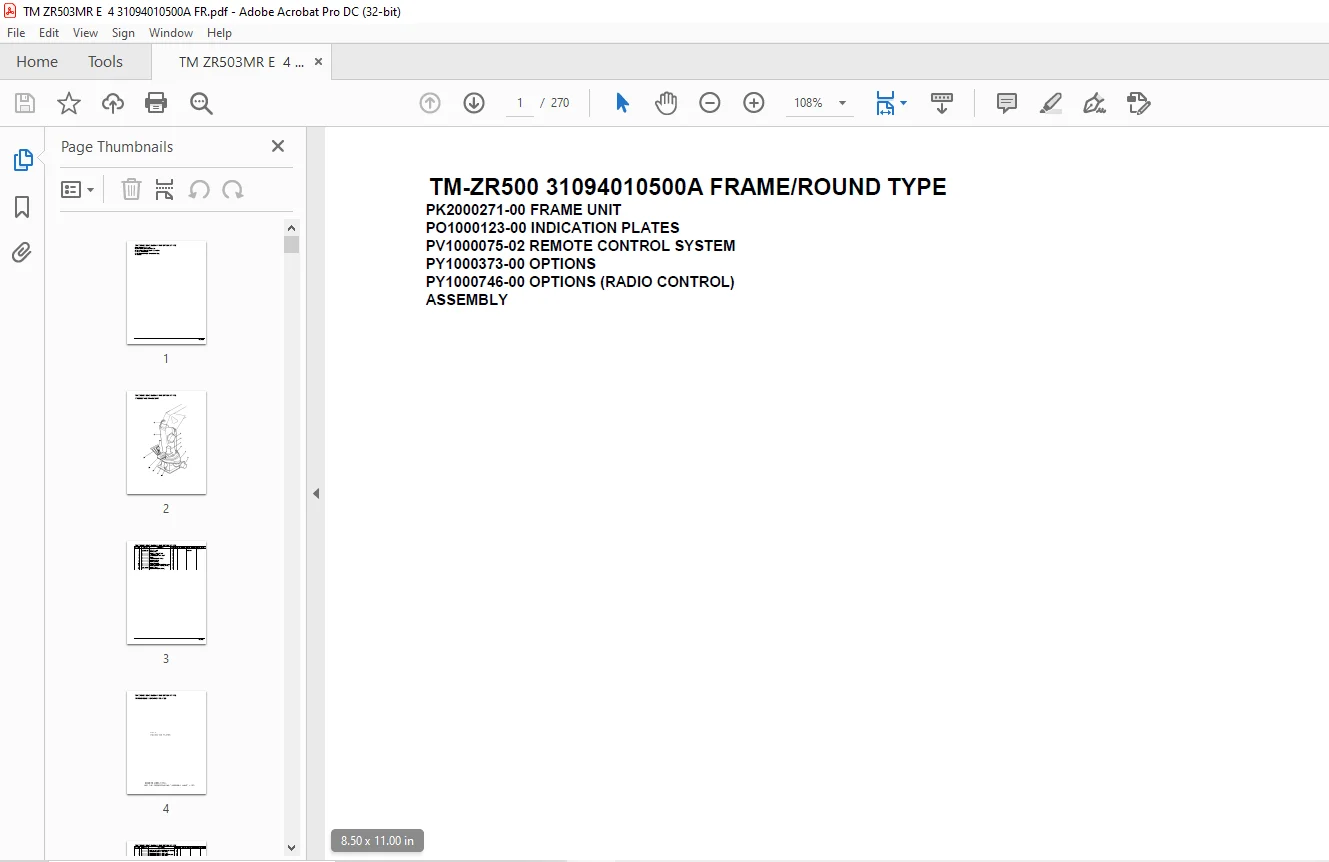

TABLE OF CONTENTS:

Tadano Cargo Crane TM-ZR500 31094010500A FRAMEROUND TYPE Parts Manual – PDF DOWNLOAD

TM-ZR500 31094010500A FRAME/ROUND TYPE
PK2000271-00 FRAME UNIT
PO1000123-00 INDICATION PLATES
PV1000075-02 REMOTE CONTROL SYSTEM
PY1000373-00 OPTIONS
PY1000746-00 OPTIONS (RADIO CONTROL)
ASSEMBLY

TM-ZR500 31094010500A FRAME/ROUND TYPE
000006
PB1290022-00 STOPPER,ROTARY JOINT
PB1300404-01 JOINT,ROTARY
PB1300406-01 JOINT,ROTARY
PB1320593-01 VALVE,MANUAL CONTROL
PB1400381-03 PIPING,UPPER
PB1411479-01 PIPING,LOWER
PB1411481-01 PIPING,LOWER (VALVE/SANWA)
PB1411587-00 PIPING,LOWER (REPLACE JOINT)
PB1910036-04 PIPING (REMOTE CONT.VALVE/KAWASAKI)
PB1910037-00 PIPING (FOR LOAD METER)
PB1910214-02 PIPING (REMOTO CONT.VALVE/SANWA)
PB5280008-00 BOX,OPERATION
PB5280012-00 BOX,OPERATION (RCS-FT1N)
PC5020016-00 CABLE ASSY (EXTENSION 1M/MAIN HARNESS-VALVE)
PC5410006-03 CONTROL UNIT
PD1010145-01 REDUCER,SWING SPEED
PD1010184-00 REDUCER,SWING SPEED
PD1020046-01 SWING UNIT
PE1010430-00 CYLINDER,ELEVATING
PE1010431-00 CYLINDER,ELEVATING
PE1010469-00 CYLINDER,ELEVATING
PE5020486-00 ELEC.ASSY (VOICE ALARM FOR RADIO CONTROL)
PF1010167-02 WINCH (HARTYS)
PF1010237-01 WINCH (OOKUBO)
PF1020011-00 DRUM,WINCH (HARTYS)
PF1020028-00 DRUM,WINCH (Y.G.TEC)
PF1180078-00 DETECTOR,DISORDERLY WIND
PF1400382-00 MOUNT,WINCH
PF5100392-00 FRAME ASSY
PH5031852-00 HARNESS
PH5031853-00 HARNESS
PH5031854-00 HARNESS
PH5031855-00 HARNESS
PH5031856-00 HARNESS
PH5031858-00 HARNESS
PH5100008-00 HOSE ASSY (FOR 4-BLOCK:SUS FITTING)
PH5100009-00 HOSE ASSY (FOR 4-BLOCK:ZINCING FITTING)
PI1010074-00 MOTOR,HYDRAULIC (SWING)
PI1010152-00 MOTOR,HYDRAULIC (WINCH)
PI1120251-01 VALVE,SOLENOID
PI1120326-00 VALVE,SOLENOID
PI1250126-04 VALVE,COUNTERBALANCE
PI1440001-00 METER,LOAD
PJ5080012-01 JOINT ASSY (MAIN,VALVE:SUS)
PJ5080013-00 JOINT ASSY (MAIN,VALVE:ZINCING)
PJ5080014-00 JOINT ASSY (PUMP PORT,TANK PORT:SUS)
PJ5080015-00 JOINT ASSY (PUMP PORT,TANK PORT:ZINCING)
PJ5080025-00 JOINT ASSY (C/J,SUS: KA5937-KA9099,EW5822-EW7233)
PJ5080030-00 JOINT ASSY BOOM,SUS/ZR500MR:-DF6499)
PJ5080031-00 JOINT ASSY (WINCH,SUS/ZR500MR:-EW7233)
PJ5080032-00 JOINT ASSY (LOAD METER,SUS/ZR500MR:-EW7233)
PK1010798-00 FRAME
PK1030019-01 POST
PK1200402-01 COVER,SWING FRAME
PK1330173-00 COVER (VALVE)
PL1010989-00 OPE.ASSY,CONT.VALVE (MANUAL)
PL1011025-03 OPE.ASSY,CONT.VALVE (AUTO ACCELERATOR)
PM5230001-01 MOTOR,OIL
PN1012325-03 ELEC.ASSY (REMOTE CONTROL)
PN1013404-02 ELEC.ASSY (VALVE UNIT)
PN1013405-02 ELEC.ASSY
PN1013406-01 ELEC.ASSY (ANNTENA)
PN1014219-00 ELEC.ASSY (ANTENNA CABLE)
PN1014897-01 ELEC.ASSY (INDICATOR LAMP SWITCH BOX)
TM-ZR500 31094010500A FRAME/ROUND TYPE
000006
PO1012517-01 PLATE ASSY,NAME (REMOTE CONTROL)
PO1013977-01 PLATE ASSY,NAME (CONTROL LEVER)
PO1013978-01 PLATE ASSY,NAME (FRAME)
PO1013990-01 PLATE ASSY,NAME (FRAME/EMERGENCY CONT.)
PO1014011-01 PLATE ASSY,NAME (CONTROL/KAWASAKI)
PO1014265-00 PLATE ASSY,NAME (SWITCH BOX)
PO1015056-00 PLATE ASSY,NAME (SWITCH BOX)
PO1015396-00 PLATE ASSY,NAME (JAPANESE & ENGLISH)
PO1070438-00 PERFORMANCE DATA (ZR503MR)
PO1070439-00 PERFORMANCE DATA (ZR504MR)
PO1070440-00 PERFORMANCE DATA (ZR505MR)
PP5150036-00 PARTS ASSY,RADIO CONTROLLER (RCS-FT1N)
PP5170003-00 PARTS ASSY,REMOTE CONTROL (KIT:LED)
PP5200029-00 PERFORMANCE DATA (ZR505MR/ENGLISH)
PP6010204-00 PIPING ASSY (REMOTO CONT.VALVE/SANWA)
PP6010208-01 PIPING ASSY
PP6010213-00 PIPING ASSY
PR5170011-00 ROPE,WIRE (J-WITEX)
PV1010026-00 REMOTE CONTROL (PARTS)
PV1010126-00 REMOTE CONTROL (F-TYPE)
PV1020317-01 VALVE,REMOTE CONTROL
PV1020378-00 VALVE,REMOTE CONTROL
PV1030034-05 SWITCH BOX (RADIO CONTROL,TYPE-D)
PV1030080-05 SWITCH BOX (RADIO CONTROL,LED TYPE)
PV1030082-01 SWITCH BOX
PV1030086-00 SWITCH BOX (FUTABA)
PV1030090-00 SWITCH BOX
PV1040091-00 CONTROL BOX
PV1040093-03 CONTROL UNIT
PV1070393-00 RADIO CONTROL (KIT:LED)
PV1070395-00 RADIO CONTROL (KIT)
PV1070523-01 PARTS ASSY,RADIO CONTROLLER (RCS-FT1)
PV1250002-04 STOWING BOX (REMOTE CONTROL)
PV1250013-00 BOX,STOWING
PV1300018-00 CABLE (F-REMOTE CONTROL,20M)
PV1400014-02 ANTENNA (FOR RADIO CONTROL)
PV1400030-01 ANTENNA
PV1400042-00 ANTENNA (FOR RADIO CONTROL)
PV5150019-00 VALVE ASSY,REMOTE CONTROL
PV5150022-00 VALVE ASSY,REMOTE CONTROL
PV5150023-00 VALVE ASSY,REMOTE CONTROL
PV5150024-00 VALVE ASSY,REMOTE CONTROL
PV5150025-00 VALVE ASSY,REMOTE CONTROL
PV5150026-00 VALVE ASSY,REMOTE CONTROL
PV5150027-00 VALVE ASSY,REMOTE CONTROL
PW5060005-01 WINCH ASSY (Y.G.TEC)
PX1940045-00 MOUNT (VALVE/MANUAL)
PX1940049-01 MOUNT (VALVE SUPPORT)
PX1940235-00 MOUNT (RADIO CONT./VALVE UNIT,OUTDOOR)
PX1940236-00 MOUNT (RADIO CONT./VALVE UNIT,INDOOR)
PX1940359-00 MOUNT (F-RADIO CONT./VALVE UNIT,INDOOR)
PX1940386-00 MOUNT (MANUAL VALVE)
PX5010422-00 MOUNT ASSY (REMOTE CONTROL FOR ZR500MR)
PX5010691-00 MOUNT ASSY (VALVE SUPPORT)
PY2340017-00 PLATE
PY2340018-00 PLATE
PY2340039-00 PLATE (MOUNT,SQUARE-TYPE FRAME)
PY2340040-00 PLATE (MOUNT,ROUND-TYPE FRAME)
PY5020037-00 ACCESSORIES ASSY
