Tadano Cargo Crane TM-ZR500 31094020820 BOOM/3 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

Description

Tadano Cargo Crane TM-ZR500 31094020820 BOOM/3 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Cargo Crane TM-ZR500 31094020820 BOOM/3 SECT.,HOOK-IN Parts Manual – PDF DOWNLOAD

Language : English
Pages :50
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Cargo Crane TM-ZR500 31094020820 BOOM/3 SECT. HOOK-IN Parts Manual – PDF DOWNLOAD

TM-ZR500 31094020820 BOOM/3 SECT.,HOOK-IN
PB0000053-01 SYSTEM (ZR500,DOMESTIC)
PB0000055-01 SYSTEM (ZR550,DOMESTIC)
PB0000106-01 SYSTEM (ZR500,AUSTRALIA)
ASSEMBLY

TM-ZR500 31094020820 BOOM/3 SECT.,HOOK-IN
PF1050257-05 HOOK (SHEAVE 2 PC’S)
PF1090022-01 SOCKET,ROPE
PG1010880-01 BOOM
PG1130134-00 DETECTOR,BOOM LENGTH
PG1130144-01 DETECTOR,BOOM LENGTH (MOUNT)
PG1200156-02 PIPING,TELESCOPING (JOINT)
PH1060326-00 DETECTOR,OVER WIND (CHAIN,FOR WEIGHT)
PH1060412-01 DETECTOR,OVER WIND (3 SECT.BOOM)
PH5032071-00 HARNESS
PI1250134-02 VALVE,COUNTERBALANCE
PN1013762-02 ELEC.ASSY
PO1014297-02 PLATE ASSY,NAME (ENGLISH)
PO1014301-00 PLATE ASSY,NAME (JAPANESE)
PR5170002-00 ROPE,WIRE (KISWIRE)
PT5130031-01 TELESCOPE ASSY
PZ1000568-00 BOOM SYSTEM
PZ1000568-00 BOOM SYSTEM
PZ1000568-00 BOOM SYSTEM

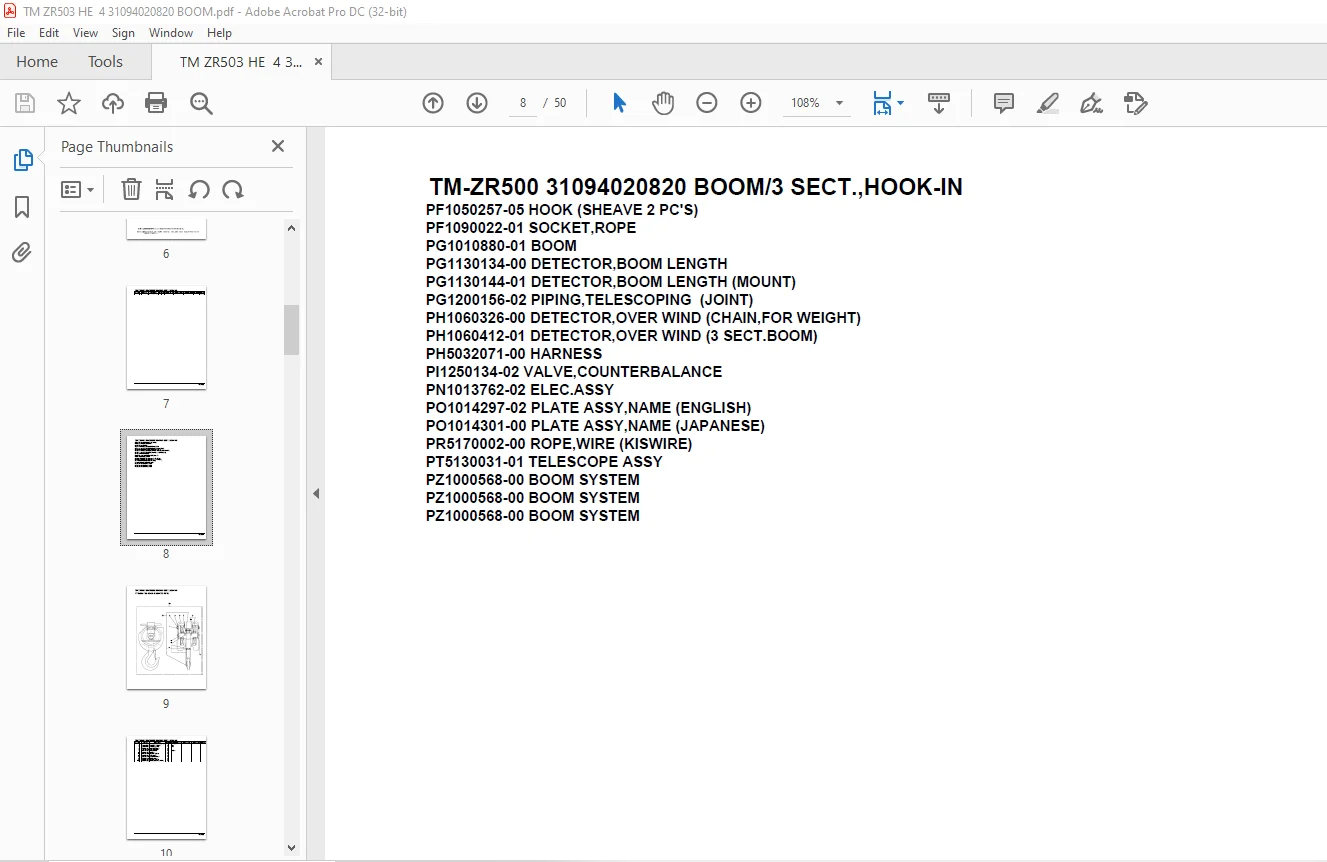

IMAGES PREVIEW OF THE MANUAL:
