Tadano Crane AT-100-4 42063432500 LOWER,HINO BDG-XZU304X-TYTMB6 Parts Manual – PDF DOWNLOAD

Description

Tadano Crane AT-100-4 42063432500 LOWER,HINO BDG-XZU304X-TYTMB6 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-100-4 42063432500 LOWER,HINO BDG-XZU304X-TYTMB6 Parts Manual – PDF DOWNLOAD

Language : English
Pages : 82
Downloadable : Yes
File Type : PDF
Size: 0.89 MB

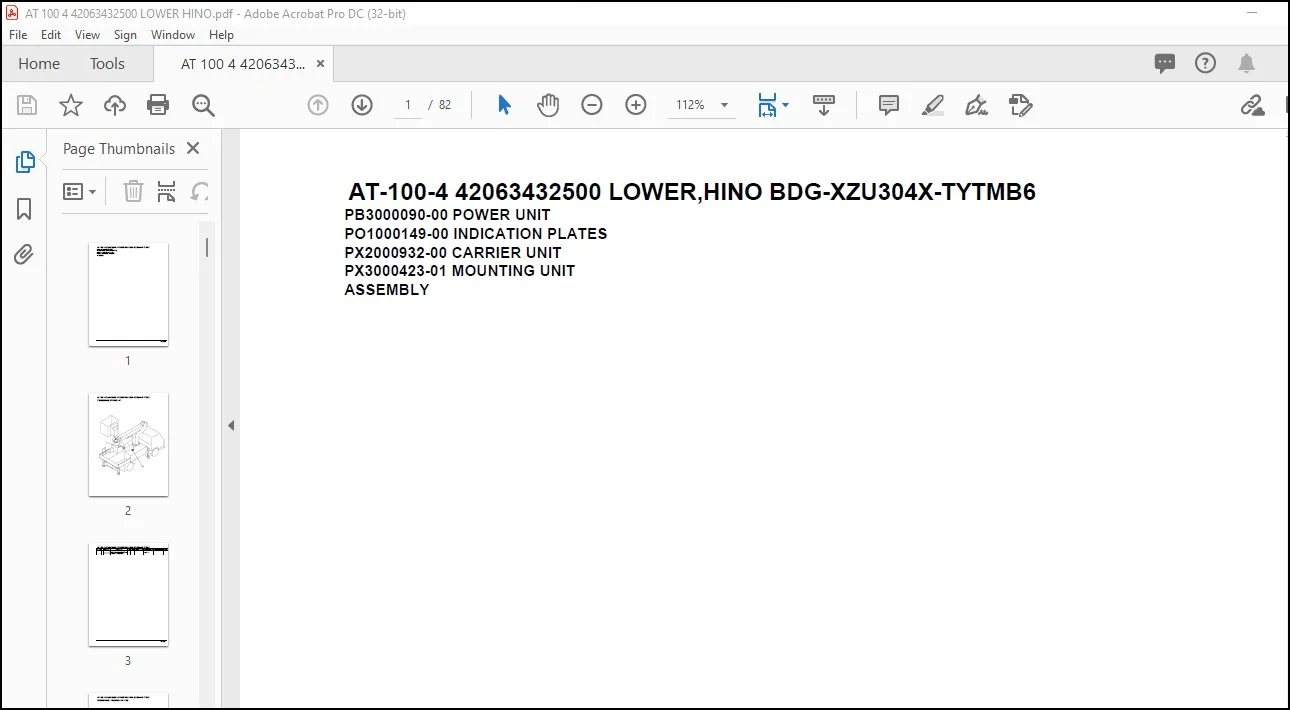

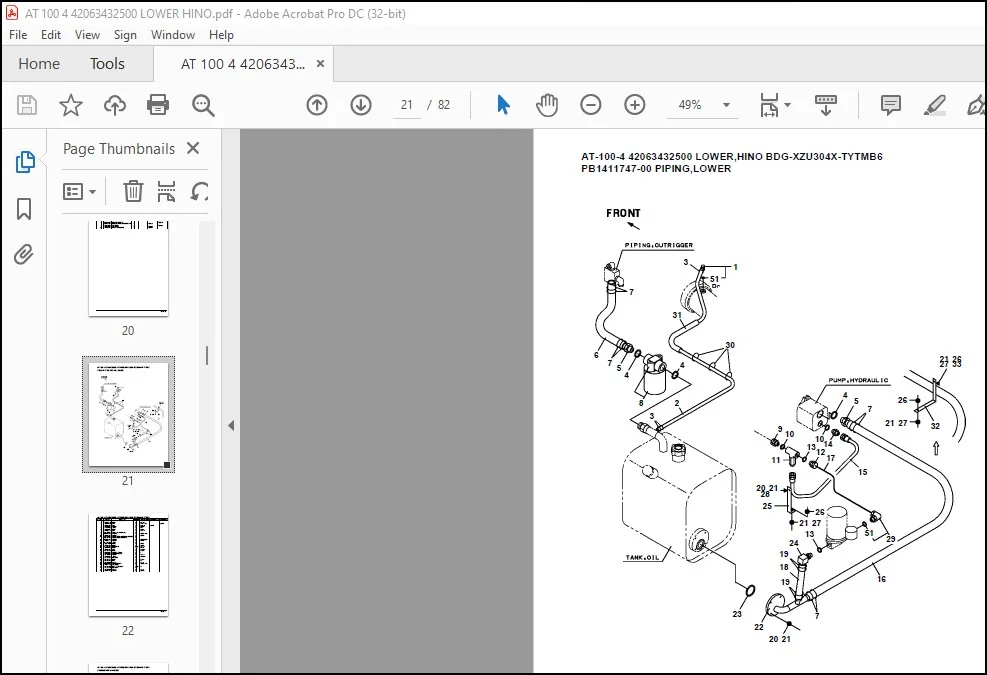

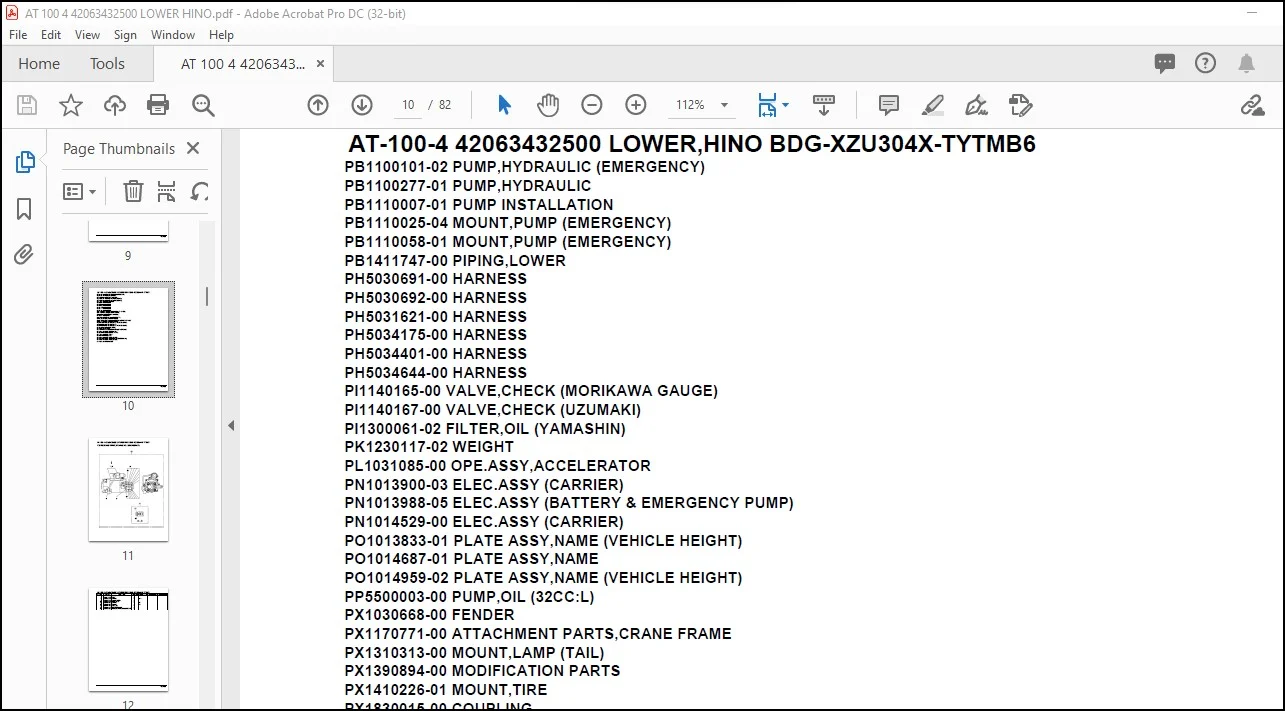

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-100-4 42063432500 LOWER,HINO BDG-XZU304X-TYTMB6 Parts Manual – PDF DOWNLOAD

AT-100-4 42063432500 LOWER,HINO BDG-XZU304X-TYTMB6
PB3000090-00 POWER UNIT
PO1000149-00 INDICATION PLATES
PX2000932-00 CARRIER UNIT
PX3000423-01 MOUNTING UNIT
ASSEMBLY

AT-100-4 42063432500 LOWER,HINO BDG-XZU304X-TYTMB6
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100277-01 PUMP,HYDRAULIC
PB1110007-01 PUMP INSTALLATION
PB1110025-04 MOUNT,PUMP (EMERGENCY)
PB1110058-01 MOUNT,PUMP (EMERGENCY)
PB1411747-00 PIPING,LOWER
PH5030691-00 HARNESS
PH5030692-00 HARNESS
PH5031621-00 HARNESS
PH5034175-00 HARNESS
PH5034401-00 HARNESS
PH5034644-00 HARNESS
PI1140165-00 VALVE,CHECK (MORIKAWA GAUGE)
PI1140167-00 VALVE,CHECK (UZUMAKI)
PI1300061-02 FILTER,OIL (YAMASHIN)
PK1230117-02 WEIGHT
PL1031085-00 OPE.ASSY,ACCELERATOR
PN1013900-03 ELEC.ASSY (CARRIER)
PN1013988-05 ELEC.ASSY (BATTERY & EMERGENCY PUMP)
PN1014529-00 ELEC.ASSY (CARRIER)
PO1013833-01 PLATE ASSY,NAME (VEHICLE HEIGHT)
PO1014687-01 PLATE ASSY,NAME
PO1014959-02 PLATE ASSY,NAME (VEHICLE HEIGHT)
PP5500003-00 PUMP,OIL (32CC:L)
PX1030668-00 FENDER
PX1170771-00 ATTACHMENT PARTS,CRANE FRAME
PX1310313-00 MOUNT,LAMP (TAIL)
PX1390894-00 MODIFICATION PARTS
PX1410226-01 MOUNT,TIRE
PX1830015-00 COUPLING
PX1940229-01 MOUNT (TRUCK BED)
PX1940230-00 MOUNT (WITHOUT TRUCK BED/PLUG)
PX1940365-00 MOUNT (TRUCK BED)
PY1510043-00 HOUR METER
