Tadano Crane AT-100S-1 42080120700 LOWER,MITSUBISHI KK-FE83EGY 3A2 Parts Manual – PDF DOWNLOAD

Description

Tadano Crane AT-100S-1 42080120700 LOWER,MITSUBISHI KK-FE83EGY 3A2 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-100S-1 42080120700 LOWER,MITSUBISHI KK-FE83EGY 3A2 Parts Manual – PDF DOWNLOAD

Language : English
Pages : 69
Downloadable : Yes
File Type : PDF
Size: 0.88 MB

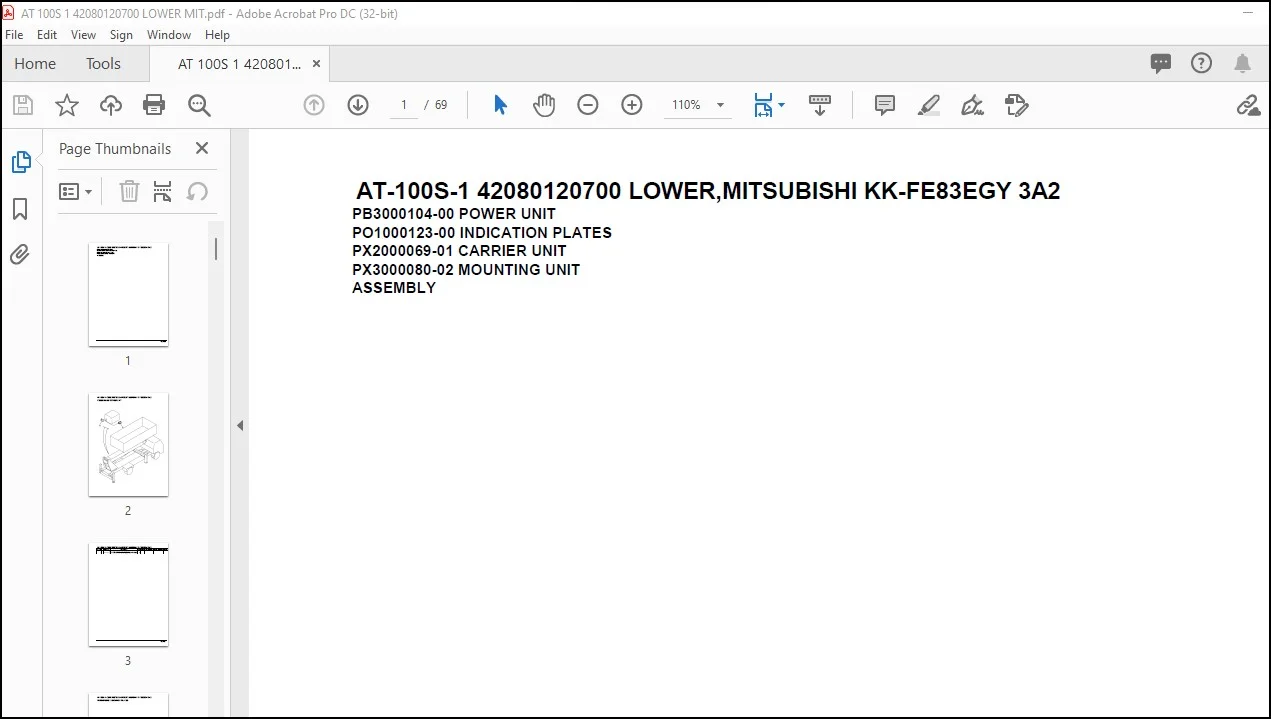

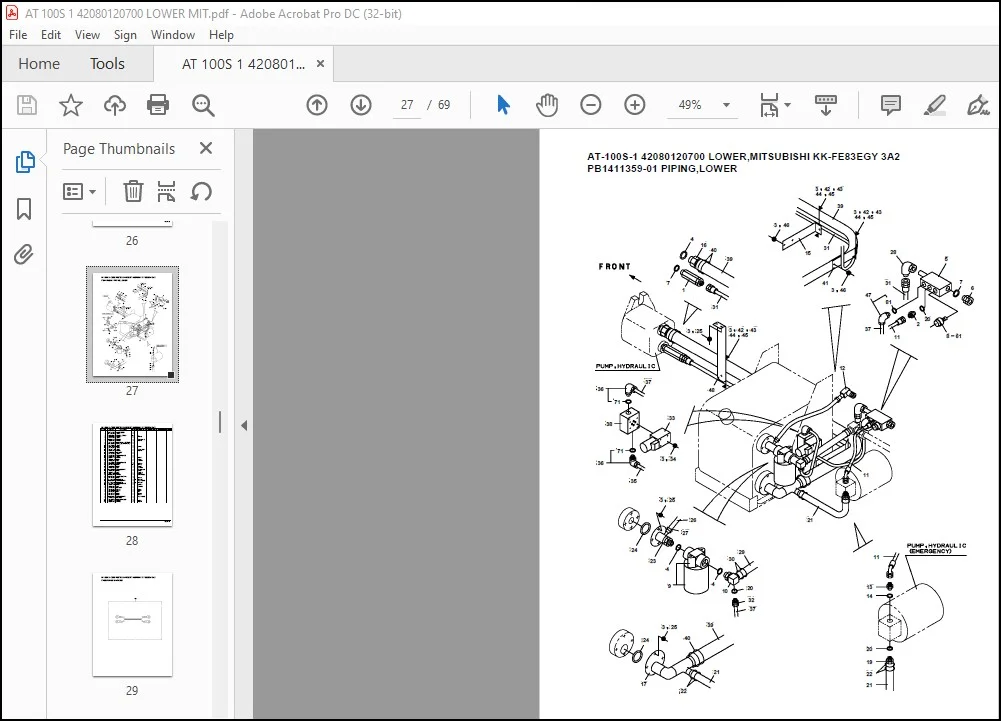

IMAGES PREVIEW OF THE MANUAL:

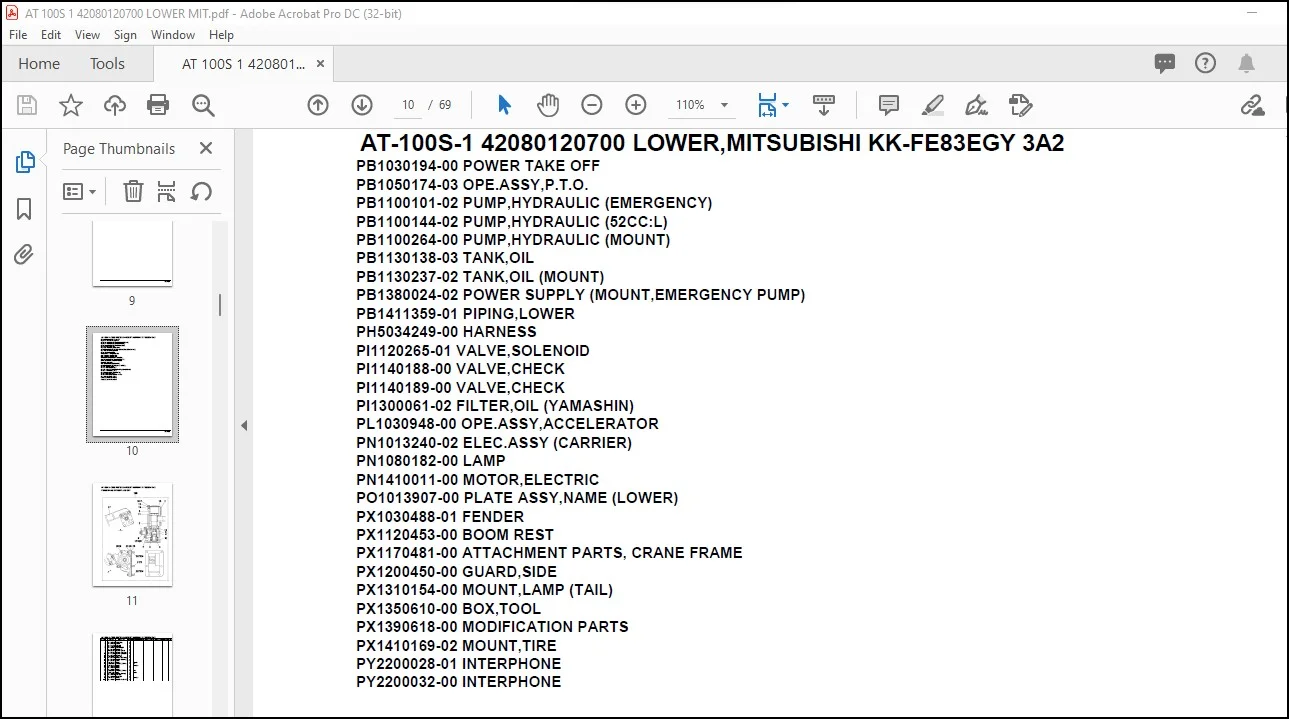

TABLE OF CONTENTS:

Tadano Crane AT-100S-1 42080120700 LOWER,MITSUBISHI KK-FE83EGY 3A2 Parts Manual – PDF DOWNLOAD

AT-100S-1 42080120700 LOWER,MITSUBISHI KK-FE83EGY 3A2
PB3000104-00 POWER UNIT
PO1000123-00 INDICATION PLATES
PX2000069-01 CARRIER UNIT
PX3000080-02 MOUNTING UNIT
ASSEMBLY

AT-100S-1 42080120700 LOWER,MITSUBISHI KK-FE83EGY 3A2
PB1030194-00 POWER TAKE OFF
PB1050174-03 OPE.ASSY,P.T.O.
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100144-02 PUMP,HYDRAULIC (52CC:L)
PB1100264-00 PUMP,HYDRAULIC (MOUNT)
PB1130138-03 TANK,OIL
PB1130237-02 TANK,OIL (MOUNT)
PB1380024-02 POWER SUPPLY (MOUNT,EMERGENCY PUMP)
PB1411359-01 PIPING,LOWER
PH5034249-00 HARNESS
PI1120265-01 VALVE,SOLENOID
PI1140188-00 VALVE,CHECK
PI1140189-00 VALVE,CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PL1030948-00 OPE.ASSY,ACCELERATOR
PN1013240-02 ELEC.ASSY (CARRIER)
PN1080182-00 LAMP
PN1410011-00 MOTOR,ELECTRIC
PO1013907-00 PLATE ASSY,NAME (LOWER)
PX1030488-01 FENDER
PX1120453-00 BOOM REST
PX1170481-00 ATTACHMENT PARTS, CRANE FRAME
PX1200450-00 GUARD,SIDE
PX1310154-00 MOUNT,LAMP (TAIL)
PX1350610-00 BOX,TOOL
PX1390618-00 MODIFICATION PARTS
PX1410169-02 MOUNT,TIRE
PY2200028-01 INTERPHONE
PY2200032-00 INTERPHONE
