Tadano Crane AT-100S-2 42080230400 LOWER,HINO PB-XZU404X-TMFSW3 Spare Parts Manual – PDF DOWNLOAD

Description

Tadano Crane AT-100S-2 42080230400 LOWER,HINO PB-XZU404X-TMFSW3 Spare Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-100S-2 42080230400 LOWER,HINO PB-XZU404X-TMFSW3 Spare Parts Manual – PDF DOWNLOAD

Language : English
Pages : 80
Downloadable : Yes
File Type : PDF
Size: 0.92 MB

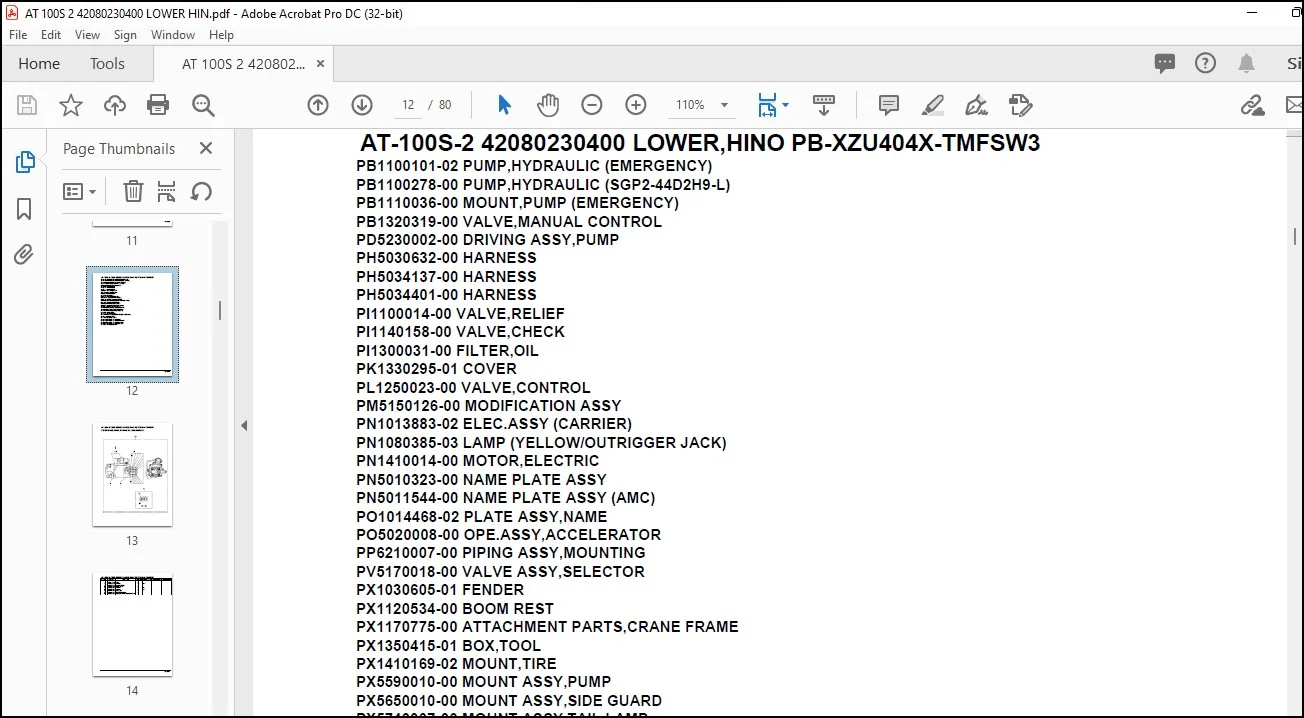

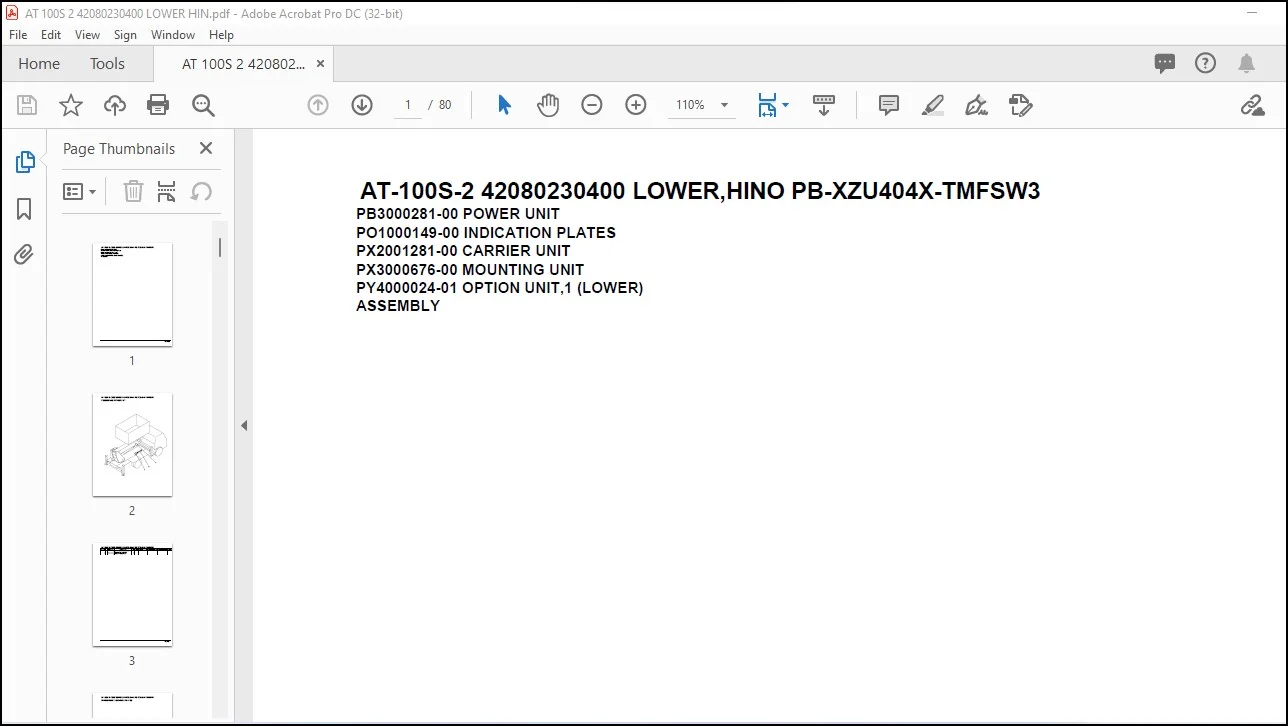

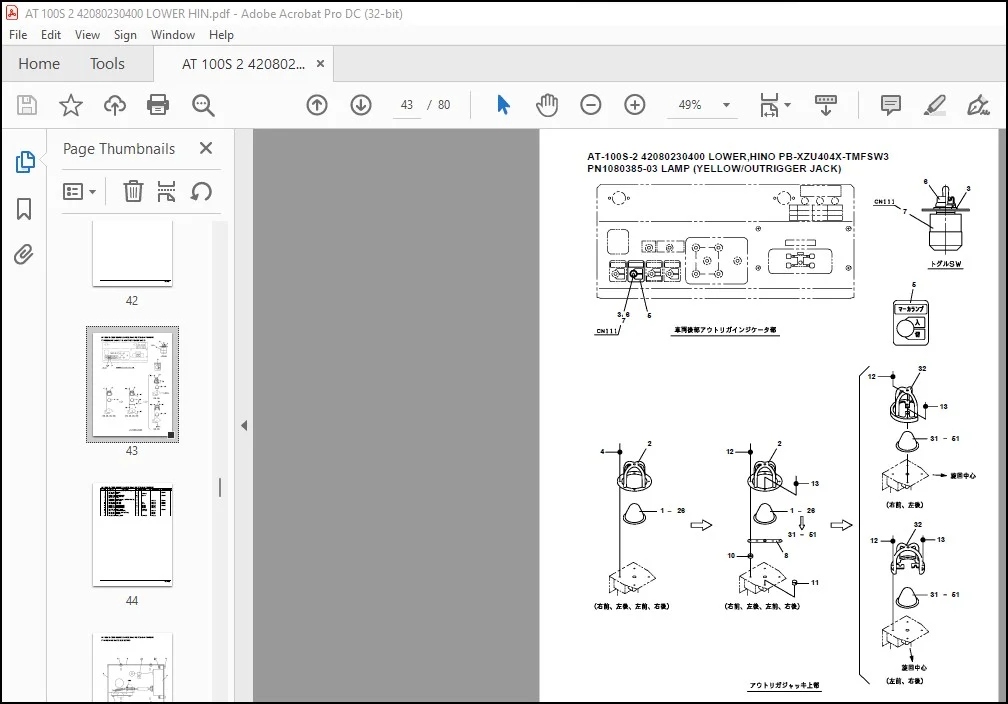

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-100S-2 42080230400 LOWER,HINO PB-XZU404X-TMFSW3 Spare Parts Manual – PDF DOWNLOAD

AT-100S-2 42080230400 LOWER,HINO PB-XZU404X-TMFSW3
PB3000281-00 POWER UNIT
PO1000149-00 INDICATION PLATES
PX2001281-00 CARRIER UNIT
PX3000676-00 MOUNTING UNIT
PY4000024-01 OPTION UNIT,1 (LOWER)
ASSEMBLY

AT-100S-2 42080230400 LOWER,HINO PB-XZU404X-TMFSW3
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100278-00 PUMP,HYDRAULIC (SGP2-44D2H9-L)
PB1110036-00 MOUNT,PUMP (EMERGENCY)
PB1320319-00 VALVE,MANUAL CONTROL
PD5230002-00 DRIVING ASSY,PUMP
PH5030632-00 HARNESS
PH5034137-00 HARNESS
PH5034401-00 HARNESS
PI1100014-00 VALVE,RELIEF
PI1140158-00 VALVE,CHECK
PI1300031-00 FILTER,OIL
PK1330295-01 COVER
PL1250023-00 VALVE,CONTROL
PM5150126-00 MODIFICATION ASSY
PN1013883-02 ELEC.ASSY (CARRIER)
PN1080385-03 LAMP (YELLOW/OUTRIGGER JACK)
PN1410014-00 MOTOR,ELECTRIC
PN5010323-00 NAME PLATE ASSY
PN5011544-00 NAME PLATE ASSY (AMC)
PO1014468-02 PLATE ASSY,NAME
PO5020008-00 OPE.ASSY,ACCELERATOR
PP6210007-00 PIPING ASSY,MOUNTING
PV5170018-00 VALVE ASSY,SELECTOR
PX1030605-01 FENDER
PX1120534-00 BOOM REST
PX1170775-00 ATTACHMENT PARTS,CRANE FRAME
PX1350415-01 BOX,TOOL
PX1410169-02 MOUNT,TIRE
PX5590010-00 MOUNT ASSY,PUMP
PX5650010-00 MOUNT ASSY,SIDE GUARD
PX5740007-00 MOUNT ASSY,TAIL LAMP
PX5780029-00 MOUNT ASSY,TOOL BOX
PY1510043-00 HOUR METER
