Tadano Crane AT-100S-2 42080231700 LOWER,HINO SKG-XZU600X-TYMMC6 Spare Parts Manual – PDF DOWNLOAD

Description

Tadano Crane AT-100S-2 42080231700 LOWER,HINO SKG-XZU600X-TYMMC6 Spare Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-100S-2 42080231700 LOWER,HINO SKG-XZU600X-TYMMC6 Spare Parts Manual – PDF DOWNLOAD

Language : English
Pages : 83
Downloadable : Yes
File Type : PDF
Size: 0.86 MB

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-100S-2 42080231700 LOWER,HINO SKG-XZU600X-TYMMC6 Spare Parts Manual – PDF DOWNLOAD

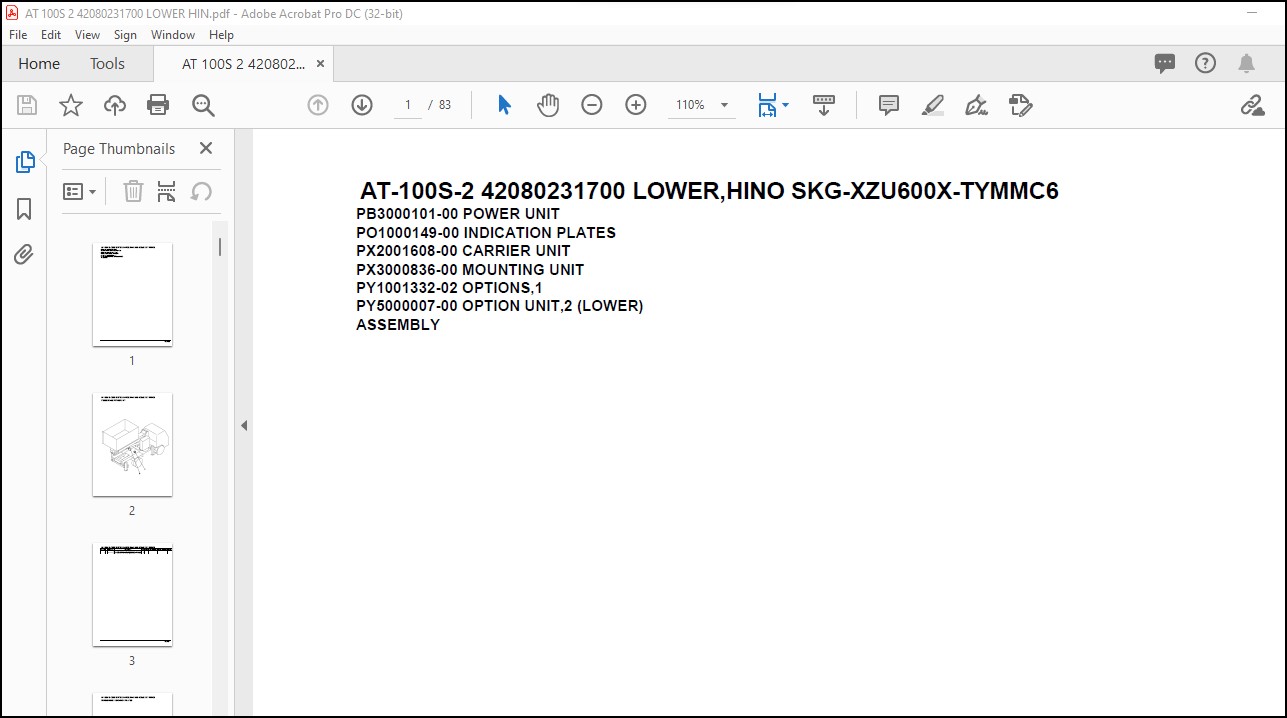

AT-100S-2 42080231700 LOWER,HINO SKG-XZU600X-TYMMC6
PB3000101-00 POWER UNIT
PO1000149-00 INDICATION PLATES
PX2001608-00 CARRIER UNIT
PX3000836-00 MOUNTING UNIT
PY1001332-02 OPTIONS,1
PY5000007-00 OPTION UNIT,2 (LOWER)
ASSEMBLY

AT-100S-2 42080231700 LOWER,HINO SKG-XZU600X-TYMMC6
PB1050175-00 OPE.ASSY,P.T.O. (COUPLING)
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100144-02 PUMP,HYDRAULIC (52CC:L)
PB1100280-00 PUMP,HYDRAULIC (MOUNT)
PB1380024-02 POWER SUPPLY (MOUNT,EMERGENCY PUMP)
PB1411535-02 PIPING,LOWER
PE5070022-02 ELEC.ASSY,CARRIER
PH5030427-00 HARNESS
PH5030429-00 HARNESS
PH5031599-00 HARNESS
PH5034148-00 HARNESS
PH5034175-00 HARNESS
PH5034644-00 HARNESS
PI1120265-01 VALVE,SOLENOID
PI1140188-00 VALVE,CHECK
PI1140189-00 VALVE,CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PL1031144-00 OPE.ASSY,ACCELERATOR
PM5150529-00 MODIFICATION ASSY
PN1014765-02 ELEC.ASSY (PLATFORM/EXHAUST,2009)
PN1014767-01 ELEC.ASSY (CARRIER)
PO1013835-00 PLATE ASSY,NAME (OPTION)
PO1015082-02 PLATE ASSY,NAME (IN CAB)
PO1015196-02 PLATE ASSY,NAME (FOR HINO)
PW5020033-00 WEIGHT ASSY
PX1120535-00 BOOM REST
PX1370218-02 GUARD,CAB
PX1410169-02 MOUNT,TIRE
PX1830012-01 COUPLING
PX5280056-00 MOUNT ASSY,DECK
PX5360104-01 MOUNT ASSY,FRAME
PX5650051-00 MOUNT ASSY,SIDE GUARD
PX5740058-00 MOUNT ASSY,TAIL LAMP
PY1560072-00 ALARM SYSTEM (HINO:EXHAUST,2008)
