Tadano Crane AT-103-1 42029120200 LOWER,MITSUBISHI U-FE315BNHE Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-103-1 42029120200 LOWER,MITSUBISHI U-FE315BNHE Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-103-1 42029120200 LOWER,MITSUBISHI U-FE315BNHE Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 102
Downloadable : Yes
File Type : PDF
Size: 1.49 MB

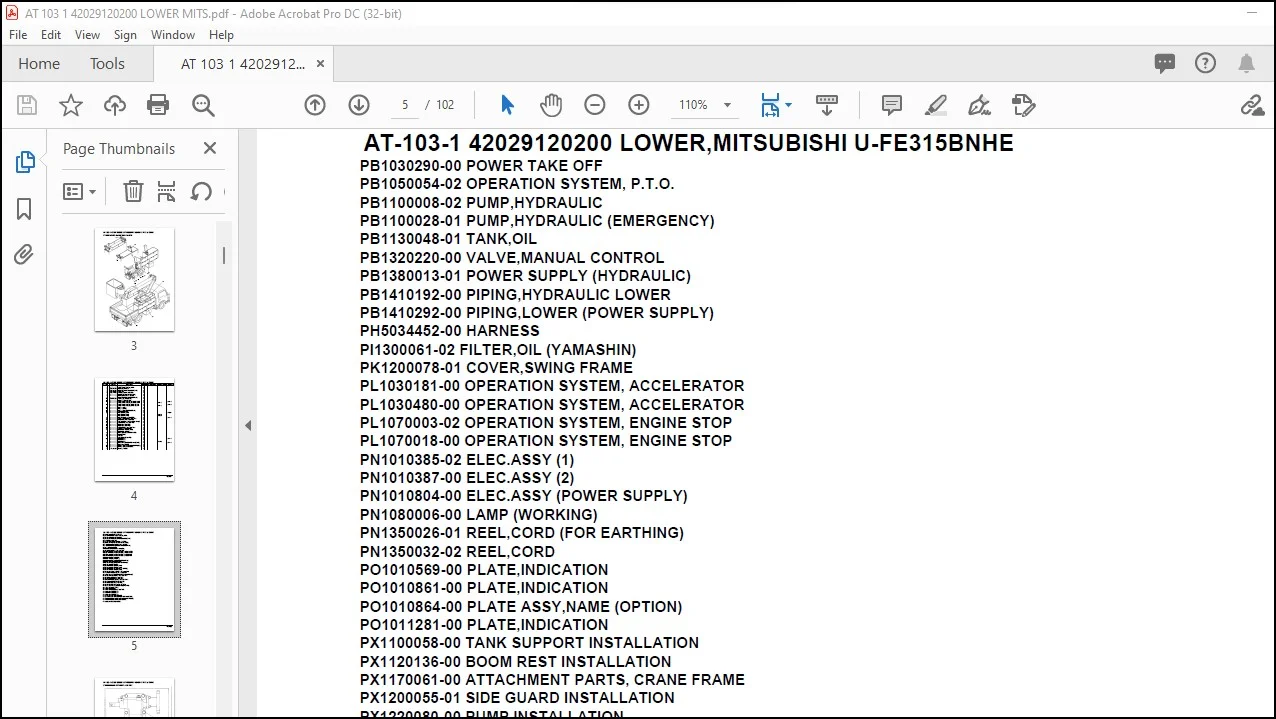

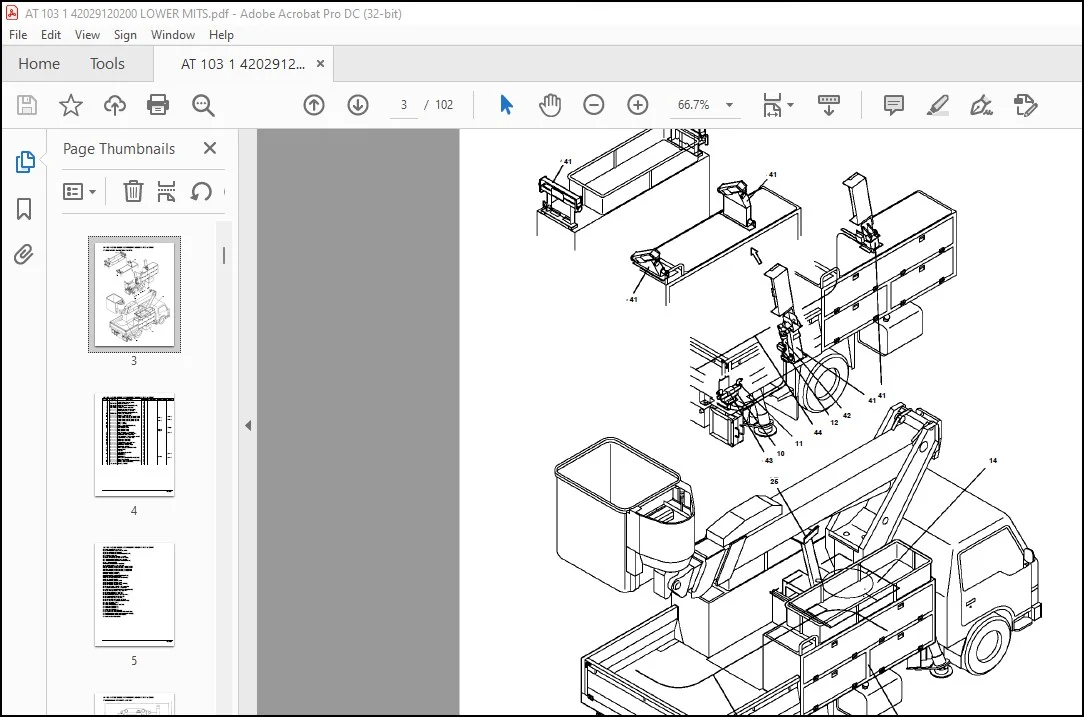

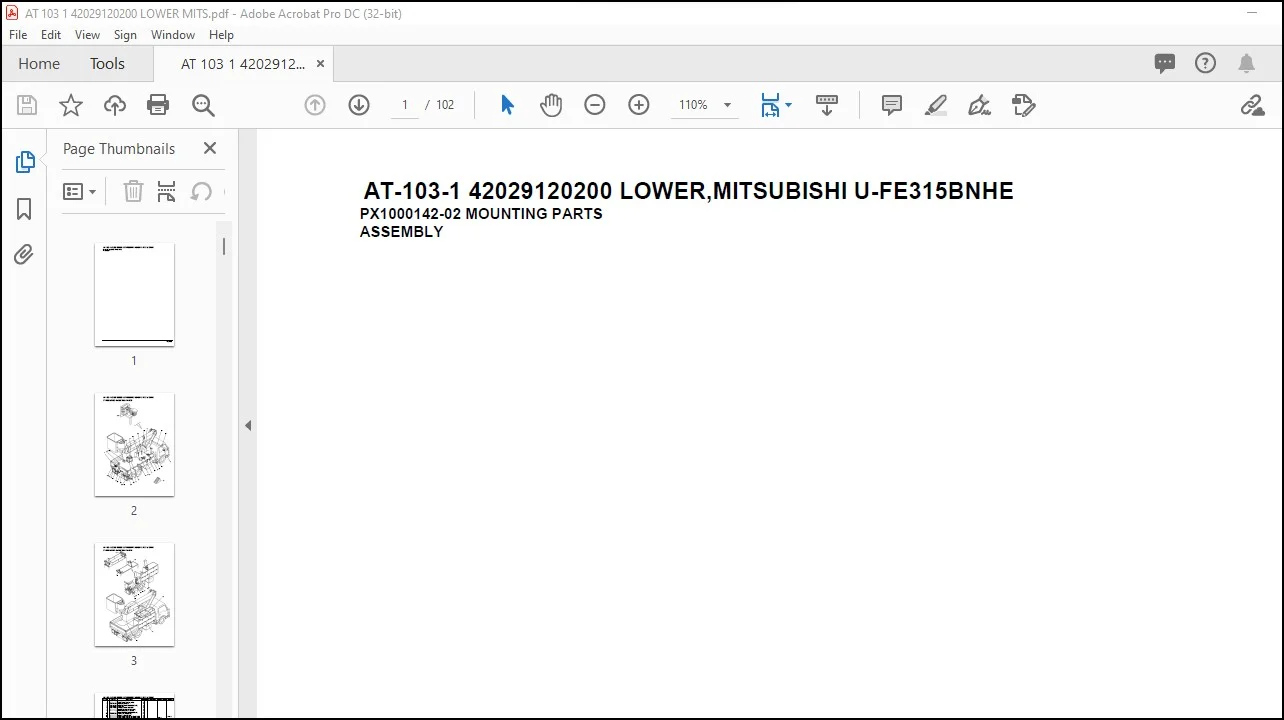

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-103-1 42029120200 LOWER,MITSUBISHI U-FE315BNHE Parts Catalog Manual – PDF DOWNLOAD

AT-103-1 42029120200 LOWER,MITSUBISHI U-FE315BNHE
PX1000142-02 MOUNTING PARTS
ASSEMBLY

AT-103-1 42029120200 LOWER,MITSUBISHI U-FE315BNHE
PB1030290-00 POWER TAKE OFF
PB1050054-02 OPERATION SYSTEM, P.T.O.
PB1100008-02 PUMP,HYDRAULIC
PB1100028-01 PUMP,HYDRAULIC (EMERGENCY)
PB1130048-01 TANK,OIL
PB1320220-00 VALVE,MANUAL CONTROL
PB1380013-01 POWER SUPPLY (HYDRAULIC)
PB1410192-00 PIPING,HYDRAULIC LOWER
PB1410292-00 PIPING,LOWER (POWER SUPPLY)
PH5034452-00 HARNESS
PI1300061-02 FILTER,OIL (YAMASHIN)
PK1200078-01 COVER,SWING FRAME
PL1030181-00 OPERATION SYSTEM, ACCELERATOR
PL1030480-00 OPERATION SYSTEM, ACCELERATOR
PL1070003-02 OPERATION SYSTEM, ENGINE STOP
PL1070018-00 OPERATION SYSTEM, ENGINE STOP
PN1010385-02 ELEC.ASSY (1)
PN1010387-00 ELEC.ASSY (2)
PN1010804-00 ELEC.ASSY (POWER SUPPLY)
PN1080006-00 LAMP (WORKING)
PN1350026-01 REEL,CORD (FOR EARTHING)
PN1350032-02 REEL,CORD
PO1010569-00 PLATE,INDICATION
PO1010861-00 PLATE,INDICATION
PO1010864-00 PLATE ASSY,NAME (OPTION)
PO1011281-00 PLATE,INDICATION
PX1100058-00 TANK SUPPORT INSTALLATION
PX1120136-00 BOOM REST INSTALLATION
PX1170061-00 ATTACHMENT PARTS, CRANE FRAME
PX1200055-01 SIDE GUARD INSTALLATION
PX1220080-00 PUMP INSTALLATION
PX1220081-01 PUMP INSTALLATION
PX1270038-01 WOOD BLOCK INSTALLATION
PX1290049-01 WEIGHT INSTALLATION
PX1350052-02 BOX,TOOL (OPTION)
PX1350059-00 BOX,TOOL (FOR FUJIDEN)
PX1390073-02 PARTS,CHASSIS MODIFICATION
PX1410032-00 MOUNT,TIRE
PX1540000-00 WEDGE
PX1540001-00 WEDGE INSTALLATION
PY1530006-00 REFLECTOR
PY1530007-00 REFLECTOR
PY1530008-00 REFLECTOR
PY1650009-00 EARTHING DEVICE
PY1650039-00 EARTHING DEVICE (FOR KANDENKO)
PY1740003-00 COVER (OPERATION BOX,OUTRIGGER)
PY1740004-00 COVER (OPERATION BOX)
PY1930000-00 BLOCK,RUBBER
