Tadano Crane AT-110-1 42084130300 LOWER,HINO KK-XZU301X-TYMMS6 Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-110-1 42084130300 LOWER,HINO KK-XZU301X-TYMMS6 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-110-1 42084130300 LOWER,HINO KK-XZU301X-TYMMS6 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 152
Downloadable : Yes
File Type : PDF
Size: 1.68 MB

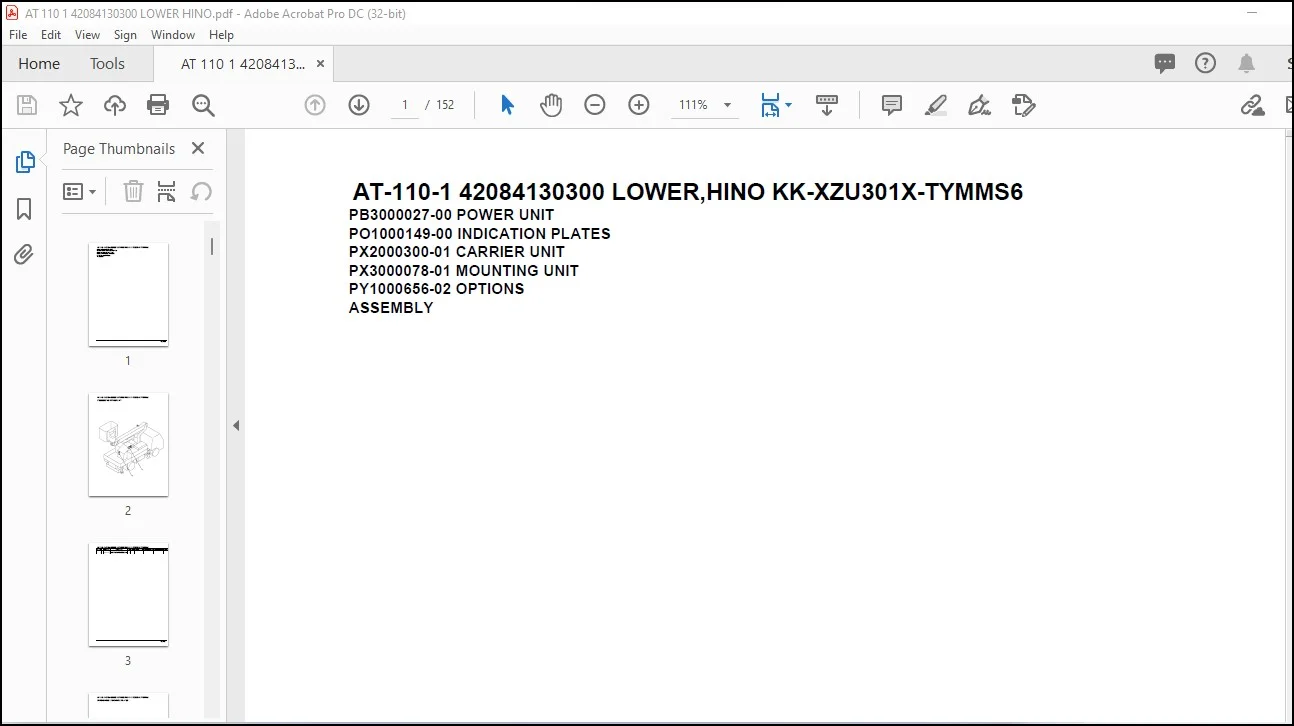

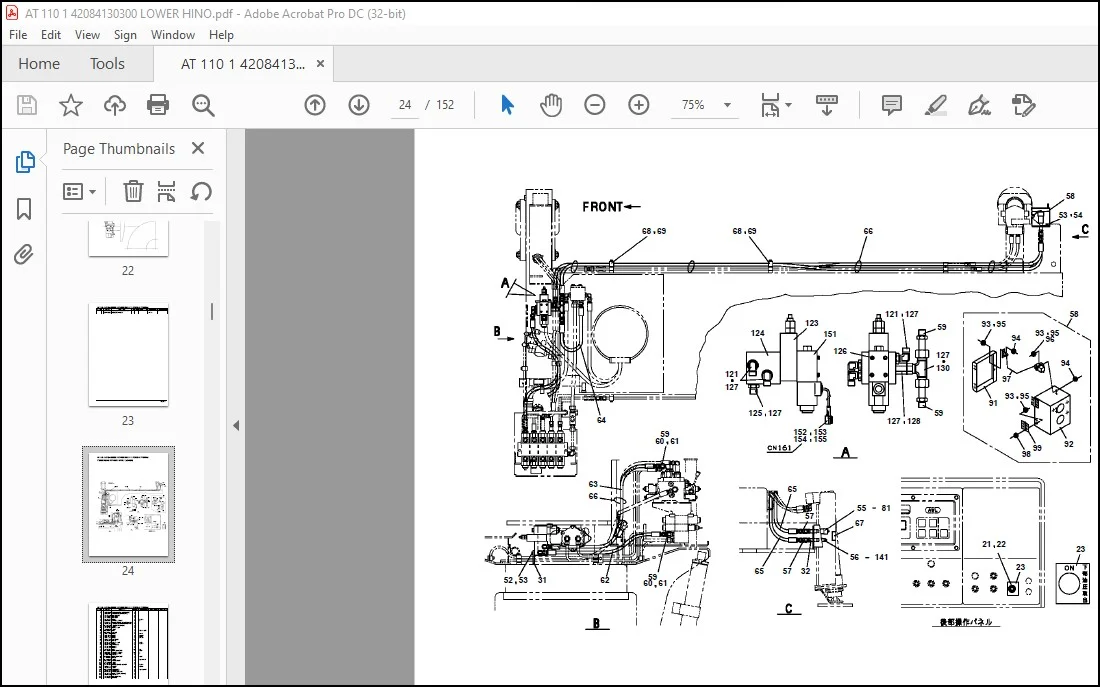

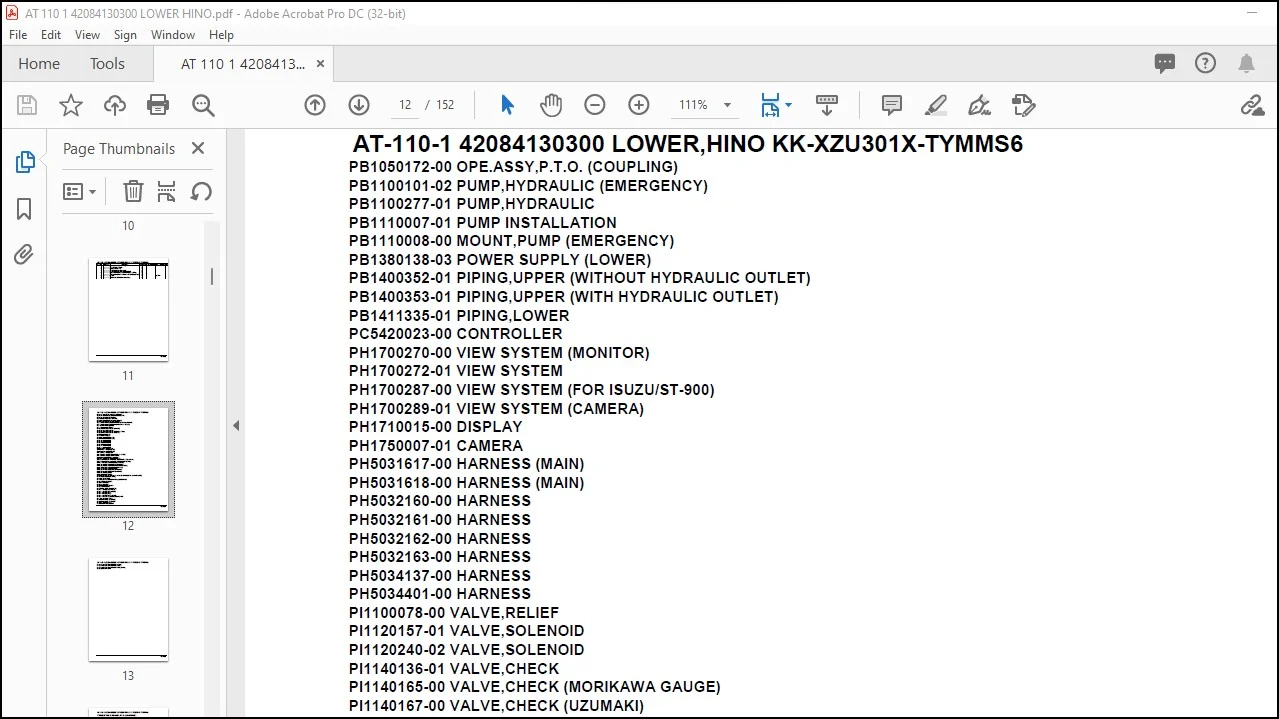

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-110-1 42084130300 LOWER,HINO KK-XZU301X-TYMMS6 Parts Catalog Manual – PDF DOWNLOAD

AT-110-1 42084130300 LOWER,HINO KK-XZU301X-TYMMS6
PB3000027-00 POWER UNIT
PO1000149-00 INDICATION PLATES
PX2000300-01 CARRIER UNIT
PX3000078-01 MOUNTING UNIT
PY1000656-02 OPTIONS
ASSEMBLY

AT-110-1 42084130300 LOWER,HINO KK-XZU301X-TYMMS6
PB1050172-00 OPE.ASSY,P.T.O. (COUPLING)
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100277-01 PUMP,HYDRAULIC
PB1110007-01 PUMP INSTALLATION
PB1110008-00 MOUNT,PUMP (EMERGENCY)
PB1380138-03 POWER SUPPLY (LOWER)
PB1400352-01 PIPING,UPPER (WITHOUT HYDRAULIC OUTLET)
PB1400353-01 PIPING,UPPER (WITH HYDRAULIC OUTLET)
PB1411335-01 PIPING,LOWER
PC5420023-00 CONTROLLER
PH1700270-00 VIEW SYSTEM (MONITOR)
PH1700272-01 VIEW SYSTEM
PH1700287-00 VIEW SYSTEM (FOR ISUZU/ST-900)
PH1700289-01 VIEW SYSTEM (CAMERA)
PH1710015-00 DISPLAY
PH1750007-01 CAMERA
PH5031617-00 HARNESS (MAIN)
PH5031618-00 HARNESS (MAIN)
PH5032160-00 HARNESS
PH5032161-00 HARNESS
PH5032162-00 HARNESS
PH5032163-00 HARNESS
PH5034137-00 HARNESS
PH5034401-00 HARNESS
PI1100078-00 VALVE,RELIEF
PI1120157-01 VALVE,SOLENOID
PI1120240-02 VALVE,SOLENOID
PI1140136-01 VALVE,CHECK
PI1140165-00 VALVE,CHECK (MORIKAWA GAUGE)
PI1140167-00 VALVE,CHECK (UZUMAKI)
PI1300061-02 FILTER,OIL (YAMASHIN)
PL1030934-00 OPE.ASSY,ACCELERATOR
PL1920030-01 OPE.ASSY (LEVELING/WITHOUT POWER SUPPLY)
PL1920031-01 OPE.ASSY (LEVELING/WITH POWER SUPPLY)
PN1012448-01 ELEC.ASSY (EMERGENCY PUMP)
PN1012905-02 ELEC.ASSY (BUCKET/LEVELNG)
PN1012906-00 ELEC.ASSY (SWING FRAME/LEVELING)
PN1012907-01 ELEC.ASSY (BOOM/LEVELING)
PN1013145-03 ELEC.ASSY (CARIER)
PN1350026-01 REEL,CORD (FOR EARTHING)
PN1350029-01 REEL,CORD (FOR EARTHING)
PN1350032-02 REEL,CORD
PN1350093-00 REEL,CORD
PO1013125-05 PLATE ASSY,NAME (VEHICLE HEIGHT,LOADINGCAPACITY,TIRE)
PP5500003-00 PUMP,OIL (32CC:L)
PX1030387-00 FENDER
PX1170396-00 ATTACHMENT PARTS, CRANE FRAME
PX1200379-00 SIDE GUARD
PX1210020-00 GUARD
PX1260221-00 STEP
PX1270107-01 WOOD BLOCK
PX1290335-02 WEIGHT
PX1310107-04 MOUNT,LAMP (TAIL)
PX1350442-01 BOX,TOOL (LEFT)
PX1350443-02 BOX,TOOL (RIGHT)
PX1350445-00 BOX,TOOL
PX1350449-02 BOX,TOOL
PX1350450-00 BOX,TOOL (OPTION)
PX1390468-03 PARTS,CHASSIS MODIFICATION
PX1410173-02 MOUNT,TIRE
PX1810088-02 MOUNT,SUPPORT
PX1810111-00 MOUNT,SUPPORT
PX1830013-00 COUPLING
PY1210111-01 PIPING,OUTLET
AT-110-1 42084130300 LOWER,HINO KK-XZU301X-TYMMS6
PY1650074-00 EARTHING DEVICE (5.5X10M)
PY1650075-00 EARTHING DEVICE (8X20M)
PY1650076-00 EARTHING DEVICE (8X10M,OPTION)
PZ0000000-00 HARNESS
