Tadano Crane AT-110-4 42084430100 LOWER,HINO PB-XZU301X-TYMMS6 Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-110-4 42084430100 LOWER,HINO PB-XZU301X-TYMMS6 Spare Parts Catalog Manual – PDF DOWNLOAD

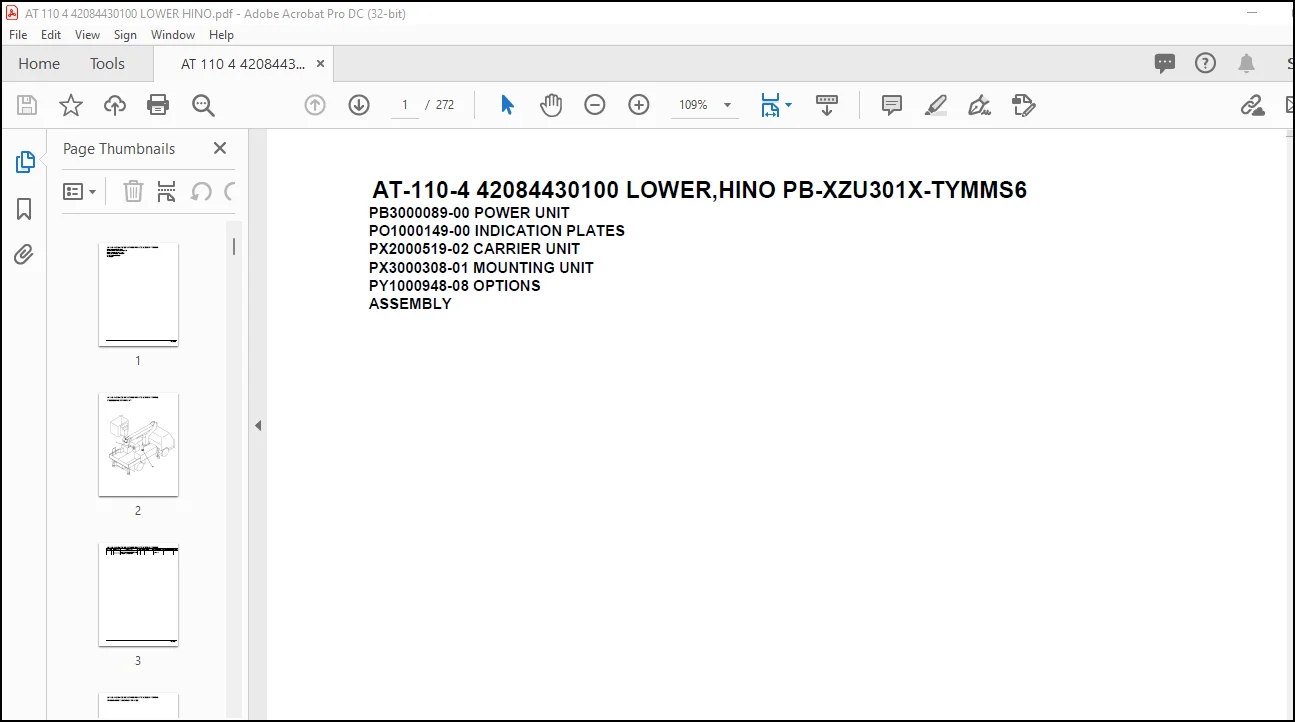

IMAGES PREVIEW OF THE MANUAL:

Tadano Crane AT-110-4 42084430100 LOWER,HINO PB-XZU301X-TYMMS6 Spare Parts Catalog Manual
TABLE OF CONTENTS:

Tadano Crane AT-110-4 42084430100 LOWER,HINO PB-XZU301X-TYMMS6 Spare Parts Catalog Manual – PDF DOWNLOAD

AT-110-4 42084430100 LOWER,HINO PB-XZU301X-TYMMS6
PB3000089-00 POWER UNIT
PO1000149-00 INDICATION PLATES
PX2000519-02 CARRIER UNIT
PX3000308-01 MOUNTING UNIT
PY1000948-08 OPTIONS
ASSEMBLY

AT-110-4 42084430100 LOWER,HINO PB-XZU301X-TYMMS6
PB1050172-00 OPE.ASSY,P.T.O. (COUPLING)
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100277-01 PUMP,HYDRAULIC
PB1110007-01 PUMP INSTALLATION
PB1110025-04 MOUNT,PUMP (EMERGENCY)
PB1110058-01 MOUNT,PUMP (EMERGENCY)
PB1380273-04 POWER SUPPLY (LOWER)
PB1380336-01 POWER SUPPLY (LOWER)
PB1411747-00 PIPING,LOWER
PB5140003-00 BLOCK,WOOD (FOR SLOPES)
PF1080100-00 SUPPORT (FIXED RADDER REST)
PF1080123-02 SUPPORT
PF1080160-00 SUPPORT (1-DECK & FOR SHELF SLIDE BOX/2007,2010)
PF1080161-01 SUPPORT (FIXED LADDER REST,2-DECKER/2007)
PF1080162-01 SUPPORT (FIXED LADDER REST,1-DECKER/2007)
PH1500009-00 BUZZER (JACK)
PH1700270-00 VIEW SYSTEM (MONITOR)
PH1700272-01 VIEW SYSTEM
PH1700274-01 VIEW SYSTEM (MONITOR)
PH1700275-00 VIEW SYSTEM
PH1700283-00 VIEW SYSTEM (MONITOR)
PH1700284-00 VIEW SYSTEM (MAIN UNIT)
PH1700302-01 VIEW SYSTEM (FOR HINO,TOYOTA)
PH1700303-01 VIEW SYSTEM (FOR ISUZU,NISSAN,MAZDA)
PH1700304-00 VIEW SYSTEM (FOR MITSUBISHI)
PH1700305-03 VIEW SYSTEM (CAMERA)
PH1710015-00 DISPLAY
PH1710016-00 DISPLAY
PH1710017-00 DISPLAY
PH1750007-01 CAMERA
PH5030995-00 HARNESS
PH5031015-00 HARNESS
PH5031016-00 HARNESS
PH5031017-00 HARNESS
PH5031018-00 HARNESS
PH5031022-00 HARNESS
PH5031304-00 HARNESS
PH5031620-00 HARNESS
PH5034175-00 HARNESS
PH5034401-00 HARNESS
PH5034644-00 HARNESS
PI1100078-00 VALVE,RELIEF
PI1120240-02 VALVE,SOLENOID
PI1140165-00 VALVE,CHECK (MORIKAWA GAUGE)
PI1140167-00 VALVE,CHECK (UZUMAKI)
PI1300061-02 FILTER,OIL (YAMASHIN)
PK1230117-02 WEIGHT
PK1230163-00 WEIGHT
PL1031085-00 OPE.ASSY,ACCELERATOR
PL5270015-00 LOCK ASSY (CAB DOOR LOCK CONROL)
PL5270016-00 LOCK ASSY (CAB DOOR LOCK CONROL)
PN1013900-03 ELEC.ASSY (CARRIER)
PN1013988-05 ELEC.ASSY (BATTERY & EMERGENCY PUMP)
PN1014347-00 ELEC.ASSY (CARRIER)
PN1014780-02 ELEC.ASSY (ALARM:UPPER/EXHAUST GAS PURIFIER DEVICE)
PN1014834-00 ELEC.ASSY (FRAME)
PN1350026-01 REEL,CORD (FOR EARTHING)
PN1350027-01 REEL,CORD
PO1013125-05 PLATE ASSY,NAME (VEHICLE HEIGHT,LOADINGCAPACITY,TIRE)
PO1014439-01 PLATE ASSY,NAME (BOX,TOOL)
PP5500003-00 PUMP,OIL (32CC:L)
PV5240005-01 VALVE ASSY,SOLENOID
PX1120596-01 BOOM REST
PX1170657-00 ATTACHMENT PARTS,CRANE FRAME
AT-110-4 42084430100 LOWER,HINO PB-XZU301X-TYMMS6
000006
PX1210103-01 GUARD
PX1210142-00 GUARD
PX1260232-00 STEP
PX1270134-04 WOOD BLOCK
PX1270135-00 WOOD BLOCK
PX1270140-01 WOOD BLOCK
PX1270149-00 WOOD BLOCK
PX1270159-01 WOOD BLOCK
PX1310235-02 MOUNT,LAMP (TAIL)
PX1310288-03 MOUNT,LAMP (TAIL)
PX1350449-02 BOX,TOOL
PX1350450-00 BOX,TOOL (OPTION)
PX1350788-02 BOX,TOOL (STD)
PX1350789-02 BOX,TOOL (SINGLE-DECK)
PX1350790-03 BOX,TOOL
PX1350791-03 BOX,TOOL
PX1350792-03 BOX,TOOL
PX1350793-03 BOX,TOOL
PX1350794-01 BOX,TOOL
PX1350827-01 BOX,TOOL (DOUBLE-DECKER/T-HANDLE)
PX1350828-01 BOX,TOOL
PX1350829-01 BOX,TOOL
PX1350834-00 BOX,TOOL (LEFT DOUBLE/RIGHT SINGLE)
PX1350898-00 BOX,TOOL
PX1350899-00 BOX,TOOL (SINGLE-DECKER/T-HANDLE)
PX1350900-01 BOX,TOOL
PX1350901-01 BOX,TOOL
PX1350907-03 BOX,TOOL
PX1350908-03 BOX,TOOL
PX1350909-01 BOX,TOOL (LEFT SLIDE/RIGHT 2-DECKER)
PX1350981-02 BOX,TOOL (2-DECK/TTE:2007)
PX1350982-00 BOX,TOOL
PX1350983-00 BOX,TOOL
PX1350994-00 BOX,TOOL (SINGLE-DECKER)
PX1350995-00 BOX,TOOL
PX1350996-00 BOX,TOOL
PX1350997-01 BOX,TOOL (LEFT DOUBLE/RIGHT SINGLE:’07)
PX1350998-00 BOX,TOOL (LEFT DOUBLE/RIGHT SINGLE)
PX1350999-00 BOX,TOOL (LEFT SLIDE/RIGHT SINGLE:’07)
PX1351006-01 BOX,TOOL (LEFT SLIDE/RIGHT 2-DECKER:’07)
PX1351009-00 BOX,TOOL
PX1351024-00 BOX,TOOL (LEFT SLIDE/RIGHT SINGLE:’07)
PX1351025-01 BOX,TOOL (LEFT SLIDE/RIGHT DOUBLE:’07)
PX1351045-00 BOX,TOOL
PX1351047-00 BOX,TOOL (DRAWER/2007)
PX1351187-00 BOX,TOOL (DRAWER FOR LEFT TOOL BOX:2007,2010)
PX1351188-00 BOX,TOOL
PX1390803-01 MODIFICATION PARTS
PX1410173-02 MOUNT,TIRE
PX1810264-01 MOUNT,SUPPORT
PX1830013-00 COUPLING
PY1510043-00 HOUR METER
PY1650100-01 EARTHING DEVICE
PY1650107-00 EARTHING DEVICE
PY1650108-01 EARTHING DEVICE
PY5170001-00 ALARM ASSY
