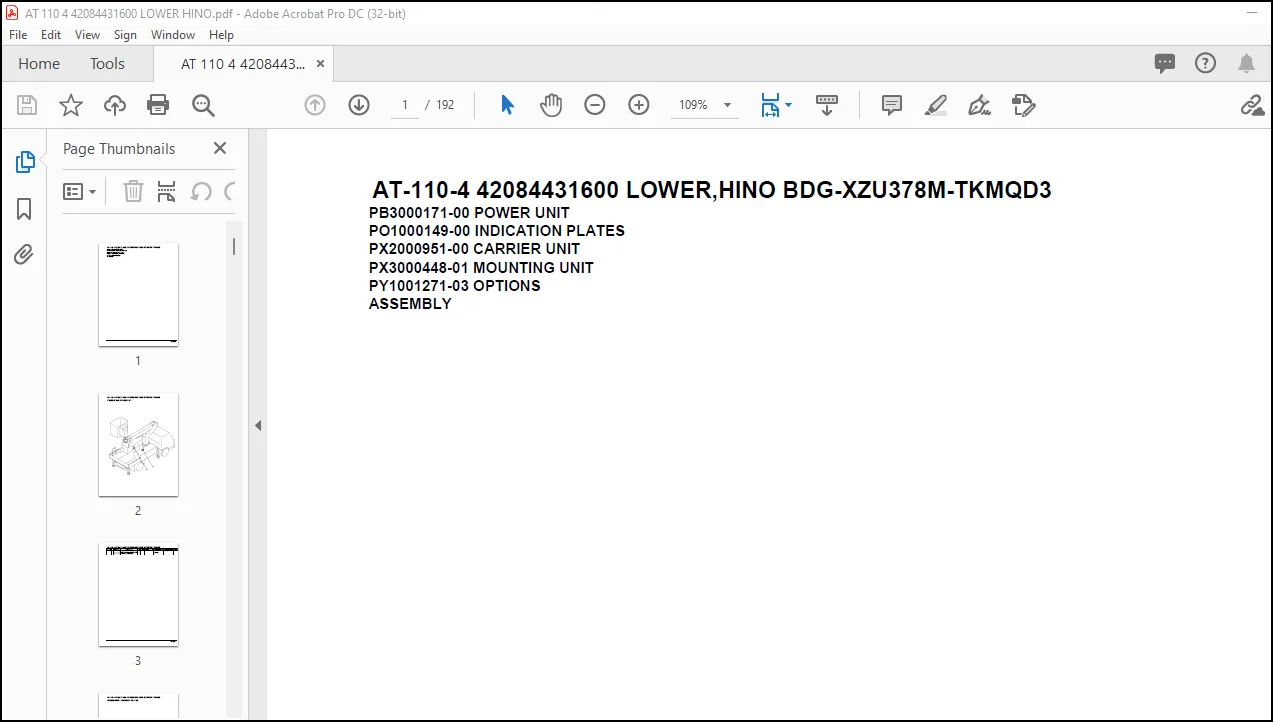

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-110-4 42084431600 LOWER,HINO BDG-XZU378M-TKMQD3 Spare Parts Catalog Manual – PDF DOWNLOAD

AT-110-4 42084431600 LOWER,HINO BDG-XZU378M-TKMQD3
PB3000171-00 POWER UNIT
PO1000149-00 INDICATION PLATES
PX2000951-00 CARRIER UNIT
PX3000448-01 MOUNTING UNIT
PY1001271-03 OPTIONS
ASSEMBLY

AT-110-4 42084431600 LOWER,HINO BDG-XZU378M-TKMQD3
PB1050172-00 OPE.ASSY,P.T.O. (COUPLING)
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100277-01 PUMP,HYDRAULIC
PB1110007-01 PUMP INSTALLATION
PB1110043-00 MOUNT,PUMP (EMERGENCY)
PB1110058-01 MOUNT,PUMP (EMERGENCY)
PB1411749-00 PIPING,LOWER
PB1411994-00 PIPING,LOWER
PB5410015-00 BOX,TOOL
PB5410016-00 BOX,TOOL
PB5410052-01 BOX,TOOL (PACKING ASSY)
PB5410054-01 BOX,TOOL (PACKING ASSY)
PB5410058-02 BOX,TOOL
PB5410061-01 BOX,TOOL
PB5410078-01 PACKING ASSY
PB5410079-00 BOX,TOOL (PACKING ASSY)
PF1080107-01 SUPPORT
PF1080127-00 SUPPORT
PF1080163-01 SUPPORT (SWIVEL LADDER REST,2-DECKER/2007)
PH1500009-00 BUZZER (JACK)
PH1700283-00 VIEW SYSTEM (MONITOR)
PH1700284-00 VIEW SYSTEM (MAIN UNIT)
PH1700302-01 VIEW SYSTEM (FOR HINO,TOYOTA)
PH1700305-03 VIEW SYSTEM (CAMERA)
PH1710017-00 DISPLAY
PH1750007-01 CAMERA
PH5030691-00 HARNESS
PH5030692-00 HARNESS
PH5030693-00 HARNESS
PH5031002-00 HARNESS
PH5031022-00 HARNESS
PH5032687-00 HARNESS
PH5034175-00 HARNESS
PH5034401-00 HARNESS
PH5034644-00 HARNESS
PI1140165-00 VALVE,CHECK (MORIKAWA GAUGE)
PI1140167-00 VALVE,CHECK (UZUMAKI)
PI1300061-02 FILTER,OIL (YAMASHIN)
PK1230118-00 WEIGHT
PK1330426-00 COVER (FOR EMERGENCY PUMP)
PL1031085-00 OPE.ASSY,ACCELERATOR
PN1013988-05 ELEC.ASSY (BATTERY & EMERGENCY PUMP)
PN1014529-00 ELEC.ASSY (CARRIER)
PN1015083-00 ELEC.ASSY (CARRIER)
PN1350027-01 REEL,CORD
PO1013125-05 PLATE ASSY,NAME (VEHICLE HEIGHT,LOADINGCAPACITY,TIRE)
PP5500003-00 PUMP,OIL (32CC:L)
PX1170770-00 ATTACHMENT PARTS,CRANE FRAME
PX1170835-00 ATTACHMENT PARTS,CRANE FRAME
PX1210154-00 GUARD
PX1210170-01 GUARD
PX1260232-00 STEP
PX1270135-00 WOOD BLOCK
PX1310288-03 MOUNT,LAMP (TAIL)
PX1350799-02 BOX,TOOL (DOUBLE-DECKER)
PX1350800-01 BOX,TOOL
PX1350801-01 BOX,TOOL
PX1350912-01 BOX,TOOL
PX1350913-01 BOX,TOOL
PX1350923-00 BOX,TOOL (SINGLE-DECKER)
PX1351009-00 BOX,TOOL
PX1351047-00 BOX,TOOL (DRAWER/2007)
PX1351063-00 BOX,TOOL
PX1351065-01 BOX,TOOL
AT-110-4 42084431600 LOWER,HINO BDG-XZU378M-TKMQD3
000006
PX1351066-01 BOX,TOOL
PX1351153-02 BOX,TOOL (LEFT & RIGHT,2-DECK/2007)
PX1351161-00 BOX,TOOL
PX1351162-00 BOX,TOOL
PX1351187-00 BOX,TOOL (DRAWER FOR LEFT TOOL BOX:2007,2010)
PX1351188-00 BOX,TOOL
PX1390806-02 MODIFICATION PARTS
PX1390972-01 MODIFICATION PARTS
PX1410173-02 MOUNT,TIRE
PX1620035-00 MOUNT,COLOR CONE SUPPORT
PX1620036-00 MOUNT,COLOR CONE SUPPORT
PX1630006-01 DOOR
PX1630007-01 DOOR
PX1810264-01 MOUNT,SUPPORT
PX1830013-00 COUPLING
PX5780036-00 MOUNT ASSY,TOOL BOX (RIGHT & LEFT 2-DECK,LOCK/2010)
PY1130026-01 INTERLOCK (TOOL BOX UNCLOSED ALARM)
PY1650108-01 EARTHING DEVIC
