Tadano Crane AT-110-5 42084540491 UPPER,LOWER,ISUZU TKG-NKR85AN-EE5AHY Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-110-5 42084540491 UPPER,LOWER,ISUZU TKG-NKR85AN-EE5AHY Spare Parts Catalog Manual – PDF DOWNLOAD

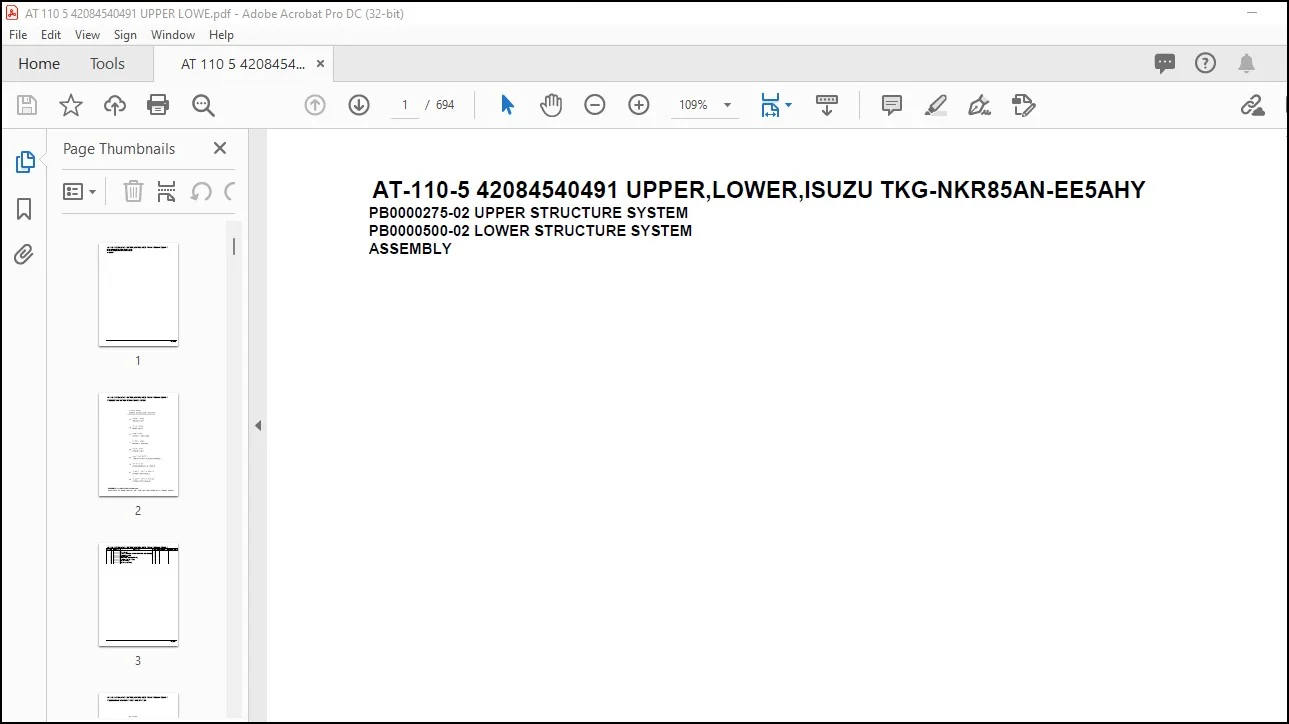

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-110-5 42084540491 UPPER,LOWER,ISUZU TKG-NKR85AN-EE5AHY Spare Parts Catalog Manual – PDF DOWNLOAD

AT-110-5 42084540491 UPPER,LOWER,ISUZU TKG-NKR85AN-EE5AHY
PB0000275-02 UPPER STRUCTURE SYSTEM
PB0000500-02 LOWER STRUCTURE SYSTEM
ASSEMBLY

AT-110-5 42084540491 UPPER,LOWER,ISUZU TKG-NKR85AN-EE5AHY
PB1050175-00 OPE.ASSY,P.T.O. (COUPLING)
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100265-00 PUMP,HYDRAULIC (MOUNT)
PB1100277-01 PUMP,HYDRAULIC
PB1100278-00 PUMP,HYDRAULIC (SGP2-44D2H9-L)
PB1110058-01 MOUNT,PUMP (EMERGENCY)
PB1320319-00 VALVE,MANUAL CONTROL
PB1380252-01 POWER SUPPLY (BUCKET/100V 2 POLES OUTLET)
PB1380283-01 POWER SUPPLY (BUCKET)
PB3000307-00 POWER UNIT
PB5140005-00 BLOCK,WOOD
PB5190050-02 BOOM ASSY
PB5230007-02 BOOSTER ASSY
PB5240002-01 BOOSTER ASSY,AIR (40T,TEMPORARY HOLD,INCHING)
PB5250002-01 BOOSTER ASSY,ELECTRICITY (40T,TEMPORARYHOLD,NANABOSHI)
PB5250003-01 BOOSTER ASSY,ELECTRICITY (40T,TEMPORARYHOLD,SANWA)
PB5260037-00 BOX ASSY
PB5260055-00 BOX ASSY
PB5260060-00 BOX ASSY
PB5340005-00 BUCKET (WHITE)
PB5340006-00 BUCKET (WHITE/WITHOUT BOSS)
PB5370033-01 BUCKET FRAME ASSY
PB5390002-00 BUZZER ASSY (JACK CONTROL ALARM)
PB5390003-00 BUZZER ASSY (JACK CONTROL ALARM)
PB5390004-00 BUZZER ASSY (JACK CONTROL ALARM)
PB5390005-00 BUZZER ASSY (JACK CONTROL ALARM)
PB5410014-00 BOX,TOOL
PB5410071-01 BOX,TOOL
PB5410073-00 BOX,TOOL
PB5410110-01 BOX,TOOL
PB5410158-00 BOX,TOOL
PC1030396-00 CYLINDER,JACK
PC5250001-00 CLAMP HEAD ASSY (YONDENKO/SAFETY HOSE)
PC5390001-01 CONTROL ASSY,OUTRIGGER (JACK HORIZONTAL)
PC5390002-01 CONTROL ASSY,OUTRIGGE(JACK HORIZONTAL+GRADIENT WARNING)
PC5390008-00 CONTROL ASSY,OUTRIGGER (J/HORIZONTAL+GRADIENT WARNING)
PC5570074-00 COVER ASSY (BOOM TOP FRP COVER)
PC5570075-01 COVER ASSY (BEARING)
PC5570093-01 COVER ASSY
PC5570096-00 COVER ASSY (BUCKET/CLOTH:WHITE)
PC5570105-00 COVER
PC5570110-00 COVER ASSY (BUCKET FRAME/FRP)
PC5640001-00 CUTTER HEAD ASSY (YONDENKO/SAFETY HOSE)
PC5700017-00 COVER
PC6370024-00 CYLINDER ASSY,DERRICK
PC6390061-00 CYLINDER ASSY,JACK
PC6400001-00 CYLINDER ASSY,LEVELING (LOWER)
PC6400012-01 CYLINDER ASSY,LEVELING
PC6470078-00 CYLINDER ASSY,TELESCOPING
PD1010153-00 REDUCER,SWING SPEED (MOUNT)
PD1010172-00 REDUCER,SWING SPEED
PD2000250-00 SWING UNIT
PD5020010-00 DERRICK ASSY
PD5080061-00 DETECTOR ASSY,LENGTH (BOOM)
PE1050138-02 CYLINDER,LEVELING (UPPER)
PE5010004-01 EARTH ASSY
PE5010008-00 EARTH ASSY
PE5010017-00 EARTH ASSY (8X20M)
PE5010041-00 EARTH ASSY
PE5010042-00 EARTH ASSY (8X20M)
PE5020403-01 ELEC.ASSY (PTO FAILSAFE)
PE5020438-00 ELEC.ASSY
PE5020439-00 ELEC.ASSY (EXHAUST GAS ALARM:TTE)
PE5020461-02 ELEC.ASSY (BUCKET/100V 2-POLES OUTLET+WORK LAMP,55W)
AT-110-5 42084540491 UPPER,LOWER,ISUZU TKG-NKR85AN-EE5AHY
000003
PE5020470-00 ELEC.ASSY (GRADIENT WARNING)
PE5020605-01 ELEC.ASSY (SUB FRAME)
PE5020626-00 ELEC.ASSY
PE5020701-00 ELEC.ASSY (BUCKET/100V 3POLES OUTLET+WORK LAMP,55W)
PE5020729-00 ELEC.ASSY (PTO FAIL SAFE)
PE5020731-00 ELEC.ASSY (GRADIENT WARNING)
PE5050008-00 ELEC.ASSY,BOOM
PE5060027-01 ELEC.ASSY,BUCKET
PE5070037-00 ELEC.ASSY,CARRIER
PE5110026-03 ELEC.ASSY,FRAME
PE5190012-02 ELEC.ASSY,SWING FRAME
PF5050003-00 FLOAT ASSY (JACK PAD:GUIDE TYPE F/J)
PF5100155-01 FRAME ASSY
PF5190001-00 FALL ARREST SYSTEM (TB-LSA-550/FUJII-DENKO)
PG1120233-01 DETECTOR,BOOM LENGTH
PG2000355-00 BOOM UNIT
PG5200024-00 GUARD ASSY (UPPER PARTS RACK ON LEFT TOOL BOX)
PG5200025-00 GUARD ASSY (UPPER PARTS RACK ON RIGHT TOOL BOX)
PH1000633-00 SAFETY DEVICES (AUTOMATIC MOTION CONTROLLER)
PH1500010-02 BUZZER (JACK ALARM)
PH1700270-00 VIEW SYSTEM (MONITOR)
PH1700272-01 VIEW SYSTEM
PH1700283-00 VIEW SYSTEM (MONITOR)
PH1700284-00 VIEW SYSTEM (MAIN UNIT)
PH1700302-01 VIEW SYSTEM (FOR HINO,TOYOTA)
PH1700303-01 VIEW SYSTEM (FOR ISUZU,NISSAN,MAZDA)
PH1700305-03 VIEW SYSTEM (CAMERA)
PH1710015-00 DISPLAY
PH1710017-00 DISPLAY
PH1750007-01 CAMERA
PH5030282-00 HARNESS (MAIN)
PH5030428-00 HARNESS
PH5030430-00 HARNESS
PH5030474-01 HARNESS
PH5030523-00 HARNESS
PH5030722-01 HARNESS
PH5030974-00 HARNESS
PH5030979-00 HARNESS
PH5031005-00 HARNESS
PH5031008-00 HARNESS
PH5031016-00 HARNESS
PH5031023-00 HARNESS
PH5031392-00 HARNESS
PH5031400-00 HARNESS
PH5031401-01 HARNESS
PH5031402-00 HARNESS
PH5031403-00 HARNESS
PH5031546-00 HARNESS
PH5031831-00 HARNESS
PH5032117-00 HARNESS
PH5032231-00 HARNESS (MAIN)
PH5032255-00 HARNESS
PH5032260-00 HARNESS
PH5032263-00 HARNESS
PH5032272-00 HARNESS
PH5033686-00 HARNESS
PH5034162-00 HARNESS
PH5034166-00 HARNESS
PH5034167-00 HARNESS
PH5034168-00 HARNESS
PH5034172-00 HARNESS
PH5034174-00 HARNESS
PH5034177-00 HARNESS
PH5034178-00 HARNESS
AT-110-5 42084540491 UPPER,LOWER,ISUZU TKG-NKR85AN-EE5AHY
000003
PH5034182-00 HARNESS
PH5034183-00 HARNESS
PI1050002-00 RESERVOIR,OIL
PI1100078-00 VALVE,RELIEF
PI1120053-00 VALVE,SOLENOID
PI1120237-01 VALVE,SOLENOID
PI1120242-01 VALVE,SOLENOID
PI1140133-01 VALVE,CHECK
PI1140165-00 VALVE,CHECK (MORIKAWA GAUGE)
PI1140167-00 VALVE,CHECK (UZUMAKI)
PI1140227-00 VALVE,CHECK
PI1250137-00 VALVE,COUNTERBALANCE
PI1300061-02 FILTER,OIL (YAMASHIN)
PJ2000016-00 BUCKET SYSTEM
PJ3010047-00 BUCKET (INNER CASE,OPTION)
PJ3010199-00 BUCKET (WHITE/WITHOUT BOSS)
PJ3010217-00 BUCKET (SI,WHITE/WITH INNER)
PJ3010315-00 BUCKET (SI BUCKET/ WHITE,WITH INNER CASE)
PJ3010318-00 BUCKET (INNER CASE)
PJ3010319-00 BUCKET (MAT)
PJ3010390-00 BUCKET
PJ5090060-00 JOINT ASSY,SWIVEL
PK1330104-00 COVER (BUCKET,FOR SI)
PK1330330-00 COVER
PK1330360-00 COVER
PK2001805-00 FRAME UNIT
PL1031086-01 OPE.ASSY,ACCELERATOR
PL5020079-01 LAMP ASSY (LOWER CONTROLS)
PL5140007-02 LAMP ASSY,WORKING (UPPER/HALOGEN)
PM5150293-05 MODIFICATION ASSY
PM5230001-01 MOTOR,OIL
PN1013988-05 ELEC.ASSY (BATTERY & EMERGENCY PUMP)
PN1140142-01 SWITCH ASSY (ELECTRIC TYPE OPERATION SW)
PN1140153-00 SWITCH ASSY (WITH HARNESS,3 SWITCH)
PN1140164-00 SWITCH ASSY (WITH HARNESS,3 SW)
PN1140167-00 SWITCH ASSY (WITH HARNESS,5 SW)
PN1140178-00 SWITCH ASSY (ELECTRIC TYPE OPERATION SW)
PN1350027-01 REEL,CORD
PN1350032-02 REEL,CORD
PN1350111-02 REEL,CORD
PN5010696-01 NAME PLATE ASSY (INSIDE BUCKET)
PN5010698-00 NAME PLATE ASSY (VEHICLE)
PN5010700-00 NAME PLATE ASSY (SWING MARK)
PN5010701-00 NAME PLATE ASSY (OPERATION)
PN5010707-00 NAME PLATE ASSY (VEHICLE HEIGHT, CAPACITY,AIR PRESSURE)
PN5010751-01 NAME PLATE ASSY (SAFETY BELT HOOK HOLDER)
PN5010752-00 NAME PLATE ASSY (BUCKET CONTROL)
PN5011106-00 NAME PLATE ASSY (SPECIFICATION)
PN5011107-00 NAME PLATE ASSY (TADANO,TANK,NON-SLIP,FUSE)
PN5011108-00 NAME PLATE ASSY (BOOSTER)
PN5011234-00 NAME PLATE ASSY (UPPER HYDRAULIC PRESSURE TAKEOUT UNIT)
PN5011666-00 NAME PLATE ASSY (HEIGHT,CAPACITY,AIR/MITSUBISHI)
PO1000182-00 INDICATION PLATES (UPPER)
PO1000183-00 INDICATION PLATES (LOWER)
PO1013121-01 PLATE ASSY,NAME (HYDRAULIC OIL)
PO1014634-01 PLATE ASSY,NAME (OIL/COLD DISTRICT)
PO5010027-02 OPE.ASSY (LEVER,CONTROL)
PO5010029-00 OPE.ASSY
PO5050039-01 OPE.ASSY,BUCKET (WITH 3-AXIS ENABLE SW)
PO5050042-01 OPE.ASSY,BUCKET
PO5080088-02 OPE.ASSY,CONT.VALVE
PO5270122-01 OUTRIGGER ASSY (GUIDE TYPE JACK)
PO5270159-00 OUTRIGGER ASSY
PO5270160-00 OUTRIGGER ASSY
AT-110-5 42084540491 UPPER,LOWER,ISUZU TKG-NKR85AN-EE5AHY
000003
PO5270218-00 OUTRIGGER ASSY (GUIDE TYPE JACK)
PP5010015-00 PANEL ASSY
PP5010018-00 PANEL ASSY (BUCKET CONTROL PANEL)
PP5340009-01 POWER SUPPLY ASSY,ELECTRICITY (LOWER,2POLES OUTLET)
PP5340019-00 POWER SUPPLY ASSY,ELECTRICITY (BUCKET/100V 3POLES)
PP5340024-00 POWER SUPPLY ASSY,ELECTRICITY (LOWER,3POLES OUTLET)
PP5340034-00 POWER SUPPLY ASSY,ELECTRICITY (LOWER,3POLES OUTLET)
PP5340036-00 POWER SUPPLY ASSY,ELECTRICITY (LOWER,3POLES OUTLET)
PP5350004-01 POWER SUPPLY ASSY,HYDRAULIC (UPPER HYDRAULIC PRESSURE)
PP5350005-00 POWER SUPPLY ASSY,HYDRAULIC
PP5390001-00 PRUNER ASSY
PP5450004-00 PUMP,GREASE (400CC)
PP6010236-01 PIPING ASSY
PP6010318-00 PIPING ASSY (TOOL)
PP6010319-00 PIPING ASSY (BOOM,SWING FRAME)
PP6010320-00 PIPING ASSY (SUB FRAME)
PP6060007-01 PIPING ASSY,BOOM
PP6130033-00 PIPING ASSY,FRAME
PP6130041-00 PIPING ASSY,FRAME
PP6210016-03 PIPING ASSY,MOUNTING
PP6330005-03 PIPING ASSY,SWING FRAME
PR5090141-01 RELAY ASSY
PR5090142-00 RELAY ASSY
PR5160002-00 ROPE ASSY (YELLOW)
PR5210001-00 RELAY (WITH HARNESS)
PR5210002-00 RELAY
PR5210003-00 RELAY
PS5420229-00 SUPPORT ASSY (2-DECK TOOL BOX: FIXED LADDER REST)
PS5420231-00 SUPPORT ASSY (1&2-DECK TOOL BOX: LOWER SHELF,ONE SIDE)
PS5420232-00 SUPPORT ASSY (HOOK FOR CARRIER ROPE)
PS5420267-00 SUPPORT ASSY (2-DECKER:ROTARY RADDER REST)
PS5420481-00 SUPPORT ASSY
PS5510021-00 SWING FRAME ASSY
PS5530077-01 SWITCH ASSY
PS5530083-02 SWITCH ASSY (SAFETY INTERLOCK)
PS5530117-00 SWITCH ASSY (ELEC.BOOSTER, REMOTE:2M,NANABOSI,KASUGA)
PS5530132-00 SWITCH ASSY (WITH HARNESS,3 SW)
PS5530172-00 SWITCH ASSY
PS5530260-00 SWITCH ASSY
PS5530288-00 SWITCH ASSY (ELEC.BOOSTER, REMOTE:3M,NANABOSI,KASUGA)
PS5530289-00 SWITCH ASSY (ELEC.BOOSTER, REMOTE:5M,NANABOSI,KASUGA)
PS5530403-00 SWITCH ASSY
PT5090008-00 TANK ASSY,OIL
PT5130050-00 TELESCOPE ASSY
PV1030001-00 SWITCH BOX (FOR BOOSTER)
PV1030109-00 SWITCH BOX (ELECTRIC BOOSTER, 3M,NANABOSI,SINKOU DENKI)
PV1030110-00 SWITCH BOX (ELECTRIC BOOSTER, 5M,NANABOSI,SINKOU DENKI)
PV1030111-00 SWITCH BOX (ELECTRIC BOOSTER, 8M,NANABOSI,SINKOU DENKI)
PV5010007-00 VALVE ASSY (JACK CONTROL)
PV5070007-00 VALVE ASSY,COUNTERBALANCE
PV5140017-00 VALVE ASSY,RELIEF
PV5150018-01 VALVE ASSY,REMOTE CONTROL
PV5170018-00 VALVE ASSY,SELECTOR
PV5240005-01 VALVE ASSY,SOLENOID
PW1000118-00 ACCESSORIES & TOOLS
PW1010251-00 ACCESSORIES (MAT/FOR SI BUCKET)
PW1010309-00 ACCESSORIES (MAT)
PW1010316-01 ACCESSORIES
PW1030049-01 TOOLS
PW1050018-01 WEDGE (STOPPER FOR TIRE/JUSTIN)
PW5110002-00 WEDGE (STOPPER FOR TIRE/WAZUMI)
PW5110003-00 WEDGE (STOPPER FOR TIRE/NAKAMURA KIKI)
PW5110005-00 WEDGE (YELLOW)
PX1270056-00 WOOD BLOCK (OPTION)
AT-110-5 42084540491 UPPER,LOWER,ISUZU TKG-NKR85AN-EE5AHY
000003
PX1351188-00 BOX,TOOL
PX1830012-01 COUPLING
PX2001444-00 CARRIER UNIT
PX3000802-00 MOUNTING UNIT
PX5010393-01 MOUNT ASSY (BUCKET)
PX5010394-00 MOUNT ASSY (SUB FRAME)
PX5010426-00 MOUNT ASSY (BUCKET)
PX5110029-00 MOUNT ASSY,BOOM SUPPORT
PX5260010-00 MOUNT ASSY,COVER
PX5360045-01 MOUNT ASSY,FRAME
PX5430012-01 MOUNT ASSY,GUARD
PX5670014-00 MOUNT ASSY,STEP
PX5670021-00 MOUNT ASSY,STEP (FRONT OF RIGHT:GUIDE TYPE F/J)
PX5670023-00 MOUNT ASSY,STEP (FOR BOX TOOL OF RIGHT SIDE)
PX5670024-00 MOUNT ASSY,STEP (FOR BOX TOOL OF LEFT SIDE)
PX5670039-00 MOUNT ASSY,STEP (FOR S.BUCKET)
PX5730007-00 MOUNT ASSY,SWIVEL JOINT
PX5740030-01 MOUNT ASSY,TAIL LAMP
PX5760013-00 MOUNT ASSY,TANK SUPPORT
PX5770007-00 MOUNT ASSY,TIRE
PX5780126-01 MOUNT ASSY,TOOL BOX (RIGHT & LEFT,2-DECKER)
PX5780142-00 MOUNT ASSY,TOOL BOX (FOR LEFT SIDE DRAWER,1&2 DECK)
PX5780462-00 MOUNT ASSY,TOOL BOX (LEFT:2-DECKER,DRAWER/2LINEX2)
PX5820039-01 MOUNT ASSY,WEIGHT
PY1050000-00 CLAMP HEAD (IZUMI 12TON 2.5M)
PY1050001-01 CLAMP HEAD (IZUMI 8TON,2.5M)
PY1050004-00 CLAMP HEAD (O.D.K 7.5TON 3M)
PY1050005-00 CLAMP HEAD (O.D.K 10TON ELECTRIC)
PY1050007-00 CLAMP HEAD (SANWA,12TON)
PY1050008-01 CLAMP HEAD (IZUMI 8TON 3.5M ELECTRIC)
PY1050009-01 CLAMP HEAD (IZUMI 8TO,3.5M)
PY1050012-00 CLAMP HEAD (SANWA,12TON,TITANIUM)
PY1060000-01 CUTTER HEAD (IZUMI 6.4TON AIR)
PY1060001-00 CUTTER HEAD (IZUMI 6.4TON 2.5M ELECTRIC)
PY1060004-01 CUTTER HEAD (IZUMI 6.4TON 2.5M ELECTRICSANWA)
PY1070000-00 ROPE (SAFETY,YELLOW:TD-TYPE)
PY1070001-00 ROPE (SAFETY,1.5M,WITH HOOK)
PY1070003-00 ROPE (SAFETY,WHITE)
PY1090001-00 BELT,SAFETY
PY1170035-00 BOOSTER
PY1250024-01 SWITCH INSTALLATION
PY1590000-02 HOSE,BOOSTER (WITH AIR BALLOON)
PY1590001-01 HOSE,BOOSTER (FEMALE-FEMALE,3M)
PY1590002-02 HOSE,BOOSTER (MAIL-FEMALE,3M)
PY1590003-01 HOSE,BOOSTER (3M)
PY1590005-01 HOSE,BOOSTER (SMALL,WITH AIR BALLOON)
PY1590006-00 HOSE,BOOSTER (LARGE,AIR BALLOON ONLY)
PY1590007-00 HOSE,BOOSTER (FEMALE-FEMALE,5M)
PY1590008-00 HOSE,BOOSTER (MALE-FEMALE,5M)
PY1590009-00 HOSE,BOOSTER (MALE-FEMALE,8M)
PY1590010-00 HOSE,BOOSTER (WITH AIR BALLOON,2M)
PY1590012-00 HOSE,BOOSTER (WITH AIR BALLOON,5M)
PY1590013-00 HOSE,BOOSTER (WITH AIR BALLOON,8M)
PY1640000-01 DRIL,HYDRAULIC
PY1680000-02 WRENCH,IMPACT (HYDRAULIC)
PY1760001-00 STEP,BUCKET
PY1760003-00 STEP,BUCKET (GRAY,FOR BUCKET INNER)
PY1790001-00 HANGER (FOR BUCKET)
PY1790004-01 HANGER (FOR BUCKET,FRP)
PY1930004-00 BLOCK,RUBBER (WAZUMI)
PY1930005-00 BLOCK,RUBBER (NAKAMURA)
PY2000164-07 OPTIONS,2 (UPPER)
PY2120000-00 BOX,TOOL (FOR BUCKET)
PY2120001-00 BOX,TOOL (FOR BUCKET)
AT-110-5 42084540491 UPPER,LOWER,ISUZU TKG-NKR85AN-EE5AHY
000003
PY2120005-00 BOX,TOOL (FOR BUCKET,FRP)
PY2350004-01 SWITCH,BOOSTER
PY2350006-01 SWITCH,BOOSTER
PY4000018-02 OPTION UNIT,1
PY4000019-03 OPTION UNIT,1 (LOWER)
PY5020164-00 ACCESSORIES ASSY (WITHOUT BLOCK,RUBBER)
PY5310005-00 AUTOMATIC MOTION CONTROLLER
PY5310030-00 AUTOMATIC MOTION CONTROLLER
PZ0000000-00 MAT
PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
