Tadano Crane AT-120S-1 42081100004 UPPER Parts Manual – PDF DOWNLOAD

Description

Tadano Crane AT-120S-1 42081100004 UPPER Parts Manual – PDF DOWNLOAD

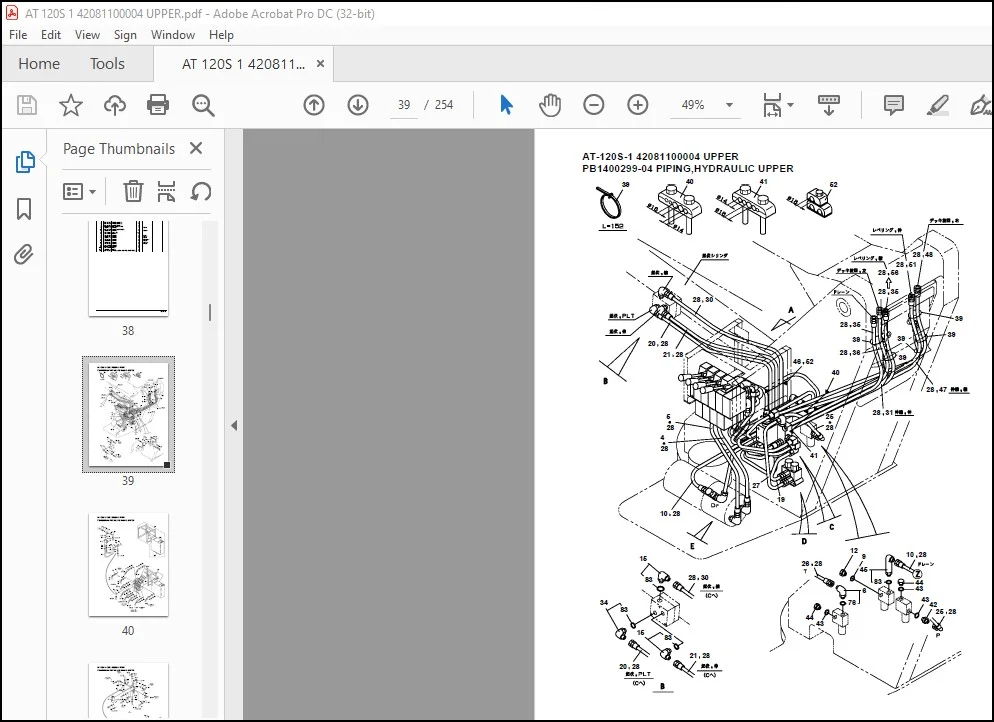

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AT-120S-1 42081100004 UPPER Parts Manual – PDF DOWNLOAD
Language : English
Pages :254
Downloadable : Yes
File Type : PDF
Size:3.48 MB

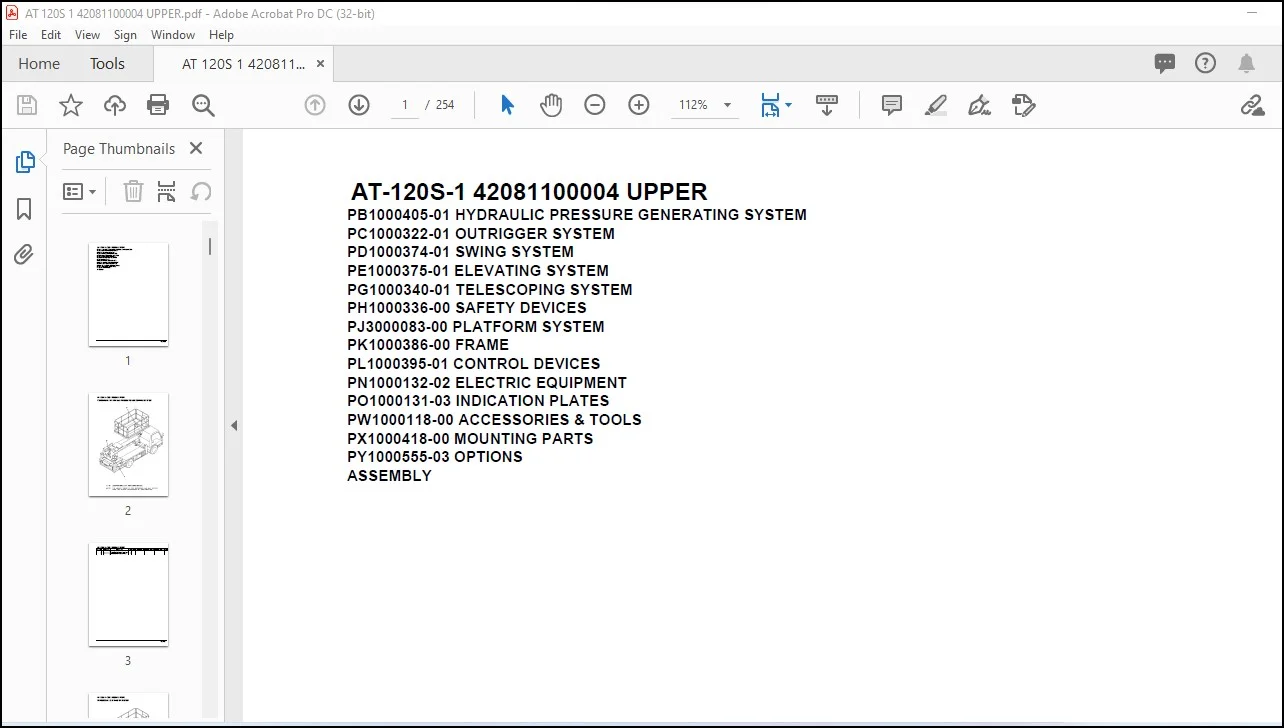

TABLE OF CONTENTS:

Tadano Crane AT-120S-1 42081100004 UPPER Parts Manual – PDF DOWNLOAD

AT-120S-1 42081100004 UPPER
PB1000405-01 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000322-01 OUTRIGGER SYSTEM
PD1000374-01 SWING SYSTEM
PE1000375-01 ELEVATING SYSTEM
PG1000340-01 TELESCOPING SYSTEM
PH1000336-00 SAFETY DEVICES
PJ3000083-00 PLATFORM SYSTEM
PK1000386-00 FRAME
PL1000395-01 CONTROL DEVICES
PN1000132-02 ELECTRIC EQUIPMENT
PO1000131-03 INDICATION PLATES
PW1000118-00 ACCESSORIES & TOOLS
PX1000418-00 MOUNTING PARTS
PY1000555-03 OPTIONS

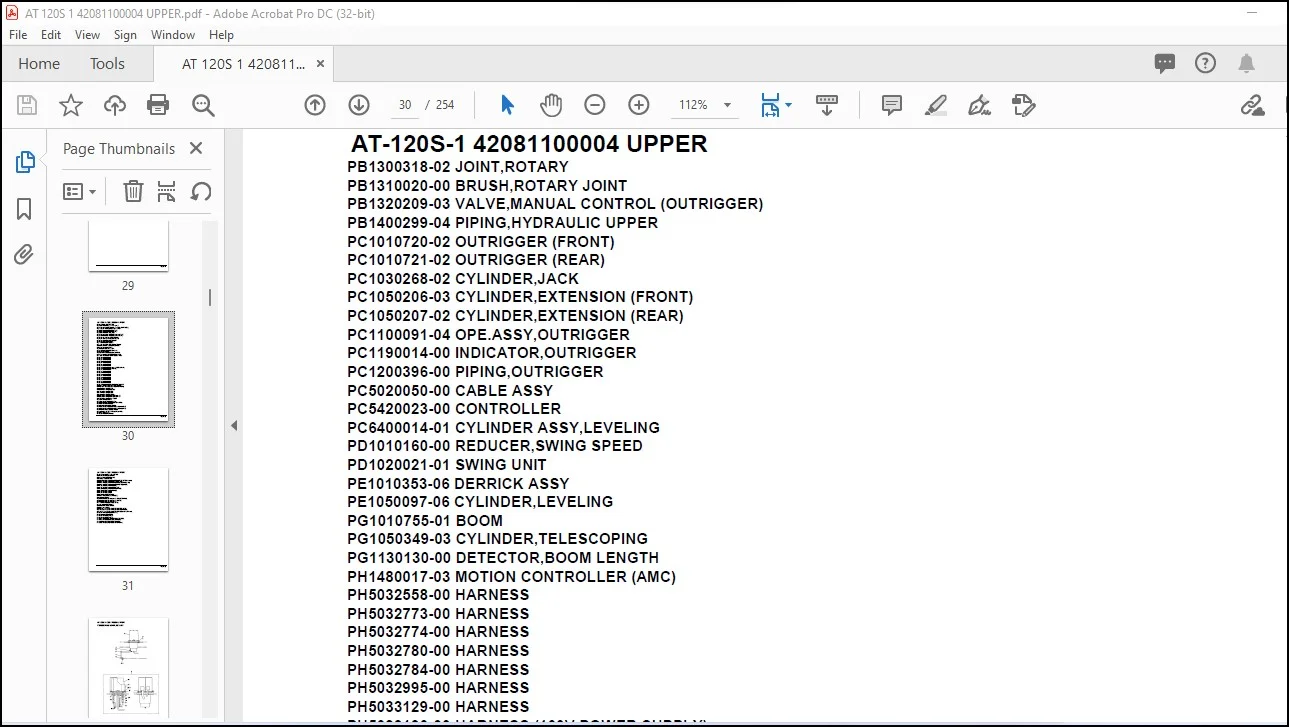

ASSEMBLY

AT-120S-1 42081100004 UPPER
PB1300318-02 JOINT,ROTARY
PB1310020-00 BRUSH,ROTARY JOINT
PB1320209-03 VALVE,MANUAL CONTROL (OUTRIGGER)
PB1400299-04 PIPING,HYDRAULIC UPPER
PC1010720-02 OUTRIGGER (FRONT)
PC1010721-02 OUTRIGGER (REAR)
PC1030268-02 CYLINDER,JACK
PC1050206-03 CYLINDER,EXTENSION (FRONT)
PC1050207-02 CYLINDER,EXTENSION (REAR)
PC1100091-04 OPE.ASSY,OUTRIGGER
PC1190014-00 INDICATOR,OUTRIGGER
PC1200396-00 PIPING,OUTRIGGER
PC5020050-00 CABLE ASSY
PC5420023-00 CONTROLLER
PC6400014-01 CYLINDER ASSY,LEVELING
PD1010160-00 REDUCER,SWING SPEED
PD1020021-01 SWING UNIT
PE1010353-06 DERRICK ASSY
PE1050097-06 CYLINDER,LEVELING
PG1010755-01 BOOM
PG1050349-03 CYLINDER,TELESCOPING
PG1130130-00 DETECTOR,BOOM LENGTH
PH1480017-03 MOTION CONTROLLER (AMC)
PH5032558-00 HARNESS
PH5032773-00 HARNESS
PH5032774-00 HARNESS
PH5032780-00 HARNESS
PH5032784-00 HARNESS
PH5032995-00 HARNESS
PH5033129-00 HARNESS
PH5033130-00 HARNESS (100V POWER SUPPLY)
PH5033131-00 HARNESS (SIGNAL)
PH5033133-00 HARNESS
PH5033134-00 HARNESS
PH5033135-00 HARNESS
PH5033136-00 HARNESS
PH5033137-00 HARNESS
PH5033138-00 HARNESS
PH5033147-00 HARNESS
PH5033148-00 HARNESS
PH5033150-00 HARNESS
PH5034230-00 HARNESS
PH5034310-00 HARNESS (LEVELING CYLINDER)
PI1010074-00 MOTOR,HYDRAULIC (SWING)
PI1010089-01 MOTOR,HYDRAULIC (PLATFORM)
PI1100007-00 VALVE,RELIEF
PI1120183-00 VALVE,SOLENOID
PI1140086-00 VALVE,CHECK
PI1140171-00 VALVE,CHECK
PI1230018-00 VALVE,SHUTTLE
PI1250027-00 VALVE,COUNTERBALANCE
PI1250039-00 VALVE,COUNTERBALANCE
PI1280051-00 VALVE,PILOT CHECK
PJ3010198-01 PLATFORM
PJ3020003-00 FRAME (PLATFORM)
PJ3060001-00 COVER,BEARING (PLATFORM)
PJ3100097-00 PIPING,BOOM
PJ3110018-00 PIPING,PLATFORM
PJ3170003-00 REDUCER,PLATFORM SWING SPEED
PJ3170005-00 REDUCER,PLATFORM SWING SPEED
PJ3180004-03 OPE.ASSY,PLATFORM
PJ3220006-00 JOINT,ROTARY INSTALLATION
PK1010573-00 FRAME
PK1100295-00 SWING FRAME
AT-120S-1 42081100004 UPPER
000015
PK1200336-01 COVER,SWING FRAME
PL1100193-08 BOX,OPERATION
PL1250022-01 VALVE,CONTROL
PM5230001-01 MOTOR,OIL
PN1011679-03 ELEC.ASSY (POWER SOURCE, UPPER,3.3/2.5M)
PN1011942-03 ELEC.ASSY (PLATFORM,4.2M)
PN1011943-02 ELEC.ASSY (POWER SOURCE,UPPER,4.2M)
PN1011944-02 ELEC.ASSY (POWER SOURCE,LOWER)
PN1012312-02 ELEC.ASSY (BOOM)
PN1012313-01 ELEC.ASSY (DETECTOR)
PN1012315-02 ELEC.ASSY (SWING FRAME)
PN1012893-01 ELEC.ASSY (FRAME)
PN1013100-01 ELEC.ASSY
PN1013101-01 ELEC.ASSY
PN1060086-05 SWITCH PANEL
PN1080137-00 LAMP (3.3/2.5M DECK)
PN1110285-01 RELAY
PO1012868-00 PLATE ASSY,NAME (BOX,OPERATION)
PO1013540-01 PLATE ASSY.NAME (UPPER)
PO1013698-01 PLATE ASSY,NAME
PP5450004-00 PUMP,GREASE (400CC)
PS5530449-00 SWITCH ASSY
PW1010235-04 ACCESSORIES
PW1030049-01 TOOLS
PW1050018-01 WEDGE (STOPPER FOR TIRE/JUSTIN)
PW5110002-00 WEDGE (STOPPER FOR TIRE/WAZUMI)
PW5110003-00 WEDGE (STOPPER FOR TIRE/NAKAMURA KIKI)
PX1260144-01 STEP (SWING FRAME)
PX1260146-00 STEP (BOOM)
PY1090001-00 BELT,SAFETY
PY1090006-00 BELT,SAFETY
PY1180217-01 LAMP (4.2M/POWER GATE DECK)
PY1910021-00 HOSE (FOR GREASE PUMP)
PY1930004-00 BLOCK,RUBBER (WAZUMI)
PY1930005-00 BLOCK,RUBBER (NAKAMURA)
