Tadano Crane AT-120S-1 42081120100 LOWER MITSUBISHI KC-FE568C Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-120S-1 42081120100 LOWER MITSUBISHI KC-FE568C Spare Parts Catalog Manual – PDF DOWNLOAD

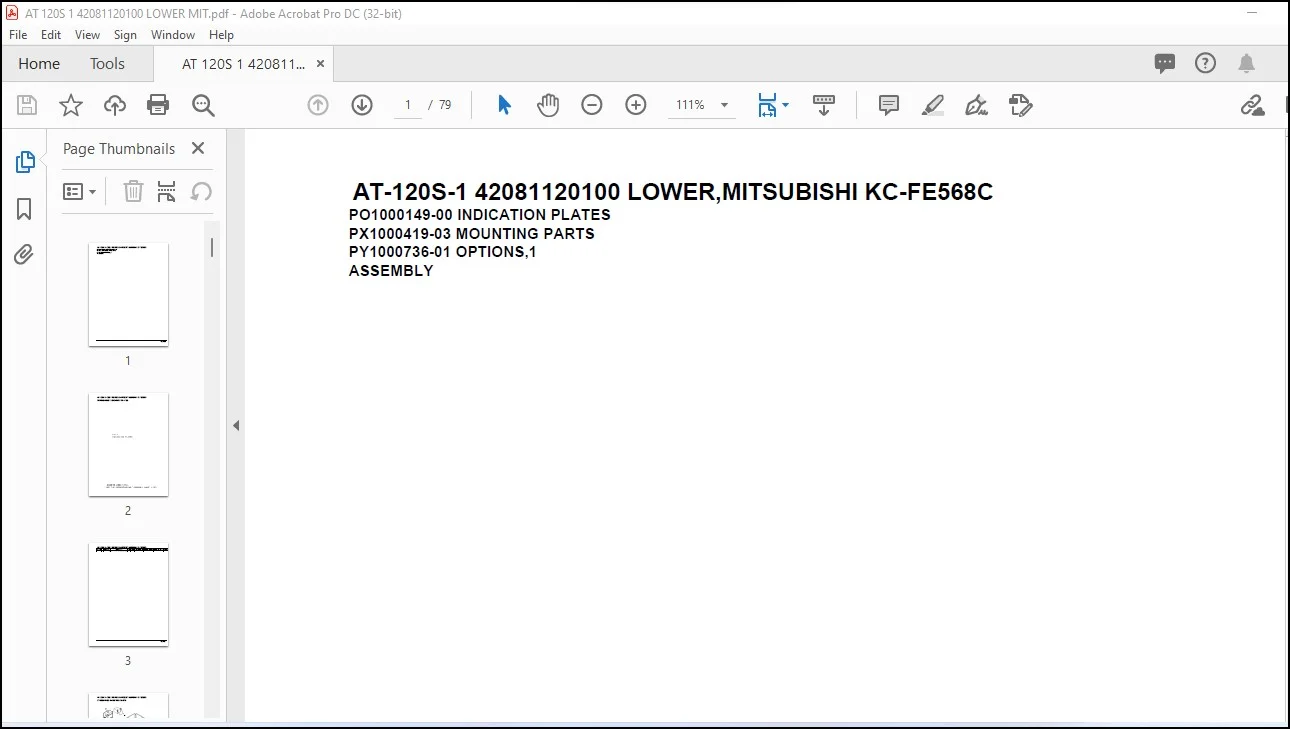

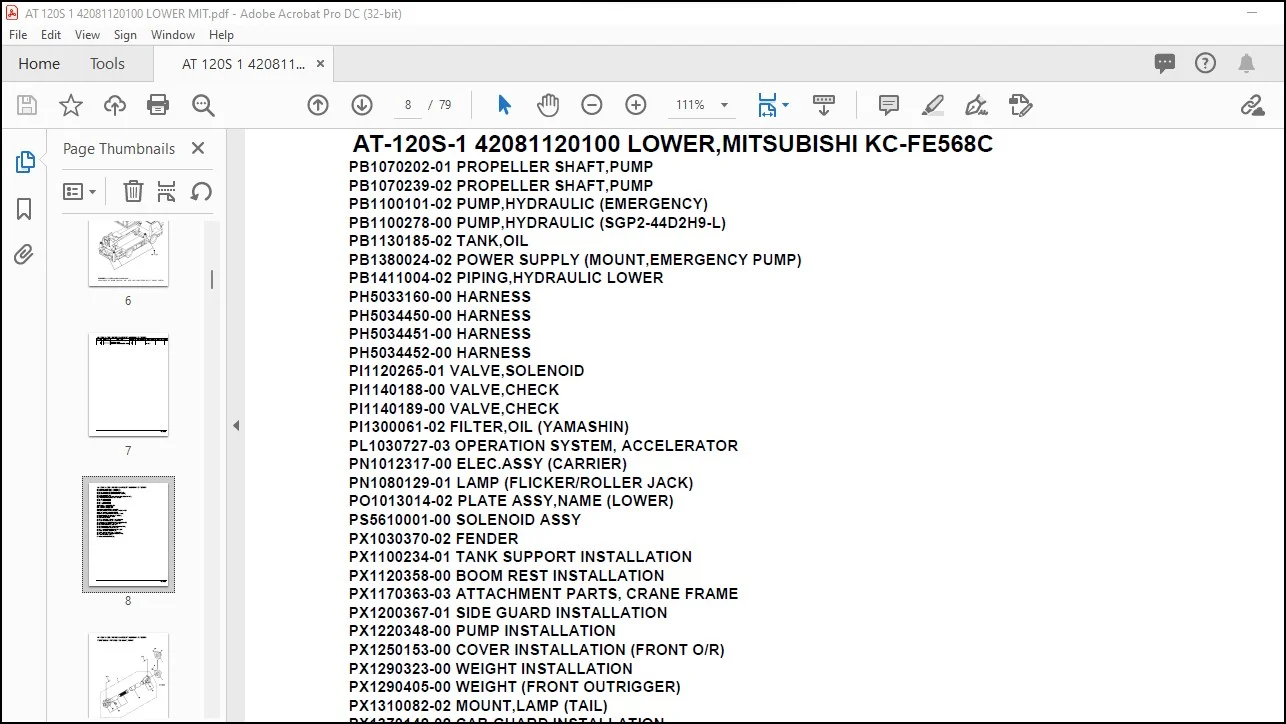

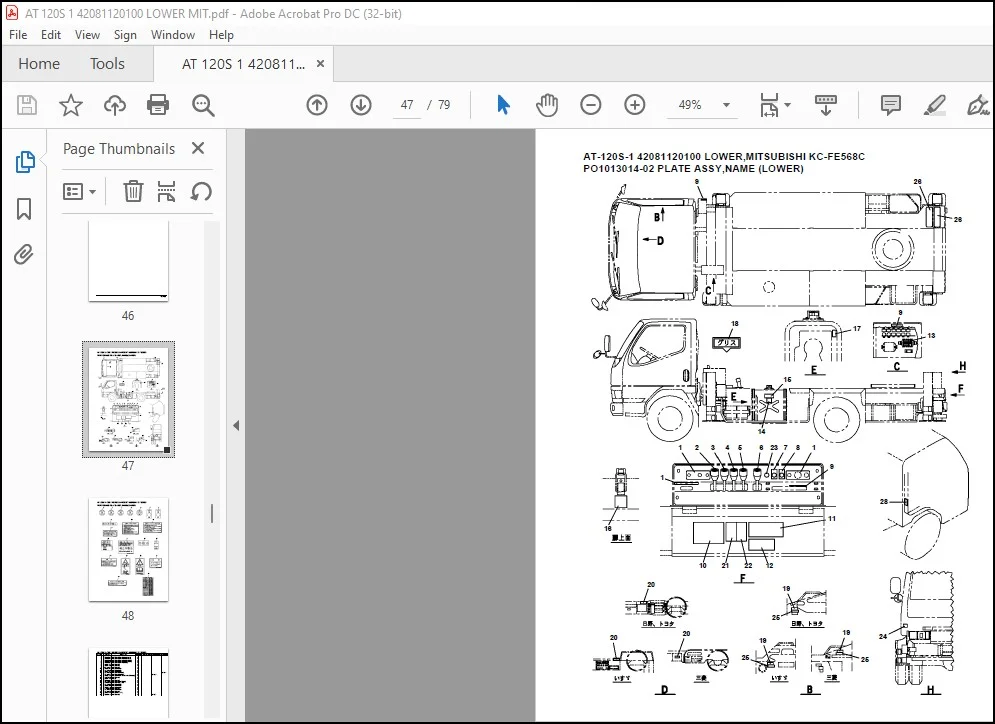

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AT-120S-1 42081120100 LOWER MITSUBISHI KC-FE568C Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :79
Downloadable : Yes
File Type : PDF
Size:1.00 MB
TABLE OF CONTENTS:

Tadano Crane AT-120S-1 42081120100 LOWER MITSUBISHI KC-FE568C Spare Parts Catalog Manual – PDF DOWNLOAD

AT-120S-1 42081120100 LOWER,MITSUBISHI KC-FE568C
PO1000149-00 INDICATION PLATES
PX1000419-03 MOUNTING PARTS
PY1000736-01 OPTIONS,1
ASSEMBLY

AT-120S-1 42081120100 LOWER,MITSUBISHI KC-FE568C
PB1070202-01 PROPELLER SHAFT,PUMP
PB1070239-02 PROPELLER SHAFT,PUMP
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100278-00 PUMP,HYDRAULIC (SGP2-44D2H9-L)
PB1130185-02 TANK,OIL
PB1380024-02 POWER SUPPLY (MOUNT,EMERGENCY PUMP)
PB1411004-02 PIPING,HYDRAULIC LOWER
PH5033160-00 HARNESS
PH5034450-00 HARNESS
PH5034451-00 HARNESS
PH5034452-00 HARNESS
PI1120265-01 VALVE,SOLENOID
PI1140188-00 VALVE,CHECK
PI1140189-00 VALVE,CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PL1030727-03 OPERATION SYSTEM, ACCELERATOR
PN1012317-00 ELEC.ASSY (CARRIER)
PN1080129-01 LAMP (FLICKER/ROLLER JACK)
PO1013014-02 PLATE ASSY,NAME (LOWER)
PS5610001-00 SOLENOID ASSY
PX1030370-02 FENDER
PX1100234-01 TANK SUPPORT INSTALLATION
PX1120358-00 BOOM REST INSTALLATION
PX1170363-03 ATTACHMENT PARTS, CRANE FRAME
PX1200367-01 SIDE GUARD INSTALLATION
PX1220348-00 PUMP INSTALLATION
PX1250153-00 COVER INSTALLATION (FRONT O/R)
PX1290323-00 WEIGHT INSTALLATION
PX1290405-00 WEIGHT (FRONT OUTRIGGER)
PX1310082-02 MOUNT,LAMP (TAIL)
PX1370142-02 CAB GUARD INSTALLATION
PX1390438-00 PARTS,CHASSIS MODIFICATION
PX1410168-02 MOUNT,TIRE
PY1180266-01 LAMP (FLICKER)
