Tadano Crane AT-120S-2 42081240100 LOWER,ISUZU KR-NKR81LV-5JXYB Parts Manual – PDF DOWNLOAD

Description

Tadano Crane AT-120S-2 42081240100 LOWER,ISUZU KR-NKR81LV-5JXYB Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-120S-2 42081240100 LOWER,ISUZU KR-NKR81LV-5JXYB Parts Manual – PDF DOWNLOAD

Language : English
Pages : 81
Downloadable : Yes
File Type : PDF
Size: 0.95 MB

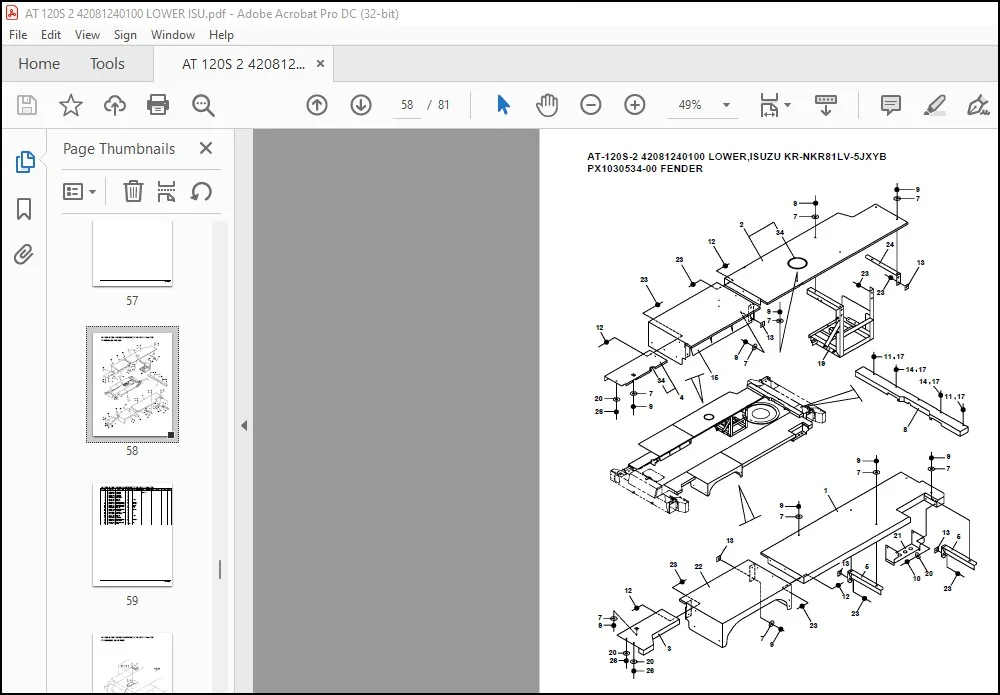

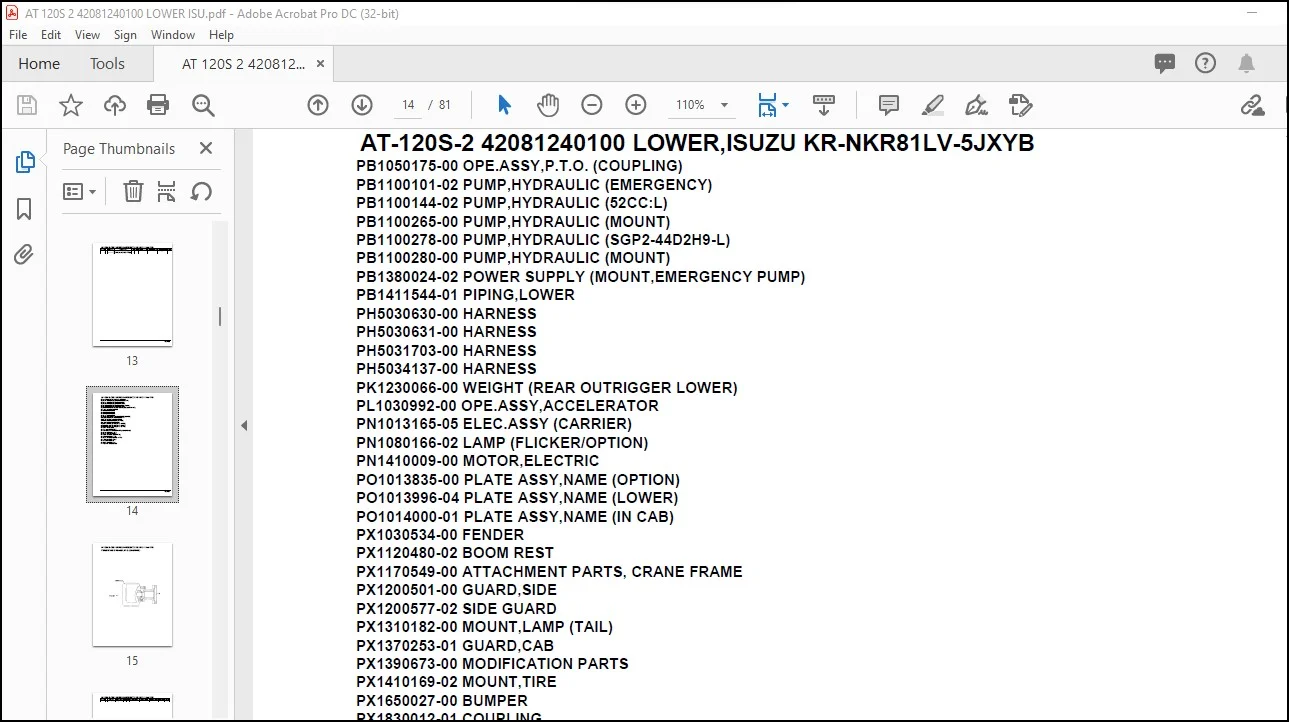

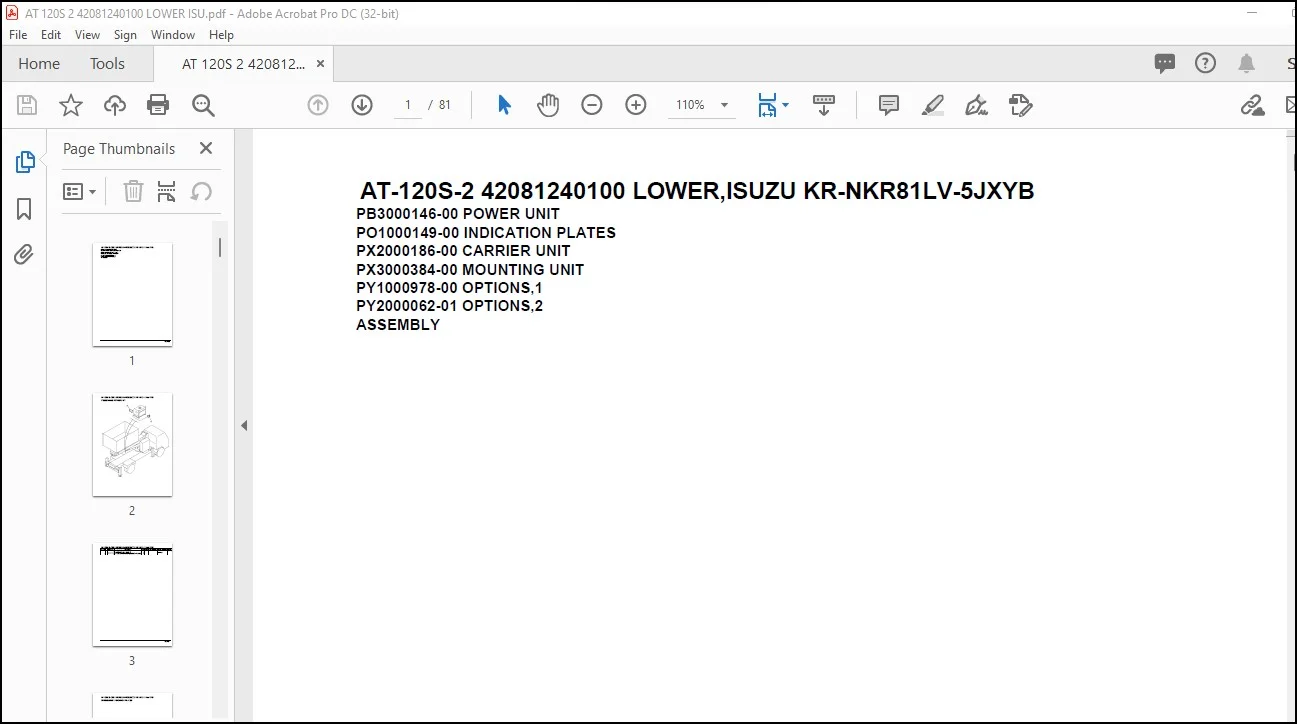

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-120S-2 42081240100 LOWER,ISUZU KR-NKR81LV-5JXYB Parts Manual – PDF DOWNLOAD

AT-120S-2 42081240100 LOWER,ISUZU KR-NKR81LV-5JXYB
PB3000146-00 POWER UNIT
PO1000149-00 INDICATION PLATES
PX2000186-00 CARRIER UNIT
PX3000384-00 MOUNTING UNIT
PY1000978-00 OPTIONS,1
PY2000062-01 OPTIONS,2
ASSEMBLY

AT-120S-2 42081240100 LOWER,ISUZU KR-NKR81LV-5JXYB
PB1050175-00 OPE.ASSY,P.T.O. (COUPLING)
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100144-02 PUMP,HYDRAULIC (52CC:L)
PB1100265-00 PUMP,HYDRAULIC (MOUNT)
PB1100278-00 PUMP,HYDRAULIC (SGP2-44D2H9-L)
PB1100280-00 PUMP,HYDRAULIC (MOUNT)
PB1380024-02 POWER SUPPLY (MOUNT,EMERGENCY PUMP)
PB1411544-01 PIPING,LOWER
PH5030630-00 HARNESS
PH5030631-00 HARNESS
PH5031703-00 HARNESS
PH5034137-00 HARNESS
PK1230066-00 WEIGHT (REAR OUTRIGGER LOWER)
PL1030992-00 OPE.ASSY,ACCELERATOR
PN1013165-05 ELEC.ASSY (CARRIER)
PN1080166-02 LAMP (FLICKER/OPTION)
PN1410009-00 MOTOR,ELECTRIC
PO1013835-00 PLATE ASSY,NAME (OPTION)
PO1013996-04 PLATE ASSY,NAME (LOWER)
PO1014000-01 PLATE ASSY,NAME (IN CAB)
PX1030534-00 FENDER
PX1120480-02 BOOM REST
PX1170549-00 ATTACHMENT PARTS, CRANE FRAME
PX1200501-00 GUARD,SIDE
PX1200577-02 SIDE GUARD
PX1310182-00 MOUNT,LAMP (TAIL)
PX1370253-01 GUARD,CAB
PX1390673-00 MODIFICATION PARTS
PX1410169-02 MOUNT,TIRE
PX1650027-00 BUMPER
PX1830012-01 COUPLING
PY1510041-04 HOUR METER
