Tadano Crane AT-120S-2 42081240900 ISUZU PB-NKR81N-L5NHY Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-120S-2 42081240900 ISUZU PB-NKR81N-L5NHY Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-120S-2 42081240900 ISUZU PB-NKR81N-L5NHY Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 106
Downloadable : Yes
File Type : PDF
Size: 1.15 MB

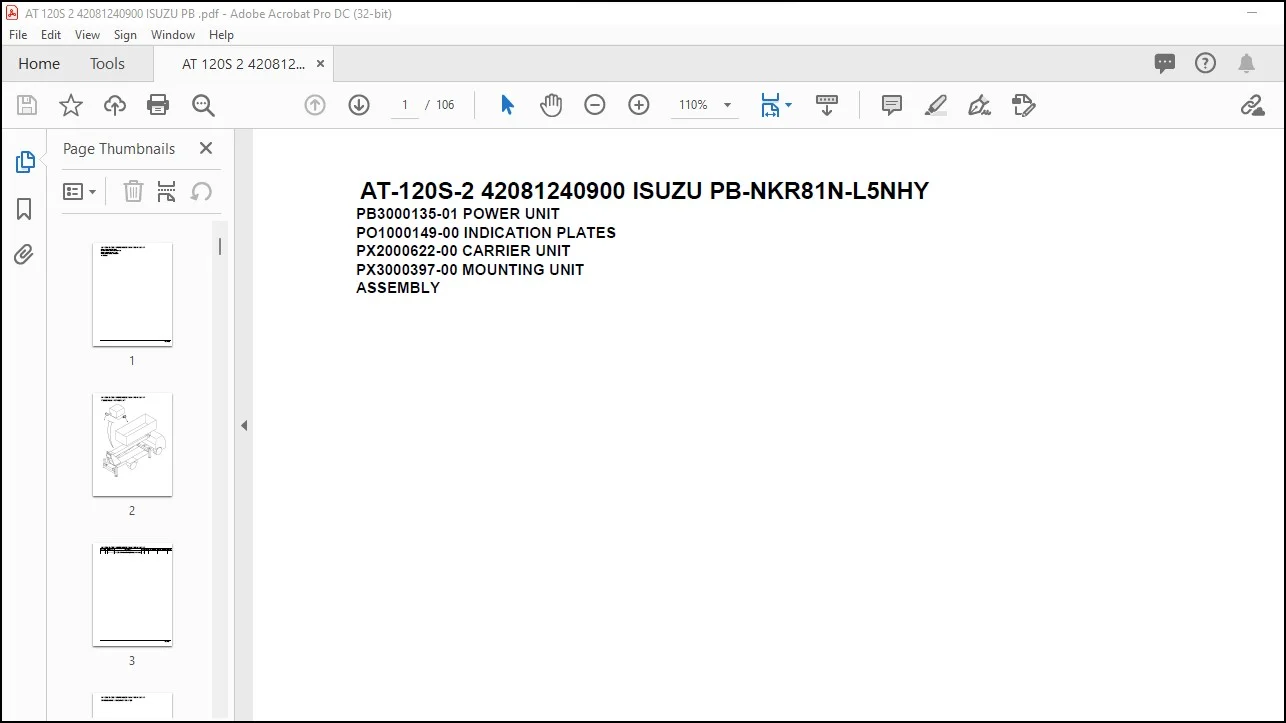

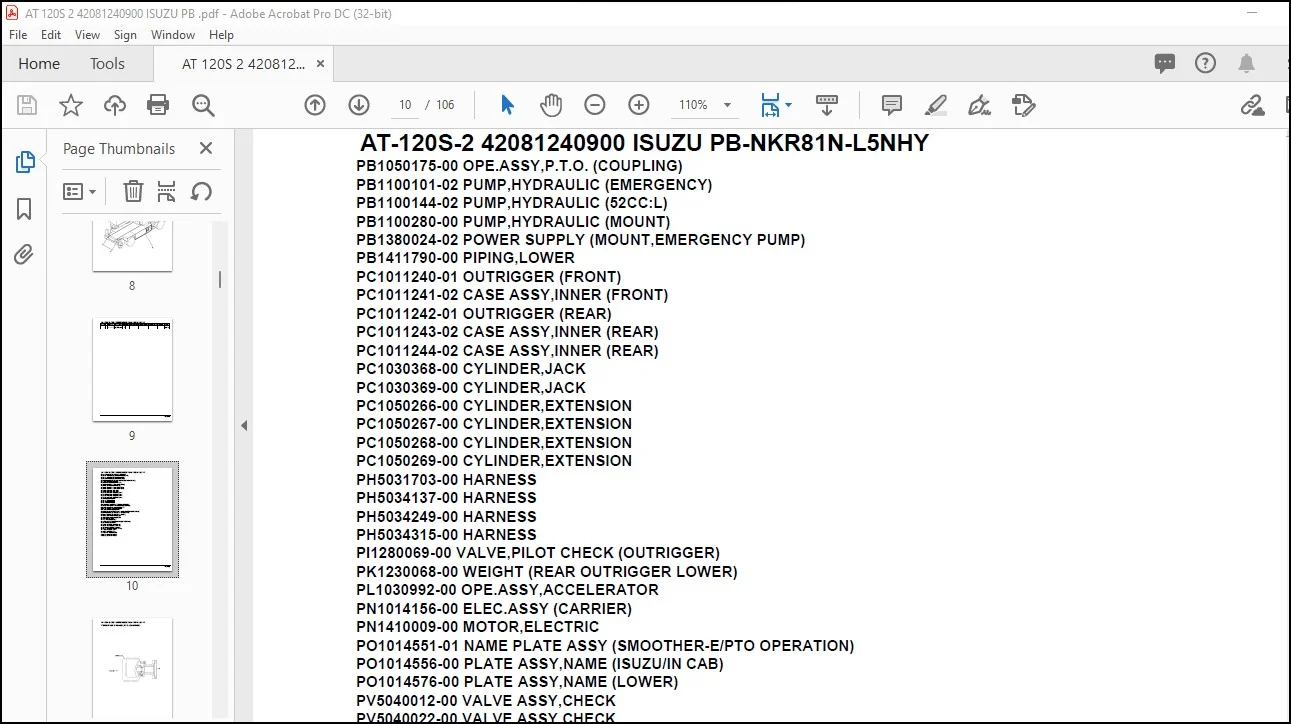

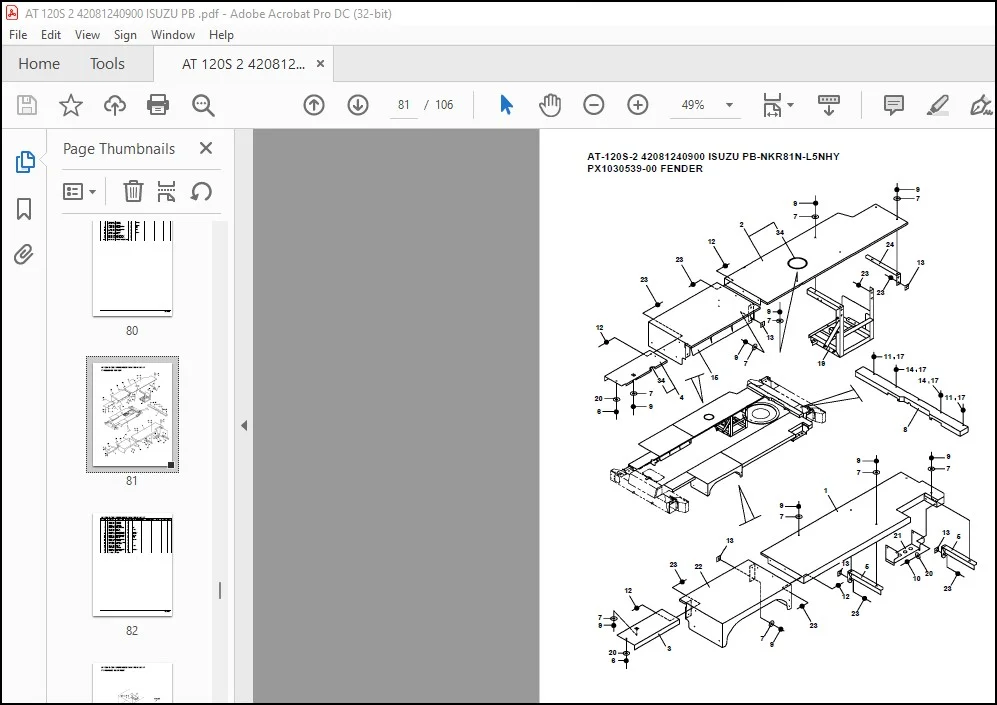

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-120S-2 42081240900 ISUZU PB-NKR81N-L5NHY Parts Catalog Manual – PDF DOWNLOAD

AT-120S-2 42081240900 ISUZU PB-NKR81N-L5NHY
PB3000135-01 POWER UNIT
PO1000149-00 INDICATION PLATES
PX2000622-00 CARRIER UNIT
PX3000397-00 MOUNTING UNIT
ASSEMBLY

AT-120S-2 42081240900 ISUZU PB-NKR81N-L5NHY
PB1050175-00 OPE.ASSY,P.T.O. (COUPLING)
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100144-02 PUMP,HYDRAULIC (52CC:L)
PB1100280-00 PUMP,HYDRAULIC (MOUNT)
PB1380024-02 POWER SUPPLY (MOUNT,EMERGENCY PUMP)
PB1411790-00 PIPING,LOWER
PC1011240-01 OUTRIGGER (FRONT)
PC1011241-02 CASE ASSY,INNER (FRONT)
PC1011242-01 OUTRIGGER (REAR)
PC1011243-02 CASE ASSY,INNER (REAR)
PC1011244-02 CASE ASSY,INNER (REAR)
PC1030368-00 CYLINDER,JACK
PC1030369-00 CYLINDER,JACK
PC1050266-00 CYLINDER,EXTENSION
PC1050267-00 CYLINDER,EXTENSION
PC1050268-00 CYLINDER,EXTENSION
PC1050269-00 CYLINDER,EXTENSION
PH5031703-00 HARNESS
PH5034137-00 HARNESS
PH5034249-00 HARNESS
PH5034315-00 HARNESS
PI1280069-00 VALVE,PILOT CHECK (OUTRIGGER)
PK1230068-00 WEIGHT (REAR OUTRIGGER LOWER)
PL1030992-00 OPE.ASSY,ACCELERATOR
PN1014156-00 ELEC.ASSY (CARRIER)
PN1410009-00 MOTOR,ELECTRIC
PO1014551-01 NAME PLATE ASSY (SMOOTHER-E/PTO OPERATION)
PO1014556-00 PLATE ASSY,NAME (ISUZU/IN CAB)
PO1014576-00 PLATE ASSY,NAME (LOWER)
PV5040012-00 VALVE ASSY,CHECK
PV5040022-00 VALVE ASSY,CHECK
PX1030539-00 FENDER
PX1120480-02 BOOM REST
PX1170699-00 ATTACHMENT PARTS,CRANE FRAME
PX1200586-00 SIDE GUARD
PX1310184-00 MOUNT,LAMP (TAIL)
PX1360087-00 REFLECTOR (REAR)
PX1360088-00 REFLECTOR (SIDE)
PX1390847-01 MODIFICATION PARTS
PX1410169-02 MOUNT,TIRE
PX1830012-01 COUPLING
PY1510041-04 HOUR METER
PY2200029-01 INTERPHONE
PY2200032-00 INTERPHONE
