Tadano Crane AT-120S-2 42081243300 LOWER,ISUZU TKG-NKR85YN-HN5AY-M Parts Manual – PDF DOWNLOAD

Description

Tadano Crane AT-120S-2 42081243300 LOWER,ISUZU TKG-NKR85YN-HN5AY-M Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-120S-2 42081243300 LOWER,ISUZU TKG-NKR85YN-HN5AY-M Parts Manual – PDF DOWNLOAD

Language : English
Pages : 110
Downloadable : Yes
File Type : PDF
Size: 1.3 MB

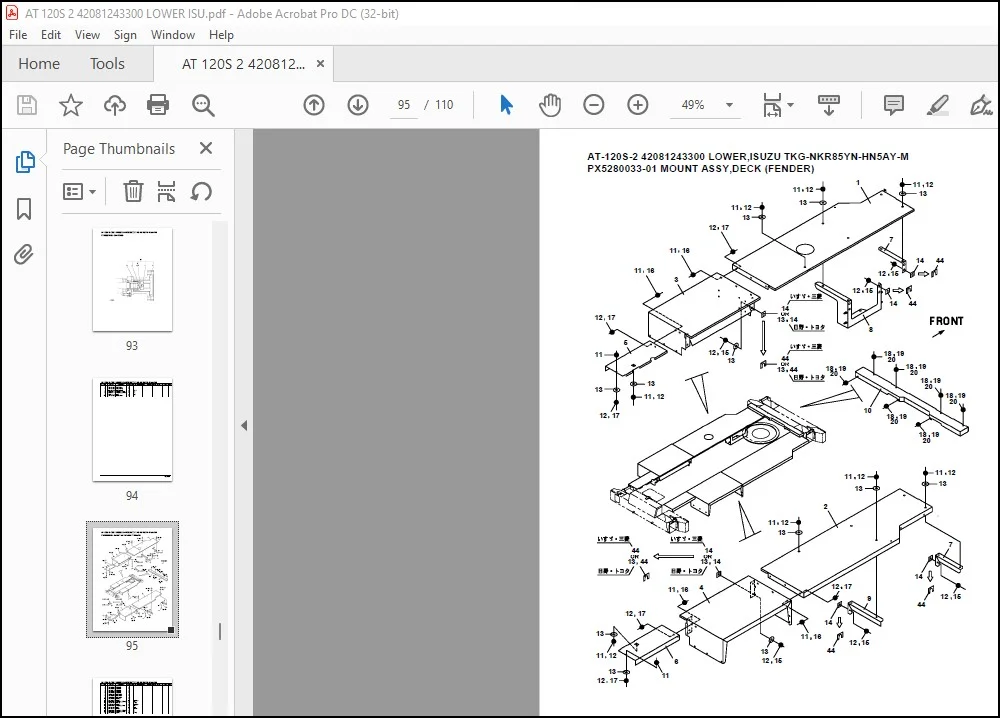

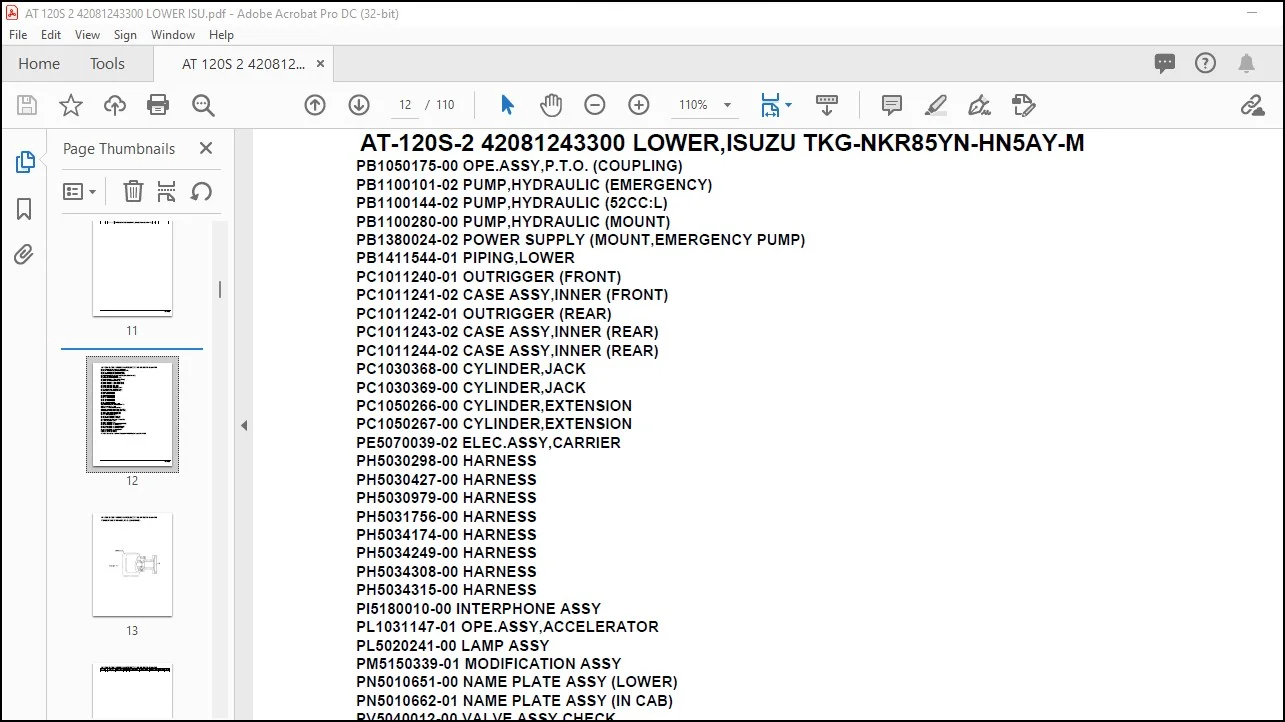

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-120S-2 42081243300 LOWER,ISUZU TKG-NKR85YN-HN5AY-M Parts Manual – PDF DOWNLOAD

AT-120S-2 42081243300 LOWER,ISUZU TKG-NKR85YN-HN5AY-M
PB3000113-00 POWER UNIT
PO1000149-00 INDICATION PLATES
PX2001493-00 CARRIER UNIT
PX3000807-00 MOUNTING UNIT
PY1001635-00 OPTIONS,1
ASSEMBLY

AT-120S-2 42081243300 LOWER,ISUZU TKG-NKR85YN-HN5AY-M
PB1050175-00 OPE.ASSY,P.T.O. (COUPLING)
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1100144-02 PUMP,HYDRAULIC (52CC:L)
PB1100280-00 PUMP,HYDRAULIC (MOUNT)
PB1380024-02 POWER SUPPLY (MOUNT,EMERGENCY PUMP)
PB1411544-01 PIPING,LOWER
PC1011240-01 OUTRIGGER (FRONT)
PC1011241-02 CASE ASSY,INNER (FRONT)
PC1011242-01 OUTRIGGER (REAR)
PC1011243-02 CASE ASSY,INNER (REAR)
PC1011244-02 CASE ASSY,INNER (REAR)
PC1030368-00 CYLINDER,JACK
PC1030369-00 CYLINDER,JACK
PC1050266-00 CYLINDER,EXTENSION
PC1050267-00 CYLINDER,EXTENSION
PE5070039-02 ELEC.ASSY,CARRIER
PH5030298-00 HARNESS
PH5030427-00 HARNESS
PH5030979-00 HARNESS
PH5031756-00 HARNESS
PH5034174-00 HARNESS
PH5034249-00 HARNESS
PH5034308-00 HARNESS
PH5034315-00 HARNESS
PI5180010-00 INTERPHONE ASSY
PL1031147-01 OPE.ASSY,ACCELERATOR
PL5020241-00 LAMP ASSY
PM5150339-01 MODIFICATION ASSY
PN5010651-00 NAME PLATE ASSY (LOWER)
PN5010662-01 NAME PLATE ASSY (IN CAB)
PV5040012-00 VALVE ASSY,CHECK
PV5040022-00 VALVE ASSY,CHECK
PX1120480-02 BOOM REST
PX1360087-00 REFLECTOR (REAR)
PX1360088-00 REFLECTOR (SIDE)
PX1370135-03 CAB GUARD INSTALLATION
PX1410169-02 MOUNT,TIRE
PX1830012-01 COUPLING
PX5280033-01 MOUNT ASSY,DECK (FENDER)
PX5360059-01 MOUNT ASSY,FRAME
PX5650030-00 MOUNT ASSY,SIDE GUARD
PX5740033-00 MOUNT ASSY,TAIL LAMP
PX5820041-00 MOUNT ASSY,WEIGHT
PY2200029-01 INTERPHONE
PY2200032-00 INTERPHONE
PY5170042-00 ALARM ASSY (ISUZU 2009,O-TYPE, EFFLUENTGAS DEPURATOR)
