Tadano Crane AT-121-2 43007200034 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-121-2 43007200034 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane AT-121-2 43007200034 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 336
Downloadable : Yes
File Type : PDF
Size: 4.69 MB

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-121-2 43007200034 UPPER Spare Parts Catalog Manual – PDF DOWNLOAD

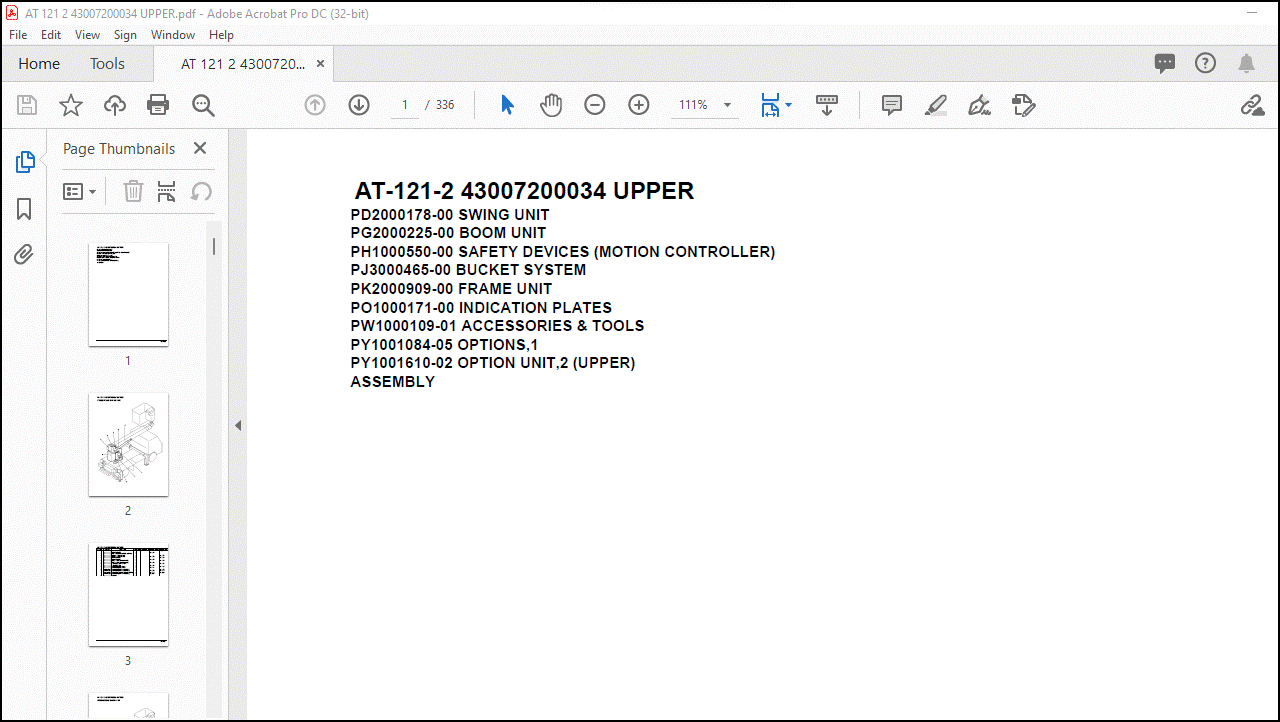

AT-121-2 43007200034 UPPER
PD2000178-00 SWING UNIT
PG2000225-00 BOOM UNIT
PH1000550-00 SAFETY DEVICES (MOTION CONTROLLER)
PJ3000465-00 BUCKET SYSTEM
PK2000909-00 FRAME UNIT
PO1000171-00 INDICATION PLATES
PW1000109-01 ACCESSORIES & TOOLS
PY1001084-05 OPTIONS,1
PY1001610-02 OPTION UNIT,2 (UPPER)
ASSEMBLY

AT-121-2 43007200034 UPPER

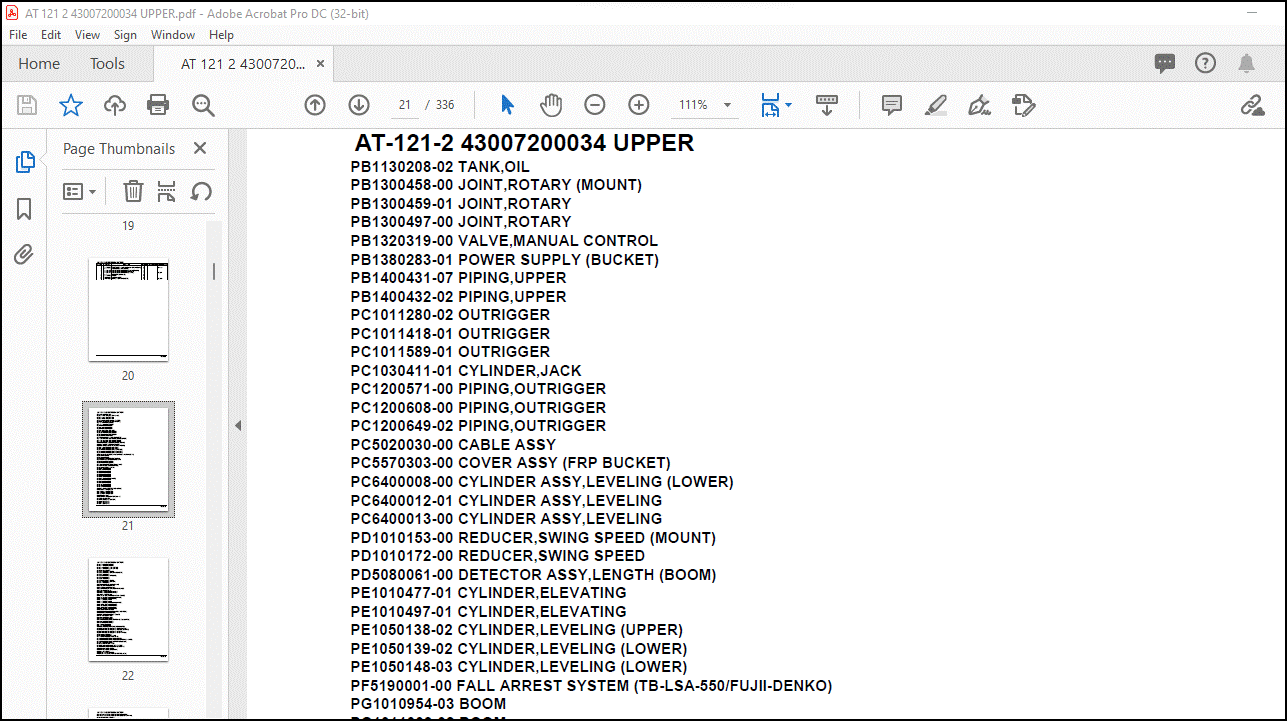

PB1130208-02 TANK,OIL
PB1300458-00 JOINT,ROTARY (MOUNT)
PB1300459-01 JOINT,ROTARY

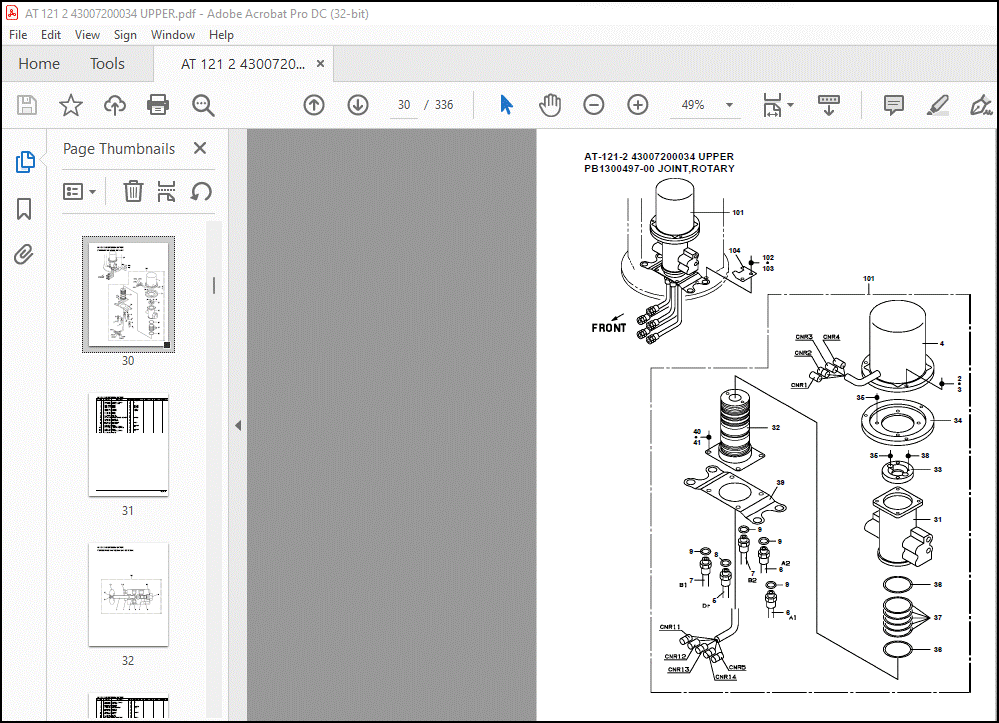

PB1300497-00 JOINT,ROTARY
PB1320319-00 VALVE,MANUAL CONTROL
PB1380283-01 POWER SUPPLY (BUCKET)
PB1400431-07 PIPING,UPPER
PB1400432-02 PIPING,UPPER
PC1011280-02 OUTRIGGER
PC1011418-01 OUTRIGGER
PC1011589-01 OUTRIGGER
PC1030411-01 CYLINDER,JACK
PC1200571-00 PIPING,OUTRIGGER
PC1200608-00 PIPING,OUTRIGGER
PC1200649-02 PIPING,OUTRIGGER
PC5020030-00 CABLE ASSY
PC5570303-00 COVER ASSY (FRP BUCKET)
PC6400008-00 CYLINDER ASSY,LEVELING (LOWER)
PC6400012-01 CYLINDER ASSY,LEVELING
PC6400013-00 CYLINDER ASSY,LEVELING
PD1010153-00 REDUCER,SWING SPEED (MOUNT)
PD1010172-00 REDUCER,SWING SPEED
PD5080061-00 DETECTOR ASSY,LENGTH (BOOM)
PE1010477-01 CYLINDER,ELEVATING
PE1010497-01 CYLINDER,ELEVATING
PE1050138-02 CYLINDER,LEVELING (UPPER)
PE1050139-02 CYLINDER,LEVELING (LOWER)
PE1050148-03 CYLINDER,LEVELING (LOWER)
PF5190001-00 FALL ARREST SYSTEM (TB-LSA-550/FUJII-DENKO)
PG1010954-03 BOOM
PG1011003-02 BOOM
PG1050662-03 CYLINDER,TELESCOPING
PG1120233-01 DETECTOR,BOOM LENGTH
PG1220166-00 PIPING,BOOM
PG1220182-00 PIPING,BOOM
PH1480045-00 MOTION CONTROLLER (AMC)
PH1540041-03 ELEC.ASSY (FOOT SW)
PH1550031-01 TOUCH SWITCH
PH5030277-00 HARNESS
PH5030430-00 HARNESS
PH5030754-00 HARNESS
PH5030975-00 HARNESS
PH5031288-00 HARNESS
PH5031289-00 HARNESS
PH5031291-00 HARNESS
PH5031314-00 HARNESS (L=1700)
PH5031315-00 HARNESS
PH5031318-00 HARNESS
PH5031319-00 HARNESS
PH5032117-00 HARNESS
PH5033080-00 HARNESS
PH5034138-00 HARNESS
PI1010074-00 MOTOR,HYDRAULIC (SWING)
PI1100132-01 VALVE,RELIEF
PI1140133-01 VALVE,CHECK
PI1140216-00 VALVE,CHECK
PI1140227-00 VALVE,CHECK
PI1240061-00 VALVE
PI1250137-00 VALVE,COUNTERBALANCE
PJ3010308-00 BUCKET
PK1011190-02 FRAME (BUCKET)
PK1011191-01 FRAME
PK1011317-01 FRAME
PK1011442-00 FRAME
AT-121-2 43007200034 UPPER
PK1100459-00 SWING FRAME
PK1100474-00 SWING FRAME
PK1200445-00 COVER,SWING FRAME
PK1200461-00 COVER,SWING FRAME
PK1230165-01 WEIGHT
PK1330332-00 COVER (BOOM)
PK1330333-02 COVER (BASKET OR BUCKET)
PK1330334-00 COVER
PK1330336-00 COVER (CYLINDER)
PK1330340-00 COVER
PK1330387-02 COVER
PK1330394-01 COVER (BOOM)
PK1330439-02 COVER (BUCKET)
PK1330461-00 COVER
PL1011120-01 OPE.ASSY,CONT.VALVE
PL1250053-00 VALVE,CONTROL
PL1250078-01 VALVE,CONTROL
PL1920054-05 OPE.ASSY (BASKET OR BUCKET)
PL1920062-03 OPE.ASSY
PM5150185-00 MODIFICATION ASSY
PM5150186-00 MODIFICATION ASSY
PM5230001-01 MOTOR,OIL
PN1013972-04 ELEC.ASSY (BUCKET OR BASKET)
PN1013974-01 ELEC.ASSY (SWING FRAME)
PN1014336-00 ELEC.ASSY (BOOM)
PN1014413-02 ELEC.ASSY
PN1014414-02 ELEC.ASSY
PN1014421-00 ELEC.ASSY (SWING FRAME)
PN1014502-04 ELEC.ASSY (FRAME)
PN1014651-02 ELEC.ASSY (FRAME)
PN1014657-01 ELEC.ASSY (BOOM)
PN1015017-02 ELEC.ASSY (FRAME)
PN1060297-01 SWITCH PANEL
PN1080275-02 LAMP (LIGHTING/LOWER CONTROLS)
PN1080362-03 LAMP (WORKING)
PN1080384-02 LAMP (MARKER:YELLOW)
PN1110449-03 RELAY ASSY
PN1110550-00 RELAY ASSY
PN1140141-01 SWITCH ASSY
PN1140153-00 SWITCH ASSY (WITH HARNESS,3 SWITCH)
PN1140155-00 SWITCH ASSY
PN1140179-00 SWITCH ASSY
PN1450010-01 HARNESS
PN1450142-00 HARNESS
PN5010259-00 NAME PLATE ASSY (IDLING STOP)
PO1013121-01 PLATE ASSY,NAME (HYDRAULIC OIL)
PO1014634-01 PLATE ASSY,NAME (OIL/COLD DISTRICT)
PO1014723-03 PLATE ASSY,NAME (VEHICLE)
PO1014784-01 PLATE ASSY,NAME (SPECIFICATION)
PO5010003-03 OPE.ASSY
PO5270049-00 OUTRIGGER ASSY
PP5450004-00 PUMP,GREASE (400CC)
PS5530062-00 SWITCH ASSY (IDLING STOP)
PS5530063-00 SWITCH ASSY (IDLING STOP+EXH.GAS ALARM)
PS5530089-00 SWITCH ASSY (WITH HARNESS,3 SW)
PS5530450-00 SWITCH ASSY
PV1300020-00 CABLE (3 POLE)
PV5010005-00 VALVE ASSY (JACK CONTROL)
PV5070007-00 VALVE ASSY,COUNTERBALANCE
PW1010252-03 ACCESSORIES
PW1010452-00 ACCESSORIES (MAT)
PW1030049-01 TOOLS
PW1050011-00 STOPPER,TIRE
PW1050018-01 WEDGE (STOPPER FOR TIRE/JUSTIN)
AT-121-2 43007200034 UPPER
PW5110002-00 WEDGE (STOPPER FOR TIRE/WAZUMI)
PW5110003-00 WEDGE (STOPPER FOR TIRE/NAKAMURA KIKI)
PX1100281-01 TANK SUPPORT
PX1210145-00 GUARD (BUCKET CONTROL)
PX1270086-01 WOOD BLOCK (W=350,H=80)
PX1360100-00 REFLECTOR (SWING ALIGNMENT MARK)
PY1090001-00 BELT,SAFETY
PY1930004-00 BLOCK,RUBBER (WAZUMI)
PY1930005-00 BLOCK,RUBBER (NAKAMURA)
