Tadano Crane AT-121-4 43007460105 UPPER,LOWER,TOYOTA 2RG-XZU600A-TYTMX6 Spare Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-121-4 43007460105 UPPER,LOWER,TOYOTA 2RG-XZU600A-TYTMX6 Spare Parts Catalog Manual – PDF DOWNLOAD

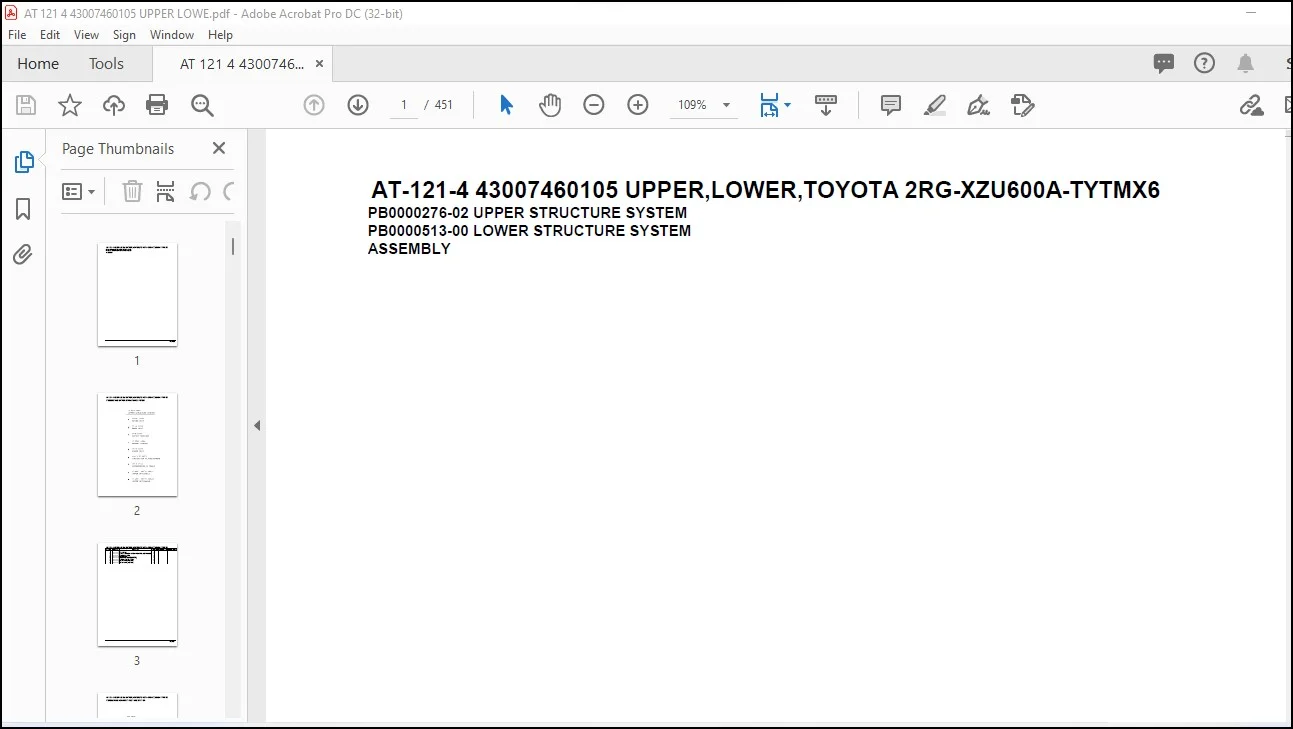

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane AT-121-4 43007460105 UPPER,LOWER,TOYOTA 2RG-XZU600A-TYTMX6 Spare Parts Catalog Manual – PDF DOWNLOAD

AT-121-4 43007460105 UPPER,LOWER,TOYOTA 2RG-XZU600A-TYTMX6
PB0000276-02 UPPER STRUCTURE SYSTEM
PB0000513-00 LOWER STRUCTURE SYSTEM
ASSEMBLY

AT-121-4 43007460105 UPPER,LOWER,TOYOTA 2RG-XZU600A-TYTMX6
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1110007-01 PUMP INSTALLATION
PB3000333-00 POWER UNIT
PB5040027-01 BASKET ASSY
PB5190249-00 BOOM ASSY
PB5260037-00 BOX ASSY
PB5390013-00 BUZZER ASSY
PB5390014-00 BUZZER ASSY
PB5390015-00 BUZZER ASSY
PB5390016-00 VBUZZER ASSY (BUCKET APPROACH WARNING)
PB5610001-00 BASKET FRAME ASSY
PC5390020-00 CONTROL ASSY,OUTRIGGER
PC5410008-01 CONTROL UNIT (FC3)
PC5420006-00 CONTROLLER (GSMT)
PC5530007-00 COUPLING ASSY
PC5570071-00 COVER ASSY (SWING BEARING/BLACK)
PC5570072-00 COVER ASSY (HOSE OF SWING TABLE)
PC5570252-00 COVER ASSY
PC5570271-01 COVER ASSY (BASKET FRAME)
PC5570272-00 COVER ASSY
PC5570274-00 COVER ASSY
PC5570295-00 COVER ASSY
PC5570303-00 COVER ASSY (FRP BUCKET)
PC5570307-00 COVER ASSY
PC6370022-00 CYLINDER ASSY,DERRICK
PC6390106-00 CYLINDER ASSY,JACK
PC6390107-00 CYLINDER ASSY,JACK
PC6400001-00 CYLINDER ASSY,LEVELING (LOWER)
PC6400012-01 CYLINDER ASSY,LEVELING
PC6470174-00 CYLINDER ASSY,TELESCOPING
PD1010153-00 REDUCER,SWING SPEED (MOUNT)
PD1010172-00 REDUCER,SWING SPEED
PD2000286-00 SWING UNIT
PD5020008-00 DERRICK ASSY
PD5080061-00 DETECTOR ASSY,LENGTH (BOOM)
PE1050138-02 CYLINDER,LEVELING (UPPER)
PE5020676-03 ELEC.ASSY (TELEMATICS)
PE5020970-00 ELEC.ASSY (JACK HORIZONTAL)
PE5021371-00 ELEC.ASSY
PE5021372-00 ELEC.ASSY
PE5021374-00 ELEC.ASSY
PE5021377-00 ELEC.ASSY
PE5021403-00 ELEC.ASSY
PE5021404-00 ELEC.ASSY
PE5040002-00 ELEC.ASSY,BASKET
PE5050028-00 ELEC.ASSY,BOOM
PE5070167-00 ELEC.ASSY,CARRIER
PE5110109-01 ELEC.ASSY,FRAME
PE5190041-00 ELEC.ASSY,SWING FRAME
PF5050012-00 FLOAT ASSY
PF5050019-00 FLOAT ASSY
PF5100521-00 FRAME ASSY
PF5190001-00 FALL ARREST SYSTEM (TB-LSA-550/FUJII-DENKO)
PG1120233-01 DETECTOR,BOOM LENGTH
PG2000387-00 BOOM UNIT
PG5090004-01 GEAR ASSY
PG5200021-00 GUARD ASSY (HANDRAIL/BASKET)
PG5200025-00 GUARD ASSY (UPPER PARTS RACK ON RIGHT TOOL BOX)
PH1000633-00 SAFETY DEVICES (AUTOMATIC MOTION CONTROLLER)
PH1540040-02 FOOT SWITCH
PH5031288-00 HARNESS
PH5031289-00 HARNESS
PH5031401-01 HARNESS
PH5031984-00 HARNESS
PH5031985-02 HARNESS
PH5033322-00 HARNESS
PH5033686-00 HARNESS
PH5034138-00 HARNESS
PH5034139-00 HARNESS
PH5034140-00 HARNESS
PH5034144-00 HARNESS
PH5034148-00 HARNESS
PH5034151-00 HARNESS
PH5034157-00 HARNESS
PH5034171-00 HARNESS
PH5034172-00 HARNESS
PH5034175-00 HARNESS
PH5034181-00 HARNESS
PH5034340-00 HARNESS
PH5034378-00 HARNESS
PH5034411-00 HARNESS
PH5034429-00 HARNESS
PH5034474-00 HARNESS
PI1140133-01 VALVE,CHECK
PI1140167-00 VALVE,CHECK (UZUMAKI)
PI1140227-00 VALVE,CHECK
PI1250137-00 VALVE,COUNTERBALANCE
PI1300061-02 FILTER,OIL (YAMASHIN)
PJ3000610-01 BASKET SYSTEM
PJ5090128-00 JOINT ASSY,SWIVEL
PK2002391-00 FRAME UNIT
PL1031085-00 OPE.ASSY,ACCELERATOR
PL5020050-01 LAMP ASSY (LOWER O/R OPERATION)
PL5020192-00 LAMP ASSY (SQUARE TYPE)
PL5020236-00 LAMP ASSY
PL5020243-01 LAMP ASSY
PL5020253-00 LAMP ASSY (EXHAUST GAS ALARM)
PM5150489-00 MODIFICATION ASSY (YELLOW MARKER LAMP/LED)
PM5151054-00 MODIFICATION ASSY
PM5151094-00 MODIFICATION ASSY
PM5230001-01 MOTOR,OIL
PN1140164-00 SWITCH ASSY (WITH HARNESS,3 SW)
PN5011627-00 NAME PLATE ASSY (TELEMATICS)
PN5012207-01 NAME PLATE ASSY
PN5012209-01 NAME PLATE ASSY
PN5012210-01 NAME PLATE ASSY
PN5012213-00 NAME PLATE ASSY (UPPER CONTROLS)
PN5012214-00 NAME PLATE ASSY (HYDRAULIC OIL/STD)
PN5012215-00 NAME PLATE ASSY (HYDRAULIC OIL/COLD DISTRICT)
PN5012244-00 NAME PLATE ASSY (INSIDE CAB/ISUZU,MITSUBISHI)
PN5012246-01 NAME PLATE ASSY (LOWER CONTROLS)
PN5012247-02 NAME PLATE ASSY (VEHICLE)
PN5012248-01 NAME PLATE ASSY (TADANO,RELAY BOX,NON-SLIP,FUSE)
PN5012273-00 NAME PLATE ASSY
PN5012274-01 NAME PLATE ASSY
PN5012276-00 NAME PLATE ASSY (FC3)
PN5012277-00 NAME PLATE ASSY
PN5012331-00 NAME PLATE ASSY (INSIDE CAB/HINO,TOYOTA)
PN5012398-00 NAME PLATE ASSY (BASKET CONTROLS)
PO1000182-00 INDICATION PLATES (UPPER)
PO1000183-00 INDICATION PLATES (LOWER)
PO5010061-01 OPE.ASSY (SUB UNIT)
PO5010062-00 OPE.ASSY
PO5030002-01 OPE.ASSY,BASKET
PO5080323-00 OPE.ASSY,CONT.VALVE
PO5270415-00 OUTRIGGER ASSY
PO5270436-00 OUTRIGGER ASSY
PP5100213-00 PARTS ASSY,ELECTRICITY
PP5100215-00 PARTS ASSY,ELECTRICITY
PP5100216-00 PARTS ASSY,ELECTRICITY
PP5100217-01 PARTS ASSY,ELECTRICITY
PP5100218-00 PARTS ASSY,ELECTRICITY
PP5340037-00 POWER SUPPLY ASSY,ELECTRICITY
PP5450004-00 PUMP,GREASE (400CC)
PP5500003-00 PUMP,OIL (32CC:L)
PP6060032-00 PIPING ASSY,BOOM
PP6130074-02 PIPING ASSY,FRAME
PP6210066-00 PIPING ASSY,MOUNTING
PP6330028-00 PIPING ASSY,SWING FRAME
PR5210001-00 RELAY (WITH HARNESS)
PS5010028-00 SAFETY ASSY (BASKET TOUCH SWITCH,R SPEC.)
PS5510083-00 SWING FRAME ASSY
PS5530130-00 SWITCH ASSY (WITH HARNESS,3 SW)
PS5530189-01 SWITCH ASSY (WITH HARNESS,3 SW)
PS5530332-00 SWITCH ASSY (WITH HARNESS,5 SW)
PS5530450-00 SWITCH ASSY
PS5530469-00 SWITCH ASSY
PS5530470-00 SWITCH ASSY
PS5530474-00 SWITCH ASSY
PS5530478-00 SWITCH ASSY
PT5130109-00 TELESCOPE ASSY
PT5390006-00 TANK
PV1300020-00 CABLE (3 POLE)
PV5010007-00 VALVE ASSY (JACK CONTROL)
PV5070007-00 VALVE ASSY,COUNTERBALANCE
PV5140017-00 VALVE ASSY,RELIEF
PV5150017-00 VALVE ASSY,REMOTE CONTROL
PV5170018-00 VALVE ASSY,SELECTOR
PW1000118-00 ACCESSORIES & TOOLS
PW1010252-03 ACCESSORIES
PW1030049-01 TOOLS
PW1050011-00 STOPPER,TIRE
PW1050018-01 WEDGE (STOPPER FOR TIRE/JUSTIN)
PW5020068-00 WEIGHT ASSY
PX1270086-01 WOOD BLOCK (W=350,H=80)
PX1370218-02 GUARD,CAB
PX2001937-00 CARRIER UNIT
PX3000933-00 MOUNTING UNIT
PX5010673-00 MOUNT ASSY
PX5010683-01 MOUNT ASSY
PX5010684-00 MOUNT ASSY
PX5010685-00 MOUNT ASSY
PX5110070-00 MOUNT ASSY,BOOM SUPPORT
PX5110073-00 MOUNT ASSY,BOOM SUPPORT
PX5260039-00 MOUNT ASSY,COVER
PX5260041-00 MOUNT ASSY,COVER
PX5260042-00 MOUNT ASSY,COVER
PX5260046-00 MOUNT ASSY,COVER
PX5280091-02 MOUNT ASSY,DECK
PX5280094-00 MOUNT ASSY,DECK
PX5290012-00 MOUNT ASSY,DECK ON (CAB ENTIRE SURFACE PROTECTION)
PX5290030-00 MOUNT ASSY,DECK ON CAB (FRONT GLASS PROTECTION)
PX5290031-00 MOUNT ASSY,DECK ON CAB (FRONT GLASS PROTECTION)
PX5300008-00 MOUNT ASSY,EMERGENCY PUMP
PX5340019-00 MOUNT ASSY,EXTINGUISHER
PX5360179-00 MOUNT ASSY,FRAME
PX5580003-00 MOUNT ASSY,PTO
PX5670034-00 MOUNT ASSY,STEP
PX5670072-01 MOUNT ASSY,STEP
PX5670075-01 MOUNT ASSY,STEP (BOARDING STEP)
PX5730019-00 MOUNT ASSY,SWIVEL JOINT
PX5740100-00 MOUNT ASSY,TAIL LAMP
AT-121-4 43007460105 UPPER,LOWER,TOYOTA 2RG-XZU600A-TYTMX6
000003
PX5760040-01 MOUNT ASSY,TANK SUPPORT
PX5770005-00 MOUNT ASSY,TIRE
PX5770010-00 MOUNT ASSY,TIRE
PX5770023-01 MOUNT ASSY,TIRE
PX5780580-00 MOUNT ASSY,TOOL BOX
PX5780581-00 MOUNT ASSY,TOOL BOX
PX5800008-00 MOUNT ASSY,VOICE ALARM
PX5820173-00 MOUNT ASSY,WEIGHT
PY1001610-02 OPTION UNIT,2 (UPPER)
PY1001958-02 OPTION UNIT,1 (UPPER)
PY1090001-00 BELT,SAFETY
PY4000082-02 OPTION UNIT,1 (LOWER)
PY5020181-00 ACCESSORIES ASSY (WITHOUT BLOCK,RUBBER)
PY5310003-00 AUTOMATIC MOTION CONTROLLER
