Tadano Crane AT-140-2 42002200003 UPPER Parts Catalog Manual – PDF DOWNLOAD

Description

Tadano Crane AT-140-2 42002200003 UPPER Parts Catalog Manual – PDF DOWNLOAD

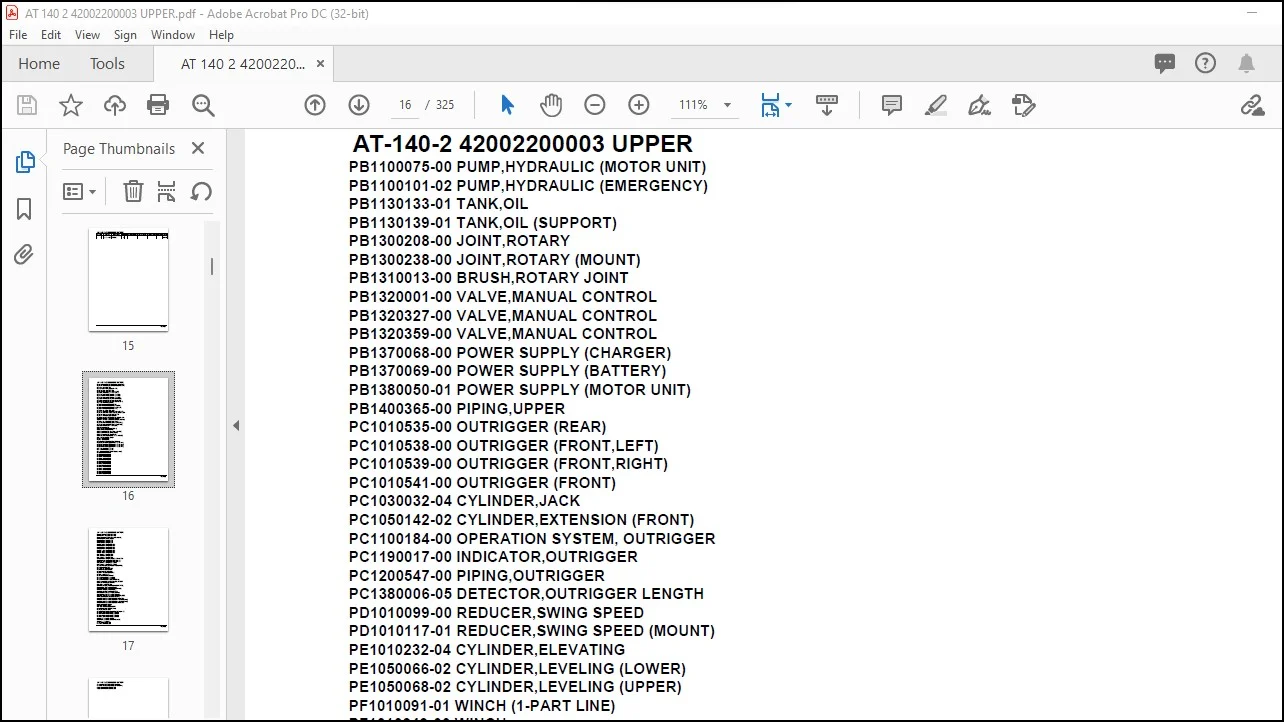

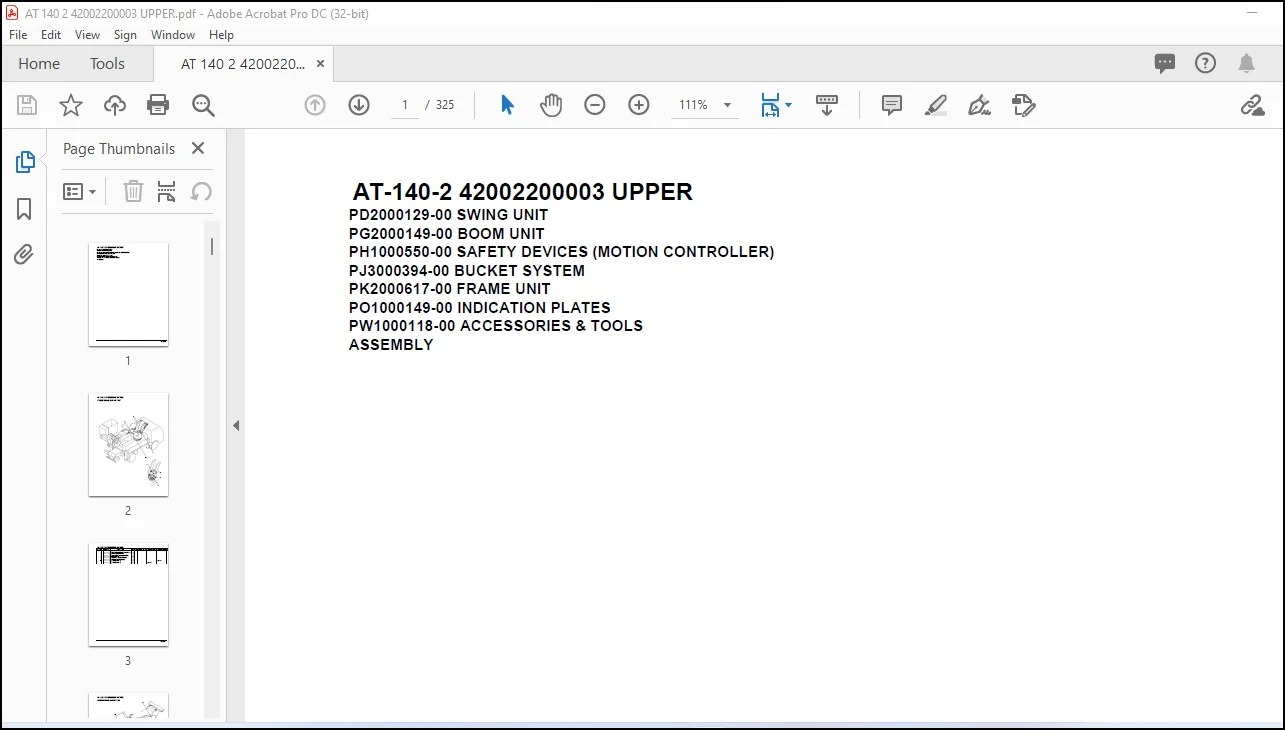

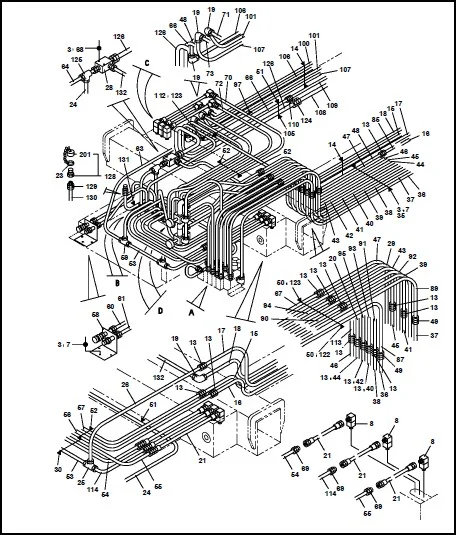

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Tadano Crane AT-140-2 42002200003 UPPER Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :325
Downloadable : Yes
File Type : PDF
Size:4.95 mb
TABLE OF CONTENTS:

Tadano Crane AT-140-2 42002200003 UPPER Parts Catalog Manual – PDF DOWNLOAD

AT-140-2 42002200003 UPPER
PD2000129-00 SWING UNIT
PG2000149-00 BOOM UNIT
PH1000550-00 SAFETY DEVICES (MOTION CONTROLLER)
PJ3000394-00 BUCKET SYSTEM
PK2000617-00 FRAME UNIT
PO1000149-00 INDICATION PLATES
PW1000118-00 ACCESSORIES & TOOLS
ASSEMBLY

AT-140-2 42002200003 UPPER
PB1100075-00 PUMP,HYDRAULIC (MOTOR UNIT)
PB1100101-02 PUMP,HYDRAULIC (EMERGENCY)
PB1130133-01 TANK,OIL
PB1130139-01 TANK,OIL (SUPPORT)
PB1300208-00 JOINT,ROTARY
PB1300238-00 JOINT,ROTARY (MOUNT)
PB1310013-00 BRUSH,ROTARY JOINT
PB1320001-00 VALVE,MANUAL CONTROL
PB1320327-00 VALVE,MANUAL CONTROL
PB1320359-00 VALVE,MANUAL CONTROL
PB1370068-00 POWER SUPPLY (CHARGER)
PB1370069-00 POWER SUPPLY (BATTERY)
PB1380050-01 POWER SUPPLY (MOTOR UNIT)
PB1400365-00 PIPING,UPPER
PC1010535-00 OUTRIGGER (REAR)
PC1010538-00 OUTRIGGER (FRONT,LEFT)
PC1010539-00 OUTRIGGER (FRONT,RIGHT)
PC1010541-00 OUTRIGGER (FRONT)
PC1030032-04 CYLINDER,JACK
PC1050142-02 CYLINDER,EXTENSION (FRONT)
PC1100184-00 OPERATION SYSTEM, OUTRIGGER
PC1190017-00 INDICATOR,OUTRIGGER
PC1200547-00 PIPING,OUTRIGGER
PC1380006-05 DETECTOR,OUTRIGGER LENGTH
PD1010099-00 REDUCER,SWING SPEED
PD1010117-01 REDUCER,SWING SPEED (MOUNT)
PE1010232-04 CYLINDER,ELEVATING
PE1050066-02 CYLINDER,LEVELING (LOWER)
PE1050068-02 CYLINDER,LEVELING (UPPER)
PF1010091-01 WINCH (1-PART LINE)
PF1010349-00 WINCH
PF1050001-02 HOOK (1-PART LINE)
PF1200187-00 PIPING,WINCH
PF1350018-01 WINCH,JIB (FPR.INSULATION)
PF1350024-01 WINCH,JIB (SUPPORT)
PF1350025-00 WINCH,JIB (COVER)
PF1360003-05 CYLINDER,WINCH JIB (POWER)
PF1400251-00 MOUNT,WINCH
PG1010482-06 BOOM
PG1010483-06 BOOM
PG1050267-03 CYLINDER,TELESCOPING
PG1220010-01 PIPING,BOOM (FOR BOOM NO.1)
PG1220011-00 PIPING,BOOM (FOR BOOM NO.2)
PG1220016-01 PIPING,BOOM (FOR BOOM NO.3)
PG1220017-01 PIPING,BOOM (FOR BOOM NO.1)
PG1410030-00 COVER,BOOM
PG1410045-00 COVER,BOOM
PH1480002-00 MOTION CONTROLLER (AMC)
PH5030039-00 HARNESS
PH5030040-00 HARNESS
PH5031064-00 HARNESS
PH5031865-00 HARNESS
PH5031874-00 HARNESS
PH5031886-00 HARNESS
PH5031911-00 HARNESS
PH5031924-00 HARNESS
PH5031926-00 HARNESS
PH5031927-00 HARNESS
PH5031929-00 HARNESS
PH5031933-00 HARNESS
PH5031934-00 HARNESS
PH5031935-00 HARNESS
PH5031936-00 HARNESS
PH5031945-00 HARNESS
PI1010079-00 MOTOR,HYDRAULIC
PI1010095-01 MOTOR,HYDRAULIC
PI1010135-00 MOTOR,HYDRAULIC (WINCH)
PI1050002-00 RESERVOIR,OIL
PI1100007-00 VALVE,RELIEF
PI1100056-00 VALVE,RELIEF
PI1100123-00 VALVE,RELIEF
PI1120032-00 VALVE,SOLENOID
PI1120096-00 VALVE,SOLENOID
PI1120097-00 VALVE,SOLENOID
PI1120097-00 VALVE,SOLENOID
PI1120144-00 VALVE,SOLENOID
PI1120145-00 VALVE,SOLENOID
PI1120149-00 VALVE,SOLENOID
PI1140003-01 VALVE,CHECK
PI1140061-00 VALVE,CHECK
PI1140133-01 VALVE,CHECK
PI1190016-00 VALVE,PRESSURE REGULATOR
PI1250040-02 VALVE,COUNTERBALANCE
PI1250164-00 VALVE,COUNTERBALANCE
PI1280041-01 VALVE,PILOT CHECK
PI1280110-01 VALVE,PILOT CHECK
PJ3010047-00 BUCKET (INNER CASE,OPTION)
PJ3010100-01 BUCKET
PJ3030003-04 ARM,BUCKET
PJ3120005-02 PIPING,ARM
PJ3160011-00 BEAR,CABLE
PJ3200044-02 PIPING,BUCKET
PK1010429-00 FRAME
PK1100238-00 SWING FRAME
PK1130002-00 COVER,BEARING
PK1130006-00 COVER,BEARING
PK1330104-00 COVER (BUCKET,FOR SI)
PL1050018-00 OPERATION SYSTEM, BUCKET
PL1100097-01 BOX,OPERATION
PM5230010-00 MOTOR,OIL
PN1011700-03 ELEC.ASSY (BOOM/DETECTOR)
PN1011702-04 ELEC.ASSY (FRAME)
PN1011703-00 ELEC.ASSY (SWING FRAME)
PN1011705-00 ELEC.ASSY (ARM)
PN1011706-01 ELEC.ASSY (BUCKET)
PN1030030-01 OPTICAL CABLE (CLAMP)
PN1030031-01 OPTICAL CABLE (CLAMP)
PN1030033-00 OPTICAL CABLE (CLAMP,BUCKET)
PN1190003-00 CONVERTER (DC-DC,12V)
PN1210028-00 TRANSMITTER,SIGNAL (BUCKET)
PN1210029-00 TRANSMITTER,SIGNAL (SWING FRAME)
PN1210029-00 TRANSMITTER,SIGNAL (SWING FRAME)
PN1210102-00 TRANSMITTER,SIGNAL (BUCKET)
PN1350022-00 REEL,CORD
PN1370155-00 BATTERY
PN1410005-00 MOTOR,ELECTRIC
PO1012093-01 PLATE,INDICATION
PS5150001-00 SHACKLE
PV5070007-00 VALVE ASSY,COUNTERBALANCE
PV5240009-00 VALVE ASSY,SOLENOID
PV5240010-00 VALVE ASSY,SOLENOID
PV5240011-00 VALVE ASSY,SOLENOID
PV5240012-00 VALVE ASSY,SOLENOID
PW1010167-00 ACCESSORIES
PW1010381-00 ACCESSORIES (WRENCH)
PW1030047-01 TOOLS
PY1160063-03 BOOSTER
PY1170014-01 BOOSTER
PY1930004-00 BLOCK,RUBBER (WAZUMI)
PY1930005-00 BLOCK,RUBBER (NAKAMURA)
PY2350003-01 SWITCH,BOOSTER
PY2350004-01 SWITCH,BOOSTER
